Introduction
This user manual provides essential information for the safe and efficient operation of your Ekrist Portable Charger Power Bank 25,800mAh. Designed for on-the-go use, this power bank ensures your smart devices remain connected at all times. Featuring an advanced intelligent controlling IC, it offers enhanced safety, efficiency, and broad compatibility. Each unit undergoes 100% inspection and continuous aging tests to guarantee unprecedented convenience and reliable performance.
Кутуда эмне бар
- 1 x Ekrist 25800mAh көчмө кубаттагыч
- 1 x USB C кабели
- 1 x User Manual
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Кубаттуулугу | 25800mAh |
| Батарея түрү | Литий-полимер (А классындагы CE RoHs жана UL сертификаты менен белгиленген) |
| Киргизүү | 5V/3A |
| Чыгуу | Triple Output: 2x USB-A, USB-C (5V/3A) |
| Өлчөмдөр | 0.72 x 2.95 x 5.94 дюйм (1.83 x 7.49 x 15.09 см) |
| Элемент Салмагы | 11.8 унция (335g) |
| Түс | Жашыл |
| Модель номери | HX160Y8 |

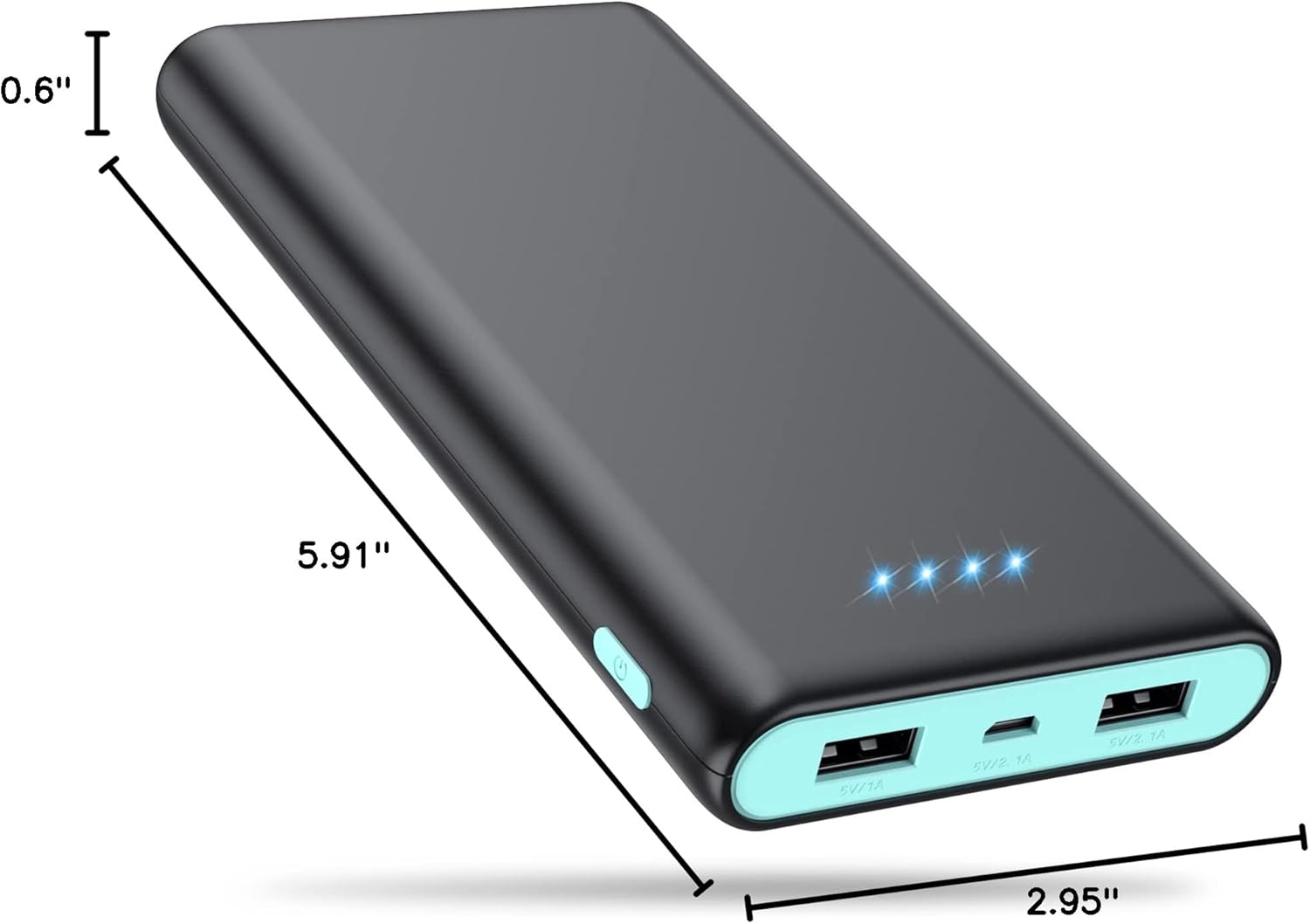

Сүрөт 1: Продукциянын өлчөмдөрү
Негизги өзгөчөлүктөрү
- Ультра жогорку сыйымдуулук: With a 25800mAh capacity, this power bank can charge most smartphones 6-8 times, eliminating battery anxiety during travel or outdoor activities.
- Triple USB Charging & USB-C In/Out: Equipped with three USB ports (2.1A, 1A, and 3A USB-C), allowing you to charge up to three devices simultaneously without compromising charging speed.

Figure 2: Triple Output Ports
- Intelligent Smart IC & Certified Safe: Features an advanced intelligent controlling IC for higher quality, safer, and more reliable performance. Built-in smart protection system ensures complete protection against overcurrent, high temperature, overcharge, and overvoltage.

3-сүрөт: Бир нече коргоо функциялары
- 4 LED кубаттуулук индикаторлору: Four blue LED lights clearly show the remaining power level (25%~50%~75%~100%), allowing you to monitor the battery status at a glance.

Figure 4: LED Power Indicators
- Жалпы шайкештик: Compatible with a wide range of devices including iPhone (16/15/14/13/12/11/X/6/6s/7/8 Series), Android phones (Samsung Galaxy S25/S24/S23 Series, Google Pixel, Moto), tablets (iPad Pro), and other USB smart devices.

Figure 5: Universal Device Compatibility
- Flight Safe & Portable Design: Its lightweight and compact design makes it easy to carry in a pocket, bag, or fanny pack, and it is safe for air travel.

6-сүрөт: Компакттуу жана көчмө дизайн
Жайгашуу
- Баштапкы төлөм: Before first use, fully charge the power bank. Connect the included USB-C cable to the power bank's USB-C port and connect the other end to a compatible AC adapter (not included). The LED indicators will light up to show charging progress. All four LEDs will be solid blue when fully charged.
- Батарея деңгээлин текшерүү: Briefly press the power button on the side of the power bank to check the current battery level indicated by the blue LED lights.
Иштөө нускамалары
- Түзмөктөрүңүздү заряддоо:
- Connect your device's charging cable to one of the power bank's USB output ports (USB-A or USB-C).
- Кабелдин экинчи учун шайманга туташтырыңыз.
- The power bank will automatically begin charging your device. The blue LED indicators will remain lit during charging.

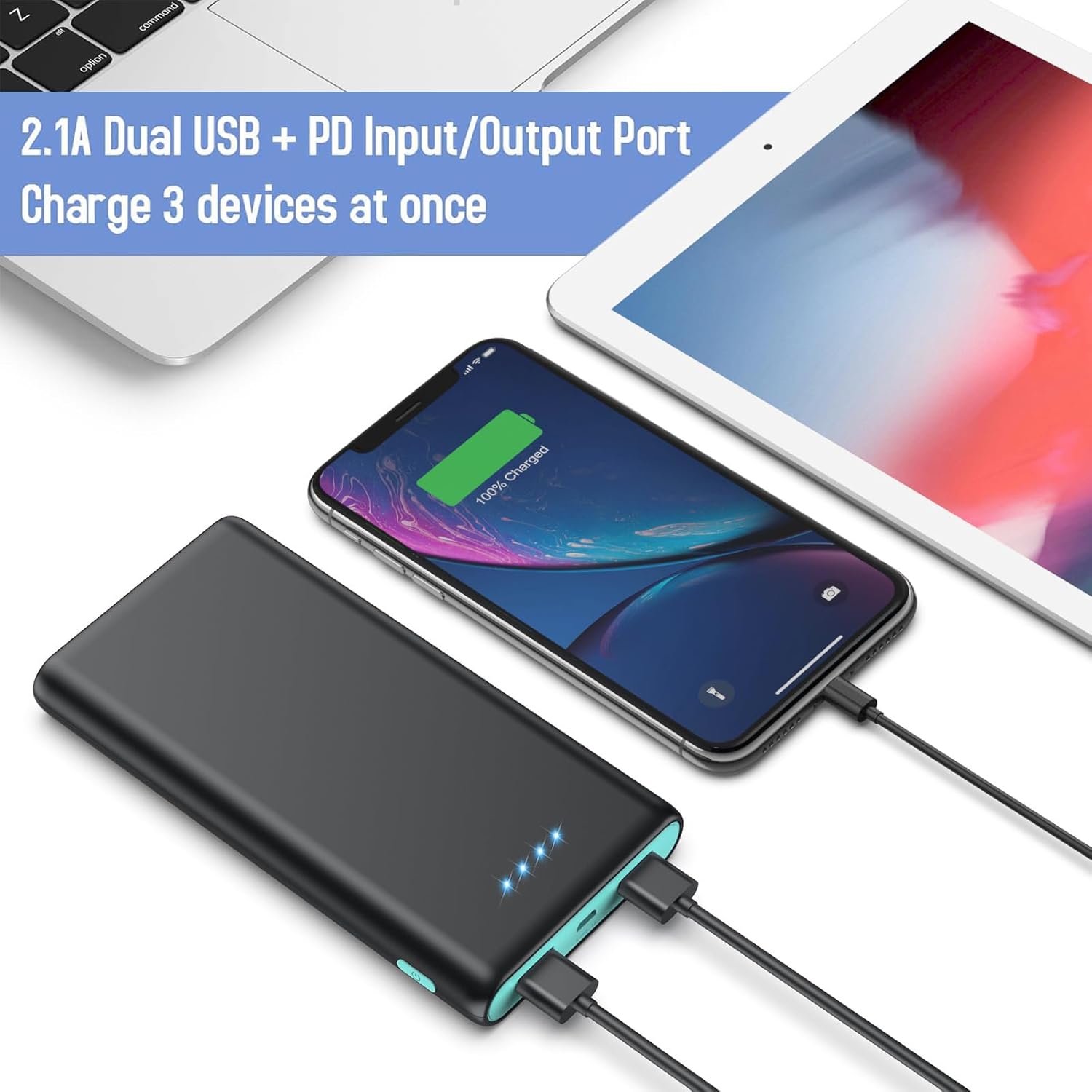

7-сүрөт: Бир нече түзмөктөрдү кубаттоо
- Power банкты кайра заряддоо:
- Use the included USB-C cable or your original device's cable.
- Connect the USB-C end to the power bank's USB-C input/output port.
- Connect the other end to a USB wall charger (e.g., 2.1A or 3A for faster charging) or a computer USB port.
- The LED indicators will flash to show charging status and become solid when fully charged.
Кароо жана тейлөө
- Power банкты экстремалдык температурадан, тике күн нурунан жана суюктуктардан алыс кармаңыз.
- Avoid dropping or subjecting the power bank to strong impacts, as this can damage internal components.
- Power банкты жумшак, кургак чүпүрөк менен тазалаңыз. Катуу химиялык заттарды же абразивдүү материалдарды колдонбоңуз.
- Store the power bank in a cool, dry place when not in use. For long-term storage, it is recommended to charge it to about 50% every 3 months to preserve battery life.
Проблемаларды чечүү
- Power Bank заряддалбай жатат:
- Заряддоо кабели кубат банкына да, кубат булагына да бекем туташып турганын текшериңиз.
- Try a different USB-C cable or AC adapter.
- Кубат булагынын (розетка, компьютердин USB порту) иштеп турганын текшериңиз.
- Түзмөк Power Bankтан кубатталбай жатат:
- Check if the power bank has sufficient charge (indicated by LED lights).
- Ensure your device's charging cable is properly connected to both the power bank and your device.
- Power bank'теги башка USB чыгаруу портун колдонуп көрүңүз.
- Verify your device's charging cable is not damaged.
- Some devices may require a specific charging current; ensure compatibility.
- Жай кубаттоо:
- Ensure you are using a high-speed charging port (e.g., 2.1A or 3A USB-C) on the power bank and a compatible wall adapter.
- Using multiple ports simultaneously may reduce individual charging speeds.
- Check the quality of your charging cable; a low-quality or damaged cable can slow down charging.
Кепилдик жана колдоо
Ekrist камсыз кылат 24 айлык колдоо кызматтары for your 25800mAh portable battery charger. This includes friendly, easy-to-reach support for any questions or issues you may encounter. Please refer to your purchase documentation for specific warranty claim procedures or contact Ekrist customer service directly for assistance.
For further assistance, please visit the official Ekrist support webсайтка же кардарларды тейлөө тобуна кайрылыңыз.
