Flysky FS-iBH07 7CH кеңейткич колдонуучусунун колдонмосу

1. Продукт бүтүп калдыview

The Flysky FS-iBH07 is a compact 7-channel expander designed for use with i-BUS2 protocol signal output functions. It provides additional PWM channels and allows for the connection of multiple i-BUS2 devices, making it suitable for various RC models including aircraft, cars, boats, and robots.

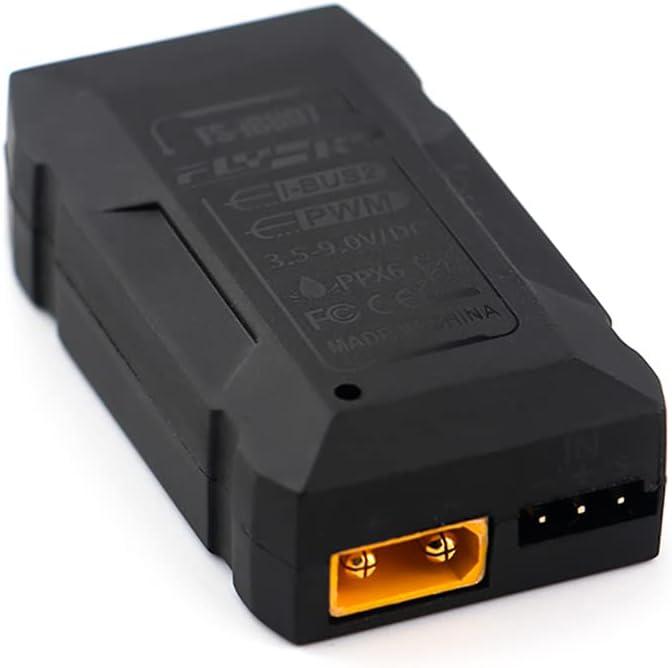

Сүрөт 1: Алдыңкы view of the Flysky FS-iBH07 7CH Expander. This image shows the compact black casing of the expander module, highlighting its primary form factor.

2. Негизги өзгөчөлүктөрү

• Adaptive Transmitter: Compatible with products featuring i-BUS2 signal output function.
• Versatile Model Compatibility: Ideal for aircraft, cars, boats, and robots.
• 7 канал: Provides 7 output channels for expanded control.
• Flexible Data Output: Supports both PWM and i-BUS2 data output.
• Компакт өлчөмү: Dimensions of 46.5mm x 26.2mm x 12.6mm for easy integration.
• Каналды кеңейтүү: Meets requirements for PWM channel expansion or connecting multiple i-BUS2 devices.

3. Техникалык шарттар

Figure 2: Product packaging displaying detailed specifications and certifications. This image confirms the technical parameters and regulatory compliance of the FS-iBH07 expander.

4. Пакеттин мазмуну

Пакетти ачканда, сиз төмөнкү нерселерди табышыңыз керек:

• 1x Flysky FS-iBH07 7CH Expander Module
• Connection Cables (as shown in Figure 3)

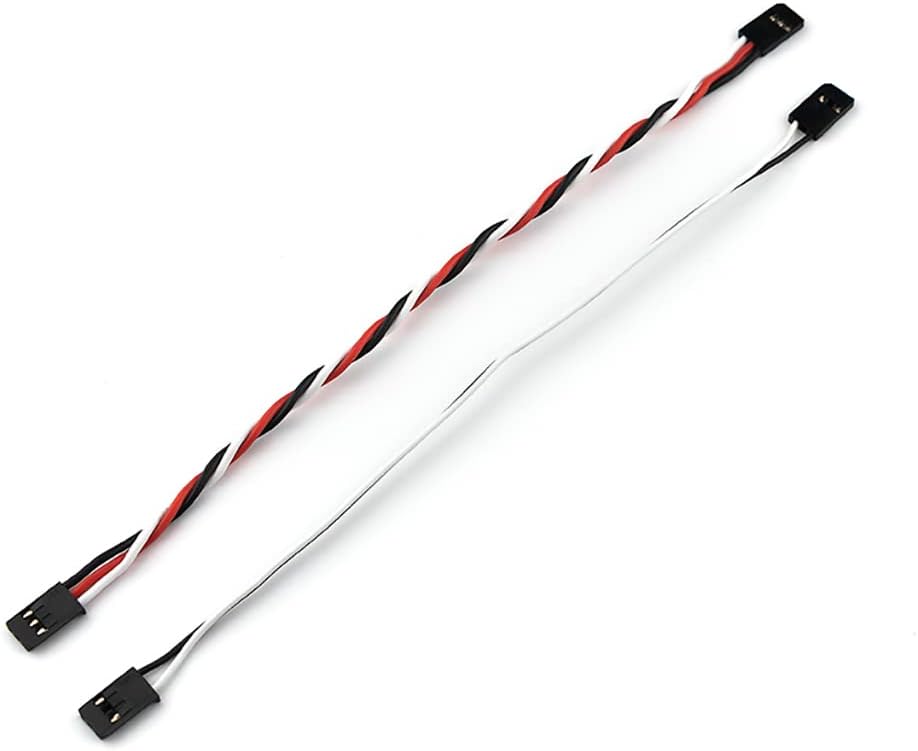

Figure 3: Included connection cables. These cables are essential for connecting the expander to your receiver and other components.

5. Product Diagram and Pinout

Understanding the layout and pin assignments of the FS-iBH07 is crucial for proper installation and operation. Refer to the diagrams below for detailed views of the expander's ports and indicators.

4-сүрөт: жарылган view and pinout diagram of the FS-iBH07. This diagram labels various ports and features for easy identification.

Key to Diagram (Figure 4):

1. Output 1 (PWM)
2. Output 2 (PWM)
3. Output 3 (PWM)
4. Output 4 (PWM)
5. Output 5 (PWM)
6. Output 6 (PWM)
7. Output 7 (PWM)
8. i-BUS2 Input Port
9. Power Input Port (3.5V-9.0V DC)
10. Монтаждоо тешиги
11. Монтаждоо тешиги
12. Монтаждоо тешиги
13. Монтаждоо тешиги
14. LED көрсөткүч

Figure 5: Close-up of the 7-channel PWM output ports. This image clearly shows the arrangement of the output pins labeled 1 through 7.

6. Орнотуу жана орнотуу

Follow these steps to properly install and set up your FS-iBH07 expander:

1. Алуучуга туташуу: Connect the i-BUS2 input port (labeled [8] in Figure 4) of the FS-iBH07 to the i-BUS2 output port of your compatible Flysky receiver using the provided connection cable. Ensure the polarity is correct.
2. Кубат туташуу: Connect a power source (3.5V-9.0V DC) to the power input port (labeled [9] in Figure 4). Ensure the voltage зыяндын алдын алуу үчүн көрсөтүлгөн диапазондо.
3. PWM Device Connection: Connect your PWM-controlled devices (e.g., servos, ESCs) to the desired output channels (labeled [1] to [7] in Figure 4 and Figure 5). Each channel corresponds to a specific PWM output.
4. Коопсуз орнотуу: Use the mounting holes (labeled [10] to [13] in Figure 4) to securely mount the expander within your model. Ensure it is protected from vibrations and moisture.
5. Баштапкы кубаттоо: Power on your receiver and transmitter. Observe the LED indicator (labeled [14] in Figure 4) on the FS-iBH07. A steady light typically indicates a successful connection and proper operation.

Note: Always refer to your receiver's manual for specific i-BUS2 output details and power supply recommendations.

7. Операция

Once installed and powered, the FS-iBH07 expander operates by converting the i-BUS2 signal from your receiver into individual PWM signals for the 7 output channels. It also allows for the daisy-chaining of other i-BUS2 devices.

• PWM чыгаруу: Each of the 7 output ports provides a standard PWM signal, allowing you to control servos, ESCs, or other PWM-compatible devices.
• i-BUS2 Passthrough: The expander acts as a hub for the i-BUS2 protocol, enabling the connection of multiple i-BUS2 devices in series.
• Signal Expansion: This module is particularly useful when your receiver has fewer PWM outputs than required for your model, or when you need to integrate multiple i-BUS2 sensors or modules.

8. Техникалык тейлөө

To ensure the longevity and reliable performance of your FS-iBH07 expander, follow these simple maintenance guidelines:

• Тазалыкты сактоо: Regularly clean the exterior of the expander with a soft, dry cloth. Avoid using solvents or harsh chemicals.
• Нымдан коргоо: Although rated PPX6 water-resistant, avoid prolonged exposure to water or extreme humidity. Ensure connections are dry before powering on.
• Байланыштарды текшерүү: Бардык зымдарды жана туташтыргычтарды эскирүүнүн, дат басуунун же бош туташуулардын белгилерин мезгил-мезгили менен текшерип туруңуз. Бош зымдарды бекитиңиз.
• Сактагыч: When not in use, store the expander in a cool, dry place, away from direct sunlight and extreme temperatures.
• Физикалык зыянды болтурбоо: Protect the module from impacts or excessive force, which can damage internal components.

9. Кыйынчылыктарды

If you encounter issues with your FS-iBH07 expander, consider the following common troubleshooting steps:

If these steps do not resolve the issue, please contact your retailer or Flysky customer support for further assistance.
