Keenz XC+ EVO 4 Passenger Stroller Wagon Instruction Manual

Introduction

The Keenz XC+ EVO 4 Passenger Stroller Wagon is designed to provide a luxurious and versatile solution for family outings. This manual provides essential information for the safe and effective use, maintenance, and troubleshooting of your stroller wagon. Please read it thoroughly before initial use and retain it for future reference.

Figure 1: The Keenz XC+ EVO 4 Passenger Stroller Wagon in its full configuration, showcasing its robust design and spacious interior.

Маанилүү коопсуздук маалыматы

Always prioritize safety when using the Keenz XC+ EVO. Failure to follow these instructions could result in serious injury.

• Always use the 5-point harnesses for all children seated in the wagon.
• Ensure all locking mechanisms are engaged before placing children in the wagon or moving it.
• Do not exceed the maximum weight capacity of 326 lbs total (55 lbs per seat).
• Never leave children unattended in the stroller wagon.
• Keep hands and fingers clear of moving parts when folding or unfolding the wagon.
• This product is recommended for children 6+ months.
• The Keenz XC+ EVO is JPMA certified, meeting 16 CFR 1227 and ASTM F833-13 safety standards.

Орнотуу жана баштапкы Ассамблея

Your Keenz XC+ EVO Stroller Wagon comes partially assembled. Follow these steps for initial setup:

1. Арабаны жайып: Release any transport locks. Grasp the frame and pull upwards until the wagon fully extends and locks into place. Ensure all frame joints are securely latched.
2. Дөңгөлөктөрдү бекитүү: The all-terrain rubber wheels are designed for easy attachment. Insert each wheel into its designated slot until it clicks securely. Verify they are firmly attached by gently pulling on them.
3. Installing Seats: Position the reclining and removable seats within the wagon's interior. Secure them using the integrated attachment points. The seats can be configured in five unique positions to suit your needs.
4. Attaching Canopy: Insert the canopy poles into the designated receivers on the wagon frame. Attach the UV-protective canopy system over the poles. The canopy features blackout panels for enhanced shade and privacy.
5. Adjusting Handlebars: Locate the adjustment buttons near the handlebar pivot points and press to adjust the height and angle.

Figure 2: Demonstrates the adjustable handlebars, allowing for comfortable pushing or pulling from either end of the wagon.

Operating Your Stroller Wagon

Seating Configurations

The Keenz XC+ EVO offers flexible seating options for up to four children. The seats are removable and reclinable, allowing for various arrangements to maximize comfort and utility. Experiment with different configurations to find what best suits your family's needs.

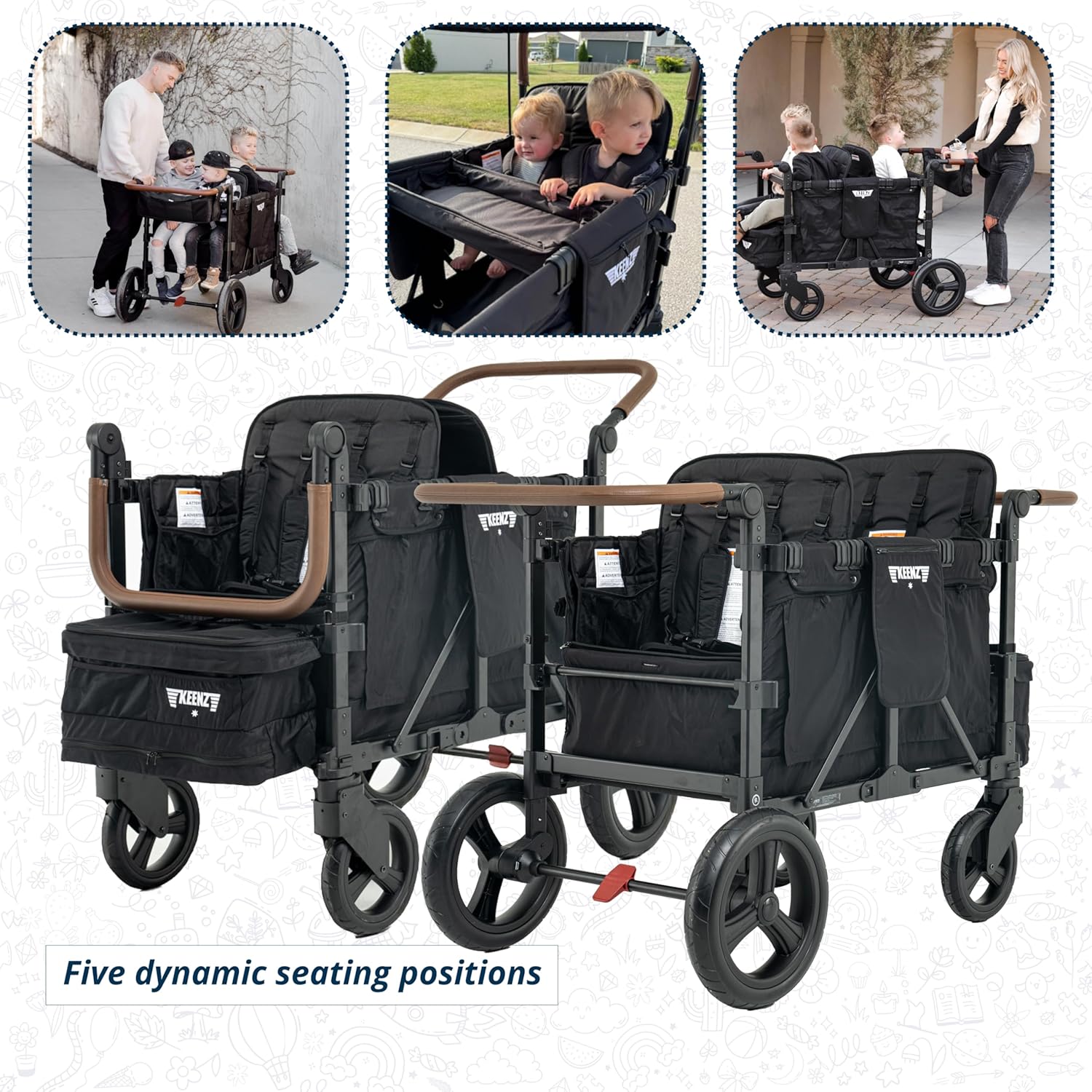

Figure 3: Illustrates five dynamic seating positions, highlighting the versatility of the removable and reclinable seats.

Canopy and Storage

The UV-protective canopy with blackout panels provides essential shade. The wagon also features a spacious cargo net and a convenient snack tray with cup holders. The snack tray is removable for easy cleaning or when not needed.

Figure 4: Close-up of the removable snack tray with sippy cup spots and the secure 5-point adjustable harness system.

Бүктөө жана ачуу

The Keenz XC+ EVO is designed for easy folding and unfolding. To fold, ensure all seats are upright and the canopy is removed. Locate the folding mechanisms on the frame and engage them to collapse the wagon. Always secure the transport lock once folded.

Тормоз системасы

The wagon features a 1-step foot brake system for secure stopping. Press down firmly on the red pedal located near the rear wheels to engage the brake. Lift the pedal to release.

Figure 5: Detail of the durable rubber wheels for better traction and the convenient 1-step foot brake system.

Техникалык тейлөө

• Тазалоо: Regularly wipe down the fabric and frame with a damp cloth and mild soap. Avoid harsh chemicals. Allow to air dry completely before folding or storing.
• Дөңгөлөккө кам көрүү: Inspect wheels periodically for debris or wear. Clean the wheel axles and lubricate as needed to ensure smooth operation.
• Сактагыч: Store the stroller wagon in a dry, cool place away from direct sunlight to prevent material degradation.

Проблемаларды чечүү

If you encounter any issues with your Keenz XC+ EVO Stroller Wagon, please refer to the following common solutions:

• Wagon not folding/unfolding smoothly: Check for any obstructions in the folding mechanisms. Ensure all components are properly aligned.
• Дөңгөлөктөр эркин айланбайт: Remove any tangled hair, string, or debris from around the wheel axles. Lubricate if necessary.
• Harness not securing: Ensure straps are not twisted and buckles are free of debris. Adjust straps for a snug fit.

For persistent issues or concerns not addressed here, please contact Keenz Customer Support.

Продукт спецификациялары

Figure 6: Detailed diagram illustrating the key dimensions and weight capacities of the Keenz XC+ EVO Stroller Wagon.

Кепилдик жана колдоо

Keenz products are built with quality and durability in mind. For specific warranty details, please refer to the warranty card included with your product or visit the official Keenz webсайт.

For customer support, inquiries, or assistance with your Keenz XC+ EVO Stroller Wagon, please contact:

Keenz Stroller Wagons USA
Visit their store on Amazon: Keenz Store

For general inquiries, please refer to the contact information provided on the official Keenz webсайт.
