1. Introduction and Overview
Welcome to the INMOTION CLIMBER Electric Scooter user manual. This document provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new electric scooter. The INMOTION CLIMBER is designed for adults, featuring dual 450W motors for powerful performance, an impressive range of up to 55km, and a top speed of 25km/h (limited) or 35km/h (on private terrain). It is equipped with an advanced SMART BSM battery system, a reliable braking system, and an efficient LED lighting system for enhanced safety and visibility.
1.1-сүрөт: Толук view of the INMOTION CLIMBER Electric Scooter.
Сүрөт 1.2: Алдыңкы view of the INMOTION CLIMBER, highlighting the headlight and handlebar.
2. Коопсуздук маалыматы
Your safety is paramount. Always adhere to local laws and regulations regarding electric scooter usage. Wear a helmet and appropriate protective gear. Avoid riding in adverse weather conditions or on slippery surfaces. Do not exceed the maximum weight limit of 130 kg. Familiarize yourself with the braking system before your first ride.
- Ар дайым сертификатталган туулга жана башка коргоочу каражаттарды (тизе жаздыкчалары, чыканак жаздыкчалары) кийиңиз.
- Бардык жергиликтүү жол мыйзамдарына жана эрежелерине баш ийиңиз.
- Ичкиликтин же баңгизаттын мас абалында минүүгө болбойт.
- Катуу жамгырда, кар жааганда же муздуу жерлерде жүрүүдөн качыңыз.
- Ensure both electronic and disc brakes are functioning correctly before each ride.
Figure 2.1: Close-up of the rear disc brake mechanism, part of the dual braking system.
3. Кутуда эмне бар
Upon unboxing your INMOTION CLIMBER Electric Scooter, please verify that all components are present and in good condition:
- INMOTION CLIMBER Electric Scooter (main unit)
- Колдонуучунун Колдонмосу (бул документ)
- Кубаттагыч
4. Чогултуу жана орнотуу
The INMOTION CLIMBER Electric Scooter comes partially assembled. Follow these steps to complete the setup:
- Скутерди жана бардык тетиктерди таңгактан этияттык менен алып чыгыңыз.
- Lift the steering column until it locks into place. Ensure the folding mechanism is securely latched.
- Attach the handlebars to the steering column. Ensure all cables are properly connected and not pinched. Tighten any screws as indicated in the quick start guide (if provided separately).
- Fully charge the battery before first use. Connect the charger to the charging port and plug it into a power outlet. The indicator light on the charger will change when fully charged.
- Check tire pressure. Ensure tires are inflated to the recommended PSI for optimal performance and safety.
4.1-сүрөт: Бөлүнгөн view of the main scooter parts, illustrating components for assembly.
5. Иштөө нускамалары
Familiarize yourself with the controls and features of your INMOTION CLIMBER before riding.
5.1. Күйгүзүү / Өчүрүү
Скутерди күйгүзүү же өчүрүү үчүн LED дисплейдеги кубат баскычын басып, кармап туруңуз.
5.2. Riding and Speed Control
To start riding, kick off with one foot and then gently press the accelerator. The scooter features dual 450W motors for powerful acceleration and hill climbing. The maximum speed is limited to 25km/h for public roads, but can reach up to 35km/h on private property.
Figure 5.1: A rider demonstrating the INMOTION CLIMBER's ability to ascend steep inclines.
5.3. Тормоздоо системасы
The CLIMBER is equipped with a dual braking system: Electronic Braking System (EBS) and disc brakes. Apply the brake lever gently to slow down, and firmly for emergency stops. The EBS provides stable and safe stopping power.
5.2-сүрөт: Детальдуу view of the electronic and disc brake components working in tandem.
5.4. Lighting and Display
The scooter features an efficient front headlight that projects light up to 15 meters, along with rear lights and turn indicators for visibility. The integrated LED display shows real-time speed, battery level, and allows access to various settings. Press the appropriate button on the display to activate the headlight.
Figure 5.3: Close-up of the handlebar, brake lever, and the integrated LED display.
Figure 5.4: Detail of the integrated front headlight for improved visibility.
Figure 5.5: Close-up of the digital LED display showing key riding information.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your INMOTION CLIMBER.
- Батареяга кам көрүү: The SMART BSM system constantly monitors the battery to prevent aging and prolong its lifespan. Always use the original charger. Avoid fully draining the battery or leaving it uncharged for extended periods. Store the scooter in a cool, dry place.
- Шина басымы: Check tire pressure regularly and inflate to the recommended PSI (usually indicated on the tire sidewall or in specifications).
- Brake Checks: Тормоз колодкаларынын жана дисктеринин эскиргендигин мезгил-мезгили менен текшерип туруңуз. Тормоз рычагдарынын бир калыпта иштеп, жетиштүү токтотуу күчүн камсыз кылганын текшериңиз.
- Тазалоо: Скутерди жарнама менен тазалаңызamp кездеме. Жогорку басымдагы суу агымдарын же коррозияга каршы тазалоочу каражаттарды колдонбоңуз. Заряддоодон мурун заряддоо порту кургак экенин текшериңиз.
- Жалпы текшерүү: Regularly check all screws and fasteners for tightness. Inspect the frame for any signs of damage.
6.1-сүрөт: жарылган view of the wheel, disc, and brake caliper components for maintenance reference.
7. Кыйынчылыктарды
If you encounter issues with your INMOTION CLIMBER, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Скутер күйбөйт | Батарея аз; Байланыш үзгүлтүккө учурады; Кубат баскычынын иштебей калышы | Charge the battery; Check all connections; Contact support if issue persists. |
| Кыскартылган диапазон/кубат | Low tire pressure; Battery degradation; Overload | Inflate tires to correct pressure; Ensure battery is fully charged; Do not exceed weight limit. |
| Тормоздор эффективдүү эмес | Worn brake pads; Loose brake cable; Air in hydraulic system (disc brakes) | Inspect and replace brake pads; Adjust brake cable tension; Seek professional service for hydraulic issues. |
| адаттан тыш үндөр | Бош калган тетиктер; Дөңгөлөктөрдөгү/тормоздордогу калдыктар; Мотордогу көйгөй | Check all fasteners; Clean wheels/brakes; Contact support for motor issues. |
If the problem persists after attempting these solutions, please contact INMOTION customer support.
8. Техникалык шарттар
Detailed technical specifications for the INMOTION CLIMBER Electric Scooter:
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель аты | Альпинист |
| Продукциянын өлчөмдөрү | 116 x 47 x 118.6 см |
| Салмагы | 20.8 кг |
| Колдоого алынган максималдуу салмак | 130 кг |
| Мотор күчү | 2 x 450W (Dual Motors) |
| Батарея түрү | Литий-ион (1 камтылган) |
| Батарея сыйымдуулугу | 533 Вт / 15 Ah |
| Максималдуу диапазон | 55 кмге чейин |
| Maximum Speed (Limited) | 25 км/саат |
| Maximum Speed (Private Terrain) | 35 км/саат |
| Тормоз түрү | Electronic Braking System (EBS) and Disc Brakes (Front & Rear) |
| Wheel Size | 10 Centimeters (diameter) |
| Frame Material | Металл |
| Сунушталган Жаш | Чоңдор |
| Өзгөчөлүктөр | Wide Footboard, LED Display, Efficient Lighting, Turn Indicators |
Figure 8.1: Visual representation of key specifications for the INMOTION CLIMBER.
8.2-сүрөт: жарылган view illustrating the internal components of the 450W motor.

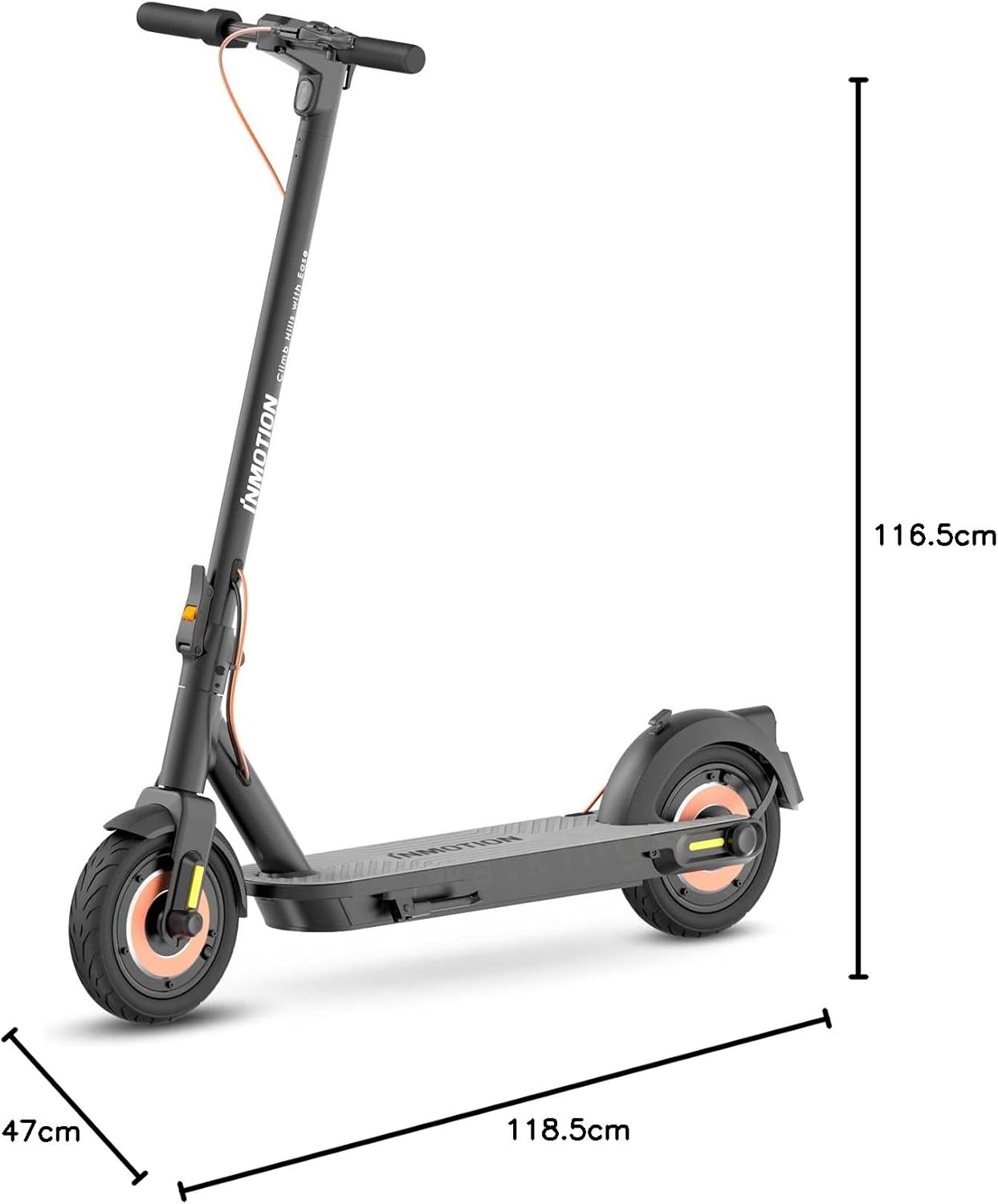

Figure 8.3: Diagram showing the overall dimensions of the INMOTION CLIMBER Electric Scooter.
8.4-сүрөт: Каптал view of the INMOTION CLIMBER in its folded configuration for easy storage and transport.
9. Кепилдик жана колдоо
Your INMOTION CLIMBER Electric Scooter comes with a standard manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions. For technical support, spare parts, or warranty claims, please contact INMOTION customer service through their official webсайтка же продуктуну сатып алган сатуучуга. Кепилдикти текшерүү үчүн сатып алганыңыздын далилин сактаңыз.
