Kinetik HC2400-BLU Power Cell колдонуучусунун колдонмосу

1. Киришүү

Thank you for choosing the Kinetik HC2400-BLU 2400 Watt Power Cell. This high-current power cell is engineered to provide stable and efficient power for demanding car stereo systems. Designed with advanced AGM (Absorbed Glass Mat) technology, it offers superior energy density, vibration resistance, and a longer lifespan compared to traditional batteries. This manual provides essential information for the safe and effective use of your Kinetik Power Cell.

• Жогорку ток чыгаруу: Delivers 2400 watts of power for robust audio performance.
• Sealed Non-Spillable Design: Allows for mounting in various positions without leakage.
• Vibration and Heat Resistance: Tightly packed cells enhance durability in automotive environments.
• AGM технологиясы: Ensures better power efficiency and extended life.

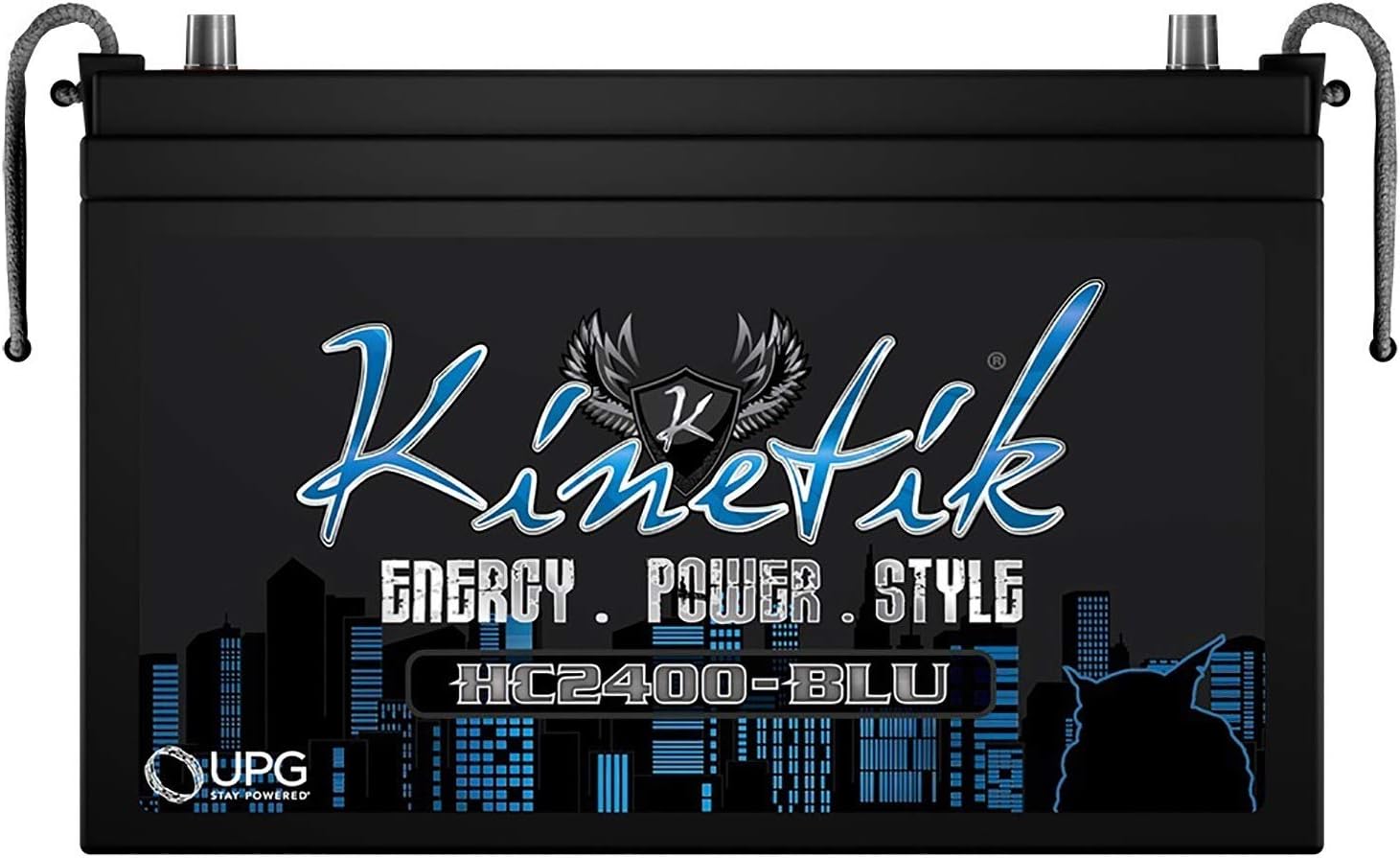

Figure 1.1: Kinetik HC2400-BLU Power Cell, front view, showcasing the Kinetik logo and model number.

2. Коопсуздук маалыматы

Your Kinetik Power Cell is a powerful electrical device. Please read and understand all safety warnings before installation and operation to prevent injury or damage.

• Кыска туташуу кылбаңыз: Connecting the positive and negative terminals directly will cause a short circuit, leading to severe damage, fire, or explosion.
• Extreme High Current: This power cell can deliver very high currents. Exercise extreme caution during handling and connection.
• Do Not Over Tighten Terminals: Over-tightening can damage the terminals and internal connections. Refer to recommended torque specifications if available, or tighten until snug.
• Вентиляция: Although sealed, ensure adequate ventilation in the installation area. Do not operate in a non-ventilated compartment.
• Көздү коргоо: Батареялар менен иштегенде ар дайым тиешелүү коргоочу көз айнек тагыныңыз.
• No Smoking/Sparks: Keep flames, sparks, and smoking materials away from the battery.
• Балдар жетпеген жерде сактаңыз: Batteries contain hazardous materials.
• Туура жок кылуу: Батареяны жергиликтүү эрежелерге ылайык жок кылыңыз. Өрттөбө.

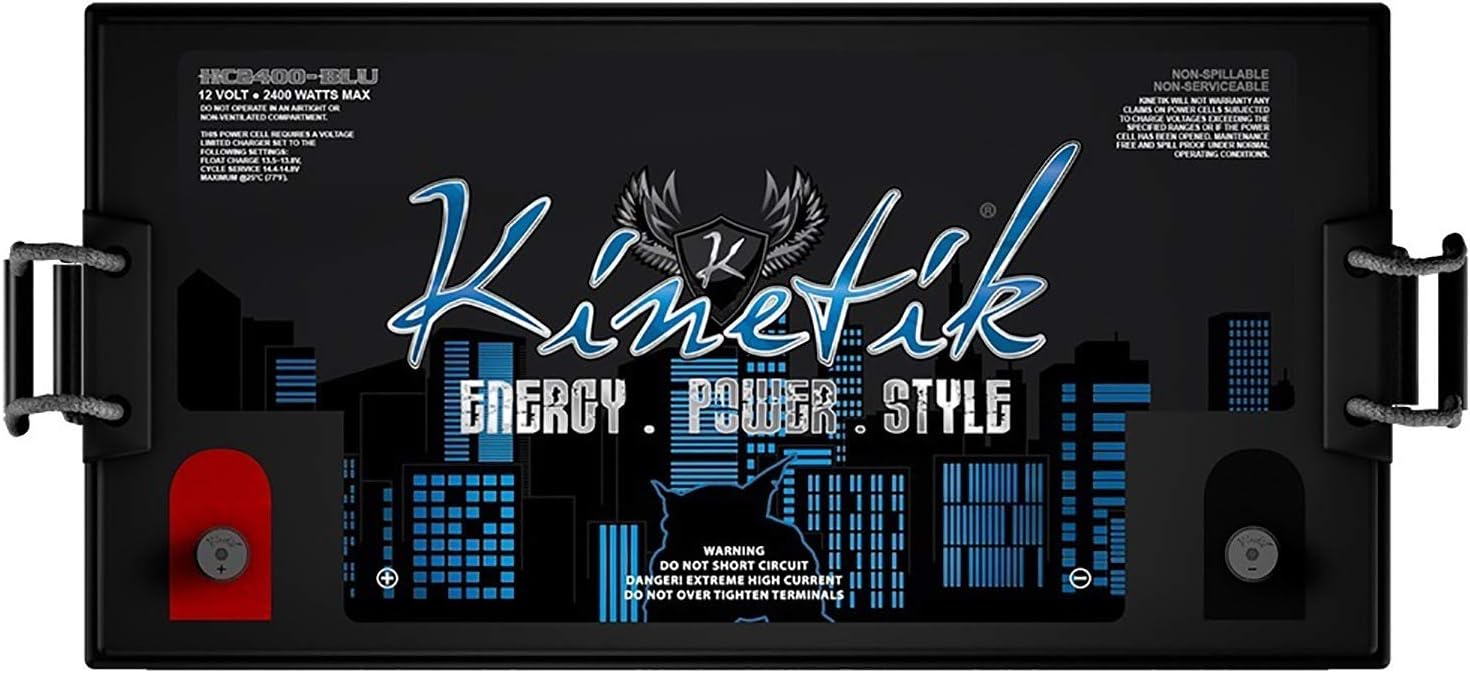

2.1-сүрөт: Жогорку view of the Kinetik HC2400-BLU Power Cell, highlighting important safety warnings and terminal information.

3. Орнотуу жана орнотуу

Proper installation is crucial for the performance and longevity of your Kinetik Power Cell. It is highly recommended that installation be performed by a qualified professional.

1. Даярдоо: Ensure the vehicle's ignition is off and the existing battery's negative terminal is disconnected first to prevent accidental short circuits. Wear safety glasses and gloves.
2. Монтаждоо жери: Choose a secure, well-ventilated location that can support the battery's weight (approximately 62.7 pounds). The sealed design allows for mounting in any position, but ensure it is stable and protected from physical damage.
3. Терминалды тазалоо: Clean the battery terminals and cable connectors thoroughly to ensure good electrical contact. Use a wire brush if necessary.
4. Байланыш: Connect the positive (+) cable to the positive (+) terminal of the Kinetik Power Cell first. Then, connect the negative (-) cable to the negative (-) terminal. Ensure connections are snug but do not over-tighten.
5. Securing the Battery: Use appropriate battery hold-downs or straps to secure the power cell firmly in place. This prevents movement and potential damage from vibration.
6. Системаны текшерүү: After installation, double-check all connections. Reconnect the vehicle's main battery (if applicable) and test the car stereo system.

3.1-сүрөт: Бурчтуу view of the Kinetik HC2400-BLU Power Cell, illustrating the positive and negative terminals for connection.

4. Иштөө нускамалары

The Kinetik HC2400-BLU Power Cell is designed to integrate seamlessly into your car's electrical system, primarily to provide stable and high-current power for your audio components. It functions as a supplemental power source, ensuring your stereo system receives consistent voltage even during peak demands.

• Тtage диапазону: This power cell operates at 12 volts. Ensure your car stereo system and associated components are compatible with a 12V power source.
• Заряддоо: The power cell is designed to be charged by your vehicle's charging system (alternator). For optimal performance and longevity, ensure your vehicle's charging system is functioning correctly. The recommended float charge is 13.5-13.8V, and cyclic charge is 14.4-15.0V.
• Кубат жеткирүү: The HC2400-BLU provides a stable power supply, minimizing voltage drops that can occur with high-power audio amplifiers, leading to clearer sound and improved ampкөтөргүчтүн эффективдүүлүгү.
• Температура: Operate the power cell within normal automotive temperature ranges. Extreme temperatures can affect performance and lifespan.

5. Техникалык тейлөө

The Kinetik HC2400-BLU Power Cell is a non-serviceable, maintenance-free battery. However, some simple checks can help ensure its optimal performance and longevity.

• Терминалдык текшерүү: Periodically inspect the battery terminals and cable connections for corrosion or looseness. Clean any corrosion with a battery terminal brush and baking soda solution, then rinse with water and dry thoroughly. Ensure connections remain snug.
• Батарея Casing: Keep the battery casing clean and free of dirt or debris. Wipe it down with a damp зарыл болсо, кездеме.
• Тtage Мониторинг: If possible, periodically check the battery's voltage with a multimeter. A fully charged 12V AGM battery should read around 12.8V to 13.0V when the vehicle is off.
• Терең разряддан качуу: While AGM batteries are robust, repeatedly allowing the battery to deep discharge can shorten its lifespan. Ensure your vehicle's charging system is adequate to keep the battery charged.
• Сактагыч: If storing the power cell for an extended period, ensure it is fully charged and stored in a cool, dry place. Periodic trickle charging may be beneficial for very long storage periods.

5.1-сүрөт: Бурчтуу view of the Kinetik HC2400-BLU Power Cell, showing its compact and durable design suitable for automotive environments.

6. Кыйынчылыктарды

This section addresses common issues you might encounter with your Kinetik Power Cell.

If you experience issues not listed here or if the suggested solutions do not resolve the problem, please contact Kinetik customer support or consult a professional automotive electrician.

7. Техникалык шарттар

Detailed technical specifications for the Kinetik HC2400-BLU Power Cell.

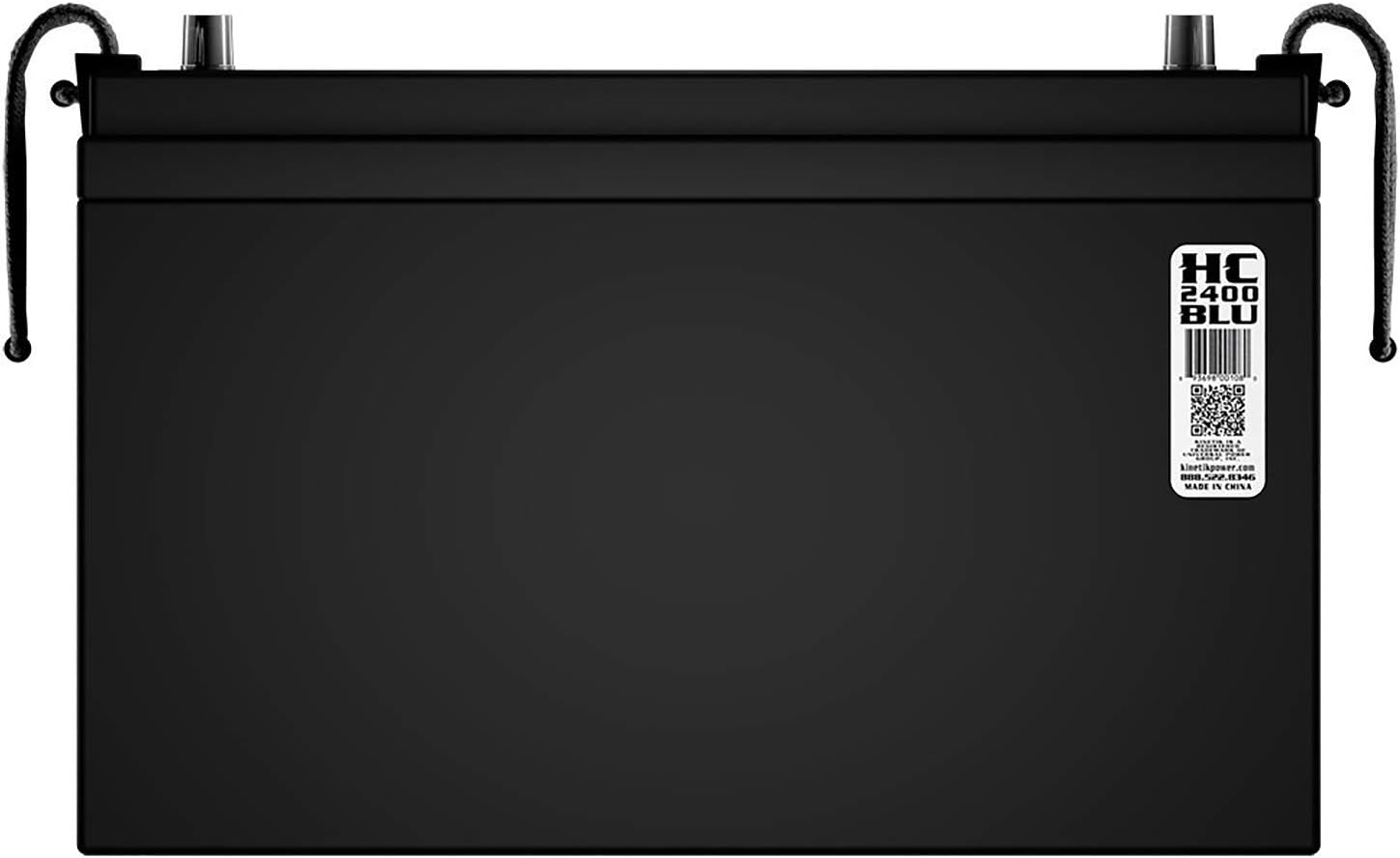

7.1-сүрөт: Каптал view of the Kinetik HC2400-BLU Power Cell, displaying the model number and barcode.

8. Кепилдик жана колдоо

For information regarding the warranty of your Kinetik HC2400-BLU Power Cell, please refer to the warranty card included with your purchase or visit the official Kinetik website. Kinetik stands behind the quality of its products and offers support for any manufacturing defects.

If you require technical assistance, have questions about installation, or need to report an issue, please contact Kinetik customer support through their official channels. When contacting support, please have your product model number (HC2400-BLU28) and purchase details ready.
