Mohard BC61 Bluetooth 5.3 FM өткөргүчү жана унаа кубаттагычы колдонуучунун колдонмосу

Introduction

Thank you for choosing the Mohard BC61 Bluetooth 5.3 FM Transmitter. This device allows you to add Bluetooth functionality to older car models, enabling hands-free calls, Hi-Fi music streaming, and fast charging for your mobile devices through your car's speaker system. Please read this manual carefully before use to ensure proper operation and to maximize your experience.

Коопсуздук эскертүүлөрү

• Use this product strictly according to the instructions provided in this manual.
• Avoid placing the device near other wireless equipment to prevent interference.
• Handle the device with care. Do not disassemble or modify it.
• Ensure proper recycling of any associated batteries or electronic components.
• Operate the device within specified temperature and humidity limits to prevent damage.
• Аппаратты ашыкча нымдуулукка же экстремалдык температурага дуушар кылбаңыз.

Пакеттин мазмуну

Сураныч, пакетте төмөнкү нерселерди текшериңиз:

• 1 x Mohard BC61 Bluetooth FM Transmitter
• 1 x User Manual

Продукт бүттүview

The Mohard BC61 features a compact, all-metal design for durability and efficient heat dissipation. It integrates a digital display, control buttons, and dual fast-charging ports.

Image: The Mohard BC61 Bluetooth FM Transmitter, showcasing its compact design, digital display, and control buttons. A blue LED ring illuminates the device.

Негизги өзгөчөлүктөрү:

• Bluetooth 5.3: Provides faster pairing, more stable transmission, and lower power consumption for enhanced audio quality.
• Эки тез кубаттоо порттору: Equipped with a 30W PD3.0 Type-C port and an 18W QC3.0 Type-A port for simultaneous rapid charging of multiple devices.
• Hands Free Чалуу: Integrated high-sensitivity microphone with CVC noise reduction technology ensures clear call quality by suppressing wind and road noise.
• Hi-Fi Music Streaming: Supports lossless music playback from any Bluetooth-enabled device.
• Тtage Мониторинг: Helps monitor your car's voltage.
• Blue LED Ring: An illuminated blue ring around the device aids in locating it in the dark and adds to the car's interior aesthetics.
• Бардык металл конструкциясы: Durable zinc alloy casing for longevity and improved heat dissipation compared to plastic alternatives.

Image: Close-up of the Mohard BC61 showing the illuminated blue LED ring, which helps locate the device in low light conditions and enhances the car's interior.

Image: Comparison illustrating the robust zinc alloy construction of the Mohard BC61 against a typical plastic car charger, highlighting its durability and heat dissipation benefits.

Орнотуу нускамалары

1. Insert into Car Cigarette Lighter: Plug the Mohard BC61 FM Transmitter firmly into your car's 12V-24V cigarette lighter socket. The device will power on, and the LED display will show the current car voltage for a few seconds, then switch to the FM frequency.
2. Tune Car Radio: Tune your car's FM radio to an empty frequency (one with static or no broadcast). This frequency should be between 87.5 MHz and 108.0 MHz.
3. Match FM Transmitter Frequency:
   • Press the "CH" button (often integrated with the call button) on the FM transmitter. The frequency display will start flashing.
   • "Мурунку тректи" колдонуңуз (<<) жана "Кийинки трек" (>>) buttons to adjust the transmitter's frequency to match the empty frequency you selected on your car radio.
   • Once matched, wait a few seconds for the display to stop flashing, or press the "CH" button again to confirm.
4. Bluetooth түзмөгү менен жупташтыруу:
   • Смартфонуңузда же башка аудио түзмөгүңүздө Bluetooth'ду иштетиңиз.
   • Издөө available Bluetooth devices and select "BC61" (or similar name) from the list.
   • Once paired, the device will confirm the connection, and you can now stream audio.

Сүрөт: ички view of the Mohard BC61 highlighting the Bluetooth 5.3 chip, indicating advanced connectivity for faster and more stable pairing.

Иштөө нускамалары

Музыка ойнотуу:

• Bluetooth агымы: Once paired, open your music app on your phone and start playing. The audio will be transmitted to your car's speakers.
• Башкаруу баскычтары:
  • Press the "Previous Track" (<<) button to go to the previous song.
  • Press the "Next Track" (>>) button to go to the next song.
  • Press the multi-function button (often the call button) to Play/Pause music.
• Үндү тууралоо: Adjust the volume directly on your phone or through your car's audio system.

Image: A visual representation of the Mohard BC61 enabling Hi-Fi music streaming from a smartphone to a car's audio system, illustrating seamless audio transmission.

Hands Free Чалуу:

• Чакырууга жооп берүү: When an incoming call rings, press the multi-function button (call button) once to answer.
• Чакырууну аяктоо: Чалуу учурунда, чалууну аяктоо үчүн көп функциялуу баскычты бир жолу басыңыз.
• Чакырууну четке кагуу: When an incoming call rings, press and hold the multi-function button for 2 seconds to reject the call.
• Акыркы номерди кайра терүү: Double-press the multi-function button to redial the last dialed number.
• Жеке чалуу: During a call, press and hold the multi-function button to switch the call between the transmitter and your phone.

Image: A user demonstrating hands-free calling with the Mohard BC61, showing the device's interface for answering, rejecting, and redialing calls, facilitated by CVC noise reduction.

Түзмөктөрдү кубатталууда:

• Connect your device (smartphone, tablet, etc.) to the PD 30W Type-C port for Power Delivery fast charging.
• Alternatively, connect your device to the QC3.0 18W Type-A port for Quick Charge 3.0 fast charging.
• The intelligent circuitry protects your devices against overcurrent, short-circuit, overheating, and overcharging.

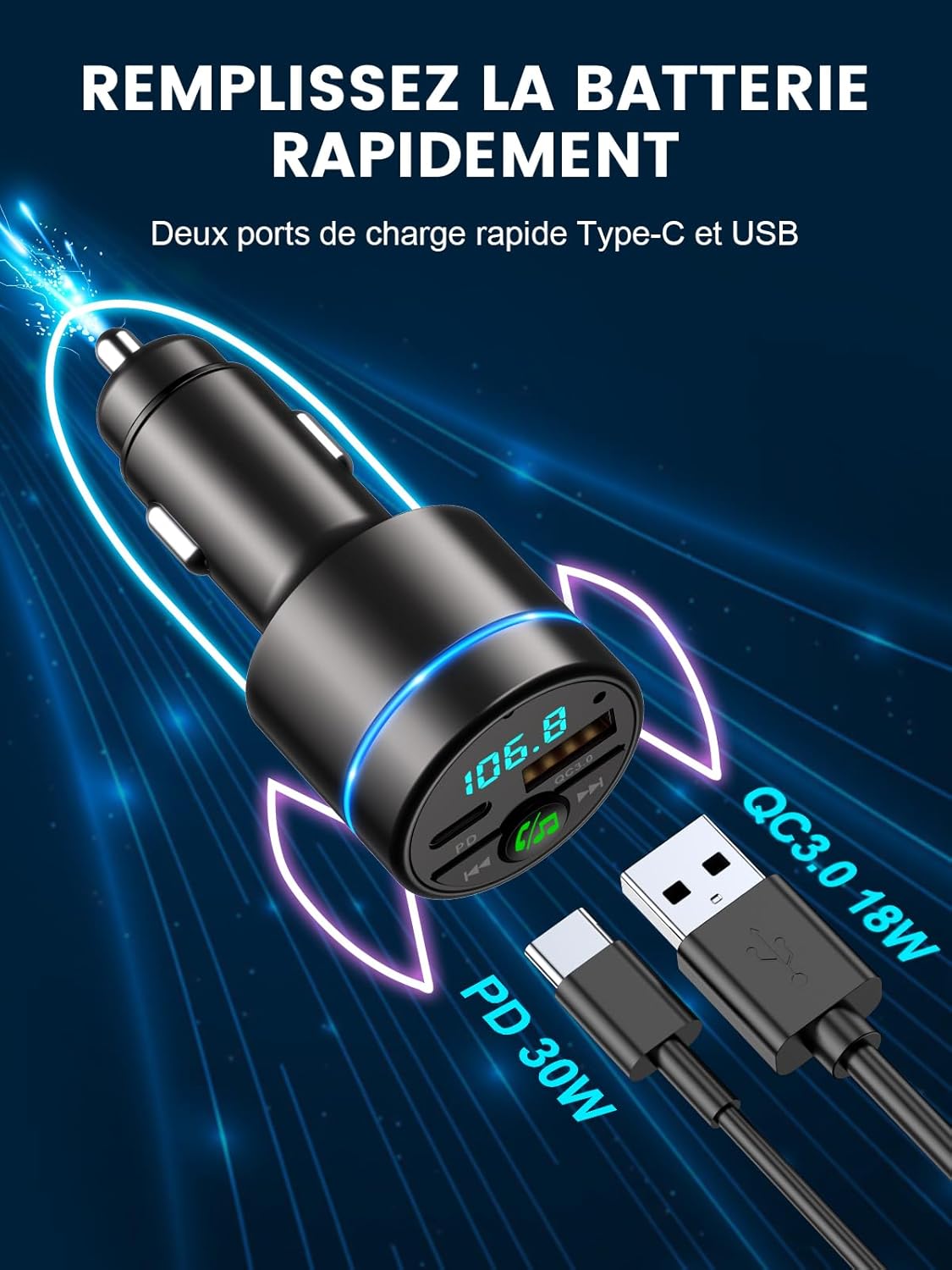

Image: The Mohard BC61 displaying its dual fast-charging ports: a PD 30W Type-C port and a QC3.0 18W USB-A port, capable of rapidly charging compatible devices.

Техникалык тейлөө

• Түзмөктү таза жана кургак кармаңыз. Бетин сүртүү үчүн жумшак, кургак чүпүрөк колдонуңуз.
• Катуу химиялык заттарды, тазалоочу эриткичтерди же күчтүү жуучу каражаттарды колдонуудан алыс болуңуз.
• Аппаратты колдонбогондо салкын, кургак жерде сактаңыз.
• Аппаратты узак убакытка түз күн нурунун астында калтырбаңыз.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

Mohard is committed to providing high-quality products and excellent customer service.

• Кепилдик: This product comes with a 12-month after-sales service warranty.
• Кардарларды колдоо: Professional 24/7 customer support is available to assist you with any questions or issues. Please refer to the contact information provided with your purchase or visit the official Mohard webколдоо үчүн сайт.
