1. Киришүү
This manual provides detailed instructions for the installation, operation, and maintenance of your new WEELMOTO Replacement Headlight Assembly. Designed for optimal performance and durability, these headlights meet DOT (Department of Transportation) and SAE (Society of Automotive Engineers) standards. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. Продукттун шайкештиги
Бул фара жыйындысы төмөнкү унаалар менен шайкеш келет:
- Тойота Такома: 2012, 2013, 2014, 2015 models.
Эскертүү: This product is designed for Halogen Headlight Models Only. Bulbs are not included; please use stock H4 bulbs for installation.
Image: WEELMOTO Headlight Assembly installed on a silver Toyota Tacoma, demonstrating the precise fit for compatible models.
3. Кутуда эмне бар
Сиздин пакетиңиз төмөнкүлөрдү камтыйт:
- One (1) Driver side Headlight Assembly
- One (1) Passenger side Headlight Assembly
4. Коопсуздук маалыматы
- Кандайдыр бир электрдик жумуштарды аткаруудан мурун дайыма унаанын аккумуляторун ажыратыңыз.
- Орнотуу учурунда кол кап жана көздү коргоо сыяктуу тиешелүү жеке коргоочу шаймандарды кийиңиз.
- Ensure all connections are secure to prevent electrical issues or moisture ingress.
- Сунуш 65 Эскертүү: Бул өнүмдүн курамында Калифорния штаты ракка жана тубаса кемтиктерге же башка репродуктивдик зыяндарга алып келүүчү химиялык заттар болушу мүмкүн.
Image: Important safety reminder regarding bulb compatibility.
Safety Reminder: Do NOT Directly Replace with LED Bulbs. This headlight assembly is designed for halogen bulbs only. Using incompatible bulbs may lead to improper light patterns, reduced visibility, or damage to the assembly.
5. Орнотуу боюнча нускамалар
The WEELMOTO headlight assembly features a plug-and-play design for straightforward installation. Professional installation is recommended if you are unfamiliar with automotive electrical systems.
Жалпы кадамдар:
- Унааны даярдоо: Park the vehicle on a level surface and engage the parking brake. Turn off the engine and remove the key. Disconnect the negative terminal of the battery.
- Access Headlight Area: Remove the grille. This typically involves unscrewing clips, screws, or retainer springs that hold the headlight in place. Remove fasteners located at the top and bottom of the headlight.
- Эски фараны алып салуу: Disconnect the wiring from the stock headlight and detach the stock headlight assembly from the vehicle.
- Жаңы фараны орнотуу: Fit the new WEELMOTO headlight assembly into place. Ensure it is seated correctly. Make sure to seal the screws, clips, or retainer springs.
- Зымдарды туташтыруу: Чогулуштан ажыратылган зымдарды кайра туташтырыңыз.
- Коопсуз Ассамблея: Reinstall any removed fasteners to secure the new headlight.
- Грильди кайра орнотуу: Put back the grille and secure it.
- Батареяны кайра туташтыруу: Батареянын терс терминалын кайра туташтырыңыз.
Сүрөт: Арткы view of the headlight assembly, highlighting the one-way vent for condensation prevention and the adjustable beam mechanisms.
Image: Excerpt from the product manual detailing installation steps and beam adjustment.
6. Иштетүү жана жөндөө
Headlight Features:
Сүрөт: деталдуу view of the headlight's components, including the amber reflector, turn signal, high/low beam, and parking light.
Сүрөт: алдыңкы view of the headlight installed on a vehicle, indicating the location of the turn signal, parking light, high/low beam, and amber reflector.
Adjusting Headlight Beams:
The headlights are pre-adjusted from the factory. However, minor adjustments may be necessary after installation to achieve the optimal light pattern for your vehicle.
- Даярдоо: Park your car on a level surface approximately 25 feet (7.6 meters) from a flat wall. Mark the center points of each low beam on the wall.
- Adjustment Screws: Locate the adjustment screws on the back of the headlight assembly. There are typically two screws per headlight: one for vertical adjustment and one for horizontal adjustment.
- Тууралоо: Turn the adjustment screws slowly in either direction to raise or lower, or move the beam left or right, until the light pattern meets local regulations and provides optimal visibility.
Important: Do NOT over-adjust (more than three times either clockwise/counter-clockwise) to avoid damage to the adjustment mechanism.
Image: SAE Light Pattern Distribution Chart, illustrating the desired light spread for safe driving.
Image: Diagram illustrating the characteristics of low beam (uniform brightness, wide field of view) and high beam (ultra-high illuminance, balancing broad width and luminous flux).
7. Техникалык тейлөө
Durability and Protection:
WEELMOTO headlights are constructed with high-durability materials and feature a UV coating to resist environmental factors.
- Anti-Heat: Жогорку температурага туруштук берүү үчүн иштелип чыккан.
- Anti-UV-Aging: UV coating protects against yellowing and hazing from sun exposure.
- Anti-Freezing: Engineered to perform in cold conditions.
- Суу өткөрбөйт: IP65 certified for resistance against water and dust ingress.

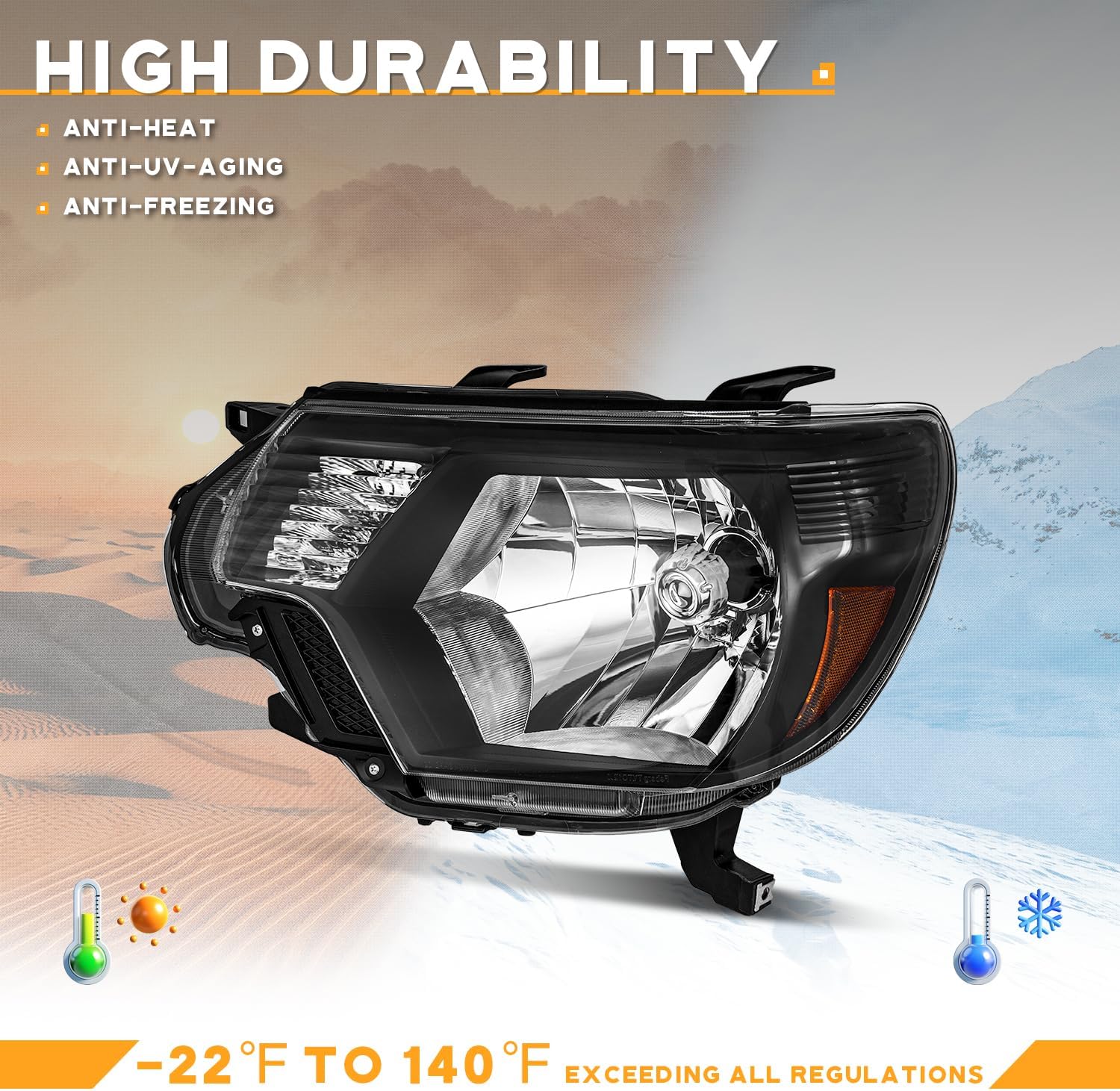

Image: WEELMOTO headlight assembly depicted in extreme weather conditions, emphasizing its high durability against heat, UV, and freezing temperatures.
Image: A truck driving through water, demonstrating the IP65 certified waterproof capability of the headlight assembly.
8. Кыйынчылыктарды
Temporary Condensation:
It is normal for minor fogging or condensation to occur inside the headlight lens due to temperature differences, air pressure, and other weather conditions. This is typically temporary and should dissipate.
How to Address Temporary Condensation:
- Желдетүүчүлөрдү текшерүү: Ensure the one-way vents in the housing are clear and not blocked.
- Run Headlights: Turn on the low beam for 20-30 minutes. The heat generated will help evaporate the moisture.
- Лампаларды текшерүү: Take the bulbs out and clear the moisture.
- Desiccant Pack: If persistent, place a silica gel desiccant pack inside the housing to absorb moisture.
If condensation persists or appears excessive, please contact customer support.
9. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | WEELMOTO |
| Модель номери | TYTC-12 |
| OEM бөлүктүн номерлери | 81110-04181, 8111004180, 81150-04181, 8115004180 |
| Унаа кызматынын түрү | 2012-2015 Toyota Tacoma |
| Түс | Clear Lens, Black Housing, Amber Reflector |
| Линзанын түсү | Crystal Clear |
| Линзанын материалы | Поликарбонат |
| Ватtage | 60 ватт (шайкеш келген лампалар үчүн) |
| Auto Part Position | Алдыңкы Сырт |
| Өзгөчөлүктөр | High Beam, Low Beam, Waterproof (IP65), UV Coating |
| Ассамблея талап кылынат | No (plug-and-play design) |
| Элемент Салмагы | 14.52 фунт (жуп) |
10. Кепилдик жана колдоо
WEELMOTO provides a 3-year assurance period for this product. If you encounter any issues or have questions regarding your headlight assembly, please contact WEELMOTO customer service directly. You can typically find contact information by visiting the WEELMOTO store page or by using the 'Ask a question' feature on the product's purchase platform.
