SYNCO P2ST Dual Wireless Lavalier Microphone System User Manual

1. Киришүү

The SYNCO P2ST is a 2.4GHz dual wireless lavalier microphone system designed for use with Android devices. It provides a stable and clear audio transmission solution for various recording scenarios, including interviews, vlogging, and live streaming. This manual provides detailed instructions for the setup, operation, and maintenance of your SYNCO P2ST system.

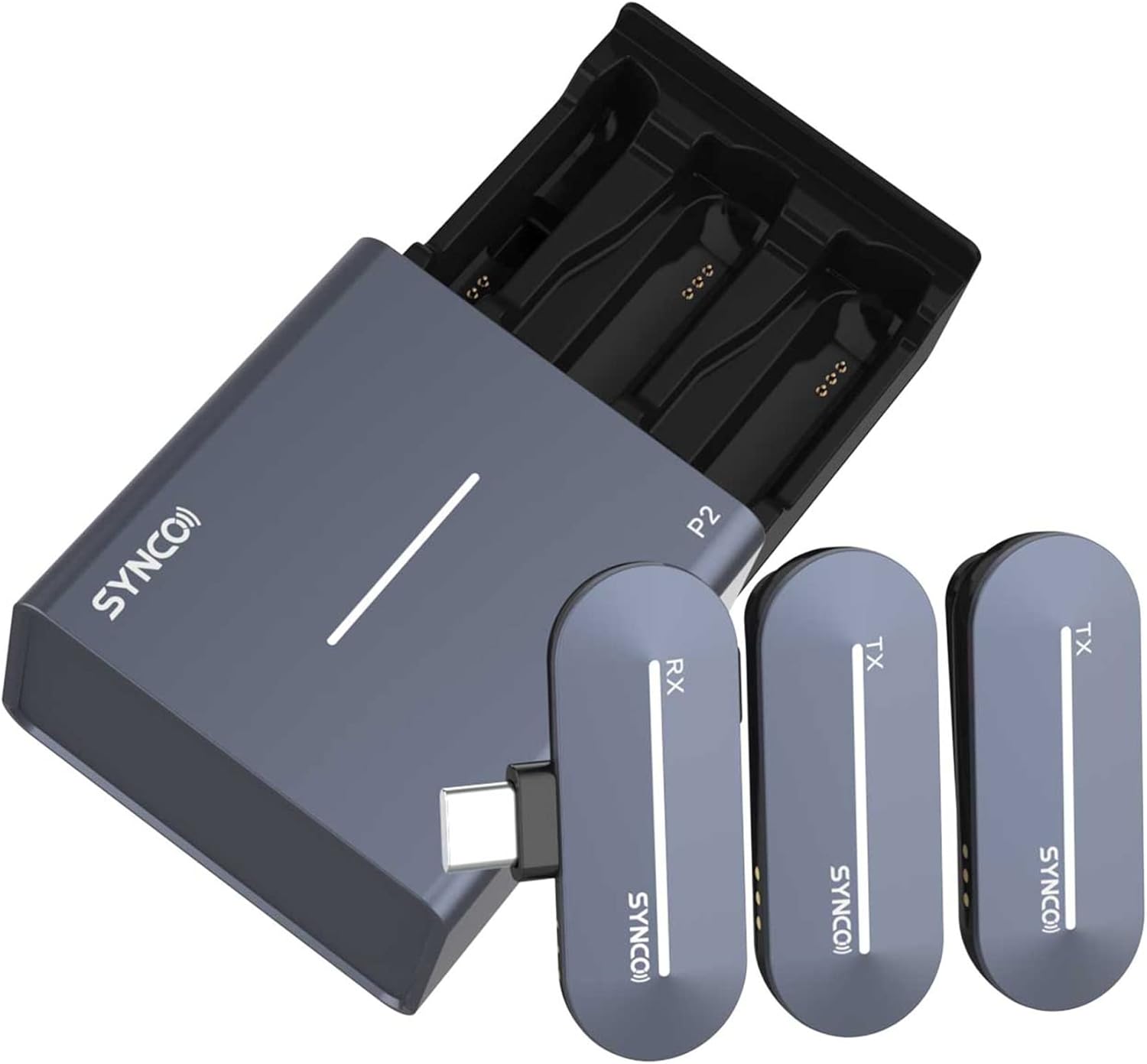

Image 1.1: The SYNCO P2ST system, showing the charging case, two transmitters (TX), and one receiver (RX) with a Type-C connector.

2. Пакеттин мазмуну

Төмөндө тизмеленген нерселердин баары пакетиңизге камтылганын текшериңиз:

• 1 x зымсыз кубаттоо кутусу
• 2 x TX Transmitter
• 1 x RX Receiver (Type-C Connector)
• 1 x заряддоо кабели
• 1 x Type-C to 3.5mm Adapter
• 1 х Колдонуучунун колдонмосу (бул документ)

3. Продукт бүтүп калдыview

3.1. Компоненттер

• Бергич (TX): The microphone unit worn by the speaker. It captures audio and transmits it wirelessly.
• Алуучу (RX): The unit that connects to your Android device (via Type-C port). It receives audio from the transmitters.
• Заряддоо кутусу: Stores and charges the transmitters and receiver. The case features a drawer-style design for easy access.

Image 3.1: The Type-C receiver (RX) for Android devices, shown alongside an iOS compatible receiver for connector type comparison.

Image 3.2: The SYNCO P2ST system components, illustrating the available color options.

4. Орнотуу

4.1. Баштапкы заряддоо

Before first use, fully charge the charging case, transmitters, and receiver.

1. Place the transmitters and receiver into the charging case.
2. Connect the charging cable to the charging case and a power source.
3. The indicator lights on the case and devices will show charging status.

Image 4.1: The charging case with devices inserted, illustrating the charging process. A 10-minute charge provides approximately 45 minutes of recording time.

4.2. Connecting the Receiver to Your Android Device

The P2ST receiver is equipped with a Type-C connector for direct connection to compatible Android smartphones and tablets (Android 10 or above recommended).

1. Locate the Type-C port on your Android device.
2. Insert the SYNCO P2ST receiver's Type-C connector firmly into your device's port.
3. Кабыл алгычтын индикатор жарыгы күйүп, ийгиликтүү туташууну көрсөтөт.

4.3. Pairing Transmitters with Receiver

The transmitters and receiver are typically pre-paired from the factory. If re-pairing is necessary:

1. Ensure both transmitters and the receiver are charged.
2. Remove the transmitters and receiver from the charging case. They will automatically power on.
3. The devices should automatically connect. If not, refer to the troubleshooting section.

5. Иштөө нускамалары

5.1. Күйгүзүү/өчүрүү

• Күйгүзүү: Remove the transmitters and receiver from the charging case. They will power on automatically.
• Өчүрүү: Place the transmitters and receiver back into the charging case. They will power off automatically and begin charging.

Image 5.1: Illustrates the action of removing a transmitter from the charging case, which powers on the device.

5.2. Үндү тууралоо

The transmitters feature a volume adjustment function with four levels, allowing for up to 50dB gain.

• Press the volume button on the transmitter to cycle through the four volume levels.
• Adjust the volume to achieve the desired recording effect.

Image 5.2: Illustration of the four-level volume adjustment on the transmitter, indicating up to 50dB gain.

5.3. Үнсүз функция

To temporarily mute the microphone during recording or live broadcasting:

• Press the mute button on the transmitter. The indicator light will change to confirm mute status.
• Үндү ачуу үчүн үнүн басуу баскычын кайра басыңыз.

5.4. Активдүү ызы-чууну жокко чыгаруу (ANC)

The SYNCO P2ST features Active Noise Cancelling technology to reduce ambient noise and enhance audio clarity.

• The ANC function is typically active by default or can be toggled via a dedicated button (refer to specific transmitter design for button location).
• This technology helps achieve clear audio by filtering out unwanted background sounds.

Image 5.3: A visual representation of the effect of Active Noise Cancelling, demonstrating improved audio clarity by reducing background frequencies.

5.5. Индикатор жарыктары

The transmitters, receiver, and charging case are equipped with dynamic light strips that indicate operational status, battery level, and pairing status.

Image 5.4: The dynamic light strips on the devices provide visual feedback on their status.

5.6. Using Two Transmitters for Stereo Recording

The P2ST system allows for simultaneous recording from two transmitters into a single Android device, enabling stereo audio capture.

• Ensure both TX units are powered on and paired with the RX.
• Your recording application on the Android device should automatically detect and record audio from both channels.

6. Техникалык тейлөө

6.1. Тазалоо

• Wipe the devices with a soft, dry cloth.
• Катуу химиялык заттарды же абразивдүү материалдарды колдонбоңуз.
• Заряддоочу контакттарды таза жана таштандылардан таза кармаңыз.

6.2. Сактоо

• Store the system in its charging case when not in use to protect the components and ensure they remain charged.
• Ашыкча температурадан жана жогорку нымдуулуктан алыс болуңуз.

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Кепилдик жана колдоо

For warranty information and technical support, please refer to the official SYNCO webсайтына кириңиз же жергиликтүү дистрибьюторуңузга кайрылыңыз. Кепилдик талаптары үчүн сатып алганыңызды тастыктаган документти сактап коюңуз.

Онлайн колдоо: зыярат кылыңыз SYNCO Store on Amazon кошумча продукт маалымат жана колдоо ресурстар үчүн.
