1. Киришүү
Thank you for choosing the Safecourt Kitchen Electric Citrus Juicer. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read these instructions thoroughly before first use and keep them for future reference.
The Safecourt Kitchen Electric Citrus Juicer is designed for extracting juice from various citrus fruits, featuring a powerful motor, durable stainless steel components, and user-friendly design for easy cleaning.
2. Коопсуздук нускамалары
- Ар дайым монтаждоо, демонтаждоо же тазалоо алдында шаймандын розеткадан ажыратылганын текшериңиз.
- Мотордук базаны сууга же башка суюктукка батырбаңыз.
- Колду жана идиштерди иштөө учурунда кыймылдуу бөлүктөрдөн алыс кармаңыз.
- Бул шайман тиричиликте гана колдонуу үчүн. Сыртта колдонбоңуз.
- Эгерде электр шнуру же сайгычы бузулган болсо, шире сыккычты иштетпеңиз.
- The motor is equipped with an overheating protection system and will automatically stop if it overheats. Allow it to cool down before resuming use.
- Шире сыккычты иштетүүдөн мурун, бардык бөлүктөр туура чогултулганын текшериңиз.
- Балдар жетпеген жерде сактаңыз.
3. Продукт бүтүп калдыview жана компоненттер
The Safecourt Kitchen Electric Citrus Juicer consists of several key components designed for efficient juicing and easy maintenance.

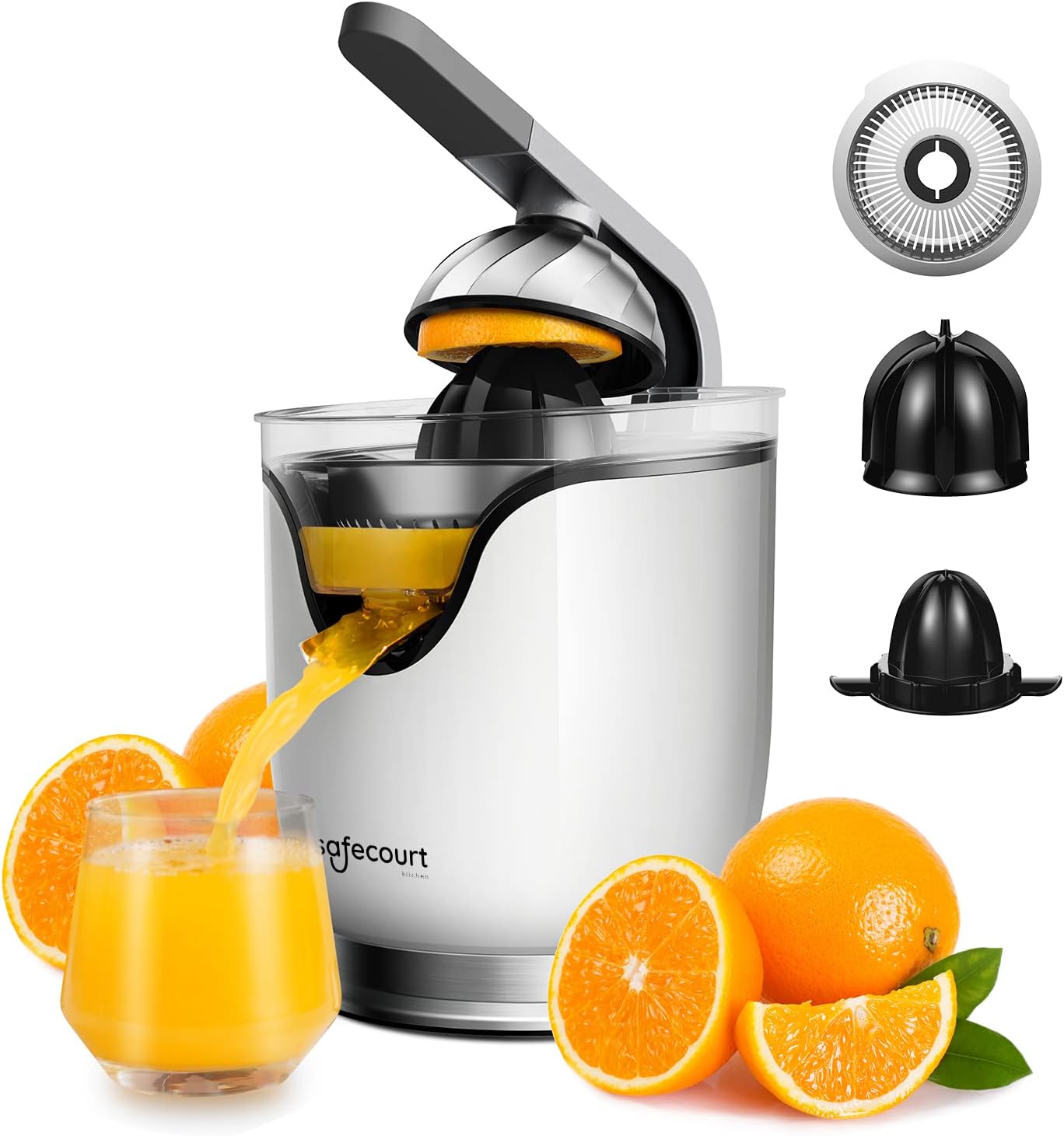

Сүрөт 3.1: Бүттүview of the Safecourt Kitchen Electric Citrus Juicer, showing the main unit, two different sized reamers, a filter, and a pressure handle. Freshly squeezed orange juice is visible in a glass.
Негизги өзгөчөлүктөрү:
- Күчтүү 150W мотор: Ensures quick and efficient juice extraction.
- Дат баспас болоттон жасалган корпус: Provides durability and a modern aesthetic.
- Two Removable Cones (Reamers): Accommodates both large and small citrus fruits (e.g., oranges, grapefruits, lemons, limes).
- Pressure Handle: Facilitates easy and effortless juicing.
- Removable and Dishwasher-Safe Parts: Тазалоону жеңилдетет.
- Automatic Reverse Function: Maximizes juice extraction.
- Drip-Stop Spout: Prevents spills and keeps your countertop clean.
4. Орнотуу
- Таңылганын ачуу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
- Таза: Before first use, wash all removable parts (reamers, filter, juice collector) with warm soapy water, rinse thoroughly, and dry. The motor base should be wiped with a damp кездеме.
- Чогултуу:
- Place the juice collector onto the motor base.
- Insert the stainless steel filter into the juice collector.
- Select the appropriate reamer size for your citrus fruit (larger for oranges/grapefruits, smaller for lemons/limes) and place it onto the filter.
- Ensure the pressure handle is in the upright position.
- Кызмат орду: Place the assembled juicer on a stable, flat, and dry surface.
- Туташуу кубаты: Электр шнурын ылайыктуу электр розеткасына сайыңыз (230V).
5. Иштөө нускамалары
- Мөмө-жемиштерди даярдоо: Cut citrus fruits in half.
- Place Fruit: Place one half of the citrus fruit onto the reamer.
- Шире сыгып баштоо: Gently press down on the fruit with the pressure handle. The motor will automatically start when pressure is applied and reverse direction to maximize juice extraction.
- Шире чогултуу: The freshly squeezed juice will flow directly into the juice collector. Ensure the drip-stop spout is open to allow juice to flow into your glass.
- Шире чыгарууну токтотуңуз: Release the pressure handle to stop the motor.
- Drip-Stop Function: To prevent drips, push the spout upwards to close it when you are finished juicing or changing glasses.
Сүрөт 5.1: Demonstrating the drip-stop spout feature. A finger is shown pushing the spout down to release juice, with an arrow indicating the direction of flow.
Сүрөт 5.2: Illustrates the efficiency of the juicer's reamer design, showing minimal pulp left in the fruit halves after juicing compared to other designs, indicating up to 20% more juice extraction.
The juicer operates at approximately 65dB, which is a moderate noise level for kitchen appliances.
Сүрөт 5.3: A visual representation of the juicer's noise level (65dB) compared to whispering (40dB) and other juicers (80dB), suggesting a relatively quiet operation.
6. Техникалык тейлөө жана тазалоо
Regular cleaning ensures the longevity and hygienic operation of your juicer.
- Ажыратыңыз: Тазалоодон мурун шире сыккычты ар дайым розеткадан сууруп алыңыз.
- Бөлүп салуу: Remove the pressure handle, reamer, filter, and juice collector from the motor base.
- Алынуучу тетиктерди жуу: All removable parts are dishwasher safe. Alternatively, wash them by hand with warm soapy water and a soft brush. Rinse thoroughly and dry completely before reassembly or storage.
- Таза мотор базасы: Мотордук базаны жарнама менен сүртүңүзamp кездеме. Мотордук базаны сууга же башка суюктукка батырбаңыз.
- Сактагыч: Store the clean and dry juicer in a cool, dry place.

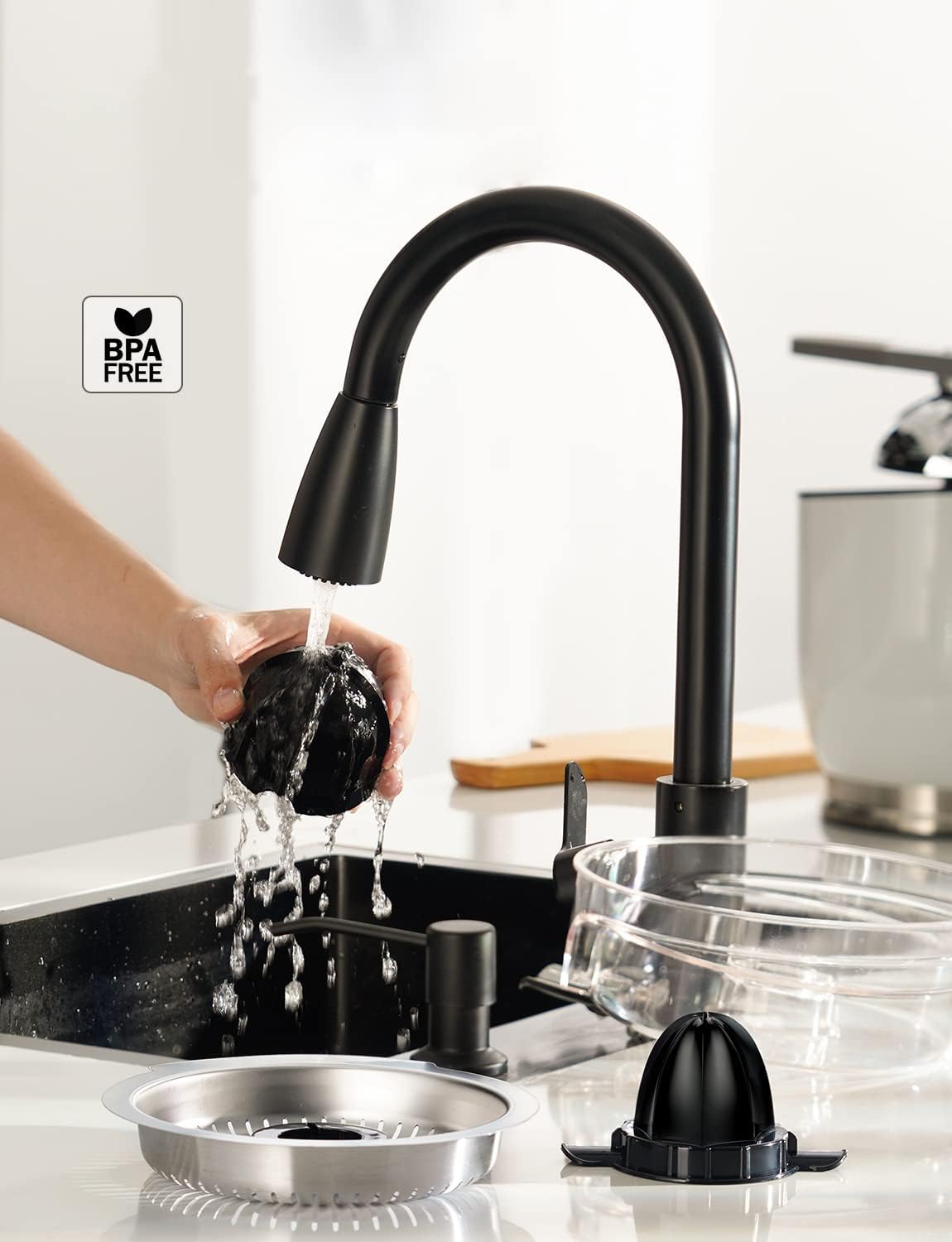

Сүрөт 6.1: Illustrates the ease of cleaning the removable components of the juicer. A hand is shown rinsing a reamer under a faucet, with the filter and juice collector nearby.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Шире сыггыч күйбөйт. | розеткага кошулбаган; күч уtage; not assembled correctly. | Ensure the power cord is securely plugged in. Check the power supply. Verify all parts are correctly assembled. |
| Мотор иштөө учурунда токтойт. | Ашыкча ысып кетүүдөн коргоо иштетилди. | Unplug the juicer and allow it to cool down for at least 15-20 minutes before resuming use. Reduce continuous operating time. |
| Төмөн шире түшүмдүүлүгү. | Fruit not pressed firmly enough; incorrect reamer size; fruit not fresh. | Apply consistent pressure. Use the appropriate reamer for the fruit size. Use fresh, ripe citrus fruits. |
| Juicer is noisy. | Normal operating noise (approx. 65dB); loose parts. | Ensure all parts are securely assembled. If noise is excessive or unusual, discontinue use and contact customer support. |
8. Техникалык шарттар

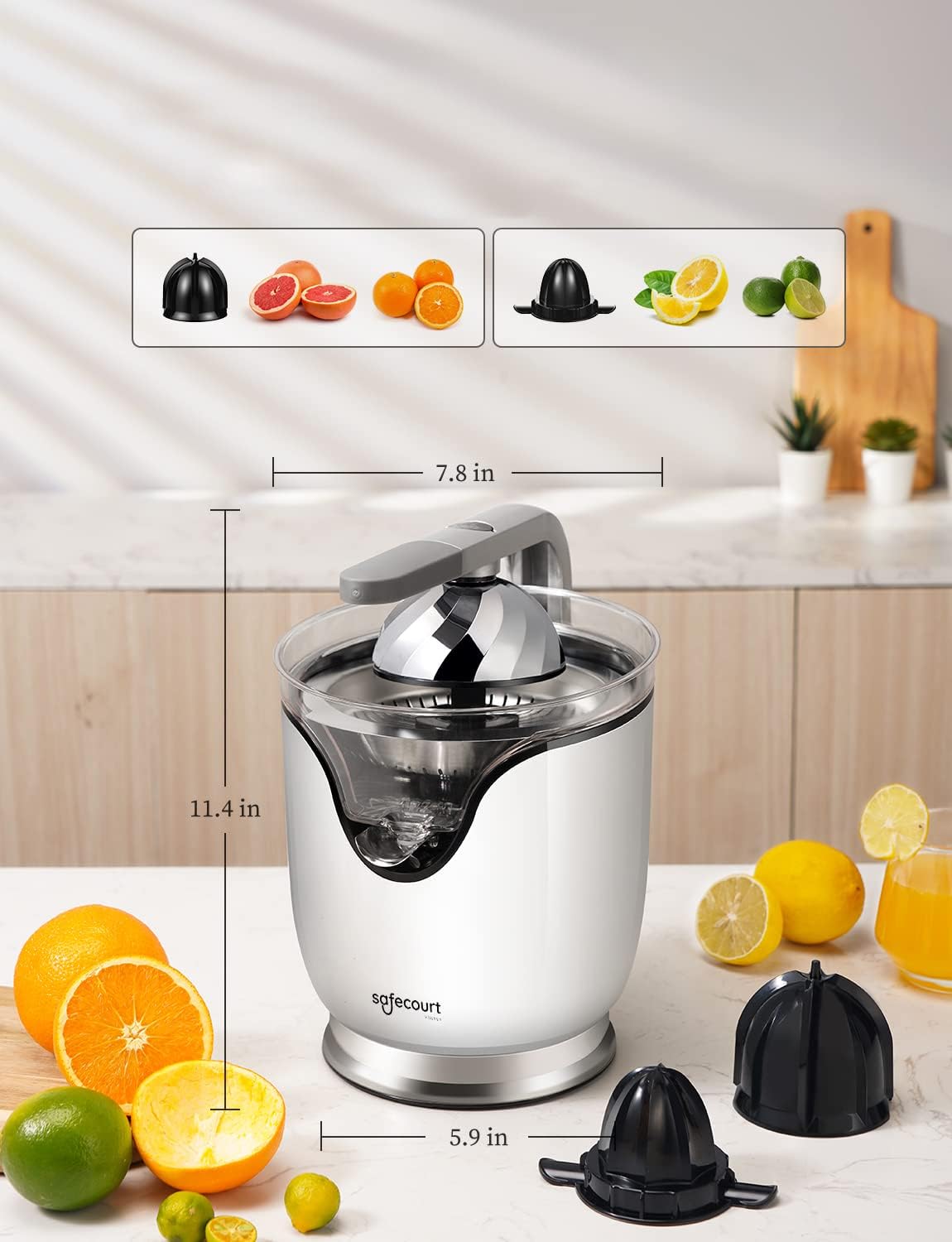

Сүрөт 8.1: Diagram showing the approximate dimensions of the juicer: 11.4 inches height, 7.8 inches width, and 5.9 inches depth.
- Модель номери: CJ200
- Бренд: Safecourt Kitchen
- Power/Wattage: 150 Ватт
- Тtage: 230V
- Материал: Акрилонитрил бутадиен стиролу (ABS), дат баспас болот
- Түсү: Ак
- Продукциянын өлчөмдөрү: 27 см (тереңдик) x 20 см (туурасы) x 28 см (бийиктик)
- Элемент Салмагы: 1.5 килограмм
- Ылдамдыктардын саны: 1
- Өзгөчөлүктөр: Automatic Reverse, Dishwasher-Safe Removable Parts, Portable, Indicator Light, Powerful Motor, Drip-Stop Spout, Relatively Quiet Motor, Removable Reamer.
- Сунушталган колдонуулар: Lemon, Grapefruit, Orange
- Кам көрүү боюнча көрсөтмөлөр: Алынуучу бөлүктөрү идиш жуугучта жууш үчүн коопсуз.
9. Кепилдик жана колдоо
Specific warranty information for the Safecourt Kitchen Electric Citrus Juicer Model CJ200 is not provided in the product details. For warranty claims or technical support, please refer to the retailer where the product was purchased or contact Safecourt Kitchen customer service directly through their official channels.
Сиз көп учурда байланыш маалыматын таба аласыз Safecourt Kitchen Store page.
