Sudio F2 Portable Bluetooth Speaker Instruction Manual

1. Продукт бүтүп калдыview

The Sudio F2 is a portable Bluetooth speaker designed for high-quality audio playback in various environments. It features Bluetooth 5.3 connectivity, an AUX input, IPX7 waterproof rating, and a unique broadcast function allowing connection of up to 100 speakers.

Фронт view of the Sudio F2 Portable Bluetooth Speaker.

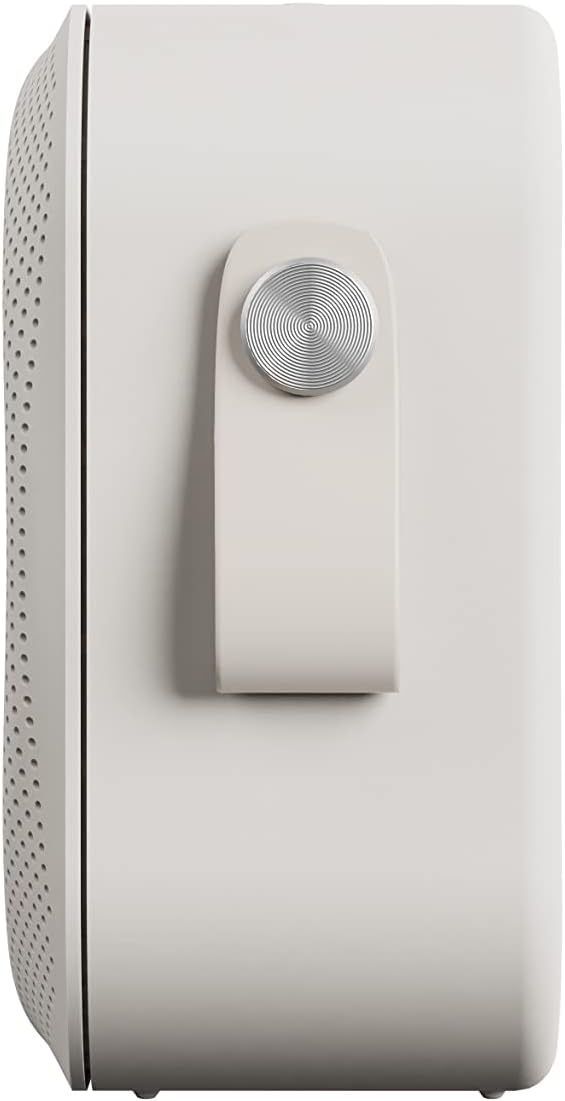

Side view of the Sudio F2 speaker, highlighting the integrated silicone strap for portability.

2. Пакеттин мазмуну

Пакетте бардык буюмдар бар экенин текшериңиз:

• Sudio F2 Portable Bluetooth Speaker
• Type-C USB-cable for charging
• Көрсөтмө (бул документ)

3. Орнотуу жана заряддоо

3.1 Баштапкы төлөм

Before first use, fully charge your Sudio F2 speaker. Connect the provided Type-C USB cable to the charging port on the speaker and to a compatible USB power adapter (not included). A full charge takes approximately 4 hours and provides up to 15 hours of playtime.

3.2 Күйгүзүү/өчүрүү

• Күйгүзүү үчүн: Күйгүзүү баскычын индикатор жарыгы күйгөнгө чейин басып туруңуз.
• Өчүрүү үчүн: Индикатор жарыгы өчкөнгө чейин кубат баскычын басып, кармап туруңуз.

Side view of the Sudio F2 speaker, showing the power button location.

4. Иштөө нускамалары

4.1 Bluetooth жупташтыруу

1. Ensure the Sudio F2 speaker is powered on and in pairing mode (indicator light will flash).
2. Түзмөгүңүздө (смартфон, планшет ж.б.) Bluetooth иштетиңиз жана жеткиликтүү түзмөктөрдү издеңиз.
3. Select "Sudio F2" from the list.
4. Once connected, the indicator light will become solid, and you will hear an audible confirmation.

The speaker uses Bluetooth 5.3 technology and has a connection range of up to 10 meters.

4.2 AUX киргизүү

To connect a device via AUX, insert a 3.5mm audio cable (not included) into the AUX input port on the Sudio F2 speaker and the other end into your audio source. The speaker will automatically switch to AUX mode.

The Sudio F2 speaker featuring its AUX input port for wired connections.

4.3 Broadcast Function (Multi-Speaker Pairing)

The Sudio F2 allows you to link up to 100 speakers simultaneously for a larger sound experience. This feature is activated using the broadcast function button.

1. Connect your primary Sudio F2 speaker to your device via Bluetooth.
2. Power on all other Sudio F2 speakers you wish to connect.
3. On the primary speaker, press the broadcast function button (refer to the speaker diagram for location).
4. The primary speaker will begin searching for other F2 speakers.
5. Once connected, all linked speakers will play audio synchronously.

Multiple Sudio F2 speakers demonstrating the broadcast function for synchronized audio playback.

The Sudio F2 speaker connected to a turntable via AUX, illustrating its compatibility with various audio sources.

4.4 Башкаруу

The Sudio F2 features touch controls for playback and volume adjustments. Specific functions include:

• Ойнотуу/тындыруу: Single tap the main control button.
• Үнүн жогорулатуу/төмөндөтүү: Swipe or tap dedicated volume areas (refer to product diagram for exact locations).
• Кийинки / Мурунку трек: Double tap or triple tap the main control button (functionality may vary, refer to quick start guide for details).

5. Сууга туруктуулук (IPX7)

The Sudio F2 speaker has an IPX7 waterproof rating, meaning it can be submerged in water up to 1 meter for 30 minutes. This makes it suitable for use in showers, by pools, or in rainy conditions. Ensure all ports are securely closed before exposing the speaker to water.

The Sudio F2 speaker, highlighting its IPX7 waterproof capability, suitable for wet environments.

A Sudio F2 speaker in a shower setting, demonstrating its waterproof design.

6. Техникалык тейлөө

6.1 Тазалоо

To clean your Sudio F2 speaker, use a soft, damp cloth. Avoid using harsh chemicals or abrasive materials, as these can damage the speaker's finish or waterproof seals. Ensure the speaker is dry before charging.

6.2 Сактоо

Динамикти салкын, кургак жерде, түз күн нурунан жана өтө жогорку температурадан алыс сактаңыз. Эгер узак убакытка сактасаңыз, батареянын иштөө мөөнөтүн сактоо үчүн аны мезгил-мезгили менен кубаттап туруңуз.

7. Кыйынчылыктарды

7.1 Күч жок

• Ensure the speaker is fully charged. Connect it to a power source using the provided Type-C USB cable.
• Заряддоо кабели жана адаптер туура иштеп жатканын текшериңиз.

7.2 Bluetooth аркылуу жупташтыруу мүмкүн эмес

• Make sure the speaker is in pairing mode (indicator light flashing).
• Ensure your device's Bluetooth is enabled and within 10 meters of the speaker.
• Try forgetting the "Sudio F2" device from your device's Bluetooth settings and re-pairing.
• Динамикти да, түзмөгүңүздү да өчүрүп күйгүзүңүз.

7.3 Үн жок

• Динамиктин жана туташкан түзмөгүңүздүн үнүнүн деңгээлин текшериңиз.
• Динамик Bluetooth аркылуу туура жупташтырылганын же AUX аркылуу туташтырылганын текшериңиз.
• If using AUX, verify the cable is fully inserted and functional.

7.4 Broadcast Function Not Working

• Ensure all speakers are Sudio F2 models.
• Verify that the primary speaker is successfully connected to your device via Bluetooth.
• Make sure all speakers are powered on and within close proximity to each other.

8. Техникалык шарттар

9. Кепилдик жана колдоо

9.1 Кепилдик маалыматы

The Sudio F2 Portable Bluetooth Speaker comes with a limited warranty. Please refer to the official Sudio webКепилдикти камтууга байланыштуу белгилүү бир шарттар жана эрежелер үчүн сайтка же сатып алуу документтерине кайрылыңыз.

9.2 Кардарларды колдоо

For further assistance, technical support, or warranty claims, please contact Sudio customer service. You can find contact information and additional resources on the official Sudio webсайт: Visit the Sudio Store on Amazon
