Introduction
This manual provides essential instructions for the safe and efficient use of your Nimble Champ Lite Portable Charger. This compact 5200mAh power bank is designed for fast charging of various electronic devices, featuring both USB-C and USB-A ports. Please read this manual thoroughly before operating the device.
Жайгашуу
Пакеттин мазмуну
- Чапталгыч Чamp Lite Portable Charger (5200mAh)
- USB-A - USB-C кабели
- Колдонуучунун Колдонмосу (бул документ)
Power банктын алгачкы заряддоо
Before first use, fully charge your Nimble Champ Lite portable charger. Connect the included USB-A to USB-C cable to the power bank's USB-C port and a compatible USB power adapter (not included). The LED indicators will illuminate to show the charging status.
Image: The Nimble Champ Lite portable charger connected via its USB-C port for recharging. Four LED lights indicate the battery level, and a power button is visible. The image also highlights the 5200mAh capacity and indicates a full recharge time of 1.5 hours.
LED көрсөткүчтөрүн түшүнүү
The power bank features four LED indicators to display the remaining battery capacity:
- 1 LED: 0-25% алынат
- 2 LED: 26-50% алынат
- 3 LED: 51-75% алынат
- 4 LED: 76-100% алынат
Иштөө нускамалары
Түзмөктөрүңүздү заряддоо
The Nimble Champ Lite portable charger is equipped with both a USB-C port (input/output) and a USB-A port (output) to charge your devices. It supports fast charging up to 15W.
- Connect your device's charging cable to either the USB-C or USB-A output port on the power bank.
- Кабелдин экинчи учун шайманга туташтырыңыз.
- Power bank түзмөгүңүздү автоматтык түрдө кубаттай баштайт. Эгер андай болбосо, кубаттоону баштоо үчүн кубат баскычын бир жолу басыңыз.
- The LED indicators will show the power bank's remaining charge during the charging process.

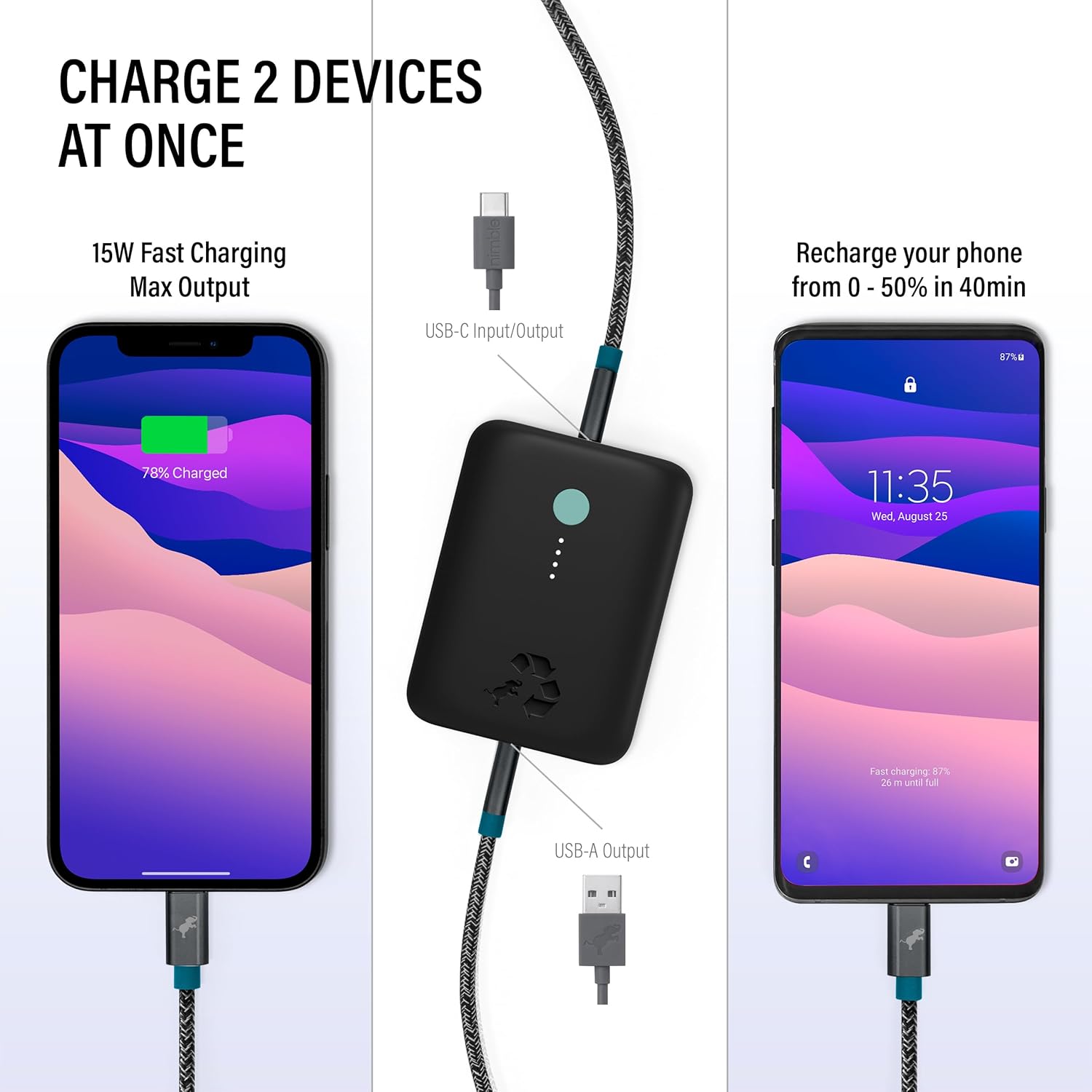

Image: The Nimble Champ Lite portable charger connected to two smartphones, demonstrating its ability to charge two devices concurrently using its USB-C and USB-A output ports. One phone shows 78% charge, and the other is recharging from 0-50% in 40 minutes.
Заряддоо
The Nimble Champ Lite supports pass-through charging, allowing you to charge your device while simultaneously recharging the power bank itself. Simply connect the power bank to a power source via its USB-C input, and then connect your device to one of the power bank's output ports.
Image: The Nimble Champ Lite portable charger connected via its USB-C port for recharging, while simultaneously charging an external device. This illustrates the pass-through charging capability.
Универсалдуу шайкештик
This power bank is compatible with a wide range of devices, including smartphones, tablets, smartwatches, headphones, and more.
Image: A visual representation of the Nimble Champ Lite's universal compatibility, showing it can charge various devices such as iPhones, iPads, AirPods, Apple Watches, Samsung phones, Google devices, cameras, gaming devices, headphones, wearables, e-readers, and speakers.
Техникалык тейлөө
Кам көрүү жана сактоо
- Powerbankты өтө жогорку температурадан, түз күн нурунан жана нымдуулуктан алыс кармаңыз.
- Аппаратты түшүрүүдөн же катуу таасирлерден сактаныңыз.
- Сыртын жумшак, кургак чүпүрөк менен тазалаңыз. Катуу химиялык заттарды же абразивдүү материалдарды колдонбоңуз.
- For long-term storage, charge the power bank to approximately 50% every three months to preserve battery health.
Кайра иштетүү
The Nimble Champ Lite is made from certified recycled plastic and aluminum. When the product reaches the end of its life, please utilize the included prepaid mailer bag to responsibly recycle your battery bank at no cost, or dispose of it according to local electronic waste regulations.
Image: The Nimble Champ Lite portable charger, emphasizing its sustainable design with text indicating 72% certified recycled plastic and average CO2e savings per unit. Various sustainability certifications are also displayed.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Power банк заряддалбай жатат | Loose cable connection, faulty cable/adapter, power bank fully discharged. | Ensure cables are securely connected. Try a different charging cable or power adapter. Allow the power bank to charge for a longer period if completely depleted. |
| Түзмөк кубат банкынан кубатталбай жатат | Power bank is off, low battery, incompatible cable, device fully charged. | Press the power button on the power bank. Check LED indicators for battery level. Ensure your device's charging cable is functional and correctly connected. Verify the device requires charging. |
| Жай кубаттоо | Using a non-fast charging cable, device drawing less power, multiple devices charging. | Use a high-quality, fast-charging compatible cable. Ensure your device supports fast charging. Charging two devices simultaneously may reduce individual charging speeds. |
| LED көрсөткүчтөрү иштебейт | Powerbank өчүрүлгөн, ички көйгөй бар. | Press the power button. If the issue persists, contact customer support. |
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | NB-CPC-5K-BLK |
| Батарея сыйымдуулугу | 5200 миллионamp Саат |
| Продукциянын өлчөмдөрү | 3 x 2.2 x 0.99 дюйм |
| Элемент Салмагы | 8.1 унция |
| Туташтыргыч түрү | USB Type A, USB Type C |
| Өзгөчөлүктөр | Auto Shut-Off, Portable, Travel, Pocket Size, Lightweight, Eco Print, LED Indicator Lights, USB A and C Ports, Fast Charging, Slim |
| Өндүрүүчү | Чалуу |
| Дата биринчи жеткиликтүү | 4-май, 2023-жыл |

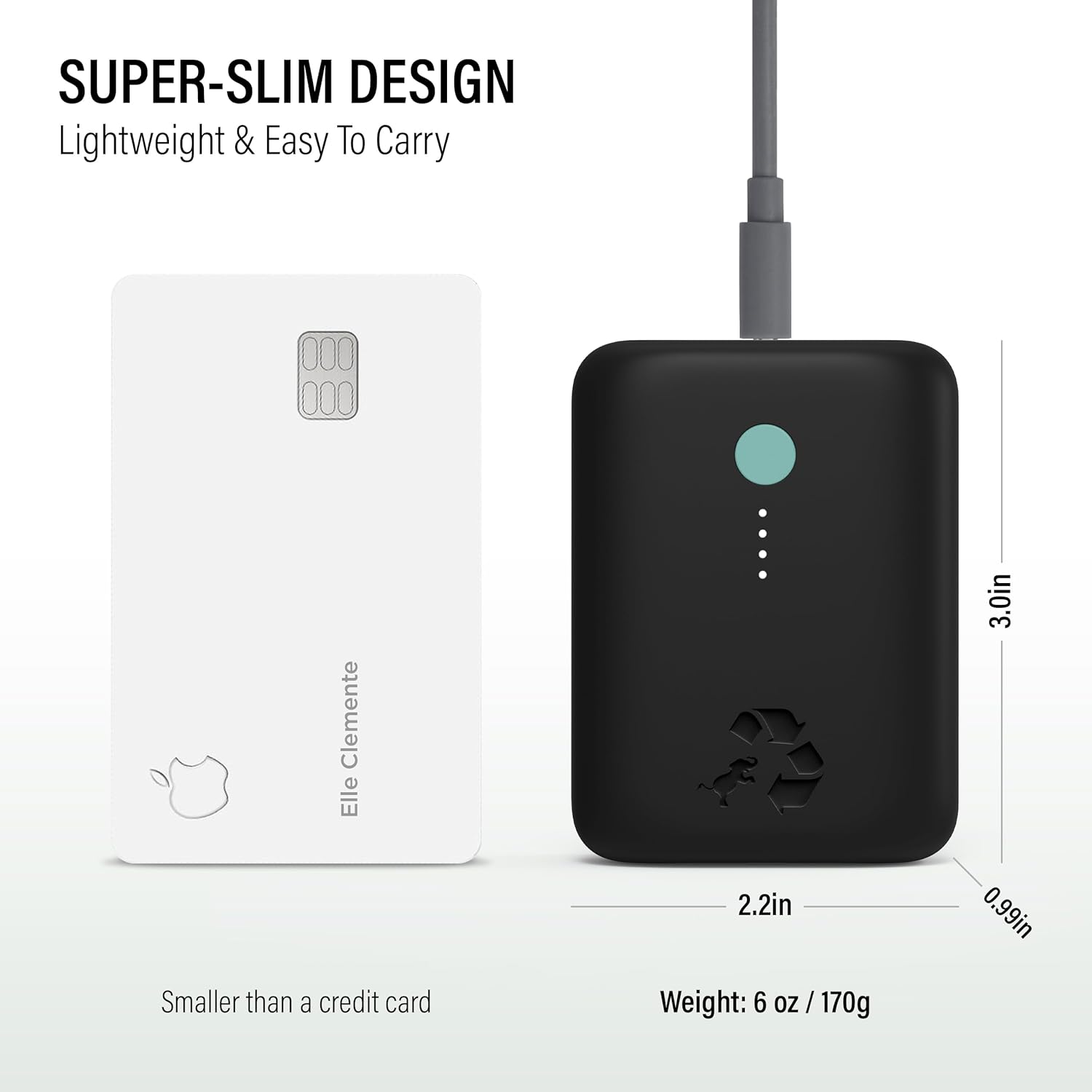

Image: The Nimble Champ Lite portable charger shown next to a credit card to illustrate its compact size. Dimensions (3.0in x 2.2in x 0.99in) and weight (6 oz / 170g) are also indicated.
Кепилдик маалымат
The Nimble Champ Lite Portable Charger comes with a manufacturer's warranty. For detailed information regarding warranty coverage, terms, and conditions, please refer to the warranty card included with your product packaging or visit the official Nimble webсайт.
Колдоо
Кошумча жардам, техникалык колдоо же үчүн view frequently asked questions, please visit the official Nimble webсайт:
