1. Продукт бүтүп калдыview
The Dirt Devil DD2504 Bagless Vacuum Cleaner is designed for efficient and thorough cleaning of various floor types. Featuring a powerful motor, advanced filtration, and a lightweight design, it offers convenience and performance for your home cleaning needs.

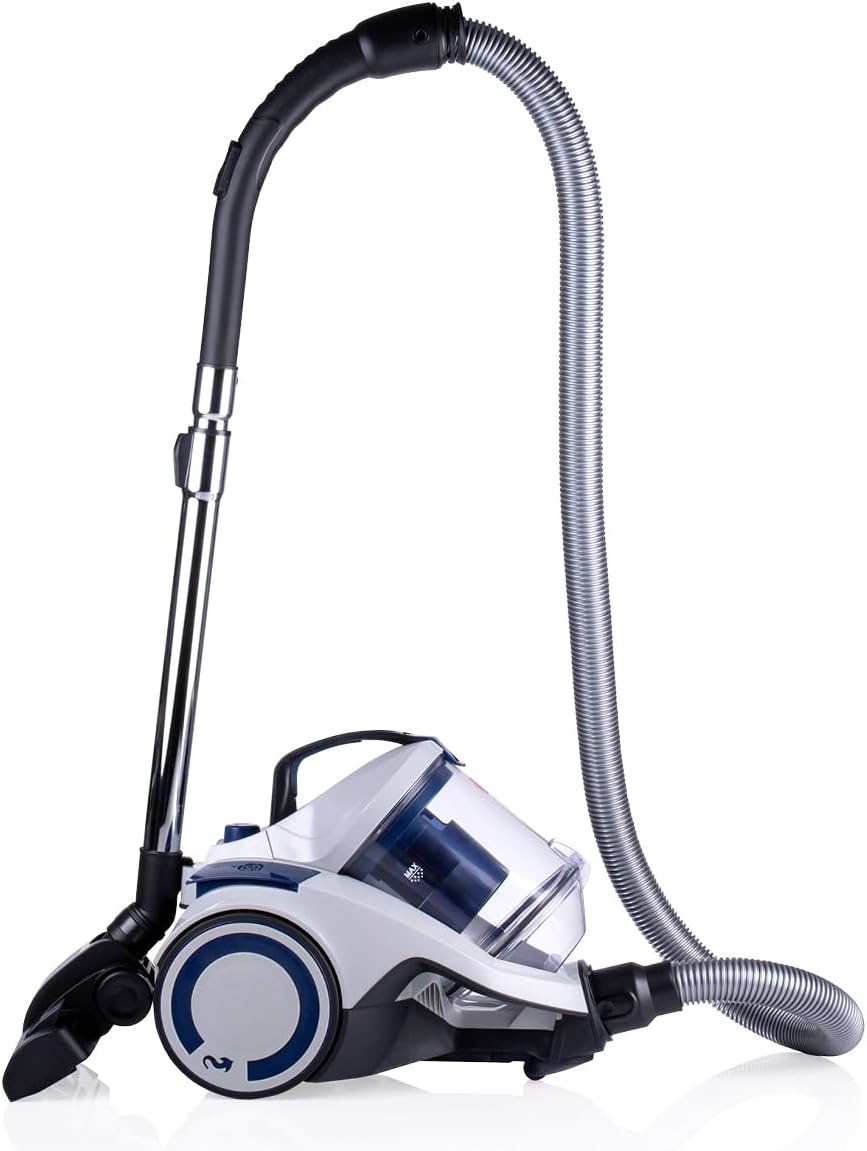

Image: The Dirt Devil DD2504 Bagless Vacuum Cleaner with its hose and telescopic wand.
The Dirt Devil DD2504 Bagless Vacuum Cleaner is ideal for those sensitive to dust and allergens, thanks to its HEPA 12 filter and a generous 2.7-liter dust collection bin. It features a 6-meter power cord, providing an extensive 9-meter operating radius for wide coverage. Weighing only 4.9 kilograms, this vacuum is easy to maneuver and transport throughout your home.
2. Орнотуу колдонмосу
Follow these steps to set up your Dirt Devil DD2504 vacuum cleaner for first use:
- Компоненттерди таңгактан чыгаруу: Carefully remove all parts from the packaging. Ensure you have the main unit, flexible hose, telescopic tube, combination brush, crevice tool, and parquet brush.
- Шлангды тиркөө: Ийилүүчү шлангды негизги блоктогу соргучтун ичине бекем чыккыча кыстарыңыз.
- Телескопиялык түтүктү туташтыруу: Attach the telescopic tube to the handle end of the flexible hose. Adjust the length of the telescopic tube by pressing the release button and sliding it to your desired height.
- Attach the Floor Tool: Select the appropriate floor tool (combination brush or parquet brush) and attach it to the end of the telescopic tube.
- Кубат туташуу: Extend the power cord and plug it into a suitable 220-240V AC 50/60Hz power outlet.
Image: The vacuum cleaner shown with its various attachments, including the combination brush and crevice tool.
3. Иштөө нускамалары
Operating your Dirt Devil DD2504 vacuum cleaner is straightforward:
- Күйгүзүү/өчүрүү: Чаң соргучту күйгүзүү же өчүрүү үчүн негизги блокто жайгашкан кубат баскычын басыңыз.
- Соруу күчүн тууралоо: The vacuum features adjustable suction control. Rotate the dial on the main unit to increase or decrease suction power as needed for different surfaces.
- Тиркемелерди колдонуу:
- Combination Brush: Use for general cleaning on both hard floors and carpets. Switch between modes using the foot pedal on the brush head.
- Parquet Brush: Ideal for sensitive surfaces like parquet, laminate, or delicate tiles to prevent scratches.
- Жарака куралы: Attach directly to the hose handle or telescopic tube for cleaning tight spaces, corners, and upholstery.
- Маневр жасоо: The vacuum's lightweight design (4.9 kg) and 9-meter operating radius allow for easy movement around your home.
- Артка шнур: After use, press the automatic cord rewind button to retract the power cord safely and quickly into the unit.
Image: A hand using the crevice tool to clean between sofa cushions.
Image: The vacuum cleaner being used on a circular rug, demonstrating its maneuverability.
4. Техникалык тейлөө жана тазалоо
Үзгүлтүксүз тейлөө сиздин чаң соргучуңуздун оптималдуу иштешин камсыз кылат жана иштөө мөөнөтүн узартат:
- Таштанды кутусун бошотуу:
The 2.7-liter dustbin should be emptied regularly, especially when the "MAX" fill line is reached. To empty, detach the dustbin from the main unit, open the lid, and dispose of the contents into a waste bin. Reattach securely. The cyclonic action ensures clean air is expelled, leaving only dust and dirt in the bin. This bagless design eliminates the need for replacement vacuum bags.
Image: The transparent dustbin detached from the vacuum, showing how it opens for easy emptying.
- Cleaning the HEPA 12 Filter:
The HEPA 12 filter is washable and crucial for trapping fine dust particles and allergens. This filter removes up to 99.5% of small dust particles from the air, preventing them from being expelled back into your home and minimizing respiratory irritations or allergic reactions. Remove the filter from its compartment (usually within or near the dustbin). Rinse it under cold running water until the water runs clear. Allow the filter to air dry completely for at least 24 hours before reinserting it. Do not use heat to dry.
- Тазалоочу тиркемелер: Wipe down the hose, telescopic tube, and brush heads with a damp cloth as needed. Remove any tangled hair or debris from the brush rolls.
5. Кыйынчылыктарды
If you encounter issues with your Dirt Devil DD2504, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күч жок | Not plugged in; power outlet fault; thermal cut-out activated. | Check power cord connection; try a different outlet; unplug and allow unit to cool for 30 minutes before restarting. |
| Сорохту жоготуу | Dustbin full; filter clogged; hose/tube/brush blocked. | Empty dustbin; clean/dry HEPA filter; check and clear any blockages in the hose, telescopic tube, or brush head. |
| Адаттан тышкаркы ызы -чуу | Blockage in hose/brush; foreign object in fan; motor issue. | Check for and remove blockages; if noise persists, contact customer support. |
| Чаң чыгуу | Dustbin not properly sealed; filter not installed correctly or damaged. | Ensure dustbin is securely closed; check filter for proper installation and damage. |
6. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модел | DD2504 / V8229 |
| Power Source | Электр энергиясы |
| Киргизүү көлөмүtage | 220 - 240 V AC 50/60 Hz |
| Технология | Monocyclone |
| Күч | 700 Вт |
| Таштанды кутусунун сыйымдуулугу | 2.7 литр |
| Чыпка түрү | HEPA 12 (Washable) |
| Иштөө радиусу | 9 метр |
| Кабелдин узундугу | 6 метр |
| Салмагы | 4.9 килограмм |
| Ызы-чуу деңгээли | 79 дБ |
| Tube Length | 86 см |
| Tube материалдар | Металл |
| Автоматтык түрдө жипти артка түрүү | Ооба |
| Adjustable Suction Control | Ооба |
Image: Visual summary of key specifications including 9m cable length, 2.7L capacity, 79dB noise level, 4.9kg weight, and 2-year guarantee.
7. Кепилдик жана Кардарларды колдоо
Your Dirt Devil DD2504 Bagless Vacuum Cleaner comes with a 2 жылдык кепилдик, анын сапаты жана аткарылышы боюнча жан тынчтыгын камсыз кылуу.
For any questions, technical assistance, or warranty claims, please contact Dirt Devil customer support through their official website or the retailer where you purchased the product. Please have your model number (DD2504) and proof of purchase ready when contacting support.
