1. Продукт бүтүп калдыview
The Fein GAL 1880 CV Rapid Charger is designed for efficient and safe charging of all Ampshare and Bosch Professional 18V lithium-ion battery packs. This charger features an 8-amp charging current, active air cooling, and process-controlled charging to optimize battery life and minimize downtime. Its compact design includes an integrated cord wrap for organized storage.

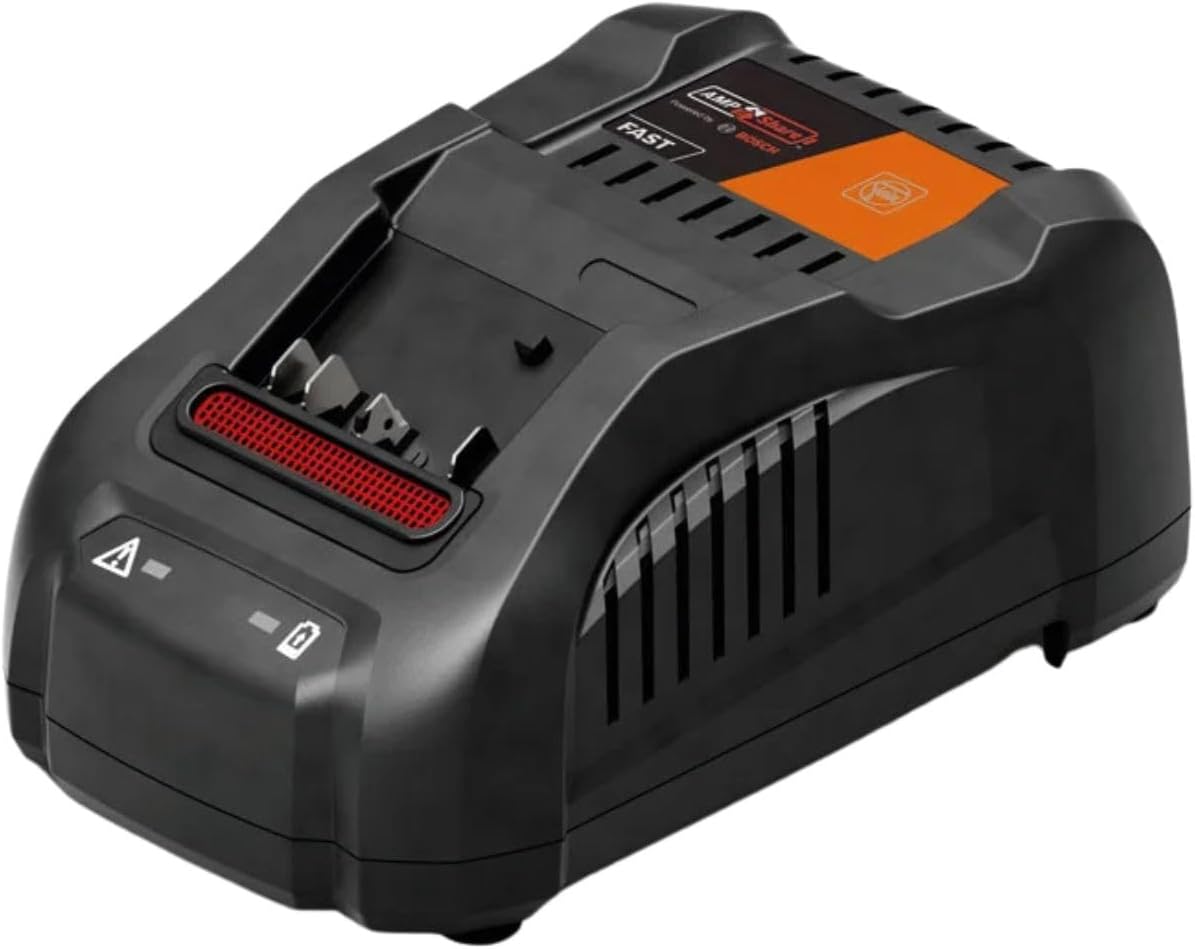

Image 1.1: The Fein GAL 1880 CV Rapid Charger, a black and orange unit with a battery slot and indicator lights.
2. Маанилүү коопсуздук нускамалары
Read all safety warnings and instructions before using the charger. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.
2.1 Жалпы коопсуздук
- Keep the charger dry: Кубаттоочу түзүлүштү жамгыр же нымдуу шарттарга дуушар кылбаңыз. Кубаттоочу түзүлүшкө кирген суу электр тогуна урунуу коркунучун жогорулатат.
- Use in well-ventilated areas: Ensure adequate ventilation during charging. Do not cover the charger's ventilation slots.
- Avoid charging damaged batteries: Do not attempt to charge batteries that are visibly damaged or defective.
- Use only specified batteries: This charger is designed exclusively for Ampshare and Bosch Professional 18V lithium-ion battery packs. Charging other types of batteries may cause personal injury and damage.
- Inspect charger and cord: Before each use, check the charger, cable, and plug for damage. Do not use the charger if damage is detected.
- Колдонулбаган учурда электр розеткасынан ажыратыңыз: Кубаттагычты колдонбогон учурда же тазалоодон мурун электр тогунан ажыратыңыз.
2.2 Электр коопсуздугу
- Электр камсыздоо: электр менен жабдууну камсыз кылуу voltage matches the rating specified on the charger's label.
- Негиздөө: The charger is double-insulated and does not require grounding.
- Узартуу шнурлары: If an extension cord is necessary, ensure it is properly rated for the charger's power requirements and in good condition.
3. Пакеттин мазмуну
Таңгактан чыгарганда бардык буюмдар бар экенин текшериңиз:
- Fein GAL 1880 CV Rapid Charger
- Операциялык колдонмо
4. Орнотуу нускамалары
4.1 Заряддоочу түзүлүштү туташтыруу
- Place the charger on a stable, flat surface in a well-ventilated area, away from direct sunlight or heat sources.
- Unwrap the power cord from the integrated cord wrap.
- Plug the charger's power cord into a standard electrical outlet (240 Volts input).

Image 4.1: The Fein GAL 1880 CV Rapid Charger showcasing its integrated cord wrap for tidy storage.
4.2 Батареяны салуу
- Ensure the battery pack is clean and free of debris.
- жылдырыңыз Ampshare or Bosch Professional 18V battery pack into the charging slot on the charger until it clicks into place.
- The charging indicator light will illuminate, indicating the charging process has begun.
5. Иштөө нускамалары
5.1 Заряддоо процесси
Once a compatible battery is inserted and the charger is connected to power, the charging process starts automatically. The charger utilizes an 8-amp current and process-controlled technology for rapid and optimized charging.

Image 5.1: The Fein GAL 1880 CV Rapid Charger highlighting its fast charging capability for minimal downtime.
5.2 Индикатор жарыктары
The charger features indicator lights to communicate the battery's charging status:
- Катуу жашыл: Батарея толук заряддалган.
- Жаркылдаган жашыл: Батарея заряддалууда.
- Катуу кызыл: Battery or charger error (e.g., battery too hot/cold, defective battery).
- Жарык жок: Charger not connected to power, or battery not properly inserted.
5.3 Active Air Cooling
The GAL 1880 CV charger incorporates active air cooling to prevent battery overheating during the charging cycle. This feature helps extend the overall lifespan of your battery packs and ensures consistent performance.

Image 5.2: The Fein GAL 1880 CV Rapid Charger emphasizing its active air cooling and process-controlled charging features.
5.4 Заряддоо убактысы
A full charge for a typical battery pack can take approximately 113 minutes, depending on the battery's capacity and current charge level.
6. Техникалык тейлөө
6.1 Тазалоо
- Тазалоодон мурун ар дайым кубаттагычты сууруп алыңыз.
- Use a soft, dry cloth to wipe down the exterior of the charger.
- Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Keep the ventilation slots clear of dust and debris to ensure proper air circulation.
6.2 Сактоо
- Store the charger in a dry, cool place, away from direct sunlight and moisture.
- Utilize the integrated cord wrap to keep the power cord neatly stored.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Заряддагычтын индикатор жарыгы күйбөйт. | No power supply; battery not inserted correctly; charger malfunction. | Check power connection; re-insert battery; try a different outlet; contact support if issue persists. |
| Battery not charging (flashing green light not active). | Battery too hot/cold; battery defective. | Allow battery to reach room temperature; try a different battery; contact support if issue persists. |
| Red indicator light is solid. | Battery error; charger error. | Remove and re-insert battery; try a different battery; if red light persists with multiple batteries, charger may be faulty. |
8. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модел | GAL 1880 CV |
| Бренд | Fein |
| Киргизүү көлөмүtage | 240 вольт |
| Output Voltage | 18 вольт (ток) |
| Учурдагы рейтинг | 8 Amps |
| Заряддоо убактысы | Approx. 113 minutes (for full charge) |
| Шайкештик | Ampshare & Bosch Professional 18V Batteries |
| ASIN | B0C5GTTTDS |
9. Кепилдик жана колдоо
Fein products are manufactured to high-quality standards. For information regarding warranty coverage, service, or technical support, please refer to the official Fein webсайтка же кардарларды тейлөө бөлүмүнө кайрылыңыз.
You can visit the official Fein store for more information: Amazon'догу Fein дүкөнү
