1. Introduction and Overview
The Avalla S-360 is a versatile 4-in-1 portable air conditioning unit designed to provide comprehensive climate control for your living or working space. It functions as an air conditioner, dehumidifier, fan, and features a dedicated sleep mode, ensuring comfort throughout the year.
With its powerful 10,000 BTU cooling capacity, the S-360 can rapidly cool rooms up to 100m³, delivering instant relief by constantly replacing hot air with cool air at a rate of 270m³/h. Its energy-efficient design and quiet operation make it an ideal solution for various environments, from bedrooms to large office spaces.
1.1-сүрөт: The Avalla S-360 unit highlighting its four primary functions: air conditioning for cooling, dehumidification to remove moisture, fan mode for air circulation, and a quiet sleep mode for nighttime comfort.
2. Коопсуздук маалыматы
Жаракат алуунун же бузулуунун алдын алуу үчүн шайманды иштетүүдөн мурун бардык коопсуздук эскертүүлөрүн жана көрсөтмөлөрүн кунт коюп окуп чыгыңыз. Бул колдонмону келечекте колдонуу үчүн сактап коюңуз.
- Агрегаттын оодарылып кетүүсүнө жол бербөө үчүн тегиз, туруктуу бетке коюлганын текшериңиз.
- Аба кирүүчү же чыгуучу тешиктерди жаппаңыз. Аба агымынын туура айланышы үчүн түзмөктүн айланасында жетиштүү боштук калтырыңыз.
- Аба желдеткичтерине манжаларды же бөтөн нерселерди киргизбеңиз.
- Keep the unit away from water and other liquids. Do not operate with wet hands.
- Тазалоодон же оңдоодон мурун блокту розеткадан сууруп алыңыз.
- Do not use the unit in areas where flammable gases or liquids are stored.
- This appliance uses R-290 refrigerant, which is flammable. Handle with care and ensure proper ventilation during installation and maintenance.
- Шаймандын жанында жүргөндө балдарды жана физикалык, сезүү же акыл-эс мүмкүнчүлүктөрү чектелүү адамдарды көзөмөлдөңүз.
3. Продукциянын компоненттери
The Avalla S-360 package includes the following components:
- Avalla S-360 көчмө кондиционер бирдиги
- Алыстан башкаруу
- Чыгаруучу шланг
- Window Bracket Kit (for various window types)

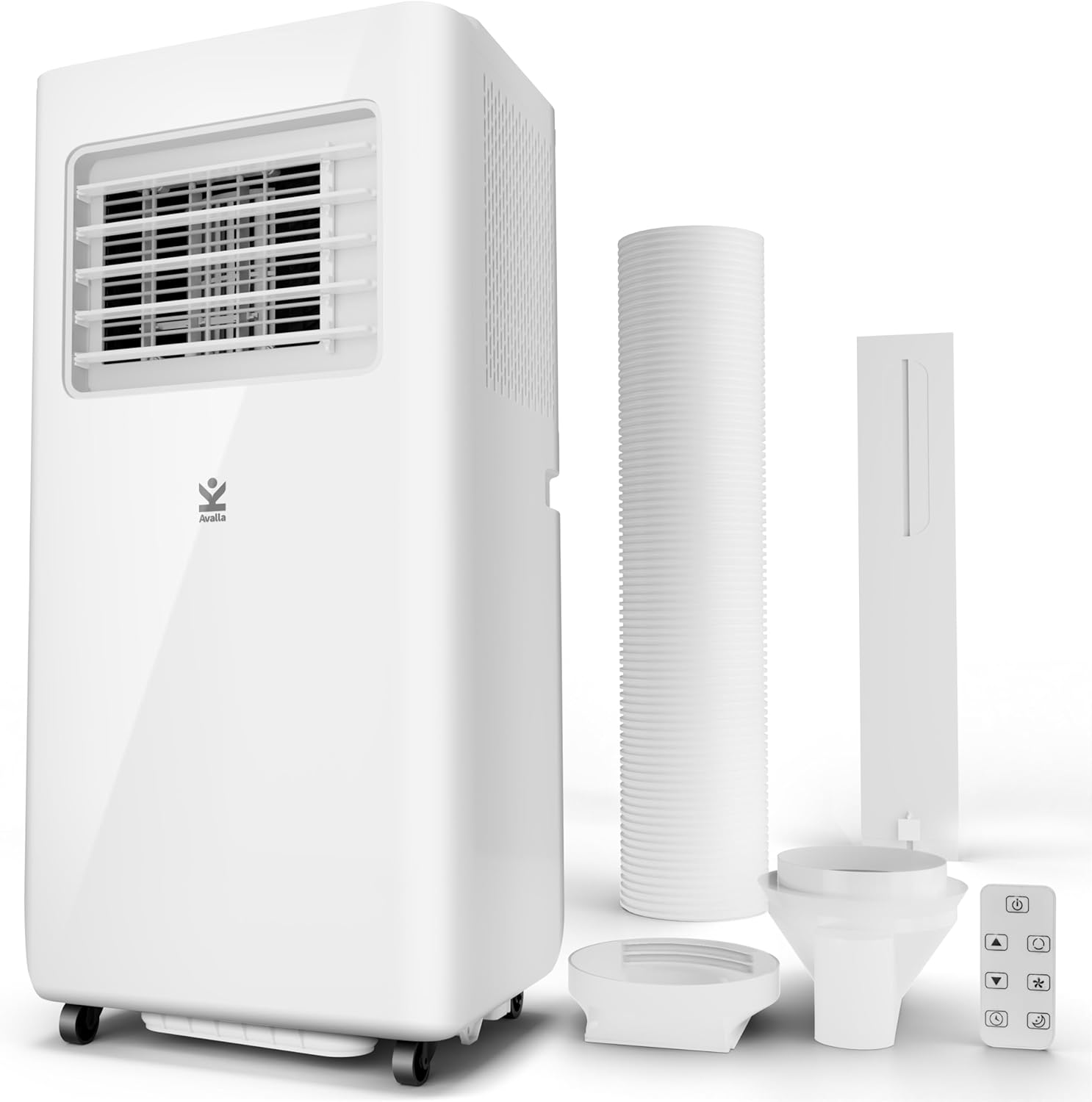

3.1-сүрөт: All components included with the Avalla S-360 portable air conditioner, ready for assembly and use.
4. Орнотуу жана орнотуу
Proper setup is crucial for optimal performance of your Avalla S-360 unit. Follow these steps for installation:
4.1 Бирдикти жайгаштыруу
Place the air conditioner on a firm, level surface near a window and a grounded power outlet. Ensure there is at least 30cm (12 inches) of space around the unit for proper air circulation.
4.1-сүрөт: The Avalla S-360 positioned for effective cooling, with the exhaust hose directed out of a window.
4.2 Чыгаруучу түтүктү орнотуу
- Чыгаруучу түтүктүн бир учун түзмөктүн арткы жагындагы аба чыгаруучу тешикке бекитиңиз.
- Extend the exhaust hose to the nearest window.
- Install the window bracket kit into the window opening. This kit is designed to fit various window types, including sliding, casement, awning, and sash windows, ensuring a secure seal for efficient heat expulsion.
- Connect the other end of the exhaust hose to the opening in the window bracket. Ensure the connection is tight to prevent hot air from re-entering the room.
Видео 4.1: This video demonstrates the versatility of the Avalla portable air conditioner for different room sizes and window types, including sliding, casement, awning, and sash windows, showcasing the exhaust hose setup.
4.3 Continuous Drainage (Dehumidifier Mode)
For continuous dehumidification without manual draining, connect a drainage hose (not included) to the continuous drainage port on the back of the unit. Direct the hose to a suitable drain or container.
4.2-сүрөт: Illustration of the continuous drainage setup for the Avalla S-360, allowing for extended dehumidifier operation without needing to empty the internal water tank.
5. Иштөө нускамалары
The Avalla S-360 features intuitive controls via its digital display and a convenient remote control.
5.1 Башкаруу панели жана алыстан башкаруу
The unit can be operated using the touch-sensitive control panel on top or the included remote control. The digital display provides clear feedback on settings and temperature.
5.1-сүрөт: The Avalla S-360's user-friendly interface, showing both the remote control and the unit's digital display for easy temperature and mode selection.
5.2 Иштөө режимдери
- Air Conditioning (Cooler) Mode: Provides powerful cooling down to 16°C. Use the temperature up/down buttons to set your desired temperature.
- Кургаткыч режими: Removes up to 26 litres of moisture per day, helping to protect your home from damp and mould. This mode is also effective for drying clothes, potentially saving energy compared to a tumble dryer.
- Күйөрман режими: Circulates air without cooling, providing a refreshing breeze. Select from two fan speeds (low/high).
- Уйку режими: Operates quietly at just 53dB, ensuring a peaceful night's sleep while maintaining a comfortable temperature. The display can be dimmed for minimal light disturbance.
5.2-сүрөт: The Avalla S-360 in sleep mode, designed for quiet operation to ensure undisturbed rest.
Видео 5.1: This video provides a detailed look at the Avalla S-360 air conditioner, showcasing its various operating modes and control features.
5.3 Таймер функциясы
The programmable 24-hour timer allows you to set the unit to turn on or off automatically, optimizing energy usage and ensuring comfort when needed.
6. Техникалык тейлөө жана кам көрүү
Regular maintenance ensures the longevity and efficiency of your Avalla S-360.
6.1 Аба чыпкасын тазалоо
The S-360 is equipped with a washable air filter. Clean the filter regularly (e.g., every two weeks, or more often if used frequently) to maintain peak performance and air quality. To clean, remove the filter, rinse it under running water, and allow it to air dry completely before reinserting.
6.2 Суу резервуарын төгүү
In dehumidifier mode, or if the unit is used for extended periods in high humidity, the internal water tank may fill. The unit will typically indicate when the tank is full and stop operation. Drain the water by removing the drain plug and allowing the water to flow into a suitable container. For continuous operation, utilize the continuous drainage feature as described in Section 4.3.
6.1-сүрөт: The Avalla S-360's dehumidifier function can assist in drying clothes, reducing reliance on tumble dryers and saving energy.
6.2-сүрөт: The dehumidifier mode of the Avalla S-360 actively removes excess moisture from the air, contributing to a healthier indoor environment by preventing mould and dampжок.
6.3 Сактоо
Before storing the unit for an extended period, ensure the water tank is completely drained and the air filter is clean and dry. Store the unit in a cool, dry place, preferably covered to protect it from dust.
7. Кыйынчылыктарды
If you encounter issues with your Avalla S-360, refer to the table below for common problems and solutions.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | Электр кубаты жок, шнур ажыратылган, өчүргүч өчүрүлгөн. | Электр туташуусун текшериңиз, автоматтык өчүргүчтү баштапкы абалга келтириңиз. |
| Агрегат эффективдүү муздабай жатат. | Air filter dirty, exhaust hose blocked/disconnected, room too large, windows/doors open. | Clean air filter, ensure exhaust hose is properly installed and unblocked, close windows/doors, consider room size. |
| Суунун агып чыгышы. | Drain plug loose, continuous drainage hose not properly connected, water tank full (if not using continuous drainage). | Ensure drain plug is secure, check continuous drainage hose connection, empty water tank. |
| Агрегат ызы-чуу. | Unit not on a level surface, fan speed too high, internal obstruction. | Place on a level surface, select lower fan speed, check for obstructions. |
If the problem persists after attempting these solutions, please contact Avalla customer support.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | AVS-360 (S-360) |
| Муздатуу кубаттуулугу | 10,000 BTU |
| Камтуу аймагы | 100 м³ чейин |
| Аба агымынын ылдамдыгы | 270м³/саат |
| нымдуулуктун күч жөндөмдүүлүгү | 26 литр/күн |
| Ызы-чуу деңгээли | 53 дБ |
| Энергия натыйжалуулугунун рейтинги | А классы |
| Энергияны керектөө | 1100W (approx. 26p per hour running cost) |
| Муздаткыч | R-290 (Экологиялык жактан таза) |
| Өлчөмдөрү (L x W x Y) | 32.7 x 28 x 69.8 см |
| Салмагы | 22 кг |
| Тtage | 230 вольт (AC) |
| Камтылган компоненттер | Window Bracket, Remote Control, Exhaust Hose |
9. Кепилдик жана колдоо
Avalla stands behind the quality of its products. The Avalla S-360 Portable Air Conditioner comes with a 2 жылдык кепилдик сатып алынган күндөн тартып, өндүрүштүн кемчиликтерин жана нормалдуу колдонууда бузулууларды камтыйт.
For any technical assistance, troubleshooting beyond this manual, or warranty claims, please contact our UK-based customer support team. Details can be found on the official Avalla webсайт же сатып алуу документтери.
