ZYXEL USGFLEX200H ZyWALL жогорку ылдамдыктагы киберкоопсуздук брандмауэринин колдонуу боюнча колдонмосу

1. Киришүү

This manual provides essential information for the installation, configuration, and operation of your ZYXEL USGFLEX200H ZyWALL High Speed Cyber Security Firewall. Please read this manual thoroughly before using the device to ensure proper functionality and security.

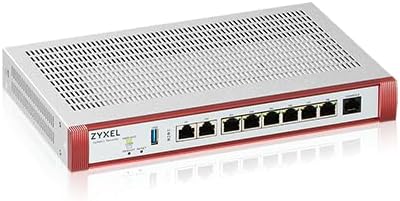

Figure 1: Zyxel USGFLEX200H ZyWALL High Speed Cyber Security Firewall

2. Кутуда эмне бар

Пакетте бардык буюмдар бар экенин текшериңиз:

• ZyWALL USG FLEX 200H Network Security/Firewall Appliance
• Кубаттуу адаптер
• RJ-45 - RS-232 Cable For Console Connection

Video 1: Unboxing of the USGFLEX200H firewall, showing the device and included accessories.

3. Продукт бүтүп калдыview

The ZYXEL USGFLEX200H is a high-performance cyber security firewall designed for small to mid-sized offices. It features multi-gigabit ports and advanced security capabilities.

3.1 алдыңкы панели

Figure 2: Front Panel of USGFLEX200H

The front panel includes indicator lights for power, system status, and individual port activity. It also features a USB port and multiple Ethernet ports.

3.2 Flexible Ports

Figure 3: Flexible Port Configuration and Performance Highlights

The USGFLEX200H offers 2x 2.5Gbps multi-gigabit ports and 6x configurable Gigabit Ethernet ports for flexible WAN/LAN deployment. This allows for optimized network connectivity and redundancy.

4. Орнотуу

Follow these general steps to set up your ZYXEL USGFLEX200H firewall:

1. Туташуу кубаты: Connect the provided power adapter to the device and a power outlet.
2. WANды туташтыруу: Connect your internet service provider's modem or router to one of the configurable WAN ports (e.g., WAN1).
3. LANды туташтыруу: Connect your local network devices (e.g., switches, computers) to the LAN ports.
4. Баштапкы конфигурация: Аппаратка кириңиз web interface or use the Nebula Cloud Management solution for initial setup. Refer to the Quick Start Guide for detailed first-time setup instructions.

Видео 2: Бүттүview of the Zyxel USGFLEX H Series Firewalls, demonstrating their features and connectivity options.

5. Иштөө өзгөчөлүктөрү

The USGFLEX200H offers a range of features for robust network security and management:

• Жогорку аткаруу: Max Throughput: 5000 Mbps SPI Firewall, 1500 Mbps UTM (AV+IDP), 1200 Mbps VPN, 600k Sessions.
• VPN Capabilities: Supports secure VPN connections for remote access and site-to-site connectivity.
• Ийкемдүү порттор: 2x 2.5Gbps and 6x Configurable GbE ports for versatile network configurations.

Video 3: A promotional video highlighting the efficiency and ease of use of Zyxel products, emphasizing the 'Work smarter, not harder' philosophy.

6. Nebula Cloud Management

Figure 4: Nebula Cloud Management for unified security and real-time monitoring.

The ZYXEL USGFLEX200H can be managed and monitored using Zyxel's Nebula Cloud Management solution. This platform simplifies network operations, offering unified security, real-time monitoring, and cloud-based control for on-premise firewalls.

Figure 5: Nebula Mobile App for easy setup and monitoring.

The Nebula mobile app allows for quick setup and management, connecting your network in minutes.

7. Коопсуздук өзгөчөлүктөрү

The USGFLEX200H provides robust security with optional UTM services:

Figure 6: Licensed vs. Unlicensed Security Features

Key security services, such as Sandboxing, DNS reputation, Anti-malware, ransomware blocking, web filtering, application control, and IDP, are available as separately sold licenses. The base hardware includes Network Address Translation, Stateful Packet Inspection, Distributed Denial of Service protection, and VPN functionality.

Figure 7: AI-Powered Cloud Cybersecurity

Utilizing AI-powered cloud intelligence, the firewall delivers multi-layered protection to block threats and restrict inappropriate behavior.

Figure 8: License Comparison for Security Services

8. Performance

Figure 9: Performance Comparison with Prior Generation

The USGFLEX200H offers significant performance improvements over previous generations, including higher SPI Firewall, UTM, and VPN throughputs, and increased VLAN support.

Figure 10: Enhanced Performance and Management

The device features next-gen multi-core hardware with Fastpath technology, delivering up to 3x performance and speeds up to 6.5 Gbps SPI Firewall throughput.

9. Техникалык тейлөө

• Программалык камсыздоонун жаңыртуулары: Regularly check for and apply firmware updates through the Nebula Cloud Management platform or the device's local web оптималдуу аткарууну жана коопсуздукту камсыз кылуу үчүн интерфейс.
• Физикалык текшерүү: Periodically inspect the device for dust accumulation, especially around ventilation areas. Ensure proper airflow to prevent overheating.
• Кабелдик байланыштар: Verify that all network cables are securely connected to prevent intermittent connectivity issues.

10. Кыйынчылыктарды

• Кубат жок: Ensure the power adapter is correctly connected to the device and a working power outlet. Check the power indicator light on the front panel.
• Интернетке кирүү жок: Verify WAN cable connection. Check your ISP's service status. Confirm WAN settings in the device's configuration.
• Жай аткаруу: Check network traffic via Nebula Cloud or local interface. Consider upgrading security licenses if UTM features are heavily utilized.
• Түзмөктү баштапкы абалга келтирүү: If the device is unresponsive, use the 'REBOOT RESET' button on the front panel. A short press reboots, a long press performs a factory reset (data loss will occur).

11. Техникалык шарттар

12. Кепилдик жана колдоо

For warranty information and technical support, please refer to the documentation included with your product or visit the official ZYXEL website. Online resources, FAQs, and contact information for customer service are typically available there.
