Introduction
Сатып алганыңыз үчүн рахматasing the BORUIT V3 Mini Powerful EDC Flashlight. This compact and versatile flashlight is designed for everyday carry, offering high lumen output, multiple lighting modes, and a durable, waterproof design. Please read this manual carefully to ensure proper use, maintenance, and to maximize the lifespan of your device.
Продукт бүттүview
The BORUIT V3 flashlight features a dual-head design, a robust PC+304b stainless steel construction, and a built-in 500mAh rechargeable battery. It offers 12 lighting modes across main and side lights, including white, UV, red, and red-blue flash. Its compact size and tail magnet enhance portability and utility.
Figure 1: BORUIT V3 Flashlights (Fluorescent and Black Models)
This image displays both the clear fluorescent and black versions of the BORUIT V3 flashlight, highlighting their compact form factor and the dual light heads at the front. The clear model allows visibility of internal components, while the black model offers a sleek, opaque finish.
Figure 2: BORUIT V3 Fluorescent Model in Use
This image shows the clear fluorescent BORUIT V3 flashlight. One unit is depicted glowing green, illustrating its fluorescent property, while another unit has its main lights activated, demonstrating its illumination capability.
Кутуда эмне бар
Upon unboxing your BORUIT V3 Flashlight, please verify that all components are present:
- BORUIT V3 Mini Powerful EDC Flashlight (Fluorescent or Black model)
- Камтылган 500mAh полимердик литий батареясы
- USB-C заряддоо кабели
Сүрөт 3: Камтылган аксессуарлар
This image displays the black BORUIT V3 flashlight alongside its USB-C charging cable, which is essential for recharging the device's internal battery.
Жайгашуу
Баштапкы заряддоо
Before first use, it is recommended to fully charge your BORUIT V3 flashlight. The device comes with a built-in 500mAh polymer lithium battery.
- Кол чырактан USB-C заряддоо портун табыңыз.
- Берилген USB-C кабелин фонарьдын кубаттоо портуна туташтырыңыз.
- USB-C кабелинин экинчи учун шайкеш келген USB кубат булагына (мисалы, компьютердин USB портуна, дубал адаптерине, кубат банкына) туташтырыңыз.
- During charging, a red light will flash. Once fully charged, the indicator light will turn green.
Figure 4: Type-C Charging Process
This diagram illustrates the USB-C charging process for the BORUIT V3 flashlight. It shows the location of the Type-C charging port and the LED indicators: a flashing red light indicates charging, and a solid green light indicates a full charge.
Attaching to Keychain/Belt
The BORUIT V3 is designed for portability and can be easily attached to a keychain, backpack, or belt for convenient access.
- Utilize the integrated loop on the flashlight body to attach a keyring or carabiner.
- Ensure the attachment is secure to prevent accidental loss.
Figure 5: Portable Keychain Feature
This image demonstrates the portability of the BORUIT V3 flashlight, showing it conveniently attached to a backpack and a set of car keys, illustrating its suitability for everyday carry.
Иштөө нускамалары
The BORUIT V3 features two main buttons for operation: the main light switch and the side light switch. It offers 12 distinct lighting modes.
Main Light Modes (5 Modes)
- Режимдер: Super Bright, High Light, Medium Bright, Low Light, Economic
- Күйгүзүү/өчүрүү үчүн: Press the main light switch button to turn on. Release to turn off.
- Цикл режимдерине: Double-click the main light switch button to turn on. Click again to cycle through modes (Super Bright → High → Medium → Low → Economic). Press and hold to turn off.
Side Light Modes (7 Modes)
- Режимдер: White Light, UV, Red Light, Red Light Flash, Red Blue Light Flash
- To Turn On White Light: Long press the side light switch. Release to turn off.
- Цикл режимдерине: Double-click the side light switch to turn on the side light mode. Click again to cycle through modes (White Light → UV → Red Light → Red Light Flash). Press and hold to turn off.
- To Activate Red-Blue Flash: Triple-click the side light switch.

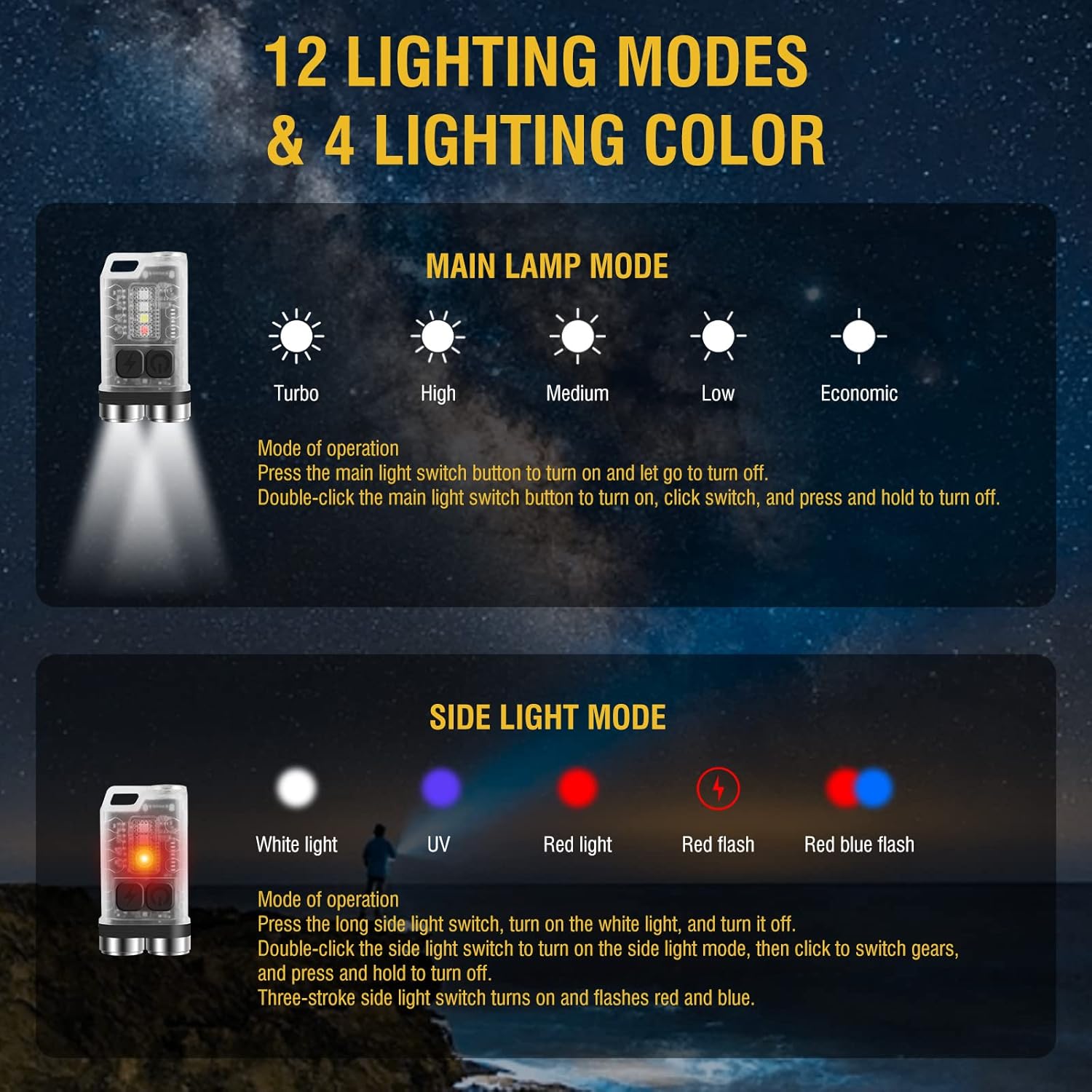

Figure 6: Lighting Modes and Colors
This detailed diagram outlines the 12 distinct lighting modes and 4 color options available on the BORUIT V3 flashlight. It visually separates the main lamp modes (Turbo, High, Medium, Low, Economic) and the side light modes (White, UV, Red, Red Flash, Red Blue Flash), along with their respective operation instructions.
Magnetic Tail Feature
The flashlight features a magnet at its tail, allowing it to be securely attached to any iron-containing surface for hands-free operation. This is particularly useful for tasks requiring illumination in fixed positions.
Техникалык тейлөө
Proper maintenance ensures the longevity and optimal performance of your BORUIT V3 flashlight.
- Тазалоо: Кол чырактын корпусун жумшак менен сүртүңүз, гamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Заряддоо: Recharge the battery regularly, especially if the flashlight will not be used for an extended period, to prevent deep discharge.
- Сактагыч: Кол чыракты салкын, кургак жерде күндүн тике тийген нурунан жана экстремалдык температурадан алыс сактаңыз.
- Суу каршылык: While rated IP65 waterproof, avoid prolonged submersion. Ensure the USB-C port cover is securely closed when exposed to water or dust.
Figure 7: IP65 Outdoor Waterproof Feature
This image illustrates the BORUIT V3 flashlight's IP65 outdoor waterproof capability, showing it functioning effectively in a rainy environment, emphasizing its durability against dust and water splashes.
Проблемаларды чечүү
If you encounter issues with your BORUIT V3 flashlight, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кол чырак күйбөйт. | Батарея аз же заряды жок. | Charge the flashlight fully using the provided USB-C cable. |
| Жарыктын чыгышы күңүрт. | Батарея аз. | Кол чыракты кайра заряддаңыз. |
| Жарык режимдерин өзгөртүү мүмкүн эмес. | Туура эмес баскычты басуу тартиби. | Refer to the "Operating Instructions" section for correct button usage (single click, double-click, long press, triple-click). |
| Заряддоо көрсөткүчү иштебей жатат. | Кабель же кубат булагы туура эмес. | Try a different USB-C cable or power adapter. Ensure the cable is fully inserted. |
Техникалык шарттар
Detailed technical specifications for the BORUIT V3 Mini Powerful EDC Flashlight:
| Өзгөчөлүк | Деталь |
|---|---|
| Продукт аты | BORUIT V3 fluorescent flashlight + V3 black flashlight |
| Материал | PC + 304b Stainless Steel |
| Lumens (Max) | 900 LM |
| Жарык булагы | LED |
| Негизги жарык режимдери | 5 modes (Super Bright, High Light, Medium Bright, Low Light, Economic) |
| Каптал жарык режимдери | 7 modes (White Light, UV, Red Light, Red Light Flash, Red Blue Light Flash) |
| Ачык түс | UV, White, Red, Blue Light |
| Батарея | 500 mAh Polymer Lithium Battery (Built-in) |
| Заряддоо түрү | TYPE-C заряддоо порту |
| Суу өткөрбөйт | IP65 |
| Нурлануу аралык | 100 метр |
| Продукт өлчөмү | 15 мм x 31 мм x 56 мм (0.6" x 1.2" x 2.2") |
| Таза Салмак | 33г (1.17 унция) |
8-сүрөт: Продукциянын өлчөмдөрү жана салмагы
This image provides a visual representation of the BORUIT V3 flashlight's compact size, detailing its length (2.2 inches / 56mm), width (1.2 inches / 31mm), thickness (0.6 inches / 15mm), and net weight (1.17 oz / 33g), emphasizing its slim and lightweight design.
Кепилдик жана колдоо
For warranty information or technical support, please refer to the official BORUIT webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
