ZENEC Z-EMAP76MH-TT3 Micro SDHC картасынын колдонуучу нускамасы

1. Киришүү

This manual provides detailed instructions for the installation, operation, and features of the ZENEC Z-EMAP76MH-TT3 Micro SDHC Card. This navigation software is specifically designed for use with ZENEC Infotainer models Z-E3776, Z-N975, and Z-N976, transforming them into comprehensive navigation systems tailored for motorhomes and caravans.

2. Продукт бүтүп калдыview

The Z-EMAP76MH-TT3 is a 32 GB Micro SDHC card pre-loaded with advanced navigation software. It offers extensive mapping for 44 European countries, a premium Point of Interest (P.O.I.) package, and specialized features for motorhome and caravan navigation.

Image: The ZENEC Z-EMAP76MH-TT3 Micro SDHC card alongside examples of the navigation interface, showing map views and vehicle profile тандоо.

3. Орнотуу

To set up your ZENEC Z-EMAP76MH-TT3 navigation software, simply insert the Micro SDHC card into the designated card slot of your compatible ZENEC Infotainer (Z-E3776, Z-N975, or Z-N976). The system will automatically recognize the navigation software, integrating it seamlessly with your media center.

Image: The ZENEC Z-EMAP76MH-TT3 Micro SDHC card shown with a ZENEC Infotainer installed in a vehicle dashboard, illustrating the integrated navigation experience.

4. Иштөө нускамалары

4.1 Vehicle Profile Конфигурация

For optimal route calculation, select the appropriate vehicle profile. You can configure specific vehicle data such as height, width, length, and weight. This ensures that routes are calculated to avoid unsuitable roads or restrictions for your motorhome or caravan.

4.2 Навигациянын өзгөчөлүктөрү

• Navi Splitscreen: Utilize the navigation display in splitscreen mode alongside other audio sources.
• Continuous Route Guidance: The system allows for playback of music with active route guidance and can resume route guidance after short stops, such as refueling.
• Send-To-Car Function: Easily transfer planned routes or specific camping and pitch locations (with equipment filtering) from the FREEONTOUR application to your ZENEC device via Bluetooth.
• TTS (Text to Speech): Benefit from spoken street names and navigation instructions.
• TMC (Traffic Message Channel): Receive real-time traffic information to optimize your route.
• TPEG Free: Access additional traffic information services where available.

Image: A motorhome traveling on a scenic road, illustrating the freedom and convenience provided by the specialized navigation features for motorhomes.

5. Өркүндөтүлгөн функциялар

The Z-EMAP76MH-TT3 navigation package includes a robust set of features designed to enhance your travel experience:

• Extensive Map Coverage: Maps for 44 European countries are included.
• Premium P.O.I. Package: Over 6.5 million points of interest, including restaurants, fuel stations, and attractions.
• Camping P.O.I. Database: A dedicated database with 20,000 listed camping and pitches, allowing for detailed filtering based on amenities.
• Realistic 3D Representation: Enjoy 3D views of terrain, landmarks, city centers, and complex intersections.
• 3D Auto-Zoom: Automatic zooming at intersections and gyroscopes for clearer guidance.
• Lane Assistant: Visual guidance for lane changes, including display of highway traffic signs.

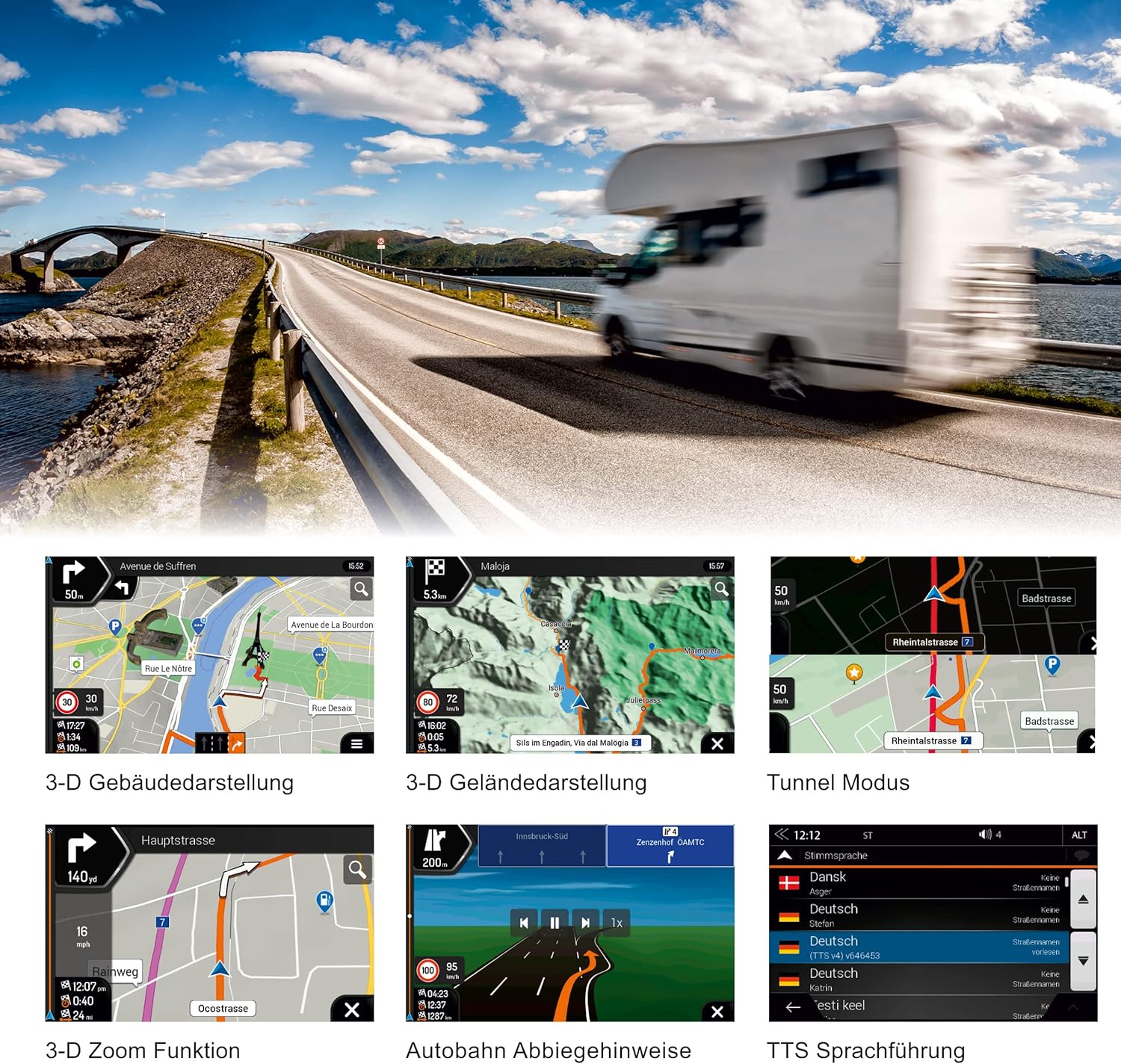

Image: Various advanced navigation features shown on the display, including 3D building representation, 3D terrain view, tunnel mode, 3D zoom function, highway exit warnings, and TTS language selection.

6. Техникалык тейлөө

To ensure optimal performance and up-to-date navigation, it is recommended to regularly check for and install map updates. Map updates are provided free of charge for three years from the date of activation.

For information on how to download and install updates, please refer to the official ZENEC support website or the instructions provided with your Infotainer.

7. Кыйынчылыктарды

If you encounter any issues with your ZENEC Z-EMAP76MH-TT3 Micro SDHC Card or navigation system, please consider the following general troubleshooting steps:

• Ensure the Micro SDHC card is correctly inserted into the Infotainer's slot.
• Verify that your ZENEC Infotainer's firmware is up to date.
• Restart the Infotainer system.
• Check the vehicle profile settings to ensure they match your motorhome's dimensions and weight.
• For persistent issues, consult the comprehensive manual of your ZENEC Infotainer or contact ZENEC customer support.

8. Техникалык шарттар

9. Кепилдик жана колдоо

ZENEC provides free map updates for three years from the activation date of your Z-EMAP76MH-TT3 Micro SDHC Card. For any product-related inquiries, technical support, or warranty claims, please contact the manufacturer or authorized distributors.

Manufacturer and EU Importer:

ACR Brändli + Vögeli AG
Бортурмвег 1
5330 Bad Zurzach
Швейцария

E-mail: acr-info@acr.eu
Web: https://www.acr.eu
Колдоо суроолору: https://www.acr.eu/support/

Ченемдик маалымат:

ACR S + V GmbH
Industriestr. 35
79787 Lauchringen
Германия

EU-Representative for Product Compliance and GPSR: André Grossenbacher (CTO)
Stellvertreter des EU-Beauftragten für Product Compliance und GPSR: Hatsada Souchaleum (B.Sc SW)

EU-Mail-Kontakt für Product Compliance: compliance@acr.eu

10. Продукциянын коопсуздугу боюнча маалымат

ЭСКЕРТҮҮ!

• This product is exclusively intended for use in vehicles and has been developed and designed accordingly. Any deviation from the intended use is at your own risk.
• Please read the enclosed operating manual, the product description, and if applicable, the compatibility list for the respective target vehicles.
• Observe and follow all instructions in the operating manual for safe installation and use of this product in cars, SUVs, vans, or motorhomes.
• Ensure that the product exactly matches the operating manual and product description regarding the intended use.
• This article is passive (does not emit >12 V board voltage). Passive articles generate radiation only to the extent permitted by the product safety regulation. Please note:
• The packaging of the article can be a choking hazard. Keep it away from children.
• The packaging of the article can contain small parts. Keep these away from children.
• Loose ceramic-magnet systems from loudspeakers can be a strong mechanical hazard (fall, impact) or splinter. Immediate danger to the eyes.
• Objects with components made of iron or steel can be attracted by strong magnets. Avoid tools, knives, or other sharp objects near the loudspeaker.
• Neodymium magnets are often coated with nickel. Nickel is a strong allergen. Avoid contact with the skin.
• When listening to music in all audio playback devices, prolonged and louder listening can cause hearing damage and/or irreversible hearing loss. Set the volume to a normal level.
• The article complies with the applicable EU regulations and harmonized standards of the respective product category.
• If you have any further questions about the use and/or disposal of this product in the vehicle, please contact the support department of the respective brand of the product. An e-mail address for support inquiries can be found there, and on the respective brand's homepage under "Support".

Image: A page from the product manual detailing important safety information and warnings regarding the use and handling of the ZENEC Z-EMAP76MH-TT3.
