1. Киришүү
Thank you for choosing the T'nB Single 2 Bluetooth 5.0 Wireless Headphones. These headphones are designed to provide a high-quality audio experience with the convenience of wireless connectivity, multiple playback options, and a comfortable, portable design. This manual will guide you through the setup, operation, and maintenance of your new headphones.

Figure 1: T'nB Single 2 Wireless Headphones (Pink)
2. Пакеттин мазмуну
Сураныч, пакетте төмөнкү нерселерди текшериңиз:
- T'nB Single 2 Wireless Headphones
- USB-C заряддоо кабели
- Колдонуучунун Колдонмосу (бул документ)
3. Продукт бүтүп калдыview
The T'nB Single 2 headphones feature an adjustable headband, comfortable earcups, and integrated controls for easy operation. They also offer versatile connectivity options.
3.1 Башкаруу каражаттары жана порттор

Figure 2: Integrated controls on the earcup for playback and volume.

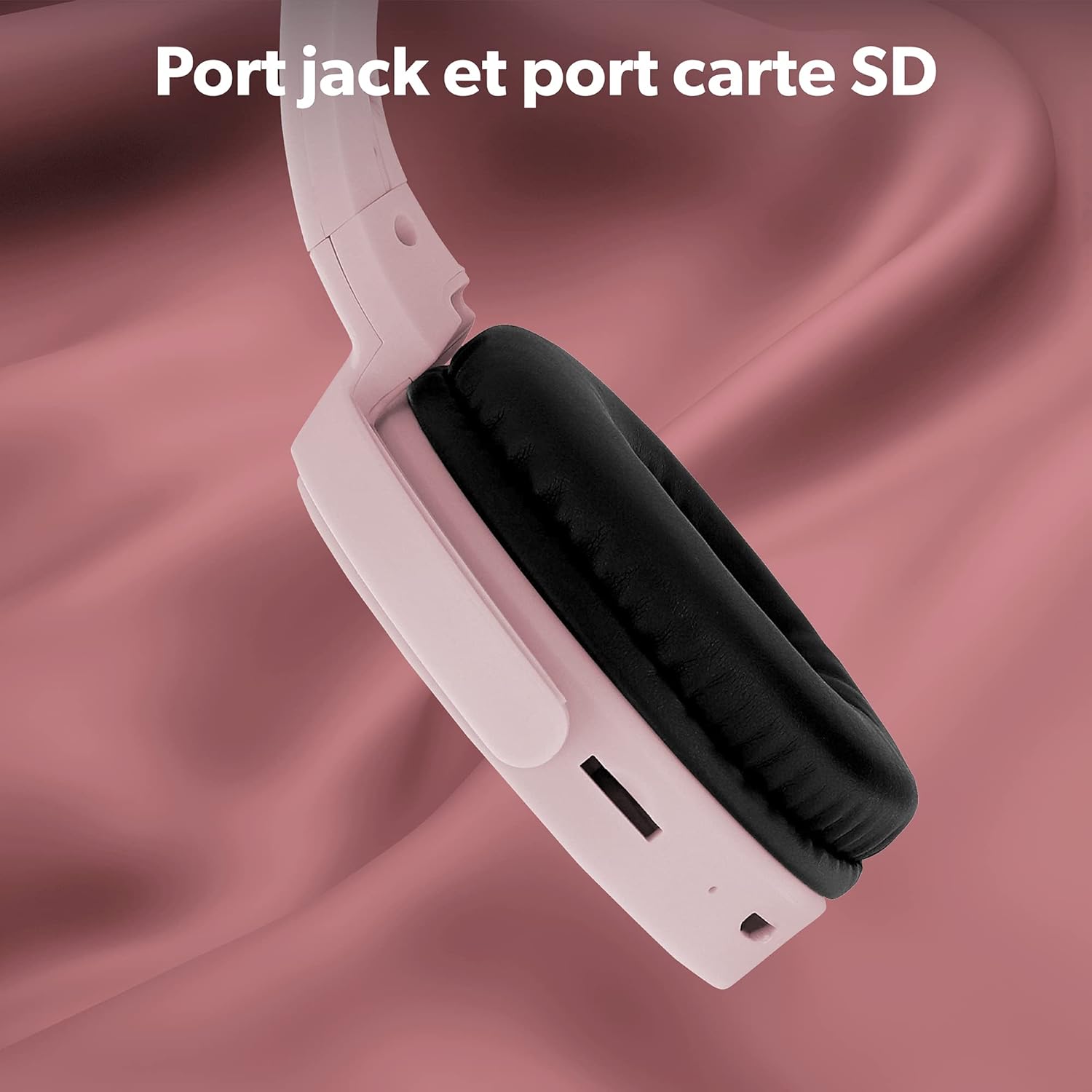

Figure 3: The 3.5mm jack port and SD card slot for alternative audio sources.
The headphones include a 3.5mm audio jack for wired connection and an SD card slot for direct music playback without a connected device.
4. Орнотуу
4.1 Наушниктерди заряддоо
Before first use, fully charge your headphones. Connect the supplied USB-C cable to the charging port on the headphones and the other end to a USB power source (e.g., computer USB port, wall adapter). The LED indicator will show the charging status. A full charge provides up to 8 hours of listening time.
Figure 4: Enjoy up to 8 hours of continuous music playback on a single charge.
4.2 Күйгүзүү/өчүрүү
- Күйгүзүү үчүн: LED индикатору күйгүчө Power баскычын басып, кармап туруңуз.
- Өчүрүү үчүн: LED индикатору өчмөйүнчө Кубат баскычын басып, кармап туруңуз.
4.3 Bluetooth жупташтыруу
Гарнитураңызды Bluetooth иштетилген түзмөккө туташтыруу үчүн:
- Наушниктердин өчүрүлгөнүн текшериңиз.
- Күйгүзүү баскычын болжол менен 5-7 секунд басып, LED индикатору көк жана кызыл түстө күйүп-өчкөнгө чейин кармап туруңуз, бул жупташтыруу режимин көрсөтөт.
- Түзмөгүңүздө (смартфон, планшет, компьютер) Bluetooth иштетип, жаңы түзмөктөрдү издеңиз.
- Select "T'nB Single 2" from the list of available devices.
- Туташтырылгандан кийин, LED индикатору акырындык менен көк болуп жанат.
Figure 5: The headphones utilize Bluetooth 5.0 for stable wireless connection.
5. Наушниктерди иштетүү
5.1 Музыканы ойнотуу жана үндү башкаруу
Use the integrated controls on the earcup to manage your audio:
- Ойнотуу/тындыруу: Play/Pause баскычын бир жолу басыңыз.
- Көлөмү: Үнүн жогорулатуу баскычын басыңыз.
- Үнүн азайтуу: Үндү азайтуу баскычын басыңыз.
- Кийинки трек: Үнүн жогорулатуу баскычын басып, кармап туруңуз.
- Мурунку трек: Үндү азайтуу баскычын басып, кармап туруңуз.
Figure 6: Easily control your music with integrated play/pause, volume, and track selection buttons.
5.2 Чалууларды кабыл алуу жана кабыл алуу
The built-in microphone allows for hands-free calls when connected via Bluetooth:
- Чакырууга жооп берүү: Чалуу келгенде ойнотуу/тындыруу баскычын бир жолу басыңыз.
- Чакырууну аяктоо: Чалуу учурунда Play/Pause баскычын бир жолу басыңыз.
- Чакырууну четке кагуу: Play/Pause баскычын 2 секунд басып туруңуз.
Figure 7: The integrated microphone ensures clear communication during calls.
5.3 Зымдуу туташуу (3.5 мм уяча)
To use the headphones with a wired connection, simply plug a 3.5mm audio cable (not included) into the headphone's jack port and the other end into your audio source. This mode is useful for saving battery or connecting to non-Bluetooth devices.
5.4 SD Card Playback
Insert a microSD card (not included) with your music files into the dedicated SD card slot. The headphones will automatically switch to SD card playback mode. Use the integrated controls to manage your music.
6. Техникалык тейлөө
6.1 Тазалоо
Wipe the headphones with a soft, dry cloth. Do not use abrasive cleaners or solvents. Avoid getting moisture into any openings.
6.2 Сактоо
The T'nB Single 2 headphones are foldable and feature rotating earcups for compact storage. Store them in a cool, dry place away from direct sunlight and extreme temperatures.
Figure 8: The foldable design and rotating earcups allow for easy storage and portability.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Кулакчындар күйбөйт | Батарея аз | Наушниктерди толук заряддаңыз. |
| Bluetooth аркылуу жупташтыруу мүмкүн эмес | Наушник жупташтыруу режиминде эмес; Түзмөктүн Bluetooth өчүк; Түзмөктөн өтө алыс | Наушниктердин жупташтыруу режиминде экенин текшериңиз (көк/кызыл күйүп). Түзмөгүңүздө Bluetooth'ду күйгүзүңүз. Наушниктерди аппаратка жакыныраак жылдырыңыз (10 метр аралыкта). |
| Үн жок | Volume too low; Incorrect audio source; Headphones not connected | Increase volume on headphones and device. Check if headphones are properly connected (Bluetooth, 3.5mm jack, or SD card). |
| Микрофон иштебей жатат | Headphones not connected via Bluetooth; Device microphone settings | Ensure headphones are connected via Bluetooth. Check your device's audio input settings. |
8. Техникалык шарттар
- Модел: CBSGL2PK
- Байланыш: Bluetooth 5.0, 3.5mm Jack, SD Card Slot
- Батареянын иштөө мөөнөтү: 8 саатка чейин
- Заряддоо порту: USB-C
- Импеданс: 32 Ом
- Сезимталдуулук: 110 дБ
- Жыштык диапазону: 20 Гц - 20 000 Гц
- Өзгөчөлүктөр: Foldable design, Integrated microphone, Touch controls
- Камтылган компоненттер: USB-C заряддоо кабели
- Батарея түрү: Литий-ион (1 талап кылынат, кошулган)
- Салмагы: 240 г (болжол менен)
9. Кепилдик жана колдоо
T'nB is a French brand committed to providing quality products that comply with European standards. For any product defects, questions, or support needs, please refer to your purchase documentation or contact the retailer where you purchased the product for warranty information and customer service. Your satisfaction is a priority.
