Nilight ZH409 20 Inch LED Light Bar & 18021F-B 4 Inch LED Pods User Manual

Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your Nilight ZH409 20-inch Triple Row Flood Spot Combo LED Light Bar and Nilight 18021F-B 2PC 4-inch Triple Row Flood Spot Combo LED Pods. Please read this manual thoroughly before installation and use to ensure proper function and safety.

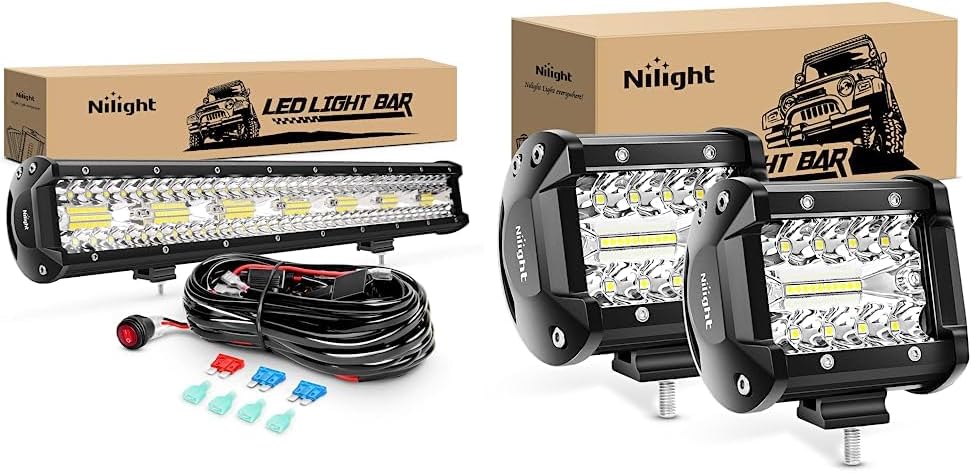

Figure 1: Nilight ZH409 20-inch LED Light Bar, 18021F-B 4-inch LED Pods, and included wiring harness.

Коопсуздук маалыматы

Ар дайым төмөнкү коопсуздук чараларын сактаңыз:

• Ensure the vehicle's power is disconnected before installation to prevent electrical shock.
• Томду ырастаңызtage compatibility (9-30V DC) before connecting the lights.
• Иштеп жатканда жарыкка түз карабаңыз, анткени ал көзгө зыян келтириши мүмкүн.
• Securely mount the light bars and pods to prevent detachment during vehicle operation.
• This product is designed for off-road use only. Check local and provincial laws regarding auxiliary lighting.
• Keep wiring away from hot or moving parts of the vehicle.
• Use appropriate fuses as provided in the wiring harness.

Пакеттин мазмуну

Сураныч, пакетте төмөнкү нерселерди текшериңиз:

• 1 x Nilight ZH409 20-inch Triple Row LED Light Bar
• 2 x Nilight 18021F-B 4-inch Triple Row LED Pods
• 1 x Heavy Duty Off-Road Wiring Harness (for light bar)
• Mounting Brackets and Hardware (for both light bar and pods)

Figure 2: Components for the 20-inch LED Light Bar, including the light bar, wiring harness, and fuses.

Figure 3: Two Nilight 4-inch LED Pods, typically packaged together.

Орнотуу жана орнотуу

1. Mounting the Light Bar and Pods

1. Унааңызга жарыктын так проекциясын жана бекем бекитилишин камсыз кылган ылайыктуу орнотуучу жерди аныктаңыз.
2. Assemble the adjustable mounting brackets to the light bar and pods using the provided hardware.
3. Position the light bar and pods in the desired location and mark the drilling points for the mounting bolts.
4. Drill pilot holes if necessary, ensuring not to damage any underlying vehicle components.
5. Securely fasten the light bar and pods to the vehicle using the bolts, washers, and nuts. Adjust the angle for optimal beam direction.

Figure 4: Dimensions of the 20-inch LED Light Bar for mounting reference.

Figure 5: Dimensions of the 4-inch LED Pods for mounting reference.

2. Зымдарды туташтыруу

The included wiring harness simplifies installation. Follow these steps:

1. Connect the red wire from the wiring harness to the positive (+) terminal of your vehicle's battery.
2. Connect the black wire from the wiring harness to the negative (-) terminal or a suitable ground point on the vehicle chassis.
3. Plug the Deutsch connector from the light bar into the corresponding connector on the wiring harness.
4. Route the wiring harness safely, away from hot engine parts, sharp edges, and moving components. Use zip ties or cable clips to secure the wiring.
5. For the 4-inch LED pods, you may need to splice them into an existing auxiliary circuit or use a separate wiring harness (not included for pods in this specific kit) if independent control is desired. Ensure proper gauge wire and fusing for the pods.

6-сүрөт: Детальдуу view of the heavy-duty off-road wiring harness, including the switch and fuse block.

Иштөө нускамалары

Once installed, operate your Nilight LED lights as follows:

• Turn on the vehicle's ignition.
• Press the switch connected to the wiring harness to activate the 20-inch LED light bar.
• If the 4-inch LED pods are wired to a separate switch, activate them independently.
• To turn off the lights, press the switch again.

The light bar features a combo beam pattern, providing both a wide flood and a focused spot beam for comprehensive illumination. The 4-inch pods also offer a flood spot combo beam.

Figure 7: Illustration of brightness features: high lumens chips, customized reflective cups, and improved PC lens for enhanced light output.

Техникалык тейлөө

To ensure the longevity and optimal performance of your Nilight LED lights, follow these maintenance guidelines:

• Тазалоо: Periodically clean the lens with a soft cloth and mild soap and water. Avoid abrasive cleaners that could scratch the lens.
• Текшерүү: Regularly check all mounting hardware for tightness. Vibrations from vehicle operation can loosen bolts over time.
• Зымдар: Inspect the wiring harness for any signs of wear, fraying, or damage. Repair or replace damaged sections immediately.
• Гидроизоляция: While IP67 rated, avoid directing high-pressure water jets directly at the light bar or pods, especially at seals.

Проблемаларды чечүү

Техникалык шарттар

Nilight ZH409 20-inch Triple Row LED Light Bar

• Күч: 420 Вт
• Люмен чыгаруу: 42000LM
• Нур үлгүсү: Flood Spot Combo
• Киргизүү көлөмүtage: 9-30В DC
• Иштөө мөөнөтү: 30,000 XNUMX сааттан ашык
• Иштөө температурасы: -40~85 градус суук
• LED түс температурасы: Таза ак 6000K-6500K
• Материал: 6063 Aluminium Alloy Profile, Жогорку сапаттагы LED чиптер, PC Lens
• Суу өткөрбөө баасы: IP67
• Бүткөн түрү: Powder капталган
• Өлчөмдөрү: Approximately 20.2" (L) x 3.1" (H) x 2.6" (D)

Nilight 18021F-B 2PC 4-inch Triple Row LED Pods

• Күч: 60W (20 x 3W High Intensity LED per pod)
• Люмен чыгаруу: 6000LM (per pair)
• Нур үлгүсү: Spot
• Киргизүү көлөмүtage: 9-30В DC
• Иштөө мөөнөтү: 30,000 XNUMX сааттан ашык
• Иштөө температурасы: -40~85 градус суук
• LED түс температурасы: Таза ак 6000K-6500K
• Материал: 6063 Aluminium Alloy Profile, Жогорку сапаттагы LED чиптер, PC Lens
• Суу өткөрбөө баасы: IP67
• Бүткөн түрү: Powder капталган
• Өлчөмдөрү: Approximately 3.8" (W) x 4.3" (H) x 2.6" (D)

Кепилдик жана колдоо

Nilight products typically come with a manufacturer's warranty. For specific warranty details and duration (e.g., 2 years warranty mentioned for ZH409), please refer to the product packaging or the official Nilight webсайт.

For technical support, troubleshooting assistance, or warranty claims, please contact Nilight customer service through their official website or the retailer from whom you purchased the product. Provide your product model number (ZH409, 18021F-B) and purchase details when contacting support.

Nilight Official Webсайт: www.nilight.com (Эскертүү: Бул толтургуч URL, сураныч, чыныгы расмий адамды текшериңиз website for Nilight)
