SENSEA Easy Shower Wall with Movable Splash Guard

1. Киришүү

The SENSEA Easy Shower Wall is designed to create a distinct shower area within your bathroom, enhancing both functionality and aesthetics. This transparent shower wall features 6mm thick tempered glass and a movable side panel, effectively limiting water splashes while maintaining an open and spacious feel. Its modern design integrates seamlessly into various bathroom styles.

This manual provides essential information for the proper installation, operation, and maintenance of your SENSEA Easy Shower Wall.

2. Продукциянын өзгөчөлүктөрү

• Заманбап дизайн: Features a minimalist, transparent style that adapts to various bathroom aesthetics, providing a light and open feel.
• Оптималдуу өлчөмдөр: Main panel is 100 cm wide, with an overall height of 195 cm. Includes a 30 cm wide movable side panel.
• Туруктуу курулуш: Made with 6 mm thick tempered safety glass and robust aluminum profiles for long-lasting stability.
• Practical Splash Protection: The 195 cm height and the 30 cm movable flap effectively contain water splashes within the shower area.
• Space Enhancement: The transparent design visually enlarges the bathroom space.

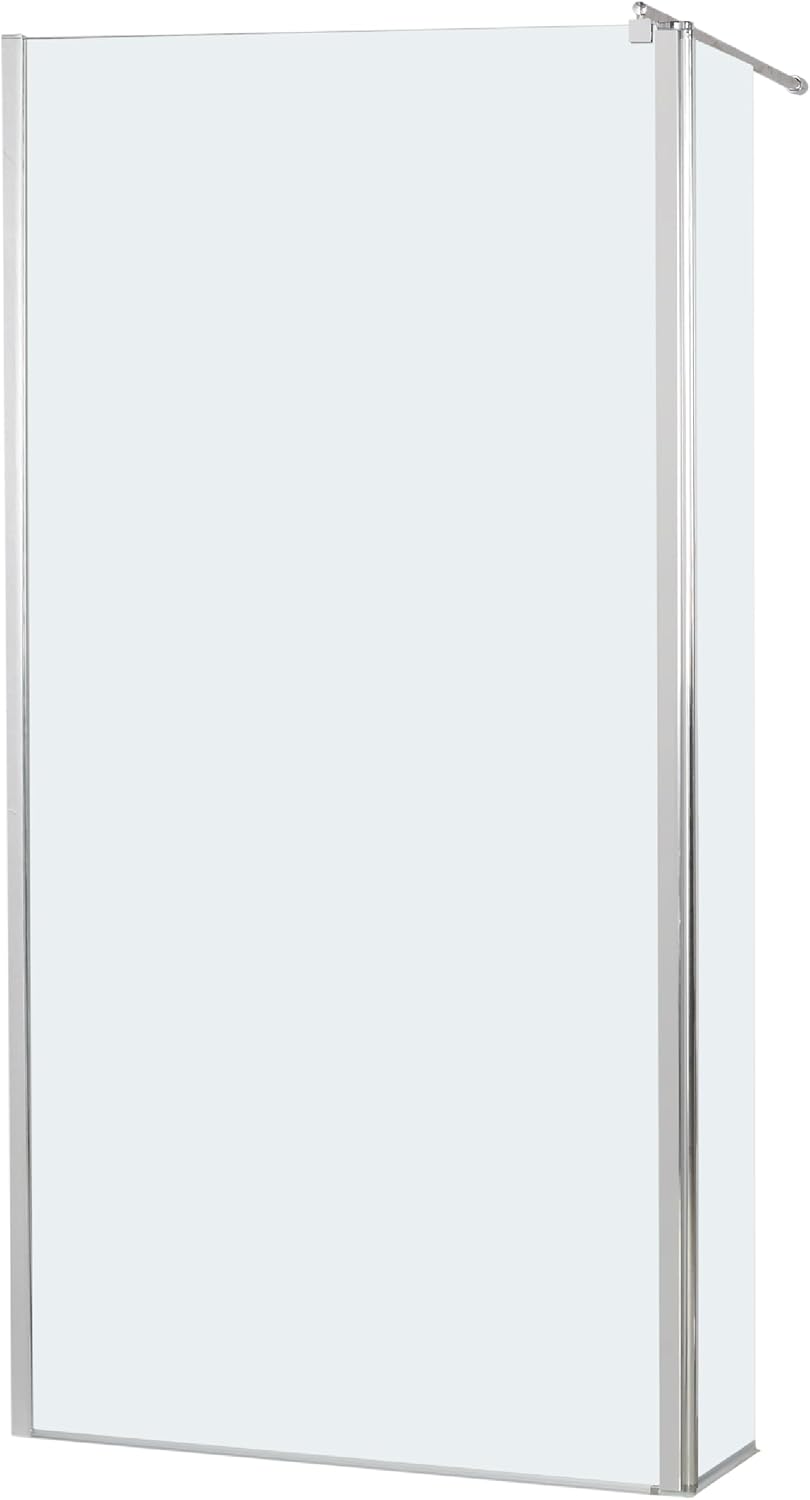

Figure 1: SENSEA Easy Shower Wall, showcasing its transparent glass panel and sleek aluminum profiles.

3. Техникалык шарттар

Figure 2: Illustrative diagram detailing the dimensions of the shower wall: 100 cm for the main fixed panel, 30 cm for the movable splash guard, and an overall height of 195 cm.

4. Орнотуу жана орнотуу

Installation of the SENSEA Easy Shower Wall requires careful attention to detail. While the product is designed for straightforward assembly, professional installation is recommended to ensure proper sealing and stability. The installation type is screw-in, meaning the wall profiles are securely fastened to your bathroom wall.

4.1 Алдын ала орнотуу текшерүү тизмеси

• Бардык компоненттердин бар экенин жана бузулбаганын текшериңиз.
• Verify wall suitability for drilling and mounting.
• Gather necessary tools (drill, level, measuring tape, sealant gun, screwdriver, etc.).

4.2 Орнотуу кадамдары (Жалпы колдонмо)

1. Компоненттерди таңгактан чыгаруу: Таңгактан кылдаттык менен бардык бөлүктөрүн алып салыңыз.
2. Монтаждоо ордун аныктоо: Determine the precise position for the shower wall, ensuring it aligns with your shower tray or tiled area.
3. Коопсуз дубал адисиfiles: Attach the vertical aluminum wall profiles to the bathroom wall using appropriate screws and wall plugs. Use a level to ensure they are perfectly vertical.
4. Install Main Glass Panel: Carefully insert the main fixed glass panel into the secured wall profile.
5. Attach Movable Side Panel: Connect the 30 cm movable side panel to the main glass panel using the provided hinges or connectors. Ensure smooth pivoting action.
6. Install Stabilizer Bar: Attach the stabilizer bar from the top of the main glass panel to the adjacent wall or ceiling, providing additional support and rigidity.
7. Мөөр муундары: Apply a waterproof silicone sealant along all joints where the shower wall meets the bathroom wall and shower tray to prevent water leakage. Allow adequate drying time.

Figure 3: This diagram demonstrates the flexibility of the SENSEA Easy Shower Wall, showing how it can be installed with the movable panel positioned on either the left or right side of the main panel.

Figure 4: The SENSEA Easy Shower Wall integrated into a modern bathroom setting, highlighting its transparent design and how it complements the existing decor.

5. Operating the Movable Panel

The SENSEA Easy Shower Wall features a 30 cm wide movable side panel designed for enhanced splash protection. This panel can be pivoted to extend the shower enclosure during use, providing additional coverage and preventing water from splashing outside the shower area. When not in use, it can be folded back to maintain an open and spacious bathroom environment.

• To extend the splash guard, gently push the movable panel outwards until it reaches the desired position.
• To retract the splash guard, gently push the movable panel inwards towards the main fixed panel.

Ensure the panel moves freely and is not obstructed by any objects.

5-сүрөт: Башка view of the SENSEA Easy Shower Wall in a bathroom, demonstrating its aesthetic appeal and functional integration within a tiled shower area.

6. Техникалык тейлөө

Regular cleaning and maintenance will ensure the longevity and appearance of your SENSEA Easy Shower Wall.

6.1 Айнек тазалоо

• Use a soft cloth or sponge with non-abrasive glass cleaner or a mild soap solution.
• Avoid harsh chemicals, abrasive pads, or scouring agents, as these can damage the glass surface or protective coatings.
• Rinse thoroughly with clean water and wipe dry to prevent water spots.

6.2 Cleaning Aluminum Profiles

• Wipe aluminum profiles with a soft cloth dampжумшак самын жана суу менен бүттү.
• Do not use abrasive cleaners or strong chemical solvents, which can corrode or discolor the aluminum finish.
• Dry immediately after cleaning to prevent water marks.

6.3 Жалпы кам көрүү

• Regularly inspect silicone seals for any signs of wear, cracking, or mold. Re-seal if necessary to prevent leaks.
• Check the tightness of all screws and fittings periodically. Tighten if loose, but do not overtighten.

7. Кыйынчылыктарды

This section addresses common issues you might encounter with your shower wall.

7.1 Суунун агып кетиши

• Маселе: Water is leaking from the base or sides of the shower wall.
• Чечим: Inspect all silicone seals for gaps or damage. Reapply sealant where necessary. Ensure the shower wall is properly installed and level.

7.2 Movable Panel Sticking or Not Pivoting Smoothly

• Маселе: The movable side panel is difficult to open or close.
• Чечим: Check for any obstructions along the pivot path. Clean hinges and ensure they are free of debris or mineral buildup. If hinges are loose, gently tighten their screws.

7.3 Glass Appears Cloudy or Stained

• Маселе: Mineral deposits or soap scum are visible on the glass.
• Чечим: Use a specialized glass cleaner for shower enclosures or a solution of white vinegar and water. For stubborn stains, allow the solution to sit for a few minutes before scrubbing gently with a non-abrasive sponge. Rinse thoroughly.

8. Кепилдик жана колдоо

Specific warranty information for the SENSEA Easy Shower Wall is not provided in this manual. Please refer to your purchase documentation or contact your retailer for details regarding warranty coverage.

For technical support or further assistance, please contact the SENSEA customer service department or your local retailer.
