Introduction
This manual provides essential instructions for the safe and efficient operation of your TURBRO Eternal Flame 30 in. WiFi Infrared Quartz Electric Fireplace Log Heater. Please read this manual thoroughly before use and retain it for future reference.
Маанилүү коопсуздук маалыматы
- Электр байланышы: Always plug the fireplace directly into a wall outlet/receptacle. An extension cord or relocatable power tap (outlet/power strip) should never be used.
- Ашыкча ысып кетүүдөн коргоо: The heater is equipped with an automatic shut-off feature if it gets too hot. A built-in safety fuse also protects against overload heat.
- CSA тастыкталган: This TURBRO heater is CSA certified for safe use in North America.
- Аба желдеткичтерин жаап албаңыз.
- Keep combustible materials at a safe distance.
Жайгашуу
The TURBRO Eternal Flame electric fireplace log heater requires no complex installation. Simply unpack, place it in your desired location, and plug it directly into a suitable wall outlet.
Пакеттен чыгаруу
Carefully remove all components from the packaging. Ensure all packing materials are removed from the unit before operation.
Жайгаштыруу
Place the log heater in a stable, level location within your fireplace or desired area. Ensure there is adequate clearance from walls and other objects for proper ventilation.
Сүрөт: The TURBRO Eternal Flame 30-inch electric fireplace log heater, showing its dimensions (9"D x 30"W x 16.3"H) and a 6 ft US standard 3-pin plug. This illustrates the compact size and electrical connection type.
Иштөө нускамалары
Your Eternal Flame log heater offers multiple control options for convenience and ambiance.
Control Panel & Remote Control
The unit can be operated using the simplified control panel located on the front or via the included remote control. The remote allows for convenient adjustments from a distance.

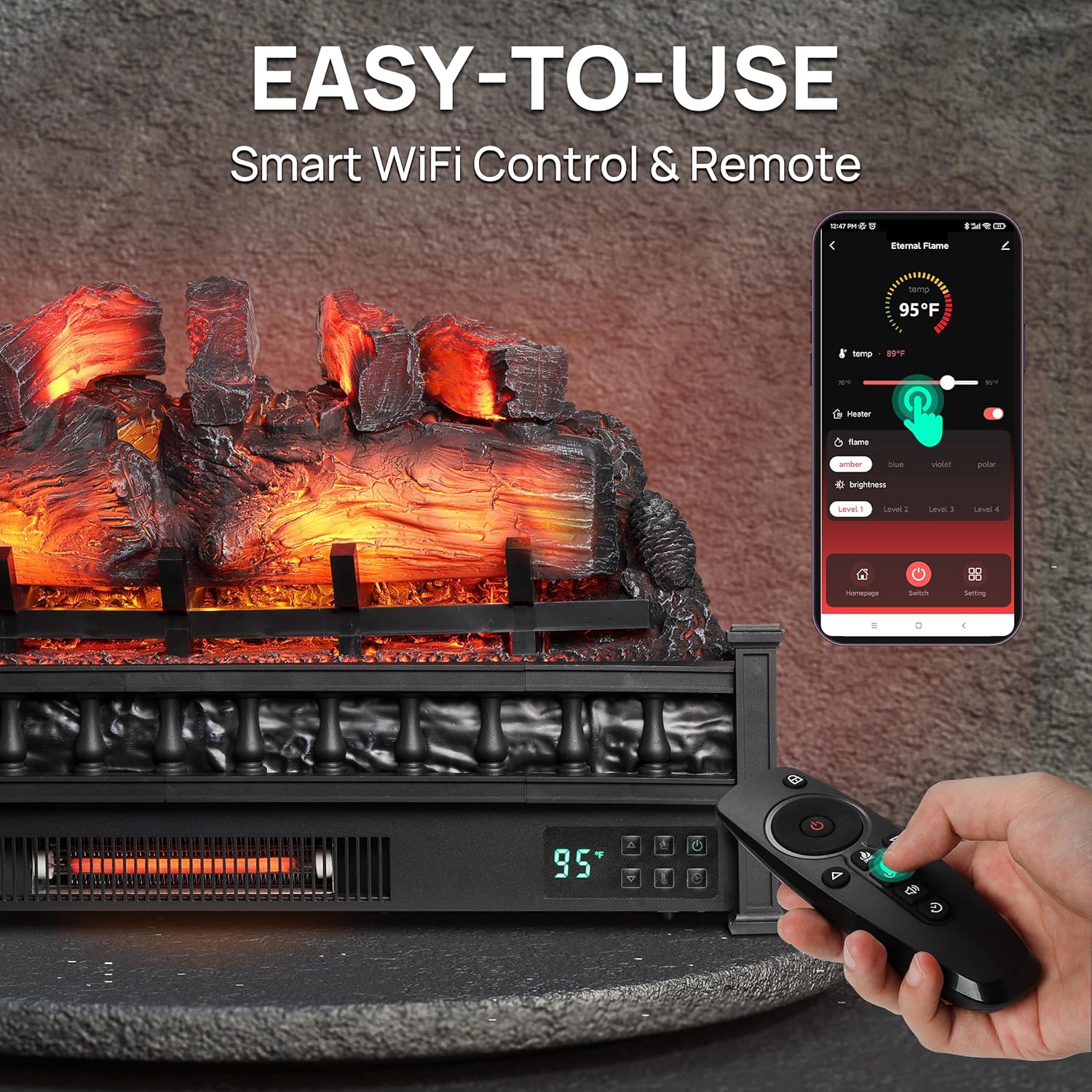

Сүрөт: The TURBRO Eternal Flame electric fireplace log heater, showcasing its easy-to-use smart WiFi control and remote. The image displays the unit with glowing logs, a remote control, and a smartphone screen showing the control app interface.
Smart WiFi башкаруу
Effortlessly control your fireplace using your smartphone. Download the dedicated app to adjust temperature and flame settings from anywhere in your home.
Flame Effects & Brightness
Choose from 5 distinct flame options and 5 brightness levels to create your desired ambiance. A unique 'Sleep' mode provides gentle ember lighting without bright, flickering flames, ideal for undisturbed rest.
Realistic Crackling Sound
Enhance the authentic fireplace experience with 3 levels of wood crackling sounds, simulating a traditional wood-burning fire without smoke or ash.
Видео: This video demonstrates the realistic crackling sounds and various flame color options (Amber, Blue, Polar, Sleep, Violet) available with the TURBRO Eternal Flame electric fireplace log heater. It cycles through different sound levels (High, Medium, Low, Off) and flame colors, showcasing the visual and auditory effects.
Жылытуу функциясы
The 1500W infrared quartz tube provides effective zone heating, warming rooms up to approximately 150 square feet without drying out the air. Use the thermostat to set your desired temperature. The flame-only option allows you to enjoy the visual effects without heat.
Таймер функциясы
Set a timer for automatic shut-off, providing convenience and energy saving.
Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your log heater.
- Тазалоо: Ensure the unit is unplugged and cool before cleaning. Use a soft, damp Сырткы беттерди сүртүү үчүн чүпүрөк колдонуңуз. Абразивдүү тазалоочу каражаттарды же чачыраткычтарды колдонбоңуз.
- Аба желдеткичтери: Periodically check and clean the air intake and exhaust vents to prevent dust buildup, which can affect heating efficiency.
- Сактагыч: If storing the unit for an extended period, ensure it is clean, dry, and stored in a safe, protected location.
Проблемаларды чечүү
If you encounter issues with your log heater, refer to the following common solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт. | Not plugged in, power switch off, circuit breaker tripped. | Ensure unit is securely plugged into a wall outlet. Check the main power switch. Reset the circuit breaker if necessary. |
| Жылыткыч жылуулук чыгарбайт. | Temperature setting too low, overheat protection activated. | Increase the thermostat setting. Unplug the unit, allow it to cool for 10-15 minutes, then plug it back in. Ensure vents are not blocked. |
| Flames are not visible or flickering. | Flame effect is turned off or brightness is set to minimum. | Activate the flame effect and adjust the brightness level using the control panel or remote. |
| Пульт иштебей жатат. | Батареялар түгөнүп калган, пульт иштебей калган, тоскоолдуктар бар. | Replace batteries. Ensure remote is pointed at the unit and within range. Remove any obstructions. |
Техникалык шарттар
- Бренд: ТУРБРО
- Модель аты: Eternal Flame 30 in. WiFi Infrared Quartz Electric Fireplace Log Heater
- Модель номери: EF30-PB
- Кубат булагы: DC
- Жылуулук чыгаруу: 1500 Ватт
- Энергияны керектөө: 1500 Ватт
- Жылытуу камтуу: Болжол менен 150 чарчы фут
- Продукциянын өлчөмдөрү: 9"D x 30"W x 16.3"H
- Материал: Металл
- Бүткөн түрү: Powder капталган
- Орнотуу түрү: Курулган
- Өзгөчө өзгөчөлүгү: Corded, WiFi Control
- Камтылган компоненттер: Log, Remote Control
- Элемент Салмагы: 21.7 фунт
- UPC: 816621025861
Кепилдик жана колдоо
Бул продукт менен келет Чектелген Кепилдик. For detailed warranty information, product support, or service inquiries, please refer to the official TURBRO webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз.
зыярат кылыңыз TURBRO Store көбүрөөк өнүмдөр жана колдоо ресурстары үчүн.
