1. Киришүү
The ACETECH Bifrost BT is an advanced airsoft tracer unit designed for use with airsoft pistols and rifles. It features Bluetooth APP control, RGB LED lighting effects, and supports various BB types, including standard, green, and red tracer BBs. The unit simulates muzzle flash with multi-color flare effects, enhancing the airsoft experience, especially in low-light conditions. It includes a 14mm Counter Clockwise (CCW) negative thread and an 11mm adapter (M14- to M11+) for broad compatibility.
Image: The ACETECH Bifrost BT Tracer Unit shown with its retail packaging and the included 11mm adapter.
2. Эмнелер камтылган
Your ACETECH Bifrost BT package should contain the following items:
- Bifrost BT Tracer Unit
- M14-тен M11+ адаптерине чейин
- Аллен Кей
- Колдонуучунун колдонмосу (бул колдонмо)
3. Орнотуу
Follow these steps to set up your Bifrost BT Tracer Unit:
- Алгачкы заряддоо: Before first use, charge the Bifrost BT for at least 3 hours to ensure optimal battery performance. The charging port is a USB-C type. A charging cable is not included to support environmental sustainability.
- Thread Compatibility: The tracer unit features a 14mm Counter Clockwise (CCW) negative thread. If your airsoft gun has an 11mm positive thread, use the included M14- to M11+ Adaptor.
- Орнотуу:
- If your airsoft gun has a 14mm CCW thread, directly screw the Bifrost BT Tracer Unit onto the barrel.
- If your airsoft gun has an 11mm positive thread, first screw the M14- to M11+ Adaptor onto your gun's barrel, then screw the Bifrost BT Tracer Unit onto the adaptor.
Сүрөт: Жакын план view of the Bifrost BT's control buttons and USB-C charging port.
4. Иштөө нускамалары
4.1 Күчтү башкаруу
- Ойгон: The tracer unit features intelligent power control. It will wake up automatically by shaking.
- Уйку режими: The unit will enter sleep mode if idle for over 5 minutes to conserve battery.
4.2 BB Support and Tracer Function
The Bifrost BT supports standard airsoft BBs, green tracer BBs, and red tracer BBs. Its built-in RGB LED provides a colored BB track function even with standard BBs.

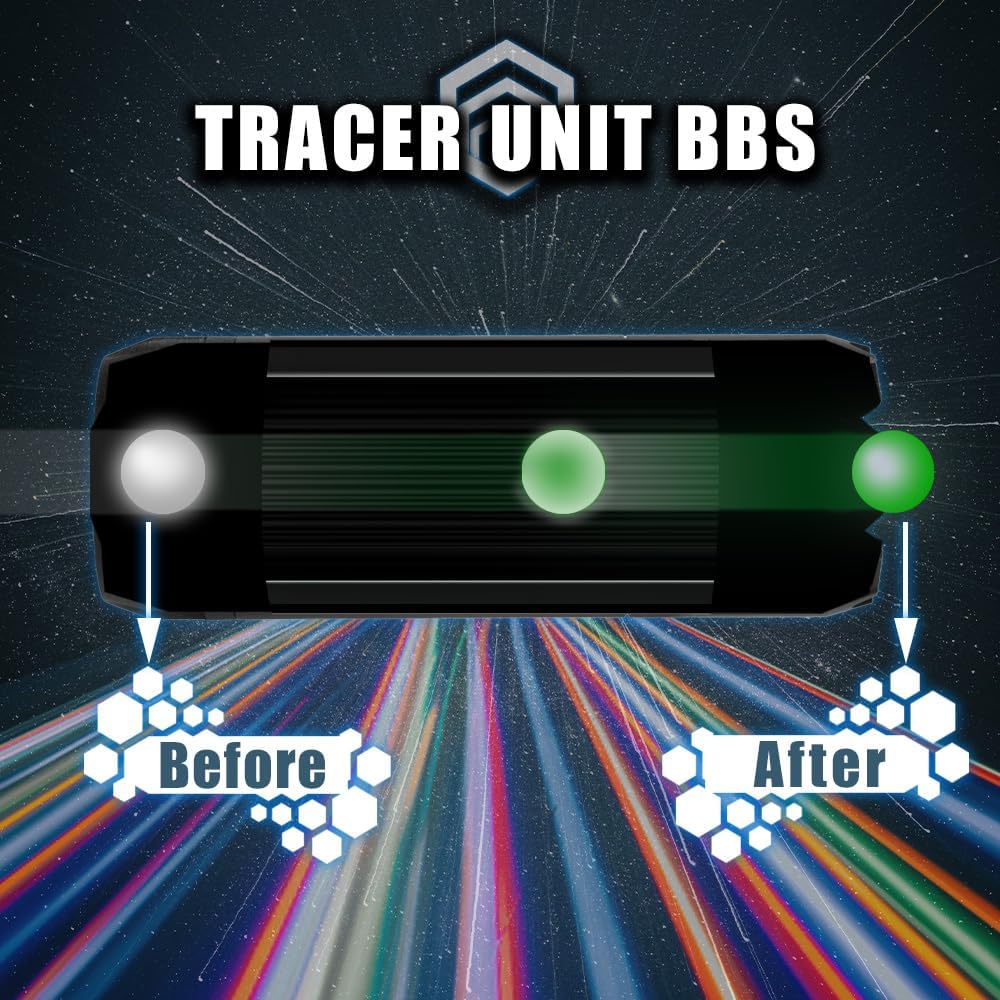

Image: Visual representation of how the tracer unit illuminates BBs.
4.3 Lighting Functions (Flare Effect)
The Bifrost BT simulates muzzle flash with a multi-color flare effect. The intensity and visibility of the flare effect are dependent on the volume of gas or fog around the front end of the unit; a greater volume results in a better effect. There are 11 different color flare options available.

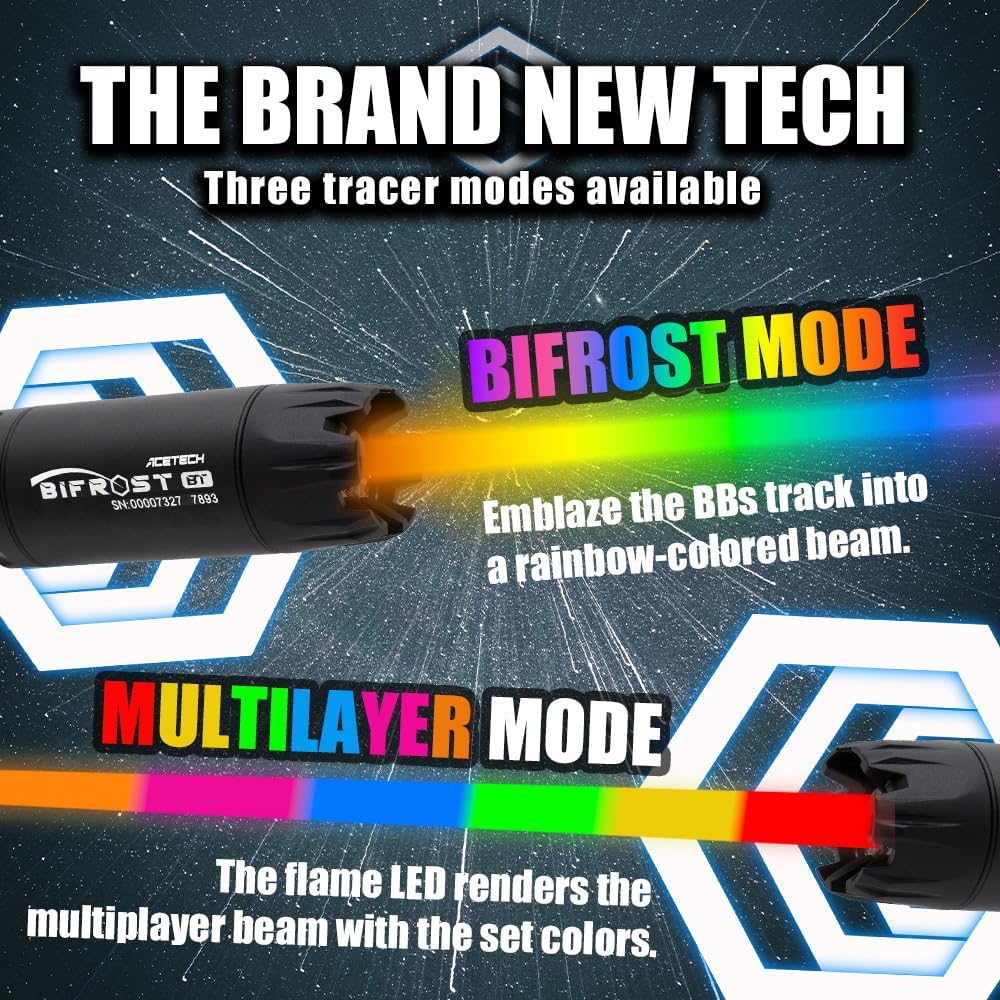

Сүрөт: Мисamples of Bifrost Mode and Multilayer Mode lighting effects.
Сүрөт: Мисamples of Mono Flame Mode with various single-color flare effects.
4.4 Acesoft APP Control and Chronograph
The Bifrost BT can be controlled via the Acesoft APP, available for both iOS and Android devices. The app allows for easy setup of tracer functions, customized flame modes, and includes a built-in chronograph function for measuring BB velocity.
Image: Interface of the Acesoft APP for controlling the tracer unit.
5. Техникалык тейлөө
- Батареяга кам көрүү: If the tracer unit is not in use for an extended period, charge the battery at least every 2 months to prevent complete discharge. Complete battery discharge is not covered under warranty.
- Тазалоо: Keep the unit clean from dirt and debris, especially around the LED and barrel opening, to ensure optimal performance. Use a soft, dry cloth for cleaning.
6. Кыйынчылыктарды
- Түзмөк күйбөй жатат:
- Аппараттын толук заряддалганын текшериңиз.
- Shake the unit to wake it from sleep mode.
- Tracer Effect Not Visible:
- Ensure you are using tracer BBs (green or red) or that the RGB LED function is enabled for standard BBs via the app.
- Check the lighting settings in the Acesoft APP.
- Verify the unit is securely attached and aligned with the barrel.
- Колдонмонун туташуу маселелери:
- Мобилдик түзмөгүңүздө Bluetooth иштетилгенин текшериңиз.
- Make sure the tracer unit is powered on and within range.
- Restart the Acesoft APP and/or your mobile device.
- Flare Effect Weak:
- The flare effect is enhanced by gas or fog. Ensure environmental conditions are suitable for a pronounced effect.
- Check flare settings in the Acesoft APP.
7. Техникалык шарттар
Image: Detailed specifications of the Bifrost BT Tracer Unit.
| Өзгөчөлүк | Деталь |
|---|---|
| Өлчөмдөр | 32mm (Diameter) x 90mm (Length) |
| Weight (w/o adaptor) | 71г |
| Жип | 14mm Counter Clockwise Negative (M14-) with M11+ Adaptor |
| Батарея түрү | Li-ion батареясы |
| Кубаттагыч порт | USB-C |
| RPS Support | Up to 35 Rounds Per Second |
| Supported BBs | Standard BBs, Green Tracer BBs, Red Tracer BBs |
| Материал | Алюминий |
| Түс | Кара |
8. Кепилдик жана колдоо
The ACETECH Bifrost BT Tracer Unit comes with a 1-year Repair Service against Manufacturer Defects. Please note that defects resulting from a completely discharged battery are not covered by this warranty.
For technical support, warranty claims, or any other inquiries, please contact ACETECH customer service through their official channels or the retailer where the product was purchased.
