Power Probe Professional Electrical Test Kit User Manual

1. Киришүү

This manual provides comprehensive instructions for the Power Probe Professional Electrical Test Kit. This kit is designed for automotive electrical testing and repair, featuring the Power Probe 3, a Digital Multimeter, and an Auto AC Temperature Testing Kit. It is suitable for various automotive applications, including gas-powered, hybrid, and electric vehicles.

комплект камтыйт:

• Power Probe 3 for diagnosing automotive circuit issues.
• Digital Multimeter for inspecting multiple electrical readings.
• Auto AC Temperature Testing Kit for evaluating vehicle AC system performance.
• Various accessories to support testing.

1.1-сүрөт: The complete Power Probe Professional Electrical Test Kit, including the Power Probe 3, Digital Multimeter, and Auto AC Temperature Testing Kit, neatly organized within its durable red carrying case.

1.2-сүрөт: An overview of the kit's contents, showing the Power Probe 3, Digital Multimeter, temperature sensors, various leads, clips, and probes, all arranged within the open carrying case.

2. Коопсуздук маалыматы

Power Probe Professional электрдик сыноо комплектин колдонууда ар дайым төмөнкү коопсуздук чараларын сактаңыз:

• Коопсуздук көз айнегин кошо алганда, тиешелүү жеке коргонуу каражаттарын кийиңиз.
• Ensure the vehicle's ignition is off and the parking brake is engaged before performing electrical tests, unless specific instructions require otherwise.
• Avoid contact with live electrical circuits.
• Эгерде шаймандар бузулгандай көрүнсө, аларды колдонбоңуз.
• Refer to the vehicle manufacturer's service manual for specific electrical system diagrams and procedures.
• Балдарды жана уруксаты жок кызматкерлерди жумуш аймагынан алыс кармаңыз.

3. Орнотуу

3.1. Power Probe 3

1. Батарея орнотуу: The Power Probe 3 is typically powered by the vehicle's battery. Connect the red lead to the positive (+) terminal and the black lead to the negative (-) terminal of the vehicle battery.
2. Probe Tip Attachment: Ensure the probe tip is securely attached to the Power Probe 3 unit.

3.2. Digital Multimeter

1. Батарея орнотуу: Open the battery compartment (usually on the back) and insert the required batteries, observing polarity.
2. Lead Connection: Connect the black test lead to the "COM" (common) jack. Connect the red test lead to the appropriate jack for the measurement type (e.g., "VΩmA" for voltage, resistance, or current).

3.3. Auto AC Temperature Testing Kit

1. Батарея орнотуу: Install batteries into the main display unit and each wireless temperature sensor, ensuring correct polarity.
2. Сенсордун жайгашуусу: Place the wireless temperature sensors into the vehicle's AC vents or other desired measurement locations.
3. Күйгүзүү: Turn on the main display unit and each sensor. The display unit should automatically connect to the sensors.

4. Иштөө нускамалары

4.1. Using the Power Probe 3

The Power Probe 3 is used to apply power or ground to components and test for voltagд жана үзгүлтүксүздүк.

• Тtage Testing: Touch the probe tip to the circuit or component. The LCD screen will display the voltage. Red/Green lights indicate positive/negative polarity.
• Applying Power/Ground: Батареянын көлөмүн коюу үчүн рокер которгучун колдонуңузtage or ground to a component for functional testing. Exercise caution to avoid short circuits.
• Үзгүлтүксүздүк тести: Connect the auxiliary ground lead to a known good ground. Touch the probe tip to the component. The LCD will indicate continuity.

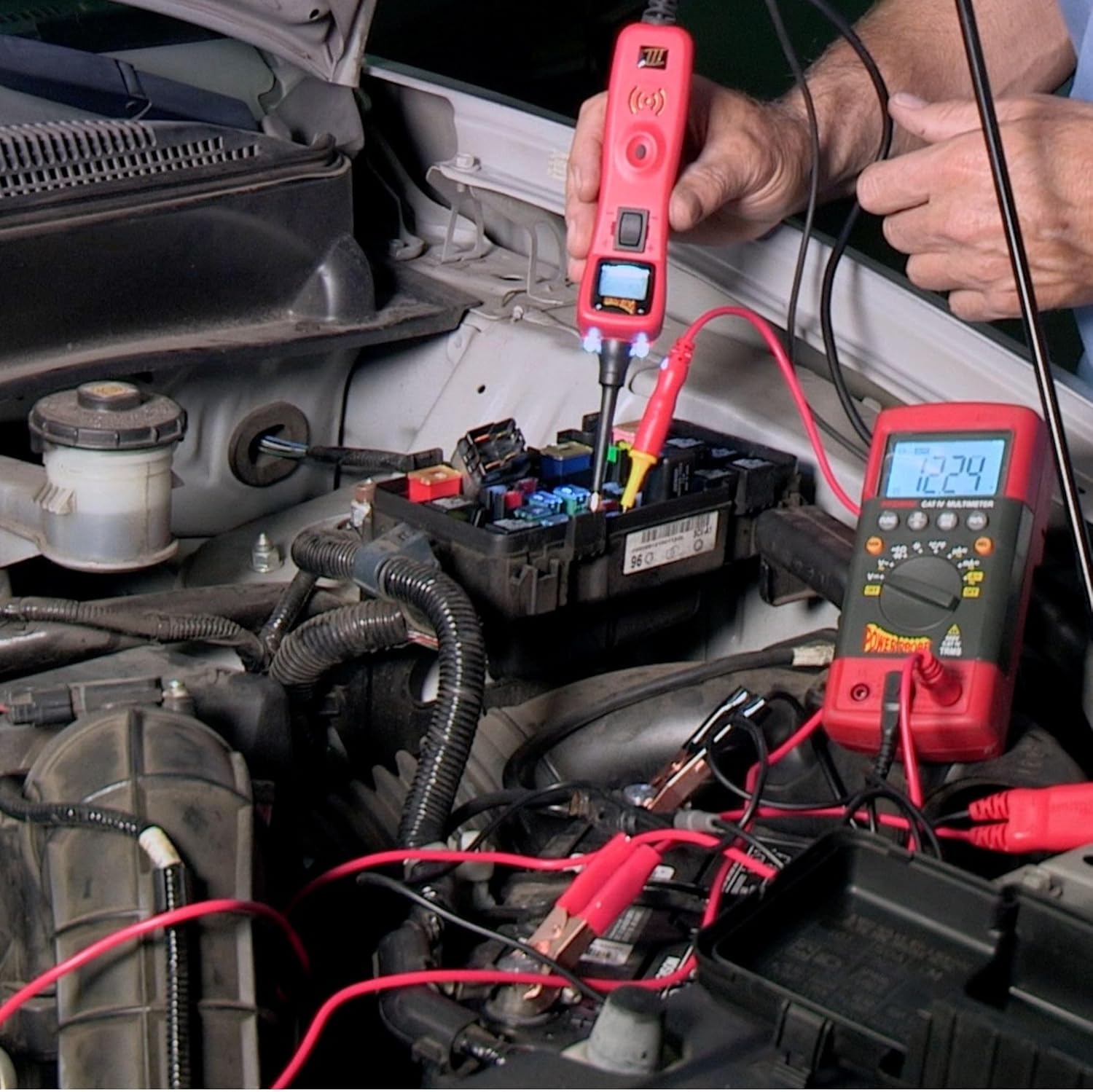

4.1-сүрөт: A Power Probe 3 being used to test an automotive fuse box. The probe tip is inserted into a fuse slot, and the LCD screen displays the voltage reading, while the red and black leads are connected to the vehicle's battery.

4.2. Using the Digital Multimeter

The Digital Multimeter can measure various electrical parameters.

• Тtage (DC/AC): Айлануучу которгучту керектүү көлөмгө буруңузtage range (DCV or ACV). Connect the test leads in parallel with the circuit or component.
• Каршылык (Ω): Turn the rotary switch to the Ω (ohms) range. Ensure the circuit is de-energized. Connect the test leads across the component.
• Учурдагы (A): Turn the rotary switch to the desired current range (DCA or ACA). Connect the multimeter in series with the circuit. Абайлаңыз: Incorrect connection can damage the multimeter or vehicle.
• Үзгүлтүксүздүк: Turn the rotary switch to the continuity setting (often indicated by a speaker icon). A beep indicates continuity.
• Башка функциялар: Refer to the multimeter's specific markings for frequency, temperature, and capacitance measurements.

4.2-сүрөт: The Digital Multimeter displaying a voltage reading while connected to a car battery. The red and black test leads are attached to the positive and negative terminals of the battery, respectively.

4.3. Using the Auto AC Temperature Testing Kit

This kit provides wireless temperature readings to assess AC system performance.

• Сенсордун жайгашуусу: Insert the wireless temperature sensors into the vehicle's AC vents. The kit supports dual-zone readings.
• Мониторинг окуулары: The main display unit will show real-time temperature readings from the connected sensors.
• Диапазон: Sensors can transmit readings from up to 16.5 feet away.

4.3-сүрөт: A wireless temperature sensor from the Auto AC Temperature Testing Kit inserted into a car's air conditioning vent, displaying a temperature reading on its screen.

4.4-сүрөт: The main display unit of the Auto AC Temperature Testing Kit positioned on a car dashboard, showing dual temperature readings. Two wireless sensors are visible, one placed in an AC vent and another held by a hand, demonstrating multi-point temperature monitoring.

5. Техникалык тейлөө

• Тазалоо: Wipe down all tools with a clean, dry cloth after each use. Do not use abrasive cleaners or solvents.
• Сактагыч: Store the kit in its original carrying case in a dry, cool place, away from direct sunlight and extreme temperatures.
• Батареяны алмаштыруу: Replace batteries in the Digital Multimeter and Auto AC Temperature Testing Kit components as needed. Refer to the individual component manuals for specific battery types and replacement procedures.
• Lead Inspection: Regularly inspect test leads and probes for signs of wear, cuts, or damage. Replace damaged leads immediately to ensure safety and accurate readings.

6. Кыйынчылыктарды

7. Техникалык шарттар

• Бренд: Power Probe
• Модел: Power Probe 3-Piece Electrical and AC Auto Testing Kit
• Кубат булагы: Battery Powered (for Multimeter and Temp Kit); Vehicle Battery Powered (for Power Probe 3)
• Өлчөө түрү: Multimeter (Voltage, Resistance, Current, Continuity, Frequency, Temperature, Capacitance)
• Power Probe 3 Features: LCD screen, Red/Green polarity indicators, apply power/ground.
• AC Temp Kit Features: Wireless, dual-zone readings, up to 16.5 ft range.
• ASIN: B0C883M82M
• Биринчи жеткиликтүү болгон күнү: 16-июнь, 2023-жыл

8. Кепилдик жана колдоо

For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Power Probe webсайт. Кепилдик дооматтар үчүн сатып алганыңыздын далилин сактаңыз.

For additional assistance, you may contact Power Probe customer service through their official channels.
