1. Киришүү
Thank you for choosing the Chuboor PJ01 Air Purifier. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your device. Please read it thoroughly before use and retain it for future reference.

Image 1.1: The Chuboor PJ01 Air Purifier, a compact white cylindrical device with a top-mounted control panel and air intake vents around the base.
2. Коопсуздук маалыматы
Өрт, электр шок же жаракат алуу коркунучун азайтуу үчүн, төмөнкү коопсуздук чараларын сактаңыз:
- Ар дайым аба тазалагычты бекем, тегиз жерге коюңуз.
- Аспапты сууга же башка суюктуктарга батырбаңыз.
- Электр шнурын ысытылган беттерден алыс кармаңыз.
- Эгерде шнур же сайгыч бузулуп калса, аппаратты иштетпеңиз.
- Аба тазалагычты тазалоодон же кандайдыр бир техникалык тейлөөдөн мурун розеткадан сууруп коюңуз.
- Түзмөктүн айланасында жакшы желдетүүнү камсыз кылыңыз; аба кирүүчү же чыгуучу тешиктерди жаппаңыз.
- Бул шайман физикалык, сезүү же акыл-эс жөндөмү начар же тажрыйбасы жана билими жок адамдар (анын ичинде балдар) үчүн, эгерде алардын коопсуздугуна жооптуу адам тарабынан көзөмөлсүз же шайманды колдонуу боюнча көрсөтмө болбосо, колдонууга арналбайт.
3. Продукт бүтүп калдыview
The Chuboor PJ01 Air Purifier is designed to improve indoor air quality by filtering various airborne particles and odors. Key components include:
- Аба кириш/чыгаруу: For drawing in and releasinг тазаланган аба.
- Башкаруу панели: Touch-sensitive interface for operating the unit.
- Фильтр бөлүмү: Houses the multi-layer filtration system.
- Абанын сапаты сенсору: Detects PM2.5 levels in the environment.

Image 3.1: Physical dimensions of the Chuboor PJ01 Air Purifier, showing its compact size suitable for various room placements.
4. Орнотуу
Follow these steps to set up your Chuboor PJ01 Air Purifier:
- Таңылганын ачуу: Аба тазалагычты таңгагынан кылдаттык менен чыгарып алыңыз.
- Чыпканы орнотуу:
- Turn the unit upside down and twist the base cover counter-clockwise to unlock.
- Фильтрден пластик таңгагын алып салыңыз.
- Insert the filter into the unit, ensuring it is seated correctly.
- Негизги капкакты кайра ордуна коюп, бекитүү үчүн саат жебеси боюнча бураңыз.
- Жайгашкан жери: Place the air purifier on a stable, flat surface, ensuring at least 6 inches of clearance from walls or furniture for optimal airflow.
- Кубат туташуу: Электр шнурын стандарттуу 110V AC розеткага сайыңыз.

Image 4.1: Illustration of the multi-stage filter, highlighting the pre-filter for dust and pet fur, the H13 HEPA filter for pollen and dander, and the activated carbon filter for smoke and odors.
5. Иштөө нускамалары
The Chuboor PJ01 features a touch control panel for easy operation.

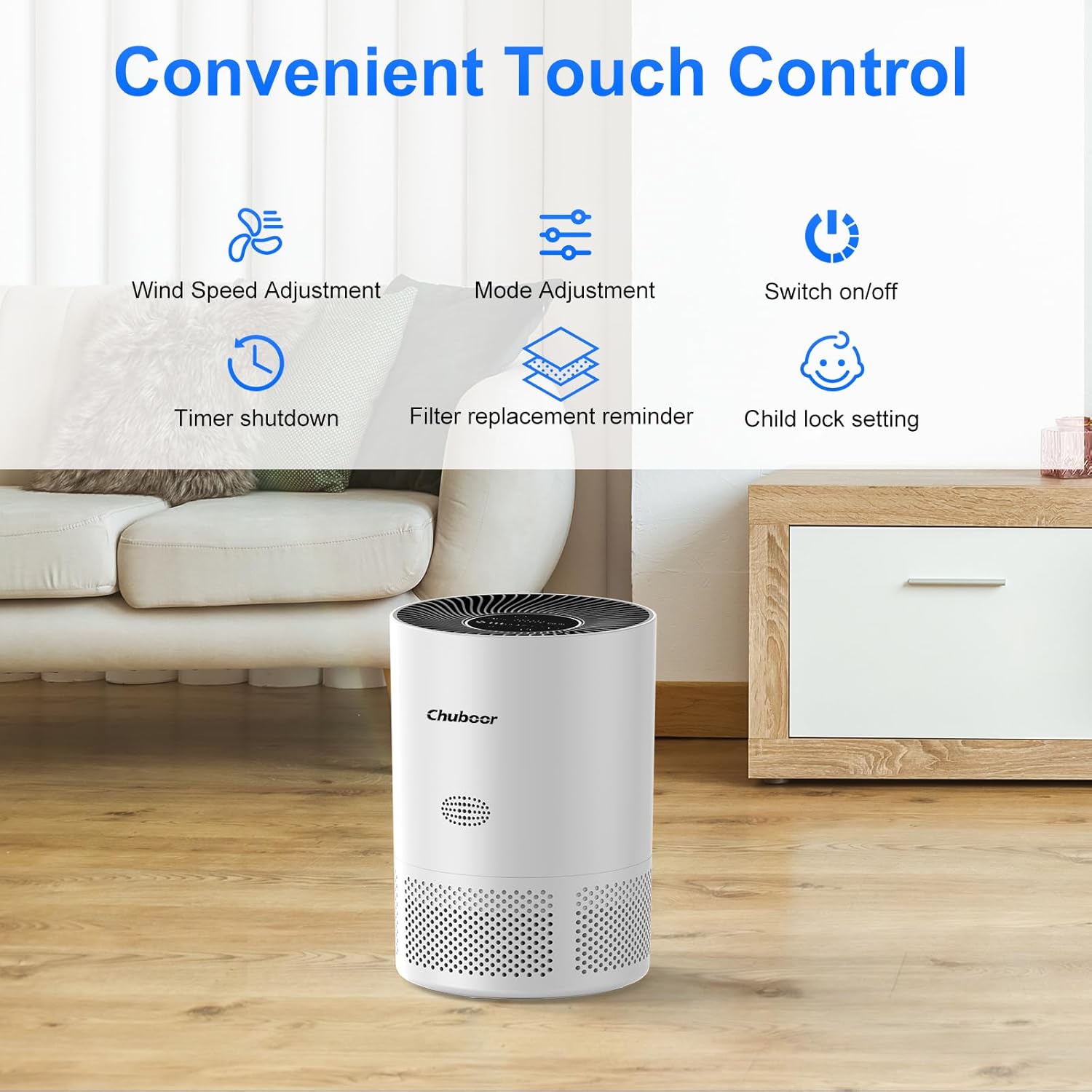

Сүрөт 5.1: Бүттүview of the touch control panel with various function icons.
5.1 Күйгүзүү/өчүрүү
- тийиңиз Күч icon to turn the unit on or off.
5.2 Желдетүүчү ылдамдыкты жөндөө
- тийиңиз Шамалдын ылдамдыгы icon to cycle through different fan speeds (Low, Medium, High).
5.3 Mode Adjustment
- тийиңиз Mode icon to select between different operating modes, such as Auto Mode and Sleep Mode.
- In Auto Mode, the fan speed adjusts automatically based on detected air quality.
- In Уйку режими, the unit operates at the lowest fan speed (24dB) and all indicator lights turn off for quiet operation.

Image 5.2: The air purifier in sleep mode, demonstrating its low noise level for undisturbed rest.
5.4 Таймер функциясы
- тийиңиз Таймер icon to set the operating time for 2, 4, or 8 hours. The unit will automatically turn off after the selected duration.
5.5 Child Lock Setting
- тийип, кармап туруңуз Child Lock icon for 3 seconds to activate or deactivate the child lock. When activated, other buttons will not respond to touch.
5.6 Абанын сапатын көрсөткүч жарыгы
The built-in sensor monitors PM2.5 levels and displays air quality through a color-coded light on the control panel:
- Жашыл жарык: Абанын мыкты сапаты.
- Сары жарык: General air quality.
- Кызыл жарык: Абанын сапаты начар.

Image 5.3: Visual representation of the air quality indicator lights and their corresponding air quality levels.
6. Техникалык тейлөө
6.1 Агрегатты тазалоо
- Тазалоодон мурун ар дайым аба тазалагычты сууруп коюңуз.
- Wipe the exterior surface with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Чаңдын топтолушун кетирүү үчүн аба кирүүчү жана чыгуучу желдеткич тешиктерин жумшак щетка же чаң соргуч тиркемеси менен тазалаңыз.
6.2 Фильтрди алмаштыруу
The filter needs to be replaced periodically to maintain optimal performance. The filter replacement reminder icon will illuminate when a replacement is due.
- Аба тазалагычты розеткадан ажыратыңыз.
- Turn the unit upside down and twist the base cover counter-clockwise to unlock.
- Эски чыпканы алып салыңыз.
- Insert a new Chuboor PJ01 replacement filter (search on Amazon: B0CCZTZLKM).
- Негизги капкакты кайра ордуна коюп, бекитүү үчүн саат жебеси боюнча бураңыз.
- Түзмөктү сайып, баскычын басып кармап туруңуз Чыпканы алмаштыруу эстеткич icon for 3 seconds to reset the filter life indicator.

Image 6.1: A new replacement filter for the Chuboor PJ01 Air Purifier.
7. Кыйынчылыктарды
If you encounter issues with your air purifier, refer to the following table:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Түзмөк күйбөйт | No power; Power cord not properly connected; Filter not installed or plastic removed. | Check power outlet; Ensure power cord is securely plugged in; Verify filter is correctly installed and plastic removed. |
| Алсыз аба агымы | Filter is dirty or clogged; Air inlets/outlets blocked. | Replace filter; Clear any obstructions from vents. |
| Адаттан тышкаркы ызы -чуу | Unit not on a flat surface; Foreign object inside. | Place on a stable surface; Unplug and check for foreign objects. |
| Жыты сакталып турат | Фильтрди алмаштыруу керек; Күчтүү жыттын булагы. | Replace filter; Ensure the room is adequately ventilated. |
| Абанын сапатынын индикатору ар дайым кызыл/сары түстө болот | High level of pollutants; Sensor is dirty. | Allow more time for purification; Clean the sensor area with a dry cotton swab. |
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | PJ01 |
| Продукциянын өлчөмдөрү | 8.18 x 8.18 x 11.38 дюйм |
| Салмагы | 4.02 фунт |
| Номиналдуу кубаттуулук | 20 Ватт |
| Тtage | 110 вольт |
| Чыпка түрү | H13 True HEPA with Activated Carbon |
| Камтуу аймагы | Up to 1200 sq ft (based on product title) |
| CADR | 210 м³/саат |
| Ызы-чуу деңгээли (Уйку режими) | 24 дБ |
| Сертификаттар | EPA Certified |
9. Кепилдик жана колдоо
Chuboor products are manufactured to high-quality standards. For warranty information or technical support, please refer to the contact details provided with your purchase or visit the official Chuboor webсайт. Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
