1. Киришүү
The Wipcool C30s is a versatile steam cleaning machine designed for comprehensive cleaning and disinfection of air conditioning units, suitable for commercial and home use. It integrates multiple functions including hot steam, hot water, cold water, and ozone treatment to ensure thorough cleaning and sterilization.
This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Wipcool C30s Steam Cleaning Machine. Please read it carefully before use and retain it for future reference.
2. Коопсуздук нускамалары
Травматизмди же машинага зыян келтирбөө үчүн ар дайым төмөнкү коопсуздук чараларын сактаңыз:
- Электр коопсуздугу: Кубат менен камсыздоо машинанын көлөмүнө дал келүүсүн текшериңизtage (230V AC). Do not operate with damaged cords or plugs. Keep electrical connections dry.
- Hot Surfaces and Steam: The machine produces high-temperature steam (up to 150℃) and hot water (60-85℃). Avoid direct contact with steam, hot water, or hot surfaces to prevent burns. Use protective gloves.
- Сууну пайдалануу: Use only clean water. Do not add detergents, chemicals, or corrosive substances to the water tank unless specifically instructed by the manufacturer.
- Вентиляция: Ensure adequate ventilation when using the ozone treatment mode. Do not inhale ozone directly.
- Балдар жана үй жаныбарлары: Машинаны балдар жана үй жаныбарлары жетпеген жерде сактаңыз. Алардын машинанын жанында иштешине же ойношуна жол бербеңиз.
- Сактагыч: Store the machine in a dry, cool place, away from direct sunlight and extreme temperatures.
- Тейлөө: Техникалык тейлөө же тазалоо иштерин жүргүзүүдөн мурун электр кубатынан ажыратыңыз.
3. Продукт бүтүп калдыview жана компоненттер
Familiarize yourself with the main parts of your Wipcool C30s Steam Cleaning Machine:

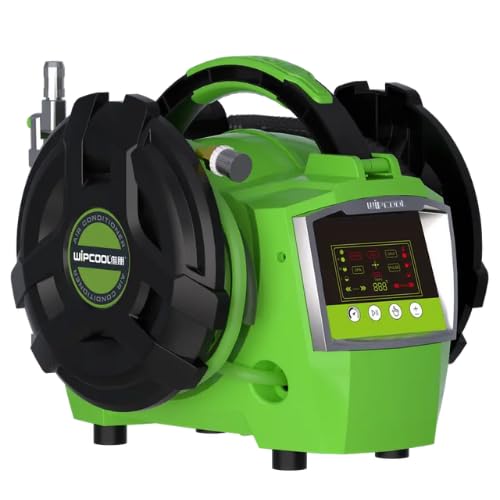

Сүрөт 3.1: Алдыңкы view of the Wipcool C30s Steam Cleaning Machine, showcasing анын компакттуу дизайны жана интеграцияланган туткасы.
3.2-сүрөт: Каптал view illustrating key features such as the intelligent spray gun, integrated design, ozone disinfection, reel structure, and LCD touch screen.
- Негизги блок: Houses the water tank, heating elements, pump, and control system.
- LCD сенсордук экран: Displays operating mode, temperature, pressure, and provides voice messages.
- Intelligent Spray Gun: Equipped with controls for various modes and interchangeable tips.
- Water Inlet Hose (2M): For connecting to a water source.
- Water Outlet Hose (4M): For delivering steam/water to the cleaning area.
- Сопло: Included component for focused cleaning.
- Reel Structure: For convenient hose management.
4. Орнотуу
- Пакеттен чыгаруу: Carefully remove the machine and all accessories from the packaging. Retain packaging for future storage or transport.
- Жайгашкан жери: Place the machine on a stable, level surface in a well-ventilated area.
- Суу туташуу: Connect the 2-meter water inlet hose to a clean water source. Ensure connections are secure to prevent leaks.
- Шланг туташтыруу: Connect the 4-meter water outlet hose to the designated port on the main unit and the intelligent spray gun.
- Кубат туташуу: Кубат шнурун жерге туташтырылган 230V AC электр розеткасына сайыңыз.
- Баштапкы толтуруу: Ensure the water tank is filled with clean water before turning on the machine. The tank volume is 3 liters.
5. Иштөө нускамалары
The Wipcool C30s offers four distinct operating modes for comprehensive cleaning:

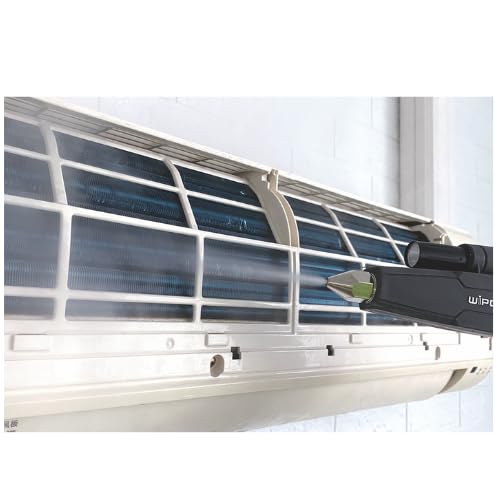

Figure 5.1: The Wipcool C30s in action, demonstrating its effectiveness in cleaning an indoor air conditioning unit.

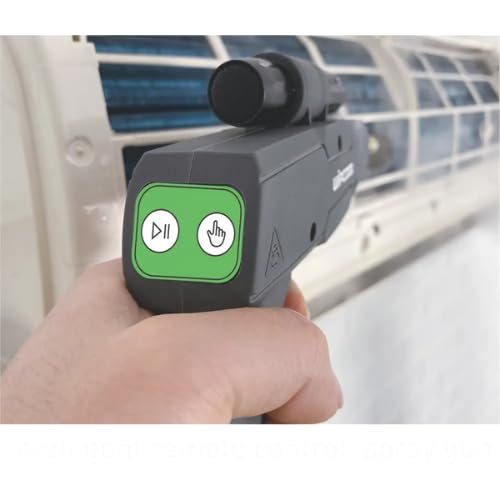

Figure 5.2: Detail of the intelligent spray gun, showing the intuitive control buttons for operation.
Жалпы операция:
- Күйгүзүү: Press the power button on the main unit or LCD screen. The machine will initiate self-check and display current status.
- Режим тандоо: Use the LCD touch screen to select the desired cleaning mode. Voice messages will confirm your selection.
- Pre-heating/Preparation: Allow the machine to reach the optimal temperature/pressure for the selected mode. The LCD screen will indicate readiness.
- Операция: Point the spray gun nozzle at the area to be cleaned. Press the trigger on the spray gun to begin the cleaning process.
- Өчүрүү: After use, release the trigger, then press the power button to turn off the machine. Disconnect from power supply.
Өзгөчө режимдер:
- Hot Steam Mode: Ideal for deep cleaning and disinfection without chemicals. Steam temperature reaches 130-150℃. Use for evaporator coils and hard-to-reach areas.
- Hot Water Mode: Heats water to 60-85℃ with an operating pressure of 3-6 bar. Suitable for rinsing and cleaning surfaces where high-pressure steam might be too intense.
- Cold Water Mode: Provides a stream of cold water for general rinsing and pre-cleaning.
- Ozone Treatment Mode: Activates ozone generation to kill 99.9% of microorganisms and eliminate odors. Use this mode after cleaning for complete disinfection. Ensure the area is well-ventilated during and after ozone treatment.
6. Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your Wipcool C30s:
- Бош суу багы: After each use, drain any remaining water from the tank to prevent mineral buildup and bacterial growth.
- Clean Nozzles and Hoses: Periodically check nozzles and hoses for blockages or debris. Rinse with clean water.
- Тышкы тазалоо: Жарнама менен машинанын сыртын сүртүңүзamp кездеме. Абразивдүү тазалагычтарды же эриткичтерди колдонбоңуз.
- Какты тазалоо (зарыл болсо): If you notice reduced steam output or mineral buildup, consult a qualified technician for descaling procedures.
- Сактагыч: Store the machine in a dry, protected environment. Ensure hoses are properly coiled using the reel structure.
7. Кыйынчылыктарды
Жалпы маселелер жана аларды чечүү үчүн төмөнкү таблицага кайрылыңыз:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Машина иштебейт | No power supply; Power cord damaged | Check power connection; Inspect power cord for damage. |
| No steam/water output | Water tank empty; Nozzle/hose blocked; Machine not pre-heated | Fill water tank; Clear blockages; Allow machine to pre-heat. |
| Low pressure/weak output | Insufficient water; Partial blockage; Pump issue | Ensure adequate water supply; Check for partial blockages; Contact support if pump issue suspected. |
| Байланыштардан агып чыгуу | Loose hose connections; Damaged seals | Tighten all hose connections; Inspect and replace damaged seals. |
| Ozone mode not working | Mode not selected correctly; Malfunction | Ensure ozone mode is activated on LCD; Contact support if issue persists. |
Бул чечимдерди колдонуу аракетинен кийин көйгөй чечилбесе, кардарларды колдоо кызматына кайрылыңыз.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель аты | C30S |
| Бренд | Wipcool |
| Өзгөчө өзгөчөлүк | Portable |
| Power Source | Электр зымдары |
| Тtage | 230 вольт (AC) |
| Танк көлөмү / сыйымдуулугу | 3 литр |
| Буунун максималдуу температурасы | 130-150 ℃ |
| Ысык суунун температурасы | 60-85 ℃ |
| Working Pressure (Hot Water) | 3-6 бар |
| Кирүүчү шлангдын узундугу | 2 метр |
| Чыгуу шлангынын узундугу | 4 метр |
| Камтылган компоненттер | Сопло |
| Түс | Жашыл |
| Форма фактору | Stand Alone |
9. Кепилдик маалыматы
The Wipcool C30s Steam Cleaning Machine comes with a 1 жылдык Чектелген Кепилдик from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, unauthorized modification, or failure to follow the instructions in this manual.
Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
10. Кардарларды колдоо кызматы
For technical assistance, warranty claims, or any questions regarding your Wipcool C30s Steam Cleaning Machine, please contact your retailer or the manufacturer's customer service department.
Please have your model number (C30S) and purchase information ready when contacting support.
