Introduction
This manual provides essential information for the safe and efficient operation of your Champion Power Equipment 8500-Watt Dual Fuel Portable Inverter Generator with CO Shield, Model 201175. This inverter generator is designed for various applications, including camping, recreational vehicle (RV) use, and providing backup power for essential items. It features Cold Start Technology, Electric Start, and an easy-to-read fuel gauge. The 420cc Champion engine operates on either gasoline or propane.
Сүрөт: Чampion Power Equipment 8500-Watt Dual Fuel Portable Inverter Generator, featuring its black and yellow casing, control panel, and wheels.
Коопсуздук маалыматы
Carbon Monoxide (CO) Safety
This generator is equipped with CO Shield technology, which monitors carbon monoxide (CO) accumulation. If unsafe elevated levels of CO gas are detected, the system automatically shuts off the engine. CO Shield is not a substitute for an indoor carbon monoxide alarm or for safe operation. Generators must ДАЙЫМА be used outdoors, far away from occupied buildings, with engine exhaust pointed away from people and buildings. Do ЖОК allow engine exhaust fumes to enter a confined area through windows, doors, vents, or other openings.
Image: Diagram illustrating the CO Shield automatic shut-off system, showing indicators for normal operation and service alerts.
Жалпы коопсуздук чаралары
- Read the entire instruction manual before operating the generator.
- Ensure adequate ventilation when operating the generator.
- Балдарды жана үй жаныбарларын генератордон алыс кармаңыз.
- Жамгырда же нымдуу шарттарда генераторду иштетпеңиз.
- Always check oil levels before starting.
Жайгашуу
Пакеттен чыгаруу
Carefully open the packaging and remove the generator. Inspect for any damage that may have occurred during shipping. Retain all packaging materials for future transport or storage.
Attaching the Wheel Kit
The generator includes a wheel kit for portability. Attach the wheels and handles as per the instructions provided in the separate assembly guide to facilitate movement of the unit.
Image: A visual representation of the accessories included with the generator, such as the LPG hose, USB adapter, engine oil, and wheel kit.
Мотор майын кошуу
Before first use, add the included 10W-30 engine oil to the generator's engine. The generator has a 1.2-quart oil capacity and features a low oil shut-off sensor to protect the engine.
Батареяны туташтыруу
Connect the battery terminals to enable the electric start function. Ensure connections are secure and correct polarity is observed.
Иштөө нускамалары
Генераторго күйүүчү май куюу
This generator is dual fuel capable, operating on either gasoline or propane.
Image: A graphic indicating the dual fuel capability of the generator, showing icons for gasoline and propane.
- Бензин үчүн: Fill the 5.33-gallon fuel tank with unleaded gasoline.
- For Propane: Connect a 20-pound propane tank (or larger) to the generator using the provided hose and regulator.
Starting the Generator (EZ Start Dial)
The EZ Start Dial simplifies the startup process. Turn the dial to the desired fuel type (gasoline or propane) and then use the electric start button. Cold Start Technology ensures easy starting even in low temperatures.
Image: Close-up of the EZ Start Dial on the generator's control panel, showing the different fuel selection options.
Электр приборлорун туташтыруу
The generator features a Quick Touch Panel with various outlets:
- One 120/240V 29.2A outlet (L14-50R)
- One 120/240V 30A locking outlet (L14-30R)
- Two 120V 20A GFCI household duplex outlets (5-20R)
- One 12V automotive-style outlet
Plug your desired equipment into the appropriate outlets. The generator provides clean power (less than 3% THD), making it safe for sensitive electronics.
Сүрөт: деталдуу view of the generator's control panel, highlighting the ignition switch, EZ Start Dial, propane inlet, various AC outlets, 12V DC outlet, and the Intelligauge display.
Негизги өзгөчөлүктөрү
- CO2 коргоо технологиясы: An automatic shut-off system that activates if dangerous levels of carbon monoxide accumulate in the operating area.
- Тынч технология: Operates at an ultra-quiet 61 dBA from 23 feet, comparable to normal conversation levels.
- EZ баштоо терүүсү: Simplifies the starting procedure by integrating all necessary controls into one easy-to-use dial.
- Интеллигенция: Мониторлор томtage, frequency, and operating hours for convenient tracking of generator performance.
- Эки күйүүчү май менен иштөө мүмкүнчүлүгү: Allows operation on either gasoline or propane, offering flexibility in fuel choice.
- Cold Start Technology: Ensures reliable starting in cold weather conditions.
- Экономикалык режим: Monitors power consumption in real-time, reducing engine wear and tear, providing quieter operation, extended engine life, and improved fuel economy.
Image: The generator operating outdoors at night, providing illuminated backup power to a residential home.

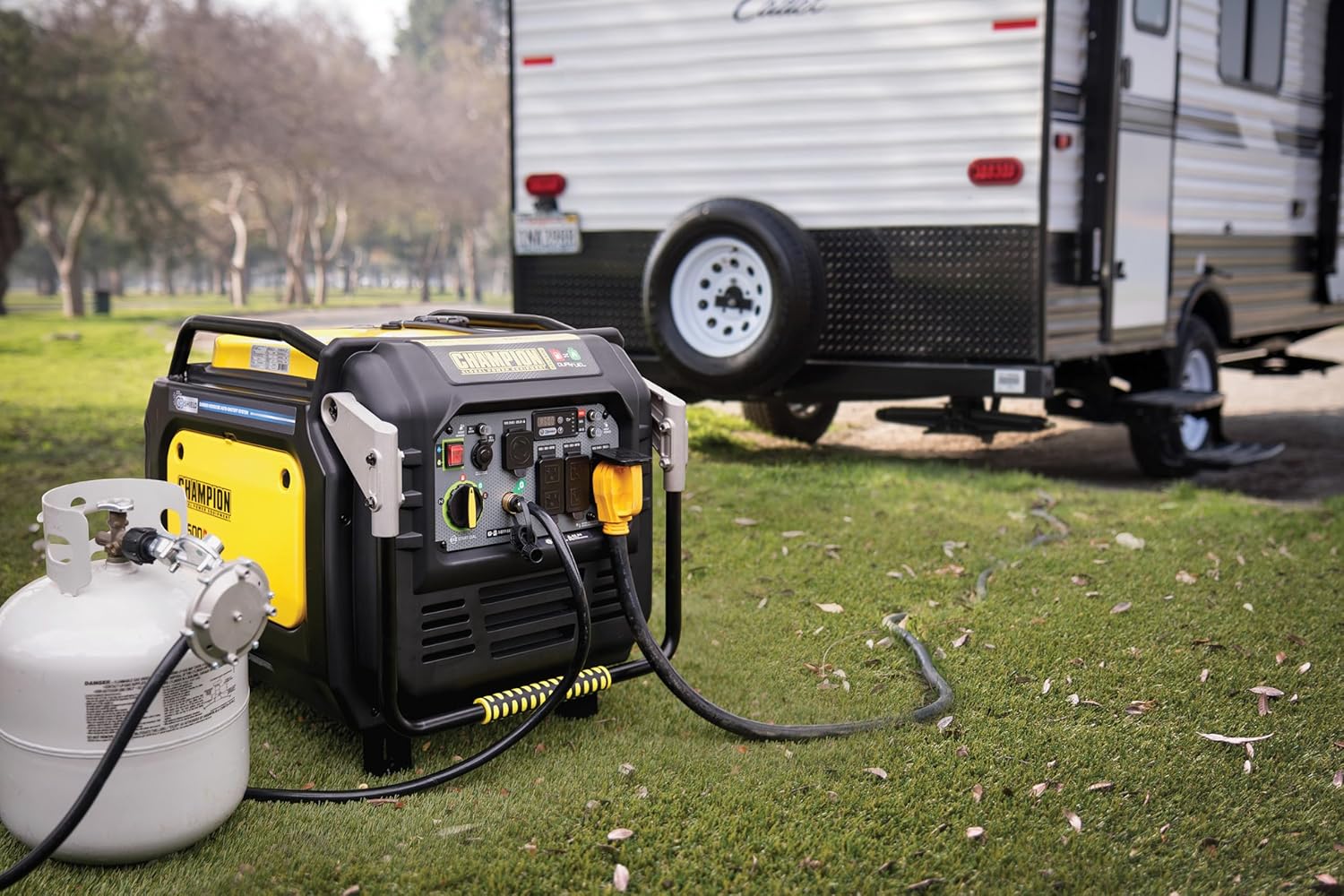

Image: The generator connected to an RV at a campsite, demonstrating its use for recreational power.
Техникалык тейлөө
Regular maintenance is crucial for the longevity and performance of your generator. The unit features a no-tool access panel and an oil drain tube for easy maintenance procedures, such as oil changes. Refer to the full manual for a detailed maintenance schedule.
Өлчөмдөрү жана Салмагы
Image: A diagram showing the dimensions (33.4 inches L x 29.1 inches W x 26 inches H) and weight (213.9 lbs) of the generator.
Проблемаларды чечүү
If the generator fails to start or operate correctly, first check the fuel level and ensure the correct fuel type is selected on the EZ Start Dial. Verify that the battery is properly connected and charged. If the generator shuts off unexpectedly, check for CO Shield activation, low oil levels, or an overloaded circuit. Consult the comprehensive troubleshooting section in the full product manual for detailed solutions.
Техникалык мүнөздөмөлөр
| Спецификация | Нарк |
|---|---|
| Бренд | Champион күч жабдуулары |
| Модель номери | 201175 |
| Ватtage (Баштоо) | 8500 Ватт |
| Ватtage (Running, Gasoline) | 7000 Ватт |
| Ватtage (Running, Propane) | 6300 Ватт |
| Күйүүчү май түрү | Бензин, пропан (LPG) |
| Мотор түрү | 4 Инсульт |
| Мотордун жылышы | 420 куб сантиметр |
| Күйүүчү май багынын көлөмү | 5.33 галлон |
| Мунай сыйымдуулугу | 1.2 Quarts (10W-30 included) |
| Ызы-чуу деңгээли | 61 дБА (23 футтан) |
| От алдыруу системасынын түрү | Электр старт |
| Жалпы электр розеткалары | 5 |
| Продукциянын өлчөмдөрү (L x W x Y) | 33.4" x 29.1" x 26" |
| Элемент Салмагы | 213.9 фунт |
| Өзгөчө өзгөчөлүк | CO сенсор |
| UPC | 817198025827 |
Кепилдик жана колдоо
Сиздин Чampion Power Equipment generator is backed by a 3-year limited warranty. Additionally, free lifetime technical support is available from dedicated experts. For assistance, please refer to the contact information provided in your product documentation.
Image: A badge indicating the 3-year limited warranty for the product.
