Introduction
This manual provides instructions for the proper setup, operation, and maintenance of your MXR Phase 90 50th-Anniversary Pedal. Please read this manual thoroughly before use to ensure optimal performance and longevity of the product.
Коопсуздук маалыматы
- Use only the specified power adapter (9 Volts DC, 2.1mm barrel connector, center-negative).
- Do not expose the pedal to moisture or extreme temperatures.
- Do not attempt to open or modify the pedal casing.
- Балдар жетпеген жерде сактаңыз.
Продукт бүттүview
The MXR Phase 90 is a classic phaser guitar effects pedal known for its distinctive modulation sound. This 50th-anniversary edition features a special gold finish and simple, single-knob operation.

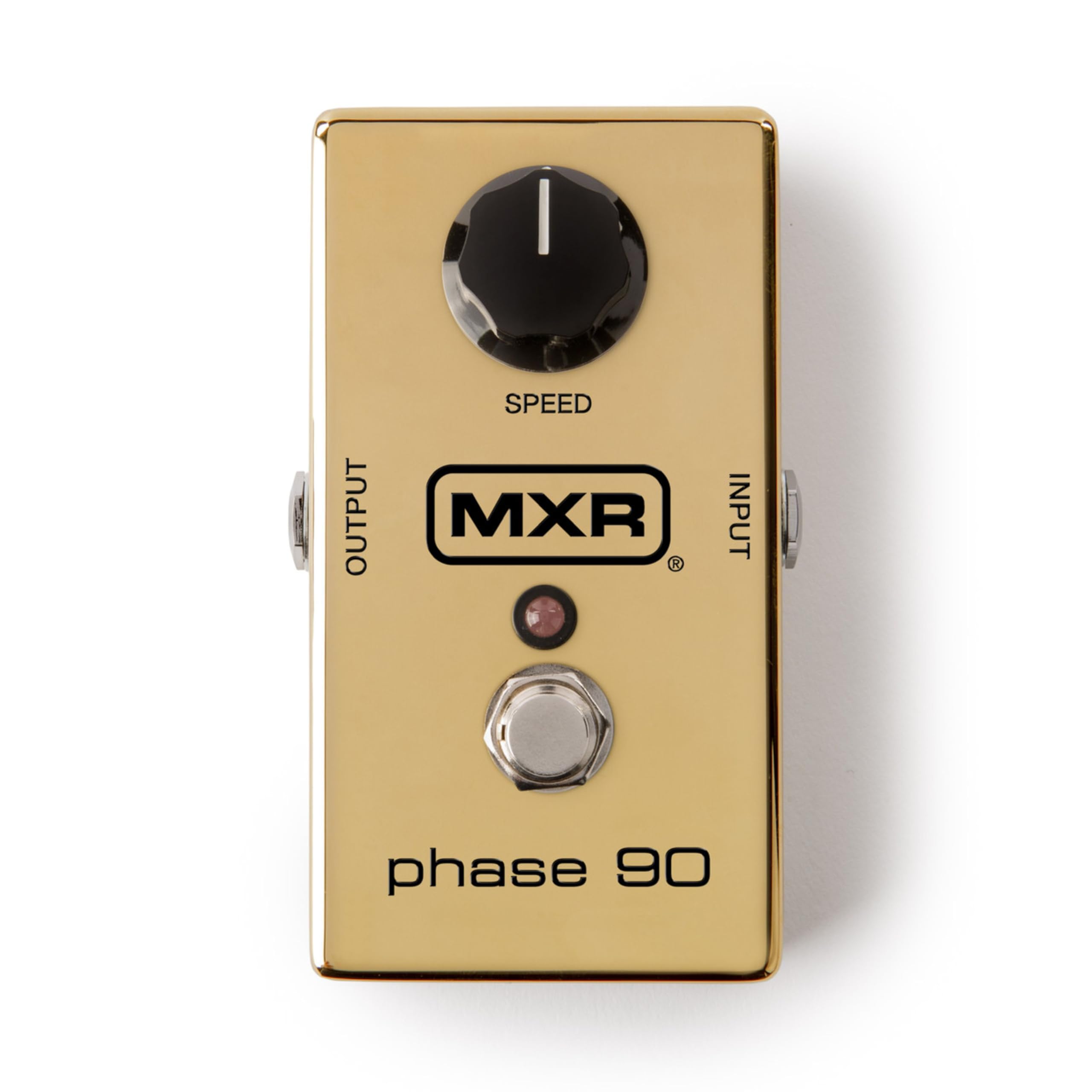

Сүрөт: жогорудан төмөнгө view of the MXR Phase 90 50th-Anniversary Pedal. The pedal is gold-colored with a single black 'SPEED' knob on the top left, an input jack on the right side, an output jack on the left side, and a footswitch with an LED indicator in the center. The MXR logo and 'phase 90' are visible on the top surface.
Жайгашуу
- Кубат туташуу: Connect a 9-volt DC AC adapter (not included) to the power input jack on the side of the pedal. Ensure the adapter has a 2.1mm barrel connector and center-negative polarity.
- Аспап киргизүү: Connect your instrument (e.g., guitar) to the INPUT jack on the right side of the pedal using a standard 1/4-inch instrument cable.
- Ampкөтөргүч чыгаруу: Педалдын сол жагындагы OUTPUT уячасын өзүңүзгө туташтырыңыз ampкөтөргүчтү же сигнал чынжырыңыздагы кийинки педалды стандарттуу 1/4 дюймдук аспап кабелин колдонуп басыңыз.
- Жайгашкан жери: Place the pedal on a stable surface or integrate it into your pedalboard.

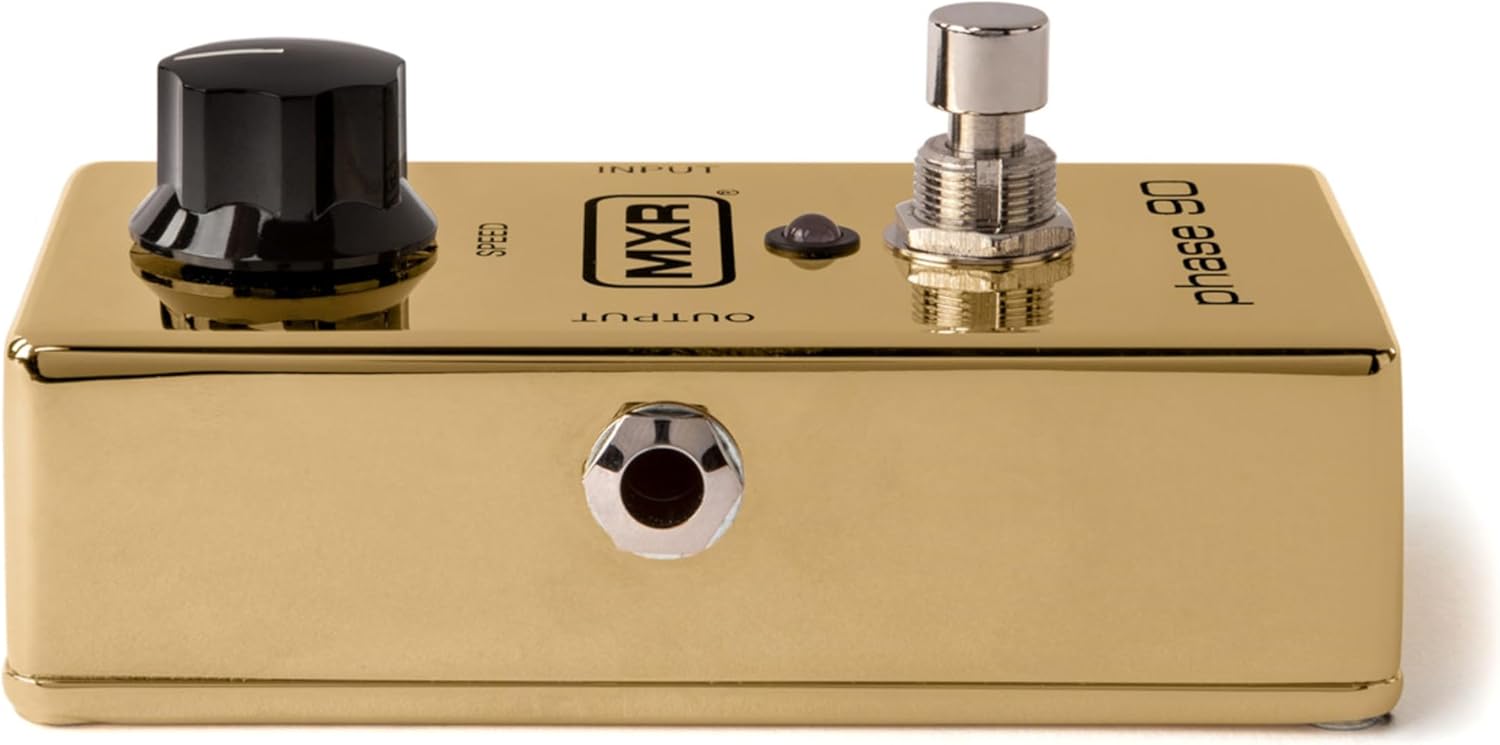

Сүрөт: каптал view of the MXR Phase 90 50th-Anniversary Pedal showing the power input jack (left) and the instrument input jack (right). The pedal is gold with a black 'SPEED' knob visible on the top surface.
Сүрөт: Жогорку view of the MXR Phase 90 50th-Anniversary Pedal, highlighting the 'INPUT' and 'OUTPUT' labels near the respective jacks. The gold finish and black 'SPEED' knob are prominent.
Иштөө нускамалары
Controls
- SPEED баскычы: This is the only control on the Phase 90. Turning the knob clockwise increases the speed of the phasing effect, while turning it counter-clockwise decreases the speed. Experiment with different settings to achieve various modulation sounds, from subtle sweeps to fast, watery warbles.
- Бут өчүргүч: Press the footswitch to engage or bypass the phasing effect. The LED indicator will illuminate when the effect is active.
Сүрөт: Жакын план view of the black 'SPEED' knob on the MXR Phase 90 pedal. The knob has a white indicator line for setting the phase speed.
Сүрөт: Жакын план view of the chrome footswitch and the small red LED indicator on the MXR Phase 90 pedal. The footswitch is used to activate or deactivate the effect.
Негизги операция
- Ensure all connections (power, input, output) are secure.
- Өзүңүздү күйгүзүңүз ampөмүрлүү.
- Press the footswitch to activate the Phase 90. The LED will light up.
- Adjust the SPEED knob to achieve your desired phasinг эффектиси.
- To bypass the effect, press the footswitch again. The LED will turn off.
Техникалык тейлөө
- Тазалоо: Wipe the pedal with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Сактагыч: Store the pedal in a dry environment, away from direct sunlight and extreme temperatures, when not in use.
- Батареяны алмаштыруу: This pedal is designed for AC adapter use. There is no internal battery compartment.
Проблемаларды чечүү
Үн жок
- Бардык кабелдик туташууларды текшериңиз (аппарат, ampкөтөргүч, күч).
- Ensure the power adapter is correctly connected and providing power (LED should light up when engaged).
- Test with different cables and a different power supply if available.
- Bypass the pedal to confirm your instrument and ampкөтөргүчтөр туура иштеп жатат.
Эффект Кызыктуу эмес
- Ensure the power adapter is connected and functional.
- Press the footswitch firmly. The LED should illuminate when the effect is active.
Керексиз ызы-чуу
- Бардык кабелдер корголгонун жана жакшы абалда экенин текшериңиз.
- Check for ground loops in your setup. Try isolating the power supply.
- Ensure the power adapter is rated correctly for the pedal (9V DC, center-negative).
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | M101GLD |
| Effect түрү | Фазер |
| Controls | 1x SPEED knob |
| Киргизүү | 1/4-inch Instrument Jack |
| Чыгуу | 1/4-inch Instrument Jack |
| Күч | 9V DC, 2.1mm barrel connector, center-negative (AC adapter not included) |
| Өлчөмдөр | 5.5 x 4.5 x 2.5 дюйм (болжол менен) |
| Салмагы | 1.16 фунт (болжол менен) |
| Түс | Алтын |
Кепилдик маалымат
This MXR product is covered by a 2-year warranty from the date of purchase. The warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, modification, or unauthorized repair. Please retain your proof of purchase for warranty claims.
Колдоо
For technical assistance, troubleshooting beyond this manual, or warranty service, please contact MXR customer support through their official website or authorized service centers. Refer to the MXR webакыркы байланыш маалыматы үчүн сайт.
