Продукт бүттүview
The TechniSat DIGITRADIO 4 IR is a versatile stereo internet radio designed for high-quality audio reception and playback. It supports DAB+, FM, and internet radio, offering a wide range of national and regional programs. The device features Bluetooth audio streaming, allowing playback from smartphones and tablets, and includes a USB port for MP3 file playback. Equipped with two 10W ELAC speakers and a clear 3.5-inch TFT color display, it delivers excellent sound and user experience. Control is intuitive via rotary knobs, remote control, or a smartphone application.
Пакеттин мазмуну
- DIGITRADIO 4 IR Stereo Internet Radio (Black)
- Telescopic antenna with mounting tool
- Кубаттуу адаптер
- Remote control with batteries (2 x AAA)
- Колдонуучунун колдонмосу
Түзмөктүн өзгөчөлүктөрү жана башкаруу элементтери
Familiarize yourself with the main components and controls of your DIGITRADIO 4 IR.
Сүрөт: Фронт view of the TechniSat DIGITRADIO 4 IR radio, showing the central display, two large rotary knobs for volume/standby and select/snooze, and several control buttons (Mode, Menu, Fav, Scan, Play/Pause, Skip tracks).

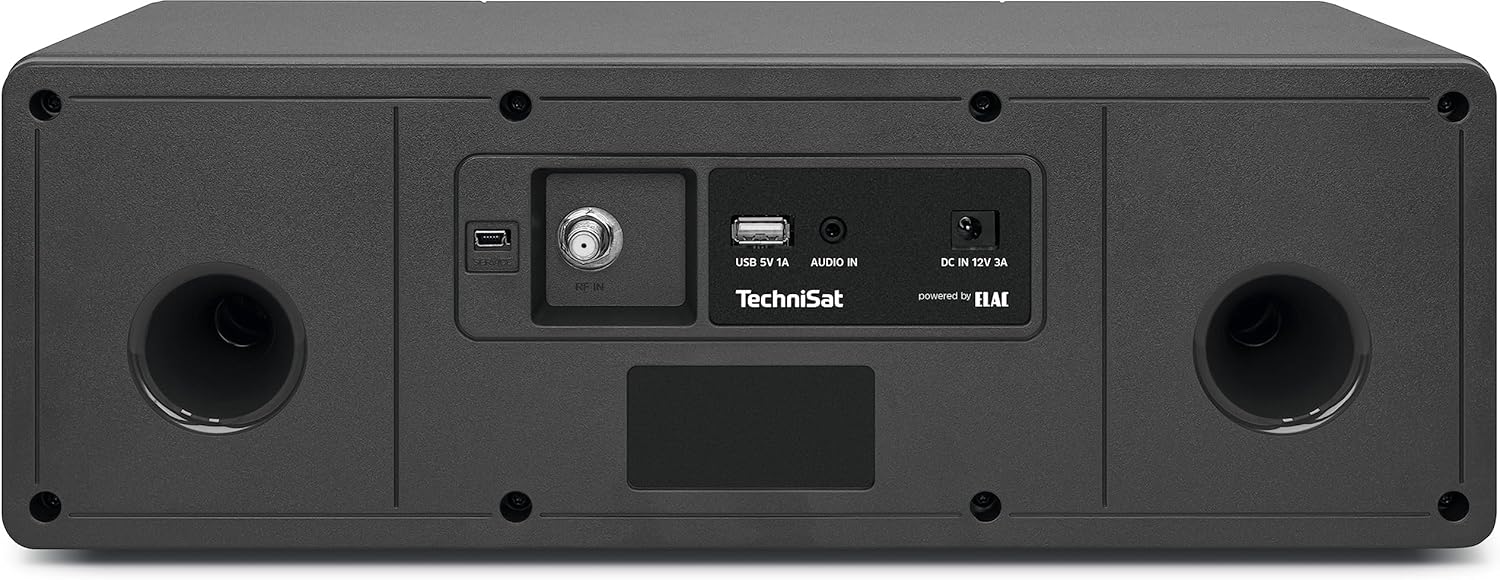

Сүрөт: Арткы view of the TechniSat DIGITRADIO 4 IR radio, highlighting the connection ports: RF IN for antenna, USB 5V 1A, AUDIO IN (AUX), and DC IN 12V 3A power input. Two bass reflex ports are also visible.
Сүрөт: The remote control for the TechniSat DIGITRADIO 4 IR radio, featuring buttons for power, EQ, scan, alarm, sleep timer, playback controls, menu navigation, volume, and a numeric keypad for direct station access.
Жайгашуу
- Пакеттен чыгаруу: Бардык компоненттерди таңгактан кылдаттык менен алып салыңыз.
- Антенна туташуу: Connect the telescopic antenna to the RF IN port on the rear of the device. Extend the antenna for optimal reception.
- Кубат туташуу: Connect the power adapter to the DC IN 12V 3A port on the rear of the radio, then plug it into a wall outlet.
- Баштапкы орнотуу устасы: Upon first power-on, the radio will guide you through an initial setup wizard. Follow the on-screen instructions to set language, time, date, and network connection.
- Тармактык туташуу (Wi-Fi): Select your Wi-Fi network from the list and enter the password. A stable internet connection is required for internet radio and streaming services.
Иштөө нускамалары
Күйүү/өчүрүү жана күтүү режими
басыңыз VOL / STANDBY rotary knob to switch the device on or off. In standby mode, the display shows the time and date.
Режим тандоо
басыңыз РЕЖИМ button on the front panel or remote control to cycle through available modes: DAB+, FM, Internet Radio, Bluetooth, USB, and AUX In.
DAB+ радиосу
- Select DAB+ mode.
- Радио автоматтык түрдө жеткиликтүү DAB+ станцияларын издейт.
- колдонуу SELECT / SNOOZE rotary knob or the </> buttons on the remote to navigate through stations.
- басыңыз SELECT / SNOOZE баскычы же OK on the remote to select a station.
- To save a favorite station, press and hold the FAV button, then select a preset number.
FM радиосу
- FM режимин тандаңыз.
- басыңыз SCAN button to automatically search for FM stations.
- Manually tune using the SELECT / SNOOZE rotary knob or the </> баскычтар.
- To save a favorite station, press and hold the FAV button, then select a preset number.
Интернет радио
- Ensure the radio is connected to your Wi-Fi network.
- Select Internet Radio mode.
- Browse stations by location, genre, or search.
- басыңыз SELECT / SNOOZE баскычы же OK on the remote to select a station.
- To save a favorite station, press and hold the FAV button, then select a preset number.
Bluetooth аудио агымы
- Select Bluetooth mode on the radio. The display will show "Pairing".
- Enable Bluetooth on your smartphone or tablet and search for available devices.
- Select "DIGITRADIO 4 IR" from the list to pair.
- Жупташтырылгандан кийин, түзмөгүңүздөн аудиону радиого агылта аласыз.
USB ойнотуу
- MP3 камтыган USB дискти салыңыз fileрадионун арткы жагындагы USB портуна сайыңыз.
- USB режимин тандаңыз.
- Use the controls to navigate and play your music files.
AUX киргизүү
- Connect an external audio source (e.g., an MP3 player) to the AUX IN port on the rear of the radio using a 3.5mm audio cable (not included).
- AUX режимин тандаңыз.
- Audio from the connected device will play through the radio's speakers.
Ойготкуч саат жана уйку таймери
Access alarm and sleep timer settings via the МЕНЮ button or dedicated buttons on the remote control. Follow the on-screen prompts to configure these functions.
Дисплей орнотуулары
Adjust display brightness for operating and standby modes through the МЕНЮ settings. The radio also features an auto-dimming function.
Техникалык тейлөө
To ensure the longevity and optimal performance of your DIGITRADIO 4 IR, follow these maintenance guidelines:
- Тазалоо: Радионун сыртын тазалоо үчүн жумшак, кургак чүпүрөктү колдонуңуз. Абразивдүү тазалоочу каражаттарды, момдорду же эриткичтерди колдонбоңуз.
- Дисплейге кам көрүү: Gently wipe the display with a soft, lint-free cloth. Avoid pressing hard on the screen.
- Вентиляция: Ашыкча ысып кетүүнүн алдын алуу үчүн желдетүү тешиктери жабылбагандыгын текшериңиз.
- Курчап турган чөйрө: Keep the radio away from direct sunlight, heat sources, dust, and moisture.
Проблемаларды чечүү
If you encounter issues with your DIGITRADIO 4 IR, refer to the following common solutions:
- Кубат жок: Ensure the power adapter is securely connected to both the radio and a working power outlet.
- Үн жок: Check the volume level. Ensure the correct audio source mode is selected. If using AUX or Bluetooth, verify the external device's volume and connection.
- Poor Radio Reception (DAB+/FM): Extend and adjust the telescopic antenna. Try repositioning the radio to improve signal strength.
- Internet Radio Connection Issues: Verify your Wi-Fi network connection. Ensure the Wi-Fi password is entered correctly. Restart your Wi-Fi router and the radio.
- Bluetooth жупташтыруу көйгөйлөрү: Ensure the radio is in Bluetooth pairing mode. Delete "DIGITRADIO 4 IR" from your device's Bluetooth list and attempt to pair again.
- Connect App Not Recognizing Radio: If using a companion app, try restarting your smartphone or tablet if the app fails to connect to the radio.
- USB ойнотуу көйгөйлөрү: Ensure the USB drive is formatted correctly (FAT32) and contains supported MP3 audio files.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | TechniSat |
| Модель номери | 0000/3957 |
| Түс | Кара |
| Байланыш технологиясы | Көмөкчү, Bluetooth, USB, Wi-Fi |
| Өзгөчөлүктөр | Access to music services (Spotify, Amazon Music, Klassikradio Select, Calm Radio), USB interface with charging function and MP3 playback, FM Radio, Bluetooth audio streaming (reception), Favorite memory (30 DAB+ / 30 FM / 30 Internet) |
| Шайкеш түзмөктөр | Headphones, Smartphone, Tablet |
| Продукциянын өлчөмдөрү | 38L x 18.5W x 13.5H см |
| Тюнинг технологиясы | DAB+ |
| Колдоого алынган радио тилкелери | DAB+, FM, Internet |
| Power Source | Электр зымдары |
| Камтылган компоненттер | Power adapter, Telescopic antenna with mounting tool, DIGITRADIO 4 IR, User manual, Remote control with batteries |
Кепилдик жана колдоо маалыматы
For detailed warranty information, please refer to the warranty card included with your product or visit the official TechniSat website. Please note that spare parts availability for this product is currently unavailable, and information regarding guaranteed software updates is not provided.
For technical support or service inquiries, please contact TechniSat customer service through their official channels.
