1. Киришүү жана Продукт бүттүview
The KOKIDO XTROVAC 110 is a compact, lightweight, and powerful rechargeable handheld pool vacuum designed for efficient spot cleaning of above-ground pools, spas, and hot tubs up to 20 feet. It features an upgraded 10 GPM water flow rate and a 60-minute runtime, ensuring thorough cleaning with consistent suction. Its cordless and quiet operation makes pool maintenance convenient and disturbance-free.
This manual provides detailed instructions for the assembly, operation, and maintenance of your XTROVAC 110 to ensure optimal performance and longevity.
2. Продукциянын компоненттери
Your KOKIDO XTROVAC 110 package includes the following components:
- Негизги вакуумдук агрегат
- 5-Section Aluminum Pole (72 inches total length)
- Pivoting Suction Head
- Жалпак щетка башчысы
- Filter пакети
- Clear Cover
- USB заряддоо кабели
3. Ассамблея
Assembly of the XTROVAC 110 is quick and straightforward, typically taking about 2 minutes.
- Мамычага бекитүү: Connect the 5-section aluminum pole to the main vacuum unit. Ensure it clicks securely into place. The pole provides an extended reach of 2.25 to 5.5 feet.
- Select and Attach Vacuum Head: Choose either the pivoting suction head or the flat brush head based on your cleaning needs. The pivoting head is ideal for general cleaning, while the flat brush is designed for hard-to-reach corners and steps. Attach the selected head to the main vacuum unit.
- Чыпка баштыгын салыңыз: Ensure the filter bag is properly inserted into the clear cover and secured before attaching the cover to the vacuum unit.
4. Операция
The XTROVAC 110 is designed for cordless, quiet, and safe operation. It is suitable for spas, hot tubs, above-ground pools, and small inground pools with water depths between 12 inches and 6.5 feet. It is also effective for spot cleaning larger pools.
4.1 Charging the Vacuum
Before first use, fully charge the vacuum. The charging time is approximately 5 hours. Use the provided USB cable and a compatible power adapter (not included). An LED indicator on the vacuum will show its charging status (Red for Charging, Green for Full).
4.2 Вакуумду колдонуу
The XTROVAC 110 operates with a simple touch control method. It is equipped with a water sensor that activates the motor only when submerged, ensuring safety and preventing dry running.
- Submerge the vacuum unit into the water. The water sensor will detect the water and automatically turn on the vacuum.
- Guide the vacuum along the pool or spa surfaces to collect debris. The direct flow technology and 10 GPM water flowrate ensure efficient suction.

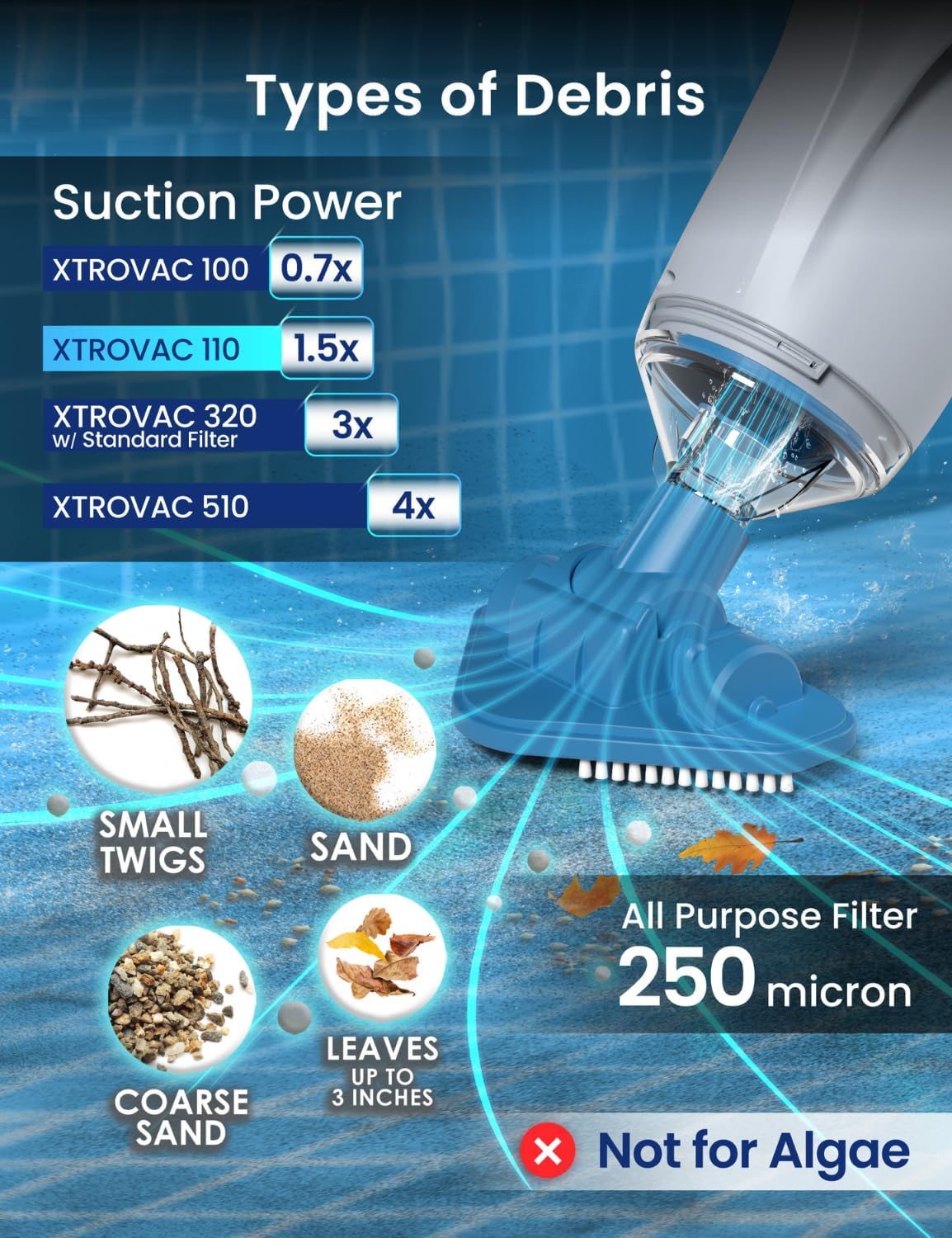

- The vacuum is effective at picking up small twigs, sand, coarse sand, and leaves up to 3 inches. It is not designed for algae removal.
- The 60-minute runtime is ideal for efficiently spot-cleaning small pools multiple times or complementing a robotic cleaner for leftover debris.
- When finished, remove the vacuum from the water. It will automatically power off when not submerged.
5. Техникалык тейлөө
Regular maintenance ensures the longevity and efficiency of your XTROVAC 110.
- Фильтр баштыгын тазалоо: After each use, remove the filter bag and empty collected debris. Rinse the filter bag thoroughly with water to remove any remaining particles.
- Агрегатты тазалоо: The product care instructions recommend washing the unit by water. Ensure the charging port cover is securely closed before rinsing the main unit.
- Сактагыч: Store the vacuum in a dry, cool place away from direct sunlight when not in use.
Абайлаңыз:
Avoid using the vacuum in water deeper than specified or with electrical hazards. Always ensure safe operation around water and electrical components.
6. Кыйынчылыктарды
If you encounter any issues with your KOKIDO XTROVAC 110, please consider the following common solutions:
- Чаң соргуч иштебей жатат: Ensure the unit is fully charged. Verify that the water sensor is making proper contact with water when submerged.
- Соруунун азайышы: Check if the filter bag is full and needs cleaning. Inspect the vacuum head and intake for any blockages.
- Кыска убакыт: Ensure the battery is fully charged before use. Battery performance can decrease over time; if issues persist, contact customer service.
- Debris escaping: Ensure the filter bag is correctly installed and not damaged.
Көбүрөөк жардам алуу үчүн, 8-бөлүмдөгү колдоо маалыматын караңыз.
7. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модель аты | XTROVAC 110 |
| Power Source | Батарея менен иштейт (1 литий-иондук батарейка талап кылынат) |
| Тtage | 3.7 вольт |
| Заряддоо убактысы | 5 саат |
| Runtime | 60 мүнөт |
| Water Flowrate | Мүнөтүнө 10 галлон (GPM) |
| Элемент Салмагы | 3.2 фунт (болжол менен 1.45 кг) |
| Продукциянын өлчөмдөрү | 18"L x 6.5"W x 6"H (45.7 x 16.5 x 15.2 см) |
| Hose Length (Pole) | 72 дюйм (182.8 см) |
| Жүктөө жөндөмдүүлүгү | 13.76 ounces (approx. 0.1 Gallons) |
| Материал | Plastic body and Aluminum pole |
| Өзгөчө өзгөчөлүк | Cordless, IPX8 Waterproof, works in Hot Tub warm water, Handheld Rechargeable Pool and Spa Vacuum |
| Башкаруу ыкмасы | тийүү |
| Ассамблея талап кылынат | Yes (Assembly Time: 2 minutes) |
| UPC | 844268029195 |
8. Кепилдик жана колдоо
KOKIDO offers a 1-year warranty for the XTROVAC 110. With 32 years of experience in pool supplies and 100% positive feedback customer service, KOKIDO is committed to providing excellent support.
For any questions, troubleshooting, or warranty claims, please contact KOKIDO customer service. You can also scan the QR code below for additional user manuals and videos.
For more information and support, visit the official Kokido Store: Kokido Store on Amazon
Эскертүү: Берилген маалыматтардын негизинде кыстаруу үчүн сатуучудан расмий продукт видеолору жеткиликтүү эмес.
