AUSDOM Airkey84 зымсыз механикалык клавиатура колдонуучусунун колдонмосу

1. Киришүү

This manual provides detailed instructions for the AUSDOM Airkey84 Wireless Mechanical Keyboard. Please read this guide thoroughly to ensure proper setup, operation, and maintenance of your device. The Airkey84 is a compact 75% layout keyboard featuring multiple connection modes, white backlighting, and low-profile brown switches, designed for various computing environments.

Image 1.1: The AUSDOM Airkey84 Wireless Mechanical Keyboard, showcasing its compact 75% layout and white keycaps with gray accents. A USB-C cable is connected, and a Bluetooth dongle is visible, indicating its wireless capabilities.

2. Пакеттин мазмуну

Пакетиңизде бардык буюмдар бар экенин текшериңиз:

• AUSDOM Airkey84 Wireless Mechanical Keyboard
• USB-C Cable
• 2.4GHz USB Receiver (typically stored in the keyboard's battery compartment or a dedicated slot)
• Extra Keycaps for Windows (3 pieces)
• Колдонуучунун Колдонмосу (бул документ)

3. Продукт бүтүп калдыview

The AUSDOM Airkey84 keyboard offers a versatile and efficient typing experience with its key features:

• 75% компакттуу жайгашуусу: 84 keys, including dedicated arrow keys and function keys, optimizing desktop space.
• Triple Connection Modes: Supports Bluetooth 5.0, 2.4GHz wireless via USB receiver, and USB-C wired connection.
• Көп түзмөк байланышы: Connects to up to 4 devices and allows seamless switching.
• Төмөн Проfile Brown Switches: Designed for comfortable and efficient typing.
• Ак жарык: Features 14 distinct lighting options for visibility in various environments.
• Кайра заряддалуучу батарея: Integrated 2000 mAh battery provides extended usage.
• Кеңири шайкештик: Compatible with Mac OS and Windows operating systems.
• Эргономикалык дизайн: Features an ultra-slim aluminum frame and adjustable feet for comfortable typing angles.

Image 3.1: Illustration of the keyboard's triple connection modes: Bluetooth 5.0, 2.4G Wireless, and Wired Mode. The image shows the keyboard connected to a laptop, smartphone, and tablet, demonstrating its multi-device capability.

Сүрөт 3.2: Алдыңкы жана арткы views of the AUSDOM Airkey84 keyboard. The back view displays product information and regulatory markings, along with the adjustable feet.

4. Орнотуу нускамалары

4.1 Баскычтопту заряддоо

Before first use, fully charge the keyboard using the provided USB-C cable. Connect one end to the keyboard's USB-C port and the other end to a USB power source (e.g., computer, wall adapter).

Image 4.1: The AUSDOM Airkey84 keyboard connected via its USB-C port to a charging cable, with a smartphone nearby. This illustrates the USB-C charging capability.

4.2 Connecting via Bluetooth Mode

1. Клавиатуранын кубат которгучу кубат баскычында экенин текшериңиз ON позиция.
2. басып, кармап туруңуз Fn + BT1 keycaps for 3-5 seconds. The keyboard will enter pairing mode, and the backlight indicator will flash rapidly.
3. Түзмөгүңүздө (компьютер, планшет, смартфон) Bluetooth'ду күйгүзүп, жеткиликтүү түзмөктөрдү издеңиз.
4. Select "AUSDOM Airkey84" from the list to complete the pairing process.
5. To connect to other Bluetooth devices, repeat steps 2-4 using Fn + BT2 or Fn + BT3.

4.3 Connecting via 2.4GHz Wireless Mode

1. Клавиатуранын кубат которгучу кубат баскычында экенин текшериңиз ON позиция.
2. Басыңыз Fn + 3# once to switch to 2.4GHz USB connection mode.
3. Plug the 2.4GHz USB receiver into an available USB port on your device. The keyboard should connect automatically.

4.4 Connecting via USB-C Wired Mode

1. Connect the provided USB-C cable to the keyboard's USB-C port and the other end to your device's USB port.
2. Баскычтоп автоматтык түрдө зымдуу режимге өтөт.

Image 4.2: A visual guide on how to use 2.4GHz and Bluetooth modes. The image highlights the 'esc' key (power button) and 'fn+BT1' keys for Bluetooth pairing, and 'fn+3#' for 2.4G wireless mode.

5. Иштөө нускамалары

5.1 Туташкан түзмөктөрдүн ортосунда которулуу

Once multiple devices are paired (via Bluetooth or 2.4GHz), you can switch between them:

• Басыңыз Fn + BT1/BT2/BT3 to switch to the corresponding Bluetooth device.
• Басыңыз Fn + 3# to switch to the 2.4GHz wireless connection.
• Connecting the USB-C cable will automatically switch to wired mode.

5.2 Жарыкты башкаруу

The keyboard features a white backlight with 14 lighting options:

• Басыңыз Fn + \| to cycle through the 14 different backlight effects.
• Колдонуу Fn + ↑ жана Fn + ↓ жарыктын жарыктыгын жөндөө.
• Колдонуу Fn + ← жана Fn + → to adjust backlight speed (for dynamic effects).

Image 5.1: The AUSDOM Airkey84 keyboard illuminated with its white backlight, demonstrating one of the 14 lighting options. The image shows the keyboard in a desktop setup with a monitor displaying a user interface.

5.3 Compatibility and Keycap Replacement

The keyboard is compatible with both Mac OS and Windows. Extra keycaps for Windows are included in the package to replace Mac-specific keys if desired.

Image 5.2: The AUSDOM Airkey84 keyboard shown in a desktop environment, highlighting its compatibility with both Mac and Windows operating systems. The image also mentions the inclusion of extra keycaps for Windows users.

5.4 Ergonomic Adjustment

The keyboard features adjustable feet on the underside. Flip these feet out to achieve a more angled typing position (approximately 4° or 7°) for improved comfort.

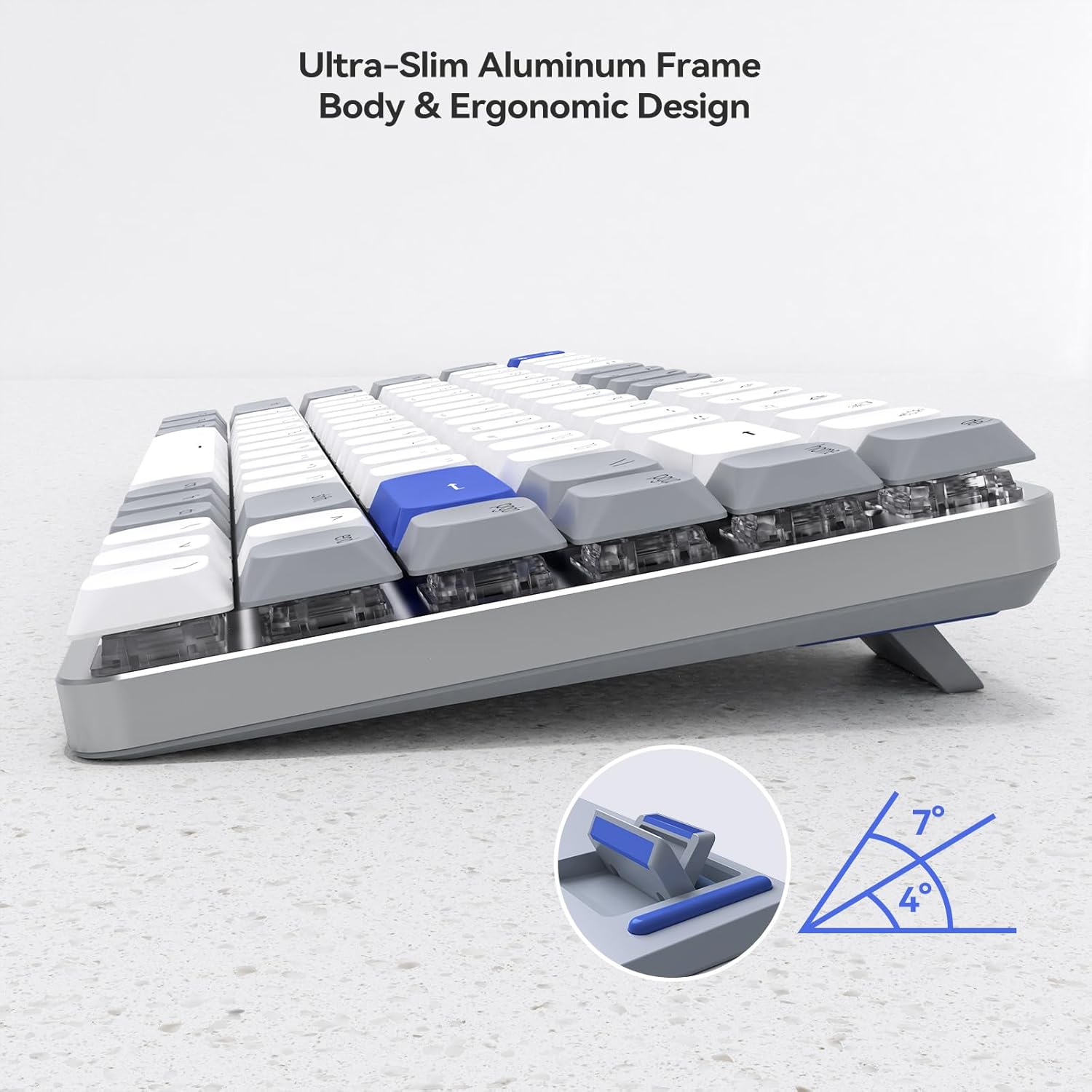

5.3-сүрөт: Бир тарап view of the AUSDOM Airkey84 keyboard, illustrating its ultra-slim aluminum frame and adjustable feet that allow for 4° and 7° ergonomic typing angles.

6. Техникалык тейлөө

To ensure the longevity and optimal performance of your AUSDOM Airkey84 keyboard, follow these maintenance guidelines:

• Тазалоо: Баскычтоптун бетин сүртүү үчүн жумшак, кургак чүпүрөктү колдонуңуз. Тереңирээк тазалоо үчүн, кысылган абаны клавиатуранын капкактарынын ортосундагы чаңды жана калдыктарды тазалоо үчүн колдонуңуз. Катуу химиялык заттарды же абразивдүү материалдарды колдонуудан алыс болуңуз.
• Сактагыч: Узак мөөнөткө колдонулбаганда, клавиатураны салкын, кургак жерде, тике күндүн нурунан жана өтө температурадан алыс сактаңыз.
• Батареяга кам көрүү: To preserve battery life, avoid fully discharging the keyboard frequently. Charge it when the battery indicator is low.
• Суюктук таасири: Avoid spilling liquids on the keyboard. If a spill occurs, immediately disconnect the keyboard, power it off, and allow it to dry completely before attempting to use it again.

7. Кыйынчылыктарды

If you encounter issues with your AUSDOM Airkey84 keyboard, refer to the following troubleshooting steps:

If the problem persists after attempting these solutions, please contact AUSDOM customer support for further assistance.

8. Техникалык шарттар

9. Кепилдик жана колдоо

AUSDOM products are manufactured with quality and reliability in mind. For warranty information and customer support, please refer to the warranty card included with your product or visit the official AUSDOM website. When contacting support, please have your product model (Airkey84) and purchase details available.

For direct inquiries, you may visit the AUSDOM store on Amazon: AUSDOM Store
