1. Киришүү
This user manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Festool Cordless Compound Miter Saw SYMC 70 EB-Basic. Please read this manual thoroughly before first use and keep it for future reference.
2. Коопсуздук нускамалары
Always adhere to general power tool safety warnings and local regulations. Failure to follow these instructions may result in electric shock, fire, and/or serious injury.
Жалпы коопсуздук эскертүүлөрү:
- Жумуш аймагынын коопсуздугу: Иштеген жериңизди таза жана жарыктандырыңыз. Башаламан же караңгы жерлер кырсыкка чакырат.
- Электр коопсуздугу: Электр шаймандарын жамгырга же нымдуу шарттарга тийгизбеңиз. Электр шайманына суу киргенде электр тогуна урунуу коркунучу көбөйөт.
- Жеке коопсуздук: Always wear eye protection, hearing protection, and a dust mask when operating the saw. Secure loose clothing and long hair.
- Куралды колдонуу жана кам көрүү: Электр аспапты күчтөп албаңыз. Колдонмоңуз үчүн туура электр шайманын колдонуңуз. Оңдоолорду жасоодон, аксессуарларды алмаштыруудан же электр шаймандарын сактоодон мурда батарейканын пакетин ажыратыңыз.
- Батарея куралын колдонуу жана сактоо: Өндүрүүчү көрсөткөн заряддагыч менен гана заряддаңыз. Электр шаймандарын атайын дайындалган батарейкалар менен гана колдонуңуз.
3. Components Overview
Familiarize yourself with the main components of your Festool SYMC 70 EB-Basic miter saw.
Figure 3.1: The Festool SYMC 70 EB-Basic Cordless Compound Miter Saw shown with its complete set of accessories, including the saw blade, angle transfer tool, and various attachments.
Figure 3.2: The miter saw equipped with optional wheels for enhanced mobility and ease of positioning on the job site.
Сүрөт 3.3: Жакын пландан view of a hand inserting a battery pack into the saw's battery slot, highlighting the cordless design.
3.4-сүрөт: Детальдуу view of the saw blade and the integrated LED light for precise cutting line visualization.
4. Орнотуу
4.1 Таңгактан чыгаруу жана текшерүү
Carefully remove all components from the packaging. Inspect the saw and accessories for any signs of damage. Report any damage to your dealer immediately.
4.2 Attaching the Saw Blade
- Батареянын араадан чыгарылганын текшериңиз.
- Шпинделди бекитүү баскычын басыңыз.
- Берилген ачкычты бычакты кармап туруучу буроону бошотуңуз.
- Carefully remove the old blade (if applicable) and install the new blade, ensuring the rotation direction matches the arrow on the saw.
- Tighten the blade retaining screw securely.
4.3 Батареяларды орнотуу
The SYMC 70 EB-Basic operates with two 18V battery packs for optimal power and runtime. Insert fully charged battery packs into the designated slots until they click into place.
4.4 Attaching Mobility Wheels (Optional)
For easy transport and positioning, attach the optional mobility wheels to the base of the saw as shown in Figure 3.2. Ensure they are securely fastened.
Figure 4.1: Close-up of the robust mobility wheels, designed for quick and effortless repositioning of the saw.
5. Иштөө нускамалары
5.1 Measuring and Transferring Angles
The SYMC 70 EB-Basic features a symmetrical stop system and an angle transfer tool for precise miter cuts. Use the angle transfer tool to accurately measure internal and external angles from your workpiece and transfer them directly to the saw's setting.
Figure 5.1: A user demonstrating the use of the angle transfer tool to measure a corner angle, ensuring accurate cuts.
Figure 5.2: The angle measured is then transferred to the saw's fence system, allowing for precise and symmetrical angle adjustments.
5.2 Кесүүлөрдү жасоо
- Place the workpiece firmly against the fence and the saw table.
- Adjust the desired cutting angle using the symmetrical stop system.
- Activate the LED light for cutting line visualization if needed.
- Hold the workpiece securely with one hand (or use clamps) and operate the saw with the other. The switch and handle are centrally located for left or right-handed operation.
- Slowly lower the saw blade through the workpiece.
- Allow the blade to stop completely before raising the saw head.

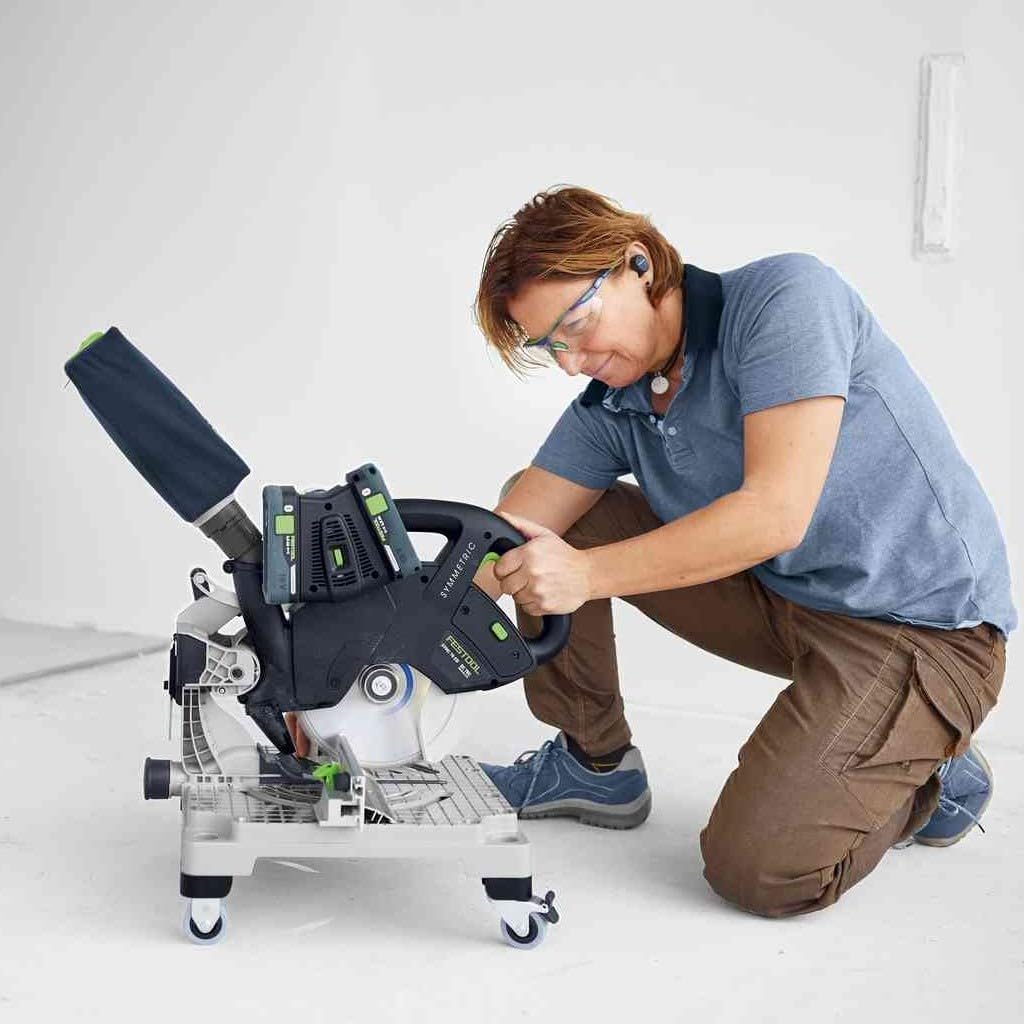

Figure 5.3: A user making a cut with the saw, demonstrating the integrated dust collection bag for reduced airborne dust.
Figure 5.4: The saw connected to an external mobile dust extraction system for a cleaner and healthier work environment.
5.3 Чаңды башкаруу
The SYMC 70 EB-Basic is designed for low-dust operation. You can use the included dust collection bag for basic dust capture, or connect the saw to a mobile dust extractor for superior dust control.
6. Техникалык тейлөө
6.1 Тазалоо
Regularly clean the saw to ensure optimal performance and longevity. Use a brush or compressed air to remove sawdust and debris from the motor vents, blade guard, and table surface. Do not use solvents or abrasive cleaners.
6.2 Blade алмаштыруу
Replace the saw blade when it becomes dull or damaged. Refer to section 4.2 for detailed instructions on blade replacement. Always use high-quality saw blades specifically designed for your Festool saw and the material being cut.
6.3 Батареяга кам көрүү
Store batteries in a cool, dry place. Do not expose them to extreme temperatures. Follow the charging instructions provided with your Festool charger.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Сау башталбайт | Dead or improperly inserted battery; faulty switch | Ensure batteries are fully charged and correctly inserted. Check the switch for damage. |
| Начар кесүү сапаты | Dull or incorrect blade; improper angle setting | Replace the blade. Verify angle settings are accurate. |
| Ашыкча чаң | Dust bag full or improperly attached; dust port clogged | Empty and reattach dust bag. Clear any blockages in the dust port. Consider using an external dust extractor. |
For issues not listed here, please contact Festool customer support or an authorized service center.
8. Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Модель номери | 577424 |
| Продукциянын өлчөмдөрү | 1 x 1 x 1 см (0.39 x 0.39 x 0.39 дюйм) |
| Элемент Салмагы | 8 г (0.018 фунт) |
| Drive Type | Hand-powered (Cordless) |
| Батареялар камтылган | Жок |
| Батареялар талап кылынат | Yes (2 x 18V) |
| Доставкага камтылган | Festool Cordless Compound Miter Saw SYMC 70 EB-Basic |
Note: Product dimensions and weight seem unusually small (1x1x1cm; 8g) based on the provided data. This might be a data entry error in the source. Please refer to official Festool documentation for precise specifications.
9. Кепилдик жана колдоо
9.1 All-Inclusive Warranty
Festool offers an "all-inclusive" warranty. After online registration of your new Festool tool within 30 days of purchase, it is fully covered for the first three years. This allows you to concentrate on your work with peace of mind.
Figure 9.1: The Festool "all-inclusive" warranty symbol, representing comprehensive service benefits.
9.2 Кардарларды колдоо
For further assistance, technical support, or warranty claims, please visit the official Festool website or contact your local authorized Festool dealer. Always provide your product model number (SYMC 70 EB-Basic) and serial number when seeking support.
