NOBLEX NZ6 3-18x56 Inception Riflescope User Manual

Introduction

The NOBLEX NZ6 3-18x56 Inception riflescope is engineered for high-precision aiming in various hunting and sport shooting scenarios. This manual provides comprehensive instructions for the proper setup, operation, and maintenance of your riflescope to ensure optimal performance and longevity. Please read this manual thoroughly before using the device.

Продукт бүттүview

The NOBLEX NZ6 3-18x56 Inception riflescope combines advanced optical and mechanical engineering. Key features include a 6x zoom range, a 4i illuminated reticle, and a robust 30mm central tube diameter. Constructed from durable aircraft-grade aluminum, the riflescope is designed to withstand extreme climatic conditions and recoil. High-quality glass materials with Multitop nano-coating ensure maximum light transmission up to 95.1% and excellent detail recognition, even in low light. The 100 Hz technology provides a flicker-free, eye-friendly illuminated dot.

Негизги компоненттер

• Объективдүү линза: Front lens for light collection.
• Окуляр: Rear lens for viewing the reticle and target.
• Чоңойтууну жөндөө шакеги: Масштабтын деңгээлин тууралайт.
• Диоптрияны тууралоо: For sharp focus of the reticle to the user's eye.
• Windage Adjustment Turret: Горизонталдуу таасир чекитин тууралайт.
• Elevation Adjustment Turret: Adjusts vertical point of impact.
• Parallax Adjustment Turret: Ар кандай аралыкта параллакс катасын жок кылат.
• Жарыктандырууну башкаруу: Adjusts reticle brightness.

Жайгашуу

1. Винтовканы орнотуу

The NOBLEX NZ6 3-18x56 Inception riflescope requires a specialized mount compatible with its 30mm central tube diameter. Ensure the mount is securely attached to your weapon according to the mount manufacturer's instructions. Proper mounting is crucial for accuracy and safety.

• Ensure the riflescope is level with the weapon.
• Tighten all screws to the manufacturer's recommended torque specifications to prevent damage to the scope or mount.
• Position the riflescope to achieve proper eye relief for comfortable and safe viewing.

2. Диоптрияны тууралоо

To ensure a sharp reticle image, adjust the diopter:

1. Point the riflescope at a plain, bright surface (e.g., a wall or the sky).
2. Rotate the diopter adjustment ring on the eyepiece until the reticle appears perfectly sharp and clear to your eye.
3. Once set, this adjustment typically does not need to be changed unless a different user operates the scope.

Иштөө нускамалары

1. Magnification Adjustment (Zoom)

The riflescope features a 6x zoom range, allowing magnification from 3x to 18x. Rotate the magnification adjustment ring, typically located in front of the eyepiece, to select your desired magnification level.

2. Reticle Illumination (4i Reticle)

Сүрөт: The 4i reticle pattern, featuring a fine crosshair with an illuminated central dot for precise aiming.

The NZ6 3-18x56 Inception is equipped with a 4i reticle, located in the second focal plane, ensuring its size remains constant regardless of magnification. The reticle features a continuously adjustable illuminated dot.

• Жандыруу/Өчүрүү: The advanced NOBLEX digi control system, based on a position sensor, automatically activates the illuminated dot when the weapon is in a firing position and deactivates it when the weapon is laid down or stored.
• Жарыктыкты жөндөө: Use the illumination control knob, typically located on the parallax turret, to adjust the brightness of the illuminated dot to suit ambient light conditions.

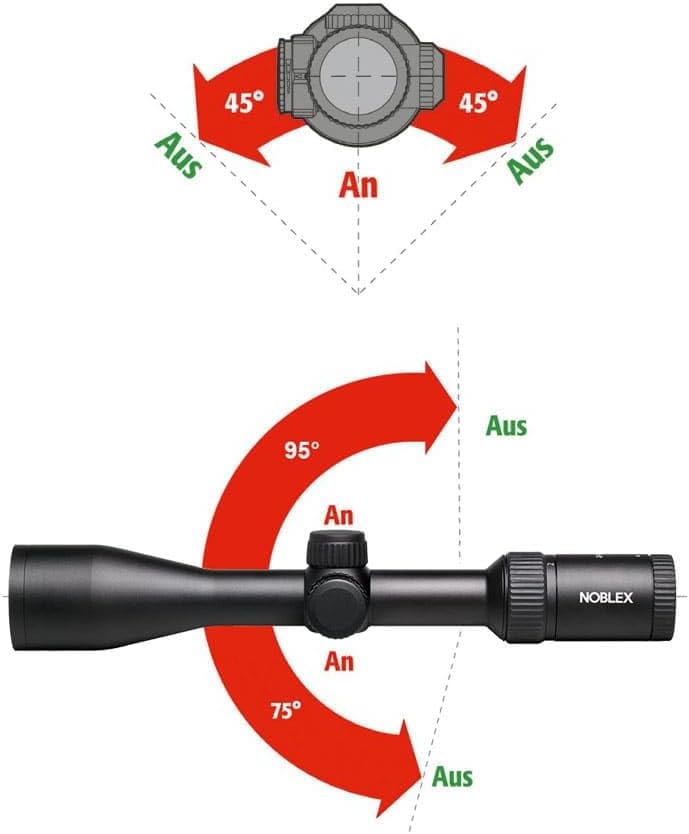

Сүрөт: Diagram illustrating the automatic activation ("An") and deactivation ("Aus") of the illuminated reticle based on the riflescope's angle, controlled by the integrated position sensor.

3. Шамалдын багытын жана бийиктикти тууралоо

Сүрөт: Жакын план view of the riflescope's adjustment turrets, showing the elevation turret (top) and windage turret (side).

The riflescope features precise windage (horizontal) and elevation (vertical) adjustment turrets. Each click of the turret adjusts the point of impact by 1/4 MOA (Minute of Angle).

• Бийиктик мунарасы: Located on top of the riflescope. Rotate to adjust the vertical point of impact.
• Windage Turret: Located on the side of the riflescope. Rotate to adjust the horizontal point of impact.
• Нөлдөө: After mounting, the riflescope must be zeroed to your weapon at a specific distance. This involves firing test shots and adjusting the turrets until the point of impact matches the point of aim.

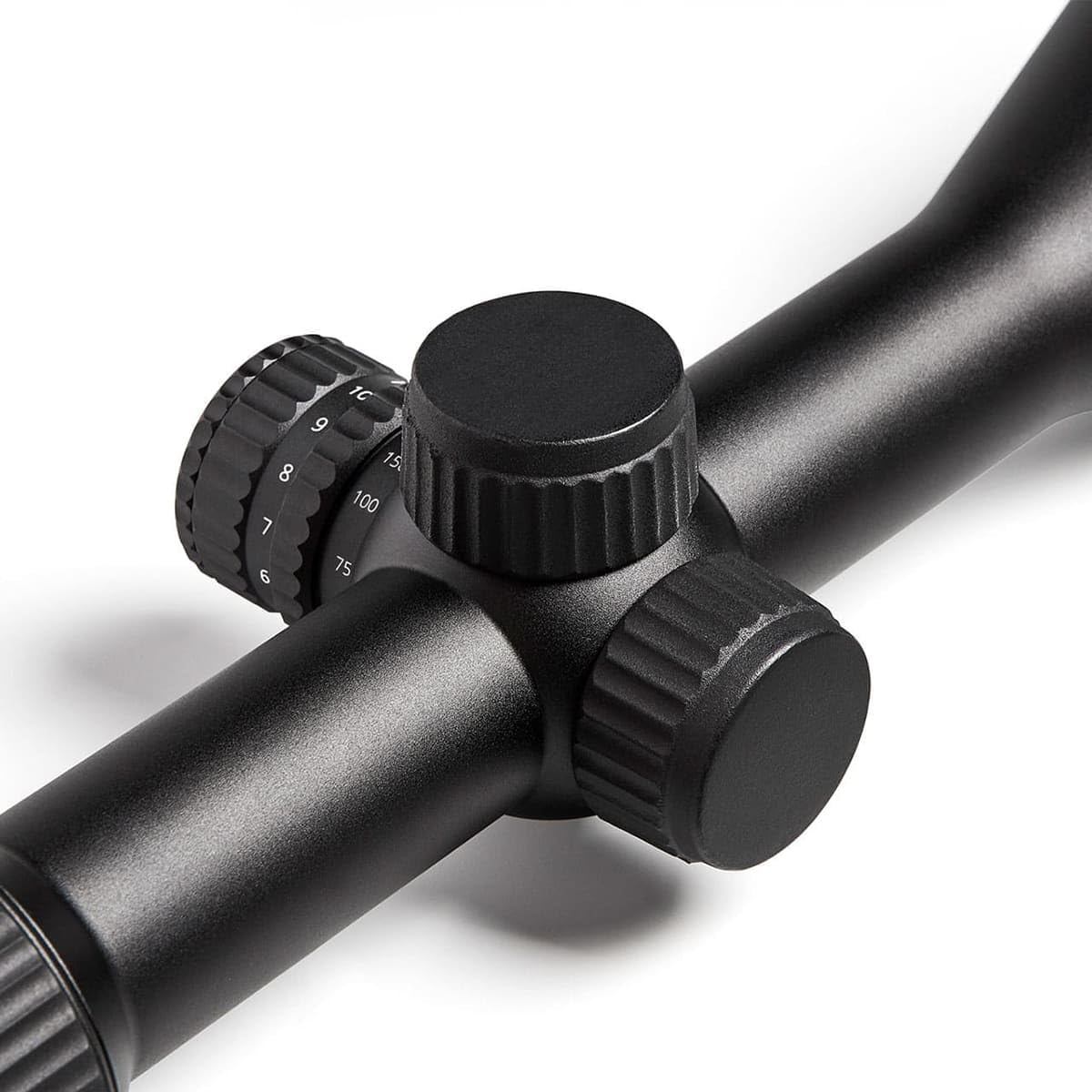

Сүрөт: Деталдаштырылган view of the parallax adjustment turret (left) with distance markings and the elevation turret (top) showing 1/4 MOA click values.

4. Параллаксты тууралоо

Parallax is the apparent shift in the reticle's position relative to the target when the eye moves. To eliminate parallax error:

1. Look through the riflescope at your target.
2. Rotate the parallax adjustment turret (typically on the left side of the scope) until the target and reticle appear to be in the same focal plane, and there is no apparent movement of the reticle relative to the target when you slightly move your head.
3. The turret is marked with various distances (e.g., 75m, 100m, 200m) to assist in setting the correct parallax for your target distance.

Техникалык тейлөө

1. Тазалоо

• Линзалар: Use a soft lens brush to remove dust. For smudges, use a clean microfiber cloth and a specialized optical cleaning solution. Avoid abrasive materials or excessive pressure.
• Дене: Мылтыктын корпусун жумшак менен сүртүңүз, гamp кездеме. Катуу химиялык заттарды же эриткичтерди колдонбоңуз.

2. Батареяны алмаштыруу

The illuminated reticle is powered by one CR2032 battery. When the illumination becomes dim or stops working, replace the battery. The battery compartment is typically located on the illumination control knob.

3. Сактоо

Store the riflescope in a cool, dry place, away from direct sunlight and extreme temperatures. Use a protective cover to prevent dust and scratches.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

For detailed warranty information, technical assistance, or service inquiries, please contact NOBLEX E-Optics directly through their official webсайтында же ыйгарым укуктуу дистрибьюторлордо. Кепилдик талаптары үчүн сатып алганыңызды тастыктаган документти сактап коюңуз.
