1. Продукт бүтүп калдыview
The TESSAN Universal Travel Adapter (Model TS-WTA08) is designed to provide versatile power solutions for international travelers. It integrates multiple plug types and charging ports into a single compact device, allowing you to power and charge your electronic devices in over 150 countries.

Figure 1: TESSAN Universal Travel Adapter (Model TS-WTA08)
Негизги өзгөчөлүктөрү:
- Жалпы шайкештик: Supports Type C (Europe), Type G (UK), Type I (Australia, China), and Type A (USA, Japan) plugs, covering over 150 countries.
- 7-бирде заряддоо: Features 2 AC outlets and 5 USB ports (3 USB-C, 2 USB-A) for simultaneous charging of multiple devices.
- Тез USB заряддоо: USB-C ports deliver up to 15W MAX per port, and USB-A ports deliver up to 12W MAX per port.
- Компакт жана жеңил: Designed for portability, measuring approximately 2.44 × 2.17 × 2.09 inches and weighing 5.53 oz.
- Коопсуздукту коргоо: Equipped with double 10A fuses to protect connected devices from power surges.
- Additional 2-Prong AC Outlet: Includes a side 2-prong AC outlet suitable for devices from Japan and the USA.
2. Setup and Plug Selection
The adapter features retractable prongs for various international plug types. To select the correct plug, use the sliders on the side of the adapter.

Figure 2: Plug Type Selection for Various Regions
How to Select a Plug Type:
- Identify the required plug type for your destination country (e.g., Type C for most of Europe, Type G for UK).
- Locate the corresponding slider on the side of the adapter.
- Push and slide the button to extend the appropriate prongs. Ensure only one set of prongs is extended at a time.
- Insert the extended prongs into the wall outlet.

Figure 3: Push and Slide Mechanism for Plug Extension
Маанилүү эскертүү: Бул адаптер чоңойткуч ЭМЕСtage converter. Ensure your devices support a wide voltage range (100V-250V) before plugging them in. Using 110V/125V-only devices in a 220V-250V region without a voltage converter can damage your device.

4-сүрөт: Тtage Compatibility Warning
3. Иштөө нускамалары
The TESSAN Universal Travel Adapter allows you to charge up to 7 devices simultaneously using its multiple outlets and USB ports.

5-сүрөт: Бир эле учурда бир нече түзмөктү кубаттоо
Кондиционер розеткаларын колдонуу:
- The front universal AC outlet accepts plugs from over 150 countries (excluding South Africa).
- The side 2-prong AC outlet is specifically designed for devices from Japan and the USA.
- Plug your device's power cord directly into the appropriate AC outlet on the adapter.
USB портторун колдонуу:
- The adapter includes 3 USB-C ports (C1, C2, C3) and 2 USB-A ports (A1, A2).
- Connect your USB charging cables to the respective USB ports.
- USB-C ports provide up to 15W MAX output per port for faster charging of compatible devices.
- USB-A ports provide up to 12W MAX output per port.

Figure 6: USB Charging Ports
Жалпы чыгаруу кубаттуулугу:
The total maximum output for all USB ports combined is 28W. When using multiple ports, the power distribution will adjust accordingly. For exampле:
- 1 Port Output: USB-A (12W MAX), USB-C (15W MAX)
- 2 Ports Output: A1+C1 (28W MAX), A1+C3 (28W MAX), etc.
- 5 Ports Output: A1+A2+C1+C2+C3 (28W MAX total)

Figure 7: 5-Port Output Power Distribution
4. Коопсуздук жана техникалык тейлөө
Your TESSAN Universal Travel Adapter is designed with safety features to protect your devices. Proper use and care will ensure its longevity.
Коопсуздук чаралары:
- No Voltage Конверсия: As stated previously, this adapter does not convert voltage. Always verify that your electronic devices are dual voltage compatible (100V-250V) before use.
- Avoid High-Power Appliances: Do not use with high-power appliances such as hair dryers, straighteners, curling irons, or electric kettles unless the appliance explicitly states wide voltagе шайкештик.
- Double Fuse коргоо: The adapter includes double 10A fuses for overcurrent protection. If a fuse blows, it can be replaced with a spare fuse (typically located within the adapter or provided separately).

Figure 8: Safety Use Instruction and Fuse Location
Тейлөө:
- Keep the adapter dry and clean. Avoid exposure to moisture or extreme temperatures.
- Адаптерди бөлүктөргө бөлүүгө же өзгөртүүгө аракет кылбаңыз.
- When not in use, retract all prongs to prevent damage and for compact storage.
5. Кыйынчылыктарды
If you encounter issues with your TESSAN Universal Travel Adapter, please refer to the following common troubleshooting steps:
- Түзмөк кубатталбай жатат:
- Ensure the adapter is securely plugged into a live wall outlet.
- Verify that the correct country-specific prongs are extended and fully engaged.
- Check if your device's charging cable is properly connected to the adapter's USB port or AC outlet.
- Confirm your device is dual voltage compatible (100V-250V).
- Inspect the adapter's fuse. If blown, replace it with a spare 10A fuse.
- Ашыкча ысып кетүү:
- Unplug all devices and the adapter from the wall.
- Reduce the number of devices being charged simultaneously, especially high-power ones.
- Ensure adequate ventilation around the adapter.
- Prongs Not Extending/Retracting:
- Ensure no other prongs are partially extended. Only one set of prongs can be extended at a time.
- Apply firm but gentle pressure to the slider mechanism. Do not force it.
If problems persist, contact TESSAN customer support for further assistance.
6. Техникалык шарттар
| Модель номери | TS-WTA08 |
| Киргизүү көлөмүtage | 100V - 250V AC, 50/60Hz |
| Max Load | 10A |
| Power Rating | 2500Вда 250Вт, 1000Вда 100Вт |
| USB-C чыгышы | 3 Ports, 15W MAX per port |
| USB-A чыгаруу | 2 Ports, 12W MAX per port |
| Жалпы USB чыгышы | 28 Вт МАКС |
| Сактагычтар | Double 10A Fuses |
| Өлчөмдөрү (L x W x Y) | 2.5 x 2.2 x 2.1 дюйм |
| Салмагы | 5.9 унция |
| Plug Formats | Type C, Type G, Type A, Type I |

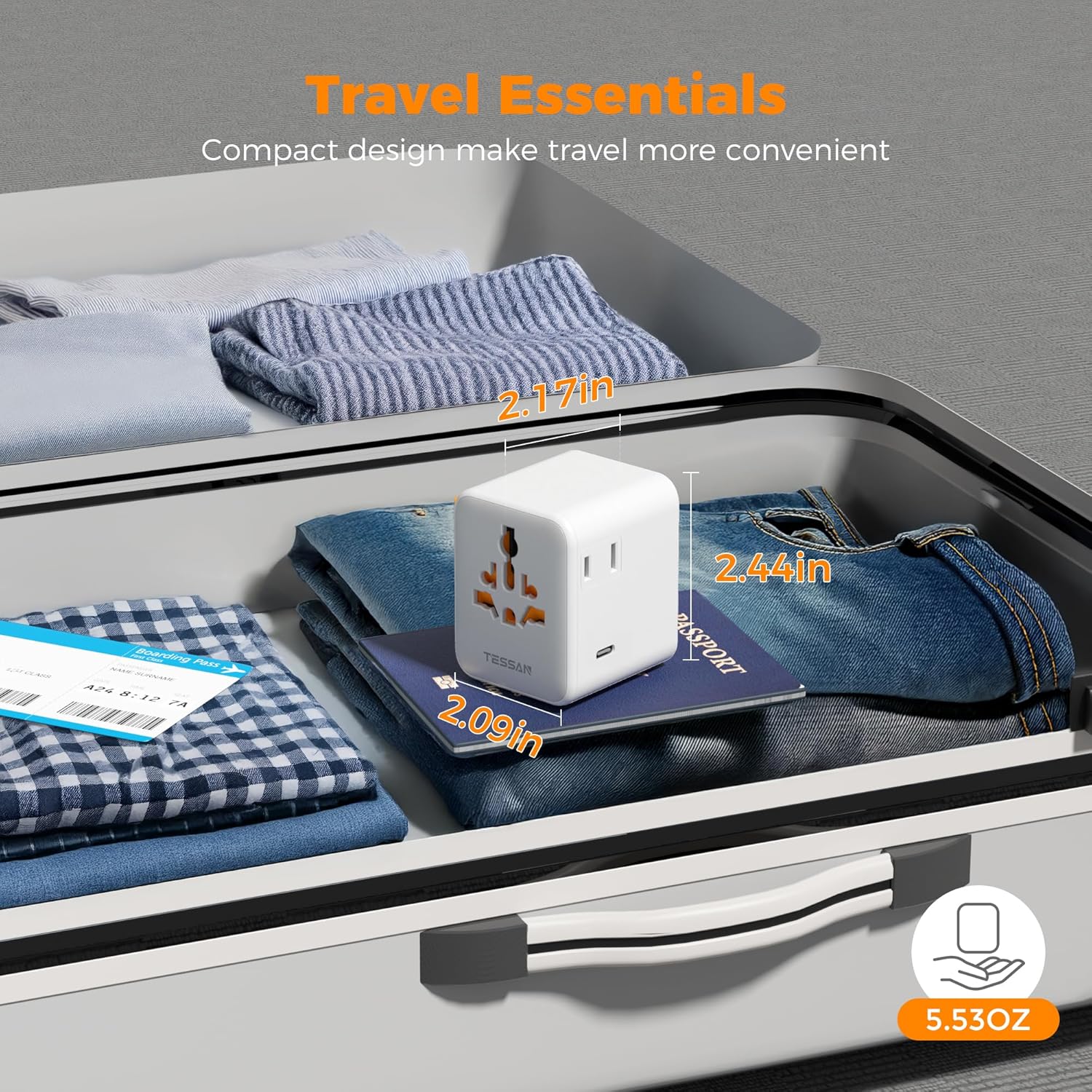

Figure 9: Compact Design for Travel
7. Расмий продукт Video
Watch this video for a visual guide on the features and usage of the TESSAN Universal Travel Adapter.
Video 1: International Power Adapter with Extra 2 Prong AC Outlet (by Tessan Direct)
8. Кепилдик жана колдоо
For warranty information, product registration, or technical support, please refer to the official TESSAN webсайтына кириңиз же алардын кардарларды тейлөө кызматына түз кайрылыңыз. Чоо-жайын, адатта, продуктунун таңгагынан же өндүрүүчүнүн расмий онлайн ресурстарынан тапса болот.
Өндүрүүчү: Dongguan Best Travel Electronics Co., Ltd
