Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Festool CT 25 HEPA US Dust Extractor. Please read this manual thoroughly before initial use and keep it for future reference.
Коопсуздук маалыматы
Жарааттарды жана буюмга зыян келтирбөө үчүн ар дайым төмөнкү коопсуздук чараларын сактаңыз:
- Электр энергиясы продуктунун этикеткасындагы спецификацияларга дал келишин текшериңиз.
- Do not operate the dust extractor in wet conditions or in the presence of flammable liquids or gases.
- Always disconnect the power cord before performing any maintenance or cleaning.
- Wear appropriate personal protective equipment (PPE) such as safety glasses and dust masks.
- Do not use the dust extractor to pick up hot ashes, sharp objects, or hazardous materials without proper filtration.
- Балдарды жана уруксаты жок кызматкерлерди операциялык аймактан алыс кармаңыз.
Продукт бүттүview
The Festool CT 25 HEPA US is a compact and robust mobile dust extractor designed for efficient dust collection in various work environments. It features a high-performance turbine, HEPA filtration, and intuitive touch controls.
Сүрөт 1: Фронт view of the Festool CT 25 HEPA US Dust Extractor, showcasing анын компакттуу конструкциясы жана башкаруу панели.
Сүрөт 2: Бурчтуу view of the Festool CT 25 HEPA US Dust Extractor with the suction hose neatly stored on top.
Жайгашуу
- Таңгактан чыгаруу жана текшерүү: Carefully remove the dust extractor and all accessories from the packaging. Inspect for any shipping damage.
- Included components: Suction hose (diameter 27/32 x 3.5 m RAS-CT), SELFCLEAN filter bag SC-FIS-CT 25, Crevice Nozzle D36, Upholstery Brush.
- Filter Bag Installation: Ensure a SELFCLEAN filter bag is correctly installed inside the container. Refer to the "Maintenance" section for detailed filter replacement instructions.
- Аксессуар сактагычы: The crevice nozzle and upholstery nozzle can be stored directly within the mobile dust extractor for convenience.
Сүрөт 3: A hand placing an accessory into the internal storage compartment of the Festool CT 25.
- Шланг туташтыруу: Connect the suction hose to the dust extractor's inlet port. The suction hose can be clamped to the mobile dust extractor using the elastic band for neat storage and transport.
- Кубат туташуу: Электр шнурын ылайыктуу электр розеткасына сайыңыз.
Иштөө нускамалары
- Күйгүзүү/өчүрүү: Use the intuitive touch control panel to power the unit on or off. The touch controls are designed for simple operation, even when wearing gloves.
Сүрөт 4: Close-up of the Festool CT 25 control panel with touch buttons for power and suction adjustment.
- Сорууну тууралоо: The dust extractor features 5 power levels for adjustable suction. Use the touch controls to select the appropriate suction power for your application.
- Курал туташуу: For optimal dust extraction, connect the suction hose to your power tool's dust port. The antistatic function of the hose helps prevent static buildup during operation.
- Using the Flat Storage Area: The flat top surface of the dust extractor can be used as a convenient storage area for working materials, tools, or as a temporary seat.

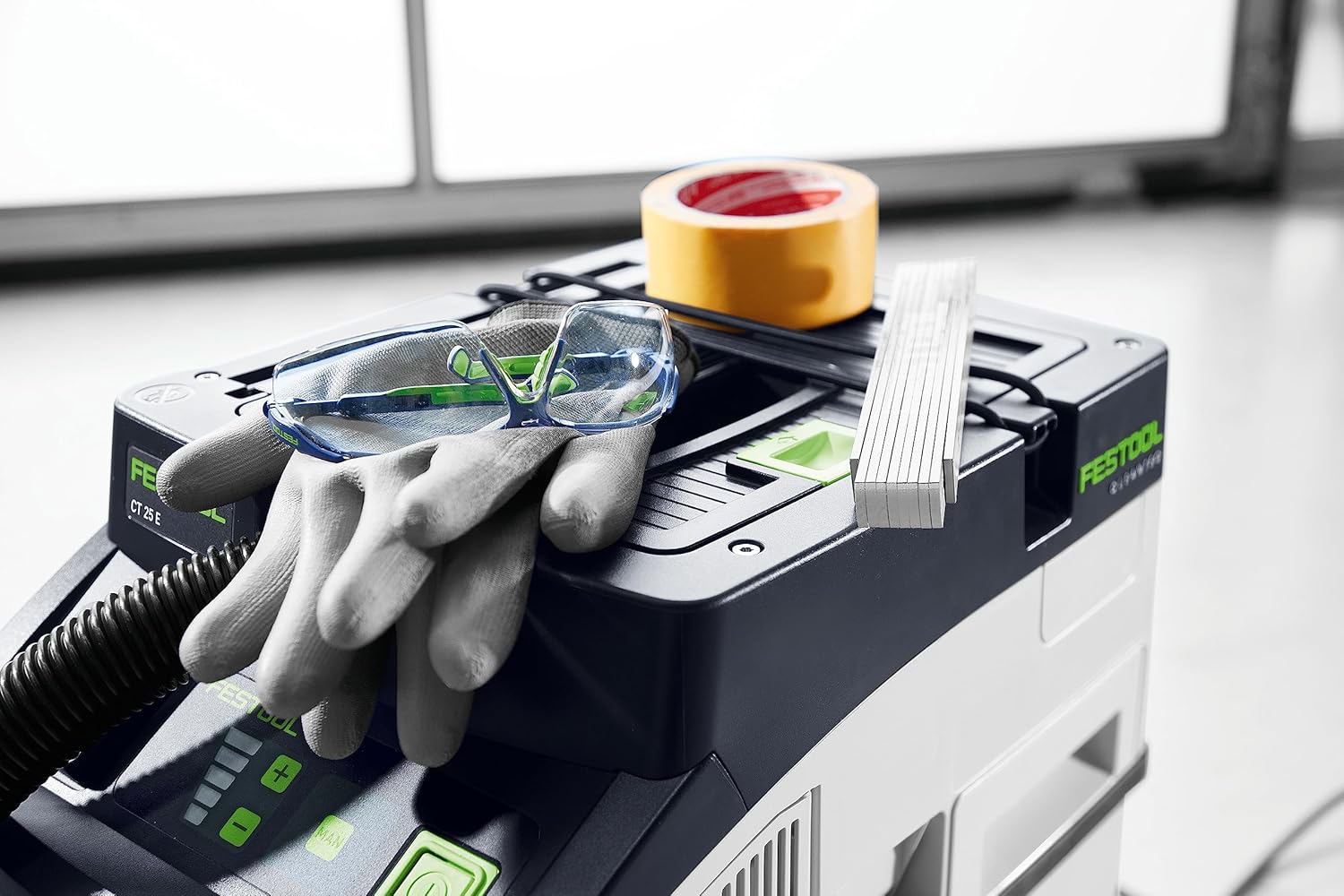

Сүрөт 5: The flat storage area of the Festool CT 25 being used to hold safety glasses, gloves, and measuring tape.
- Мобилдүүлүк: The compact design and chassis with steel axles allow for simple transport. An optional telescopic handle can be used for even more convenient movement.
Сүрөт 6: A person demonstrating the easy transport of the Festool CT 25 using an optional telescopic handle.
Техникалык тейлөө
Regular maintenance ensures the longevity and optimal performance of your Festool CT 25 HEPA US Dust Extractor.
- Фильтрди алмаштыруу: The HEPA filter can be replaced quickly, easily, and without tools from the outside of the unit.
Сүрөт 7: A hand demonstrating the removal of the HEPA filter from the side of the Festool CT 25 for replacement.
- Always use genuine Festool SELFCLEAN filter bags and HEPA filters for best performance and to maintain warranty.
- Replace the filter bag when full or when suction power noticeably decreases.
- Агрегатты тазалоо: Wipe down the exterior of the dust extractor with a damp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
- Шланг текшерүү: Regularly inspect the suction hose for any damage, kinks, or blockages. Clear any obstructions to maintain optimal airflow.
Проблемаларды чечүү
This section addresses common issues you might encounter with your dust extractor.
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күч жок |
|
|
| Азайтылган соруу күчү |
|
|
| Адаттан тышкаркы ызы -чуу |
|
|
If the problem persists after attempting these solutions, please contact Festool customer support.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Бренд | Festool |
| Модель аты | CT 25 HEPA US |
| Бөлүмдүн номери | 577533 |
| Өзгөчө өзгөчөлүк | Compact, HEPA |
| Чыпка түрү | HEPA чыпкасы |
| Камтылган компоненттер | Suction hose diameter 27/32 x 3.5 m RAS-CT; SELFCLEAN filter bag SC-FIS-CT 25; Crevice Nozzle, D36; Upholstery Brush |
| Зымсызбы? | Жок |
| Максималдуу соргуч | 130 Feet (approx.) |
| Шлангдын узундугу | 3.5 метр |
| Сунушталган Колдонуулар | General cleaning, dust extraction from power tools (e.g., for carpet, furniture, hard floor, rug) |
| Форма фактору | Канистр |
| Мотор кубаты | 0.46 аттын күчү |
| Башкаруу ыкмасы | тийүү |
| Ылдамдыктын/кубаттын деңгээлинин саны | 5 |
| Portable | Ооба |
| Ички/тышкы колдонуу | Indoor |
| Аяктоо түрү | Matte Black |
| Элемент Салмагы | 26.5 фунт |
| Продукциянын өлчөмдөрү | 19.29 x 12.99 x 29.13 дюйм |
| Дата биринчи жеткиликтүү | 28-июль, 2023-жыл |
Кепилдик жана колдоо
Festool products are known for their quality and durability. For specific warranty details and to register your product, please visit the official Festool webсайтка же кардарларды тейлөөгө кайрылыңыз.
For technical assistance, spare parts, or service inquiries, please refer to the contact information provided with your product or visit the Festool бренд дүкөнү.
Extended protection plans may be available for purchase separately. Please refer to the documentation provided by the plan provider for details.
