1. Киришүү
This manual provides essential instructions for the safe and efficient operation, setup, maintenance, and troubleshooting of your Total P20S Lithium-ion Battery Charger, model TFCLI20411. Please read this manual thoroughly before using the charger to ensure proper function and to prevent injury or damage.
The Total P20S Lithium-ion Battery Charger is designed to quickly and reliably charge Total P20S series Lithium-ion batteries, ensuring your tools are ready for use.
2. Коопсуздук нускамалары
ЭСКЕРТҮҮ: Бардык коопсуздук эскертүүлөрүн жана нускамаларын окуңуз. Эскертүүлөрдү жана нускамаларды аткарбоо электр шокуна, өрткө жана/же олуттуу жаракатка алып келиши мүмкүн.
- Электр коопсуздугу: Ensure the charger is connected to a power supply that matches the specifications indicated on the charger label. Do not use the charger in wet conditions or expose it to rain. Always disconnect the charger from the power supply before cleaning or maintenance.
- Батарея шайкештиги: This charger is designed exclusively for Total P20S series Lithium-ion batteries. Do not attempt to charge other types of batteries, as this may lead to fire, injury, or damage.
- Вентиляция: Operate the charger in a well-ventilated area. Do not cover the charger's ventilation slots during operation, as this can lead to overheating.
- Зыянды текшерүү: Regularly inspect the charger, cable, and plug for any signs of damage. Do not use a damaged charger. Contact Total customer support for repairs.
- Children and Unauthorized Use: Бул шайман физикалык, сенсордук же акыл-эс жөндөмү начар же тажрыйбасы жана билими жок адамдар (анын ичинде балдар) тарабынан колдонууга арналбайт, эгерде алардын коопсуздугуна жооптуу адам тарабынан шайманды колдонуу боюнча көрсөтмө болбосо . Балдар шайман менен ойнобошу үчүн аларды көзөмөлгө алуу керек.
- Кыска туташуулардан качыңыз: Do not short-circuit the battery terminals or the charger terminals.
- Температура: Do not charge batteries in extremely hot or cold environments. The optimal charging temperature range is typically between 10°C and 40°C (50°F and 104°F).
3. Продукт бүтүп калдыview
Familiarize yourself with the components of your Total P20S Lithium-ion Battery Charger.
3.1 Charger Unit
Figure 1: Total P20S Lithium-ion Battery Charger TFCLI20411 in its retail packaging, showing the charger unit and product branding.
3.2 Индикатор жарыктары

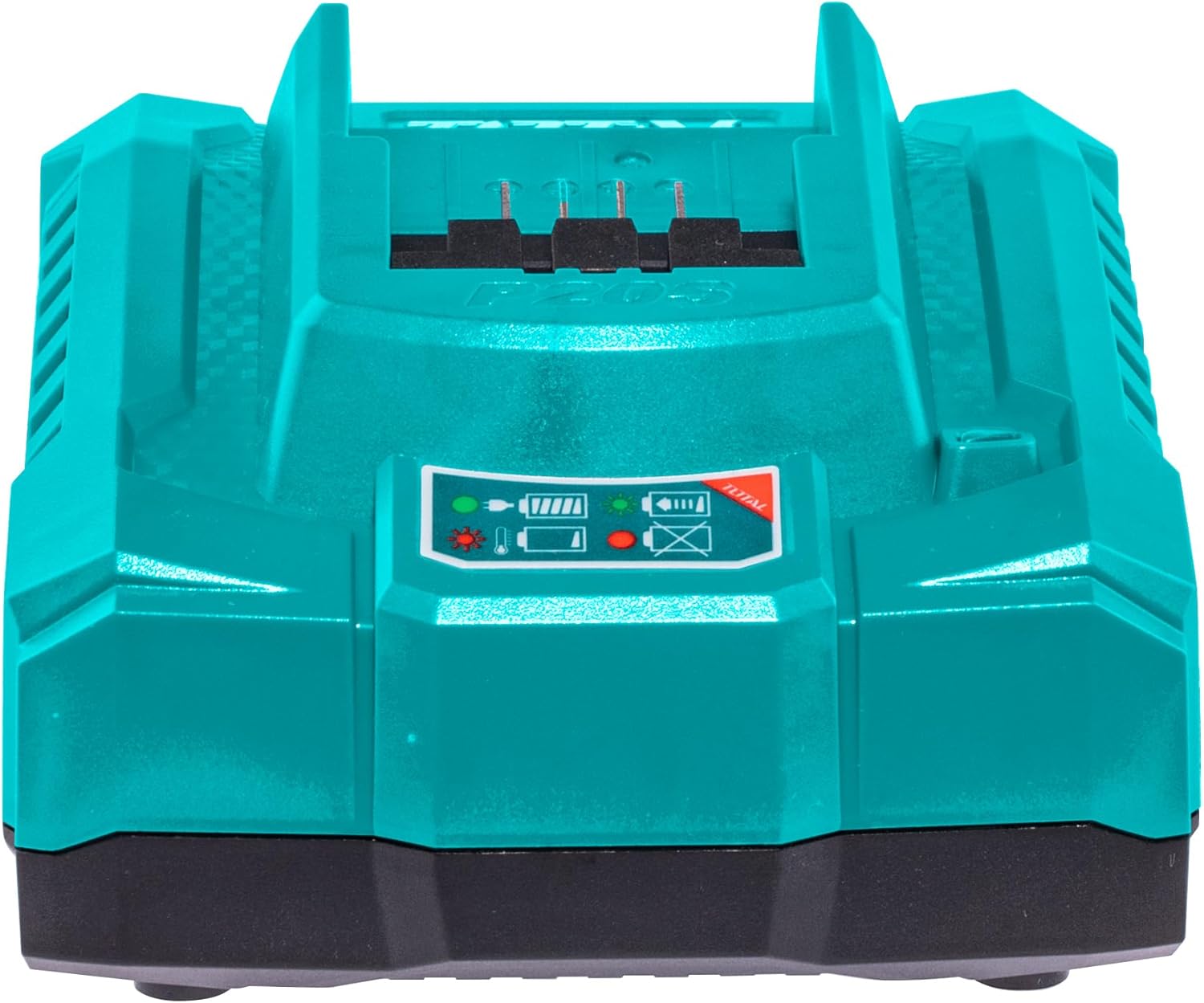

Сүрөт 2: Алдыңкы view of the Total P20S Lithium-ion Battery Charger, highlighting the battery slot and the status indicator lights.
- Red Light (Solid): Indicates the charger is powered on and ready to charge.
- Green Light (Flashing): Батарея учурда заряддалып жатканын көрсөтөт.
- Жашыл жарык (катуу): Батарейканын толук заряддалгандыгын көрсөтөт.
- Red Light (Flashing): Indicates a charging error (e.g., faulty battery, incorrect temperature).
3.3 желдетүү уячалары

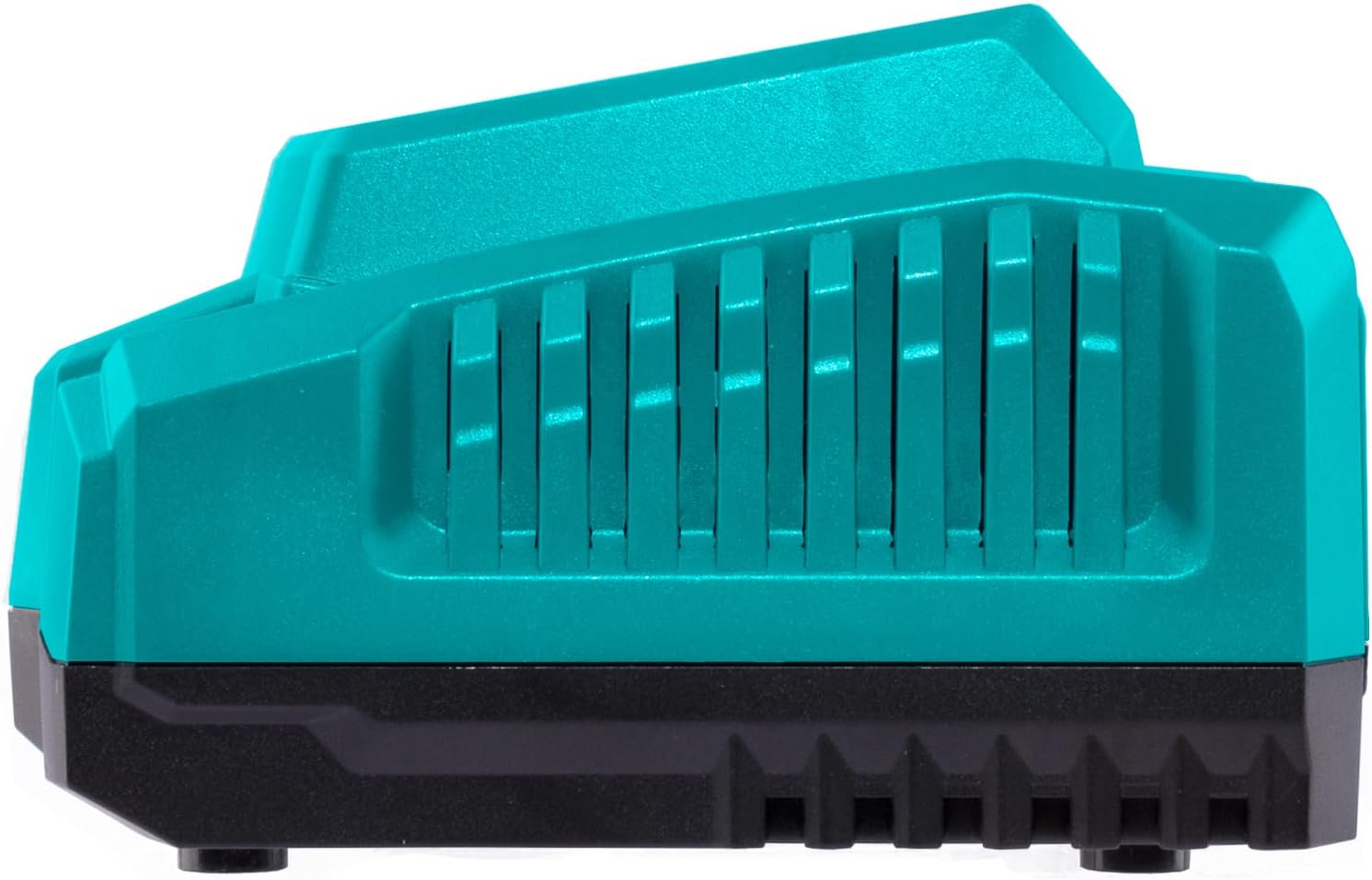

3-сүрөт: Каптал view of the Total P20S Lithium-ion Battery Charger, illustrating the ventilation slots crucial for heat dissipation during charging.
4. Орнотуу
- Таңылганын ачуу: Carefully remove the charger from its packaging. Retain packaging for future storage or transport.
- Жайгашкан жери: Place the charger on a stable, flat, and non-combustible surface. Ensure there is adequate ventilation around the charger. Avoid placing it on carpet or other materials that could block airflow.
- Кубат туташуу: Plug the charger's power cord into a suitable 240V AC electrical outlet. The red indicator light on the charger should illuminate, indicating it is powered on and ready.
5. Иштөө нускамалары
5.1 Батареяны заряддоо
- Ensure the charger is plugged into a power outlet and the red indicator light is solid.
- Align the Total P20S Lithium-ion battery with the charging slot on the charger.
- Slide the battery firmly into the charging slot until it clicks into place.
- The green indicator light will begin flashing, indicating that the battery is charging.
- Once the battery is fully charged, the green indicator light will turn solid. The typical charging time for a compatible battery is approximately 0.5 hours.
- To remove the battery, press the release button (if present on the battery) and slide the battery out of the charger.
5.2 Индикатордук жарыктарды түшүнүү
- Катуу кызыл: Charger is connected to power, no battery inserted or ready for charging.
- Жаркылдаган жашыл: Battery is actively charging.
- Катуу жашыл: Батарея толук заряддалган.
- Жаркылдаган кызыл: Charging error. This could indicate a faulty battery, an overheated battery, or an issue with the charger itself. Disconnect the battery and charger, allow them to cool, and try again. If the error persists, consult the troubleshooting section.
6. Техникалык тейлөө
- Тазалоо: Disconnect the charger from the power supply before cleaning. Use a soft, dry cloth to wipe the exterior of the charger. Do not use abrasive cleaners or solvents. Keep the charging terminals free of dust and debris.
- Сактагыч: When not in use, store the charger in a clean, dry place, away from direct sunlight and extreme temperatures.
- Текшерүү: Periodically check the power cord and charger housing for any signs of damage. If damage is found, discontinue use and seek professional repair.
7. Кыйынчылыктарды
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Заряддагыч күйбөй жатат (жарык жок) | No power to the outlet; faulty power cord/plug; charger malfunction. | Check power outlet with another device. Inspect power cord for damage. If problem persists, contact support. |
| Battery not charging (red light solid, no green flashing) | Battery not properly inserted; battery is not a Total P20S Lithium-ion type; battery is already fully charged. | Ensure battery is fully seated. Verify battery type. Check if battery is already charged. |
| Жаркылдаган кызыл индикатор | Faulty battery; battery too hot/cold; charger malfunction. | Remove battery, allow to cool/warm to room temperature, then reinsert. Try charging a different, known-good battery. If error persists, the battery or charger may be faulty. |
8. Техникалык шарттар
| Өзгөчөлүк | Спецификация |
|---|---|
| Модел | TFCLI20411 |
| Бренд | Бардыгы |
| Киргизүү көлөмүtage | 240 Вольт |
| Output Voltage | 20 вольт DC |
| Учурдагы рейтинг | 4 Amps |
| Батарея түрү шайкештиги | Total P20S Lithium-ion |
| Болжолдуу заряддоо убактысы | 0.5 Hours (for compatible batteries) |
| Элемент Салмагы | 209 г (0.21 килограмм) |
| Продукциянын өлчөмдөрү (L x W x Y) | 12 x 16 x 15 см |
| Түс | Бирюза |
| Электр сайгыч түрү | Type G or Type I (Region Dependent) |
9. Кепилдик жана колдоо
Total products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your purchase or visit the official Total website. For technical support, spare parts, or service inquiries, please contact your local Total dealer or authorized service center.
Кепилдик дооматтары үчүн сатып алганыңыздын далилин сактап коюңуз.
