The Ledvance Classic LED E27 Dimmable Bulb is a high-quality, energy-efficient lighting solution designed for general illumination. It provides a very warm white light (2700K) and is fully dimmable, allowing you to adjust the light intensity to suit your needs. This bulb is an ideal replacement for traditional 75W incandescent bulbs, offering significant energy savings and a long lifespan.

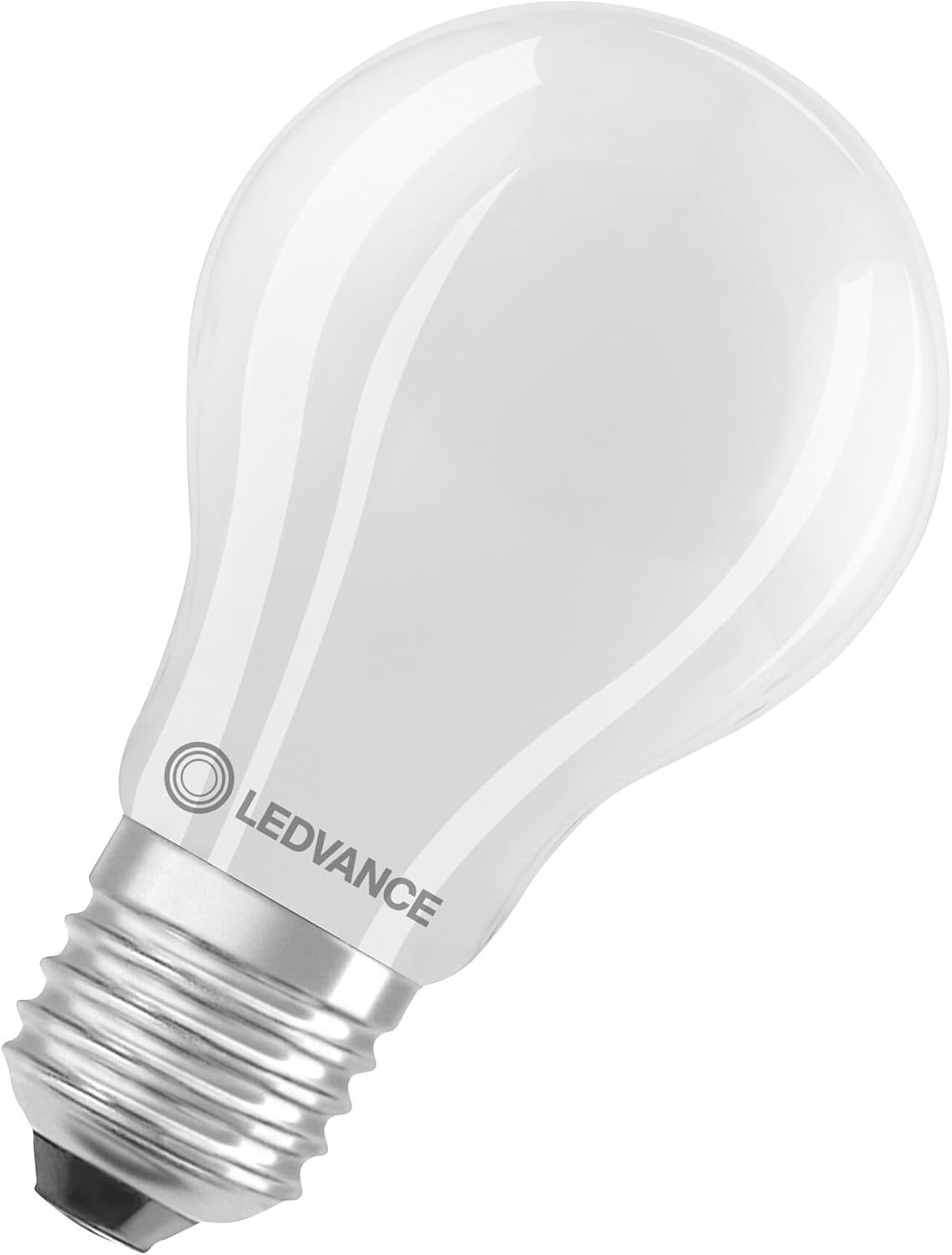

Image: Ledvance Classic LED E27 Dimmable Bulb, showing the frosted glass and E27 screw base with the Ledvance logo.
Коопсуздук маалыматы
Before installation or maintenance, ensure the power supply is switched off to prevent electric shock. Do not use this bulb in fully enclosed luminaires without adequate ventilation, as this may shorten its lifespan. This product is designed for indoor use in dry environments unless otherwise specified by the luminaire manufacturer. Do not disassemble or modify the bulb.
Орнотуу жана орнотуу
- Өчүрүү: Before replacing an existing bulb or installing a new one, ensure the power to the light fixture is turned off at the main switch or circuit breaker.
- Муздатууга уруксат берүү: If replacing an old bulb, allow it to cool down completely before handling.
- Кирүү: Carefully screw the Ledvance Classic LED E27 bulb into a compatible E27 lamp holder. Turn clockwise until it is finger-tight. Do not overtighten.
- Күйгүзүү: Once the bulb is securely installed, restore power to the light fixture.
Сүрөт: алдыңкы view of the Ledvance E27 LED bulb, highlighting its standard pear shape and E27 base.
Иштөө нускамалары
This Ledvance LED bulb is designed for simple operation. Once installed and powered, it will illuminate when the light switch is turned on.
Караңгылоо функциясы:
This bulb is fully dimmable. To utilize the dimming feature, ensure your light fixture is connected to a compatible dimmer switch. The dimming performance may vary depending on the type and quality of the dimmer used. For optimal performance, it is recommended to use LED-compatible dimmers.
- Turn the dimmer switch to adjust the light intensity from bright to dim.
- Ensure the dimmer switch is rated for LED loads to prevent flickering or damage.
Техникалык тейлөө жана кам көрүү
LED bulbs require minimal maintenance. Follow these guidelines to ensure optimal performance and longevity:
- Тазалоо: Before cleaning, always switch off the power and allow the bulb to cool. Wipe the bulb with a soft, dry, lint-free cloth. Do not use liquid or abrasive cleaners.
- Алмаштыруу: This LED bulb has a long lifespan. When replacement is eventually needed, follow the installation steps in reverse.
- Жоюу: Dispose of the bulb according to local regulations for electronic waste. Do not dispose of with general household waste.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Лампочка күйбөйт. | Арматурага электр энергиясы жок; Лампочка туура буралган эмес; Лампочка иштөө мөөнөтү бүткөн. | Электр менен камсыздоону жана өчүргүчтү текшериңиз; Лампанын бекем буралып бекитилгенин текшериңиз; Зарыл болсо, лампаны алмаштырыңыз. |
| Лампочка бүлбүлдөп же ызылдап жатат. | Шайкеш келбеген жарыкты өчүргүч; Бошоң туташуу. | Жарыктандыруу манометринин LED менен шайкештигин текшериңиз; Лампанын туташуусун текшериңиз. |
| Жарык чыгаруу өтө төмөн же өтө жогору. | Dimmer орнотуу; Орнотуу үчүн туура эмес лампа. | Adjust dimmer; Verify bulb wattage and lumen output are suitable for your needs. |
Техникалык мүнөздөмөлөр
| Өзгөчөлүк | Спецификация |
|---|---|
| Бренд | LEDVANCE |
| Модель номери | 4099854060977 |
| Негизги түрү | E27 |
| Энергияны керектөө | 7.5 Ватт |
| Кызытма эквиваленти | 75 Ватт |
| Жарык агымы | 1055 Lumens |
| Түс температурасы | 2700K (Very Warm White) |
| Түстөрдү көрсөтүү индекси (CRI) | 89 |
| Dimmable | Ооба |
| Тtage | 220 вольт |
| Орточо жашоо | 15,000 саат |
| Продукциянын өлчөмдөрү (L x W x Y) | 10.5 x 10.5 x 10.5 см |
| Элемент Салмагы | 31 грамм |
Image: Dimensional drawing of the Ledvance E27 LED bulb, showing a length of 105mm and a diameter of 60mm.
Image: EU Energy Label for the Ledvance LED bulb, indicating an energy efficiency class of G and a consumption of 5 kWh/1000h. For more details, refer to the EPREL маалымат базасы.
Кепилдик жана колдоо
Ledvance products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty statement provided with your purchase or visit the official Ledvance website. In case of issues or questions not covered in this manual, please contact Ledvance customer support through their official channels.
Официалдуу Webсайт: www.ledvance.com
