Introduction
This manual provides essential information for setting up, operating, and maintaining your PELADN HA-2 Mini PC. Please read it thoroughly before using the device to ensure optimal performance and longevity.
The PELADN HA-2 is a compact desktop computer featuring an AMD Ryzen 7 5800U processor, 16GB DDR4 RAM, and a 512GB NVME SSD, designed for efficient computing and multimedia tasks.
Пакеттин мазмуну
Пакетте бардык буюмдар бар экенин текшериңиз:
- PELADN HA-2 Mini PC
- кубат адаптери DC 12V
- HDMI 2.0 кабели
- VESA тоосу
- Колдонуучунун Колдонмосу (бул документ)
Image: Contents of the PELADN HA-2 Mini PC package, including the mini PC unit, power adapter, HDMI cable, and VESA mount.
Продукт бүттүview
Компонент диаграммасы
Сүрөт: жарылды view of the PELADN HA-2 Mini PC, illustrating key internal components such as the AMD Ryzen 7 5800U processor, 512GB M.2 NVME SSD, and 16GB DDR4 3200MHz RAM.
Port Layout
Сүрөт: деталдуу view of the front and rear ports on the PELADN HA-2 Mini PC. Front ports include Headphone jack, 2x USB 3.0, and Type-C. Rear ports include Power Supply (19.0V), LAN 2.5G, LAN 1G, HDMI, DisplayPort (DP), and 2x USB 2.0.
Орнотуу нускамалары
- Перифериялык түзүлүштөрдү туташтыруу: Connect your keyboard, mouse, and monitor(s) to the appropriate USB, HDMI, or DisplayPort connections. The device supports triple display output.
- Кубат туташуу: Connect the DC 12V power adapter to the power input port on the rear of the Mini PC, then plug the adapter into a power outlet.
- Тармак туташуусу: For wired internet, connect an Ethernet cable to either the LAN 2.5G or LAN 1G port. For wireless internet, the device supports WiFi 5.
- Күйгүзүү: Mini PCтин алдыңкы бетинде жайгашкан кубат баскычын басыңыз.
- Баштапкы орнотуу: Follow the on-screen instructions to complete the operating system setup.
VESA монтаждоо
The included VESA mount allows you to attach the Mini PC to the back of a compatible monitor, saving desk space.
- Fix the VESA bracket to the Mini PC using screws.
- Fix the bracket to the back of your display using screws.

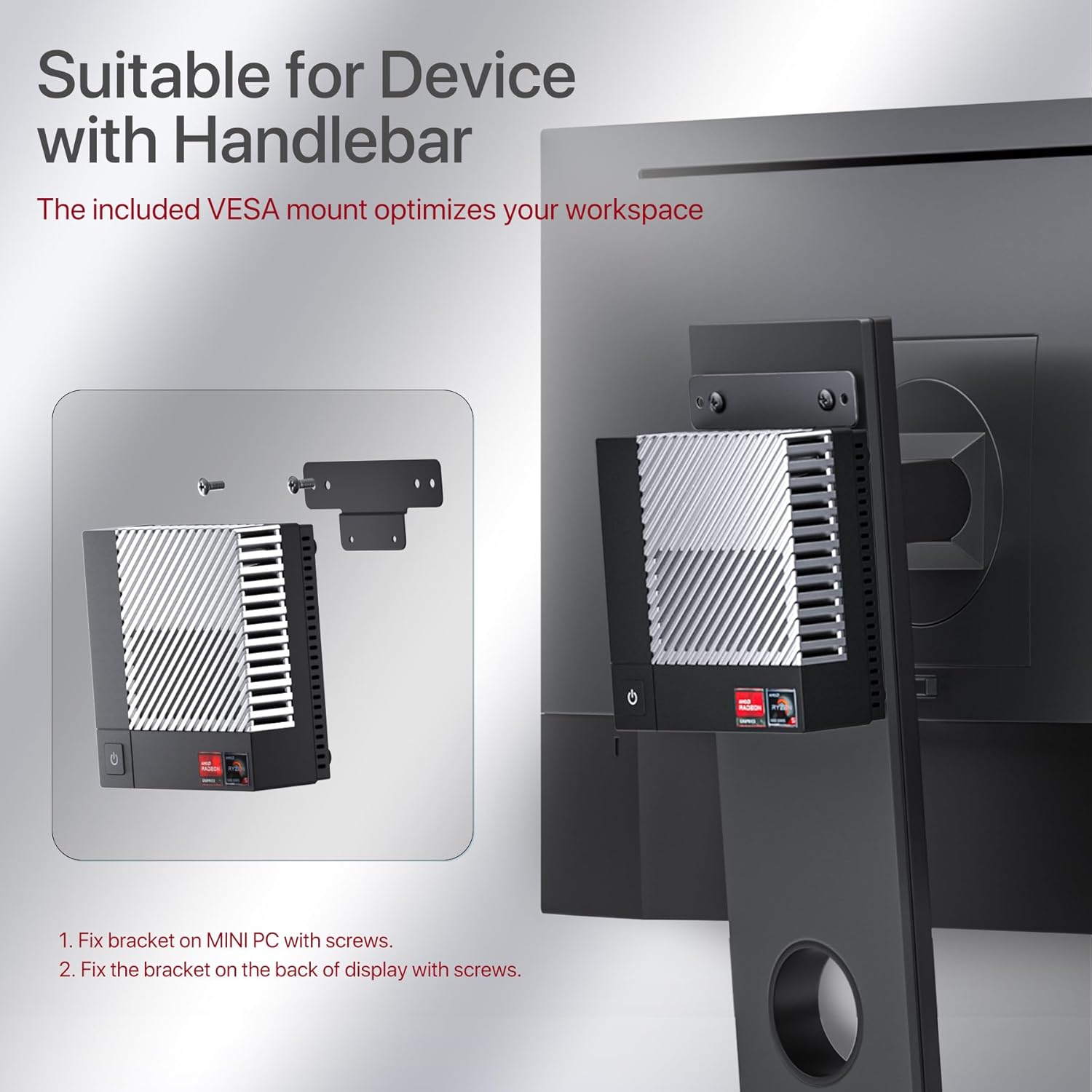

Image: Step-by-step diagram illustrating the installation of the PELADN HA-2 Mini PC using the VESA mount on the back of a monitor.
Иштөө нускамалары
Күйгүзүү/өчүрүү
- Күйгүзүү үчүн: Кубат баскычын бир жолу басыңыз.
- Жабуу: Use the operating system's shutdown procedure. Alternatively, press and hold the power button for 5 seconds to force a shutdown (not recommended for regular use).
Дисплейлерге туташуу
The PELADN HA-2 supports up to three 4K displays simultaneously via HDMI, DisplayPort, and Type-C ports.
Image: A PELADN HA-2 Mini PC connected to three 4K monitors, demonstrating its triple display output capability for enhanced productivity or entertainment.
Зымсыз байланыш
- Wi-Fi: The Mini PC features Wi-Fi 5 (802.11ac) for wireless network connections. Access Wi-Fi settings through your operating system.
- Bluetooth: Bluetooth 4.2 is integrated for connecting wireless peripherals such as keyboards, mice, and headphones.
Техникалык тейлөө жана жаңыртуу
Тазалоо
- Тазалоодон мурун аппараттын өчүрүлгөнүн жана розеткадан ажыратылганын текшериңиз.
- Сыртын сүртүү үчүн жумшак, кургак чүпүрөктү колдонуңуз.
- For dust accumulation in vents, use compressed air.
Сактагычты кеңейтүү
The Mini PC comes with a 512GB NVME 2280 SSD. Storage can be expanded up to 2TB with an additional 2.5-inch SSD (not included).
RAM Upgrade
The device ships with 16GB DDR4 RAM and has an additional slot for memory expansion. Consult the manufacturer for compatible RAM modules and installation instructions.
Проблемаларды чечүү
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Күч жок | Кубат адаптери туташкан эмес же туура эмес розетка. | Ensure power adapter is securely connected to the PC and a working power outlet. |
| Дисплей чыгаруу жок | Monitor not connected, incorrect input selected, or faulty cable. | Check HDMI/DisplayPort cable connections. Ensure monitor is on and set to the correct input source. Try a different cable or monitor. |
| Wi-Fi туташпай жатат | Incorrect password, router issue, or Wi-Fi driver problem. | Verify Wi-Fi password. Restart router. Check operating system's network settings and ensure Wi-Fi drivers are installed. |
| Системанын ысып кетиши | Blocked ventilation or heavy workload. | Ensure vents are clear of obstructions. Reduce demanding tasks. Consider cleaning internal components if comfortable. |
If issues persist, please contact PELADN customer support.
Техникалык шарттар
| Өзгөчөлүк | Деталь |
|---|---|
| Процессор | AMD Ryzen 7 5800U (8 ядро/16 жип, 4.4 ГГц чейин) |
| Графика | Radeon RX Vega 8 Graphics (1750 MHz) |
| RAM | 16 ГБ DDR4 (3200 МГц) |
| Сактагыч | 512GB NVME 2280 SSD (Expandable up to 2TB with 2.5" SSD) |
| Video Output | HDMI, DisplayPort, Type-C (Supports Triple 4K@60Hz Display) |
| Зымсыз байланыш | Wi-Fi 5 (802.11ac), Bluetooth 4.2 |
| LAN порттору | 1x 2.5G LAN, 1x 1G LAN |
| USB порттору | 2x USB 3.0, 2x USB 2.0, 1x Type-C |
| Аудио | 1x Headphone Jack |
| Операция системасы | OS 64bit (as per product description) |
| Өлчөмдөр | Болжол менен 5 x 5 x 2 дюйм |
| Салмагы | Болжол менен 2.9 фунт |
Кепилдик жана колдоо
PELADN provides customer support for its products. For warranty claims, technical assistance, or further inquiries, please refer to the contact information provided with your purchase or visit the official PELADN webсайт.
Эскертүү: Modifying the device's hardware beyond specified upgrade options may void your warranty. Always consult official support channels for guidance on upgrades or repairs.
