Roborock Dyad Air Wet Dry Vacuum Cleaner User Manual

Introduction

Welcome to the user manual for your new Roborock Dyad Air Wet Dry Vacuum Cleaner. This appliance is designed to provide efficient and thorough cleaning for your hard floors by combining vacuuming and mopping functions. With features like 17000Pa power suction, long battery life, exceptional edge cleaning, and an innovative self-cleaning and drying system, the Dyad Air simplifies your cleaning routine. Please read this manual carefully before use to ensure proper operation, maintenance, and to maximize the lifespan of your device.

Продукт бүттүview

The Roborock Dyad Air Wet Dry Vacuum Cleaner, shown with its charging dock and a smartphone displaying the companion app.

Illustration of the Dyad Air simultaneously vacuuming and mopping a floor, demonstrating its 17000 Pa suction power on wet and dry messes.

Негизги өзгөчөлүктөрү:

• Ultimate Mess Master: Designed to tackle both wet and dry messes, delivering spotless floors.
• Exceptional Edge Cleaning: Cleans hard-to-reach areas and along room edges, ensuring a thorough finish.
• Adaptive Cleaning with DirTect Smart Sensor: Intelligently detects dirt levels and adjusts cleaning patterns for optimal results.
• Innovative Self-Cleaning & Drying System: Automatically cleans and hot-air dries the brush to prevent odors.
• Extreme Suction Power: Features 17,000 Pa suction for effective removal of dirt and debris.
• Easy-to-Use App Control: Customize cleaning schedules, set preferences, and monitor progress via smartphone (2.4G WiFi only).
• Батареянын узак иштөө мөөнөтү: Up to 50 minutes runtime on a single charge.
• Чоң сыйымдуулуктагы танктар: 900 ml clean water tank for extended cleaning sessions.

Орнотуу жана чогултуу

Пакеттен чыгаруу:

Carefully remove all components from the packaging. Ensure all parts listed in the packing list are present and undamaged. Keep the packaging for future storage or transport.

Компоненттин идентификациясы:

• Main Unit (with handle and cleaning head)
• Заряддоо док
• Roller Set (pre-installed or separate)
• Washable Filter (pre-installed or separate)
• Таза суу резервуары
• Кир суу багы
• Кубаттуу адаптер
• Тазалоочу щетка

Алгачкы Ассамблея:

1. Тутканы тиркөө: Туткасын негизги блокко бекем орнотулганга чейин киргизиңиз.
2. Суу резервуарларын орнотуу: Таза суу багы жана кир суу багы тиешелүү бөлүмдөрүнө туура орнотулганын текшериңиз.
3. Place on Charging Dock: Position the charging dock on a flat surface near a power outlet. Place the Dyad Air onto the charging dock.
4. Туташуу кубаты: Plug the power adapter into the charging dock and then into a wall outlet. The device will begin charging.

Биринчи колдонуу даярдоо:

• Толук заряддоо: For optimal performance, fully charge the device before its first use. The display will indicate charging status.
• Таза суу резервуарын толтуруу: Remove the clean water tank, open the cap, and fill it with clean tap water. You may add a small amount of Roborock-approved cleaning solution if desired. Do not overfill. Securely close the cap and reinsert the tank.

A user filling the clean water tank of the Roborock Dyad Air, demonstrating the ease of access and refill.

The Roborock Dyad Air on its charging dock, with a smartphone showing the app interface and voice alert bubbles for "Auto", "Empty the dirty water tank", and "Cleaning rollers".

Иштөө нускамалары

Күйгүзүү/өчүрүү:

• Күйгүзүү үчүн, туткадагы Күйгүзүү баскычын басыңыз.
• Өчүрүү үчүн, түзмөк өчмөйүнчө Кубат баскычын басып, кармап туруңуз.

Тазалоо режимдери:

The Dyad Air offers multiple cleaning modes to suit different cleaning needs:

• Эко режими: Жеңил тазалоо жана батареянын иштөө мөөнөтүн узартуу үчүн.
• Макс режими: Provides maximum suction and water flow for heavily soiled areas.
• Авто режим: Utilizes the DirTect Smart Sensor to automatically adjust cleaning power based on detected dirt levels.
• Spot режими: For concentrated cleaning of specific spills or stains.

Switch between modes using the mode selection button on the handle or via the Roborock app.

The DirTect Smart Sensor display on the Dyad Air, showing how it detects and delivers precise power for deeper cleaning, indicated by color changes from blue to red for dirt levels.

The agile cleaning head of the Dyad Air demonstrating its 80-degree horizontal swivel for easy maneuverability around furniture and obstacles.

Тазалоо процесси:

1. Таза суу куюлган бактын толтурулганын жана кир суу куюлган бактын бош экенин текшериңиз.
2. Select your desired cleaning mode.
3. Tilt the device back to engage the cleaning head and begin moving it across the floor.
4. The Dyad Air will vacuum and mop simultaneously. For best results, move the device slowly and steadily.
5. Pay attention to the DirTect Smart Sensor indicator; it will change color to show areas with higher dirt concentration, prompting you to clean them more thoroughly.
6. Utilize the exceptional edge cleaning feature by positioning the right side of the cleaning head close to walls or baseboards.

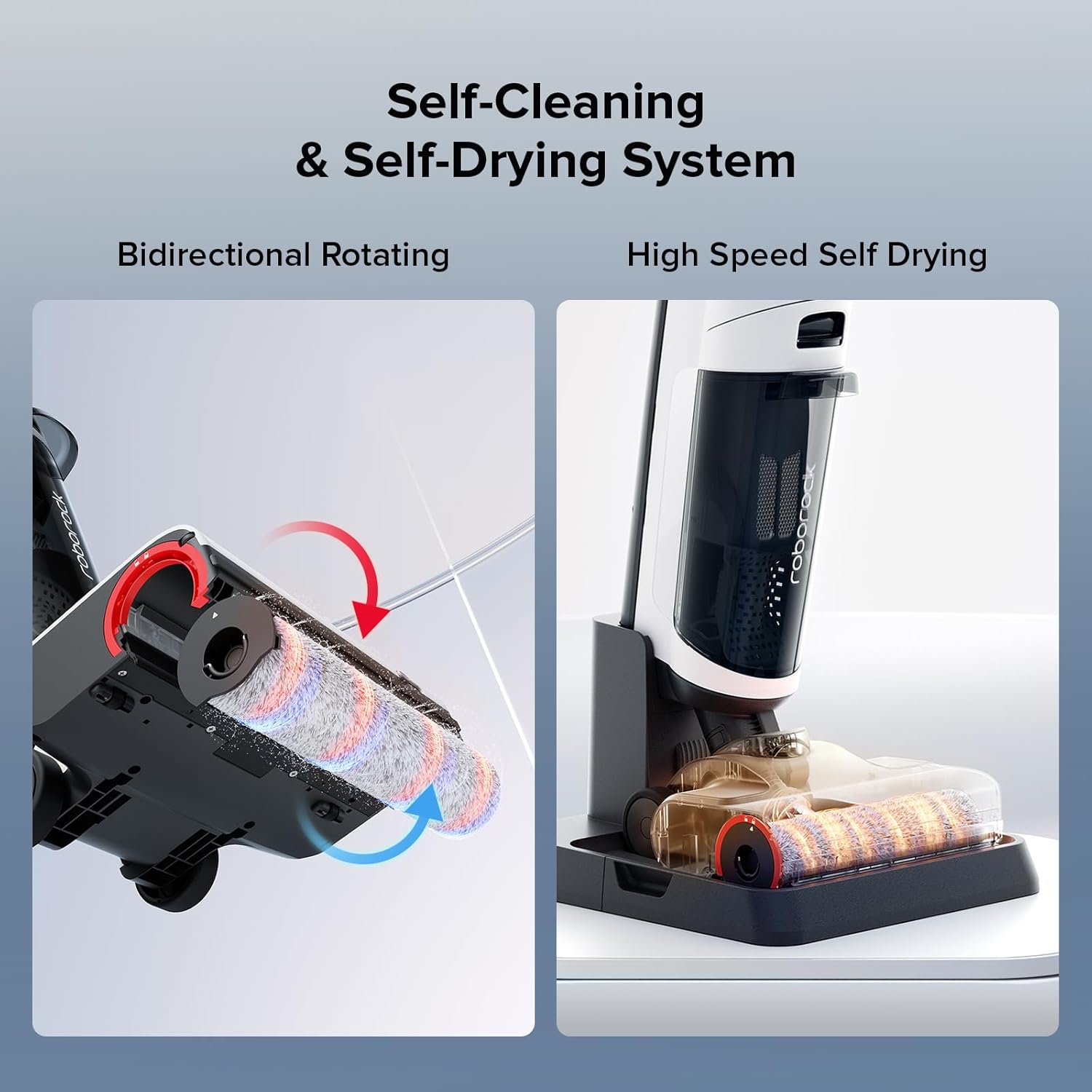

A split image showing the bidirectional rotating brush for self-cleaning and the high-speed self-drying process of the Roborock Dyad Air's roller.

The Dyad Air demonstrating its exceptional edge cleaning capability, reaching within 3mm of walls and baseboards.

Техникалык тейлөө

Regular maintenance ensures optimal performance and extends the life of your Dyad Air.

Ар бир колдонуудан кийин:

1. Initiate Self-Cleaning: Place the device on the charging dock. Press the self-clean button (or activate via app). The device will automatically clean the roller brush and internal pathways.
2. Кир суу резервуарын бошотуу: After self-cleaning, remove the dirty water tank. Carefully empty the contents and rinse the tank thoroughly with clean water. Allow it to air dry before reinserting.
3. Таза чыпка: Remove the washable filter from the dirty water tank. Rinse it under running water until clean. Allow it to air dry completely (at least 24 hours) before reinserting. Do not use the device with a wet filter.
4. Check Roller Brush: After self-drying, inspect the roller brush for any tangled hair or debris. Use the provided cleaning brush to remove any stubborn residue.

An illustration showing the self-cleaning process of the Dyad Air's roller brush, with bi-directional alternating scrubbing removing 99% of dirt.

The self-drying system of the Dyad Air, where the roller is automatically dried by hot air to prevent odors.

Regular Maintenance (Monthly/As Needed):

• Clean Charging Dock: Wipe down the charging contacts and surrounding area with a dry cloth.
• Deep Clean Roller Compartment: If necessary, remove the roller brush and clean the compartment thoroughly with a damp кездеме.
• Check Air Ducts: Ensure air ducts are free from obstructions.

Проблемаларды чечүү

Техникалык шарттар

Кепилдик жана колдоо

Your Roborock Dyad Air Wet Dry Vacuum Cleaner comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including warranty period and coverage details.

For technical support, troubleshooting assistance, or to inquire about replacement parts, please visit the official Roborock website or contact their customer service directly. Keep your purchase receipt and product serial number handy when contacting support.

Онлайн ресурстар:

• Official Roborock Webсайт: us.roborock.com
• Roborock Store on Amazon: Roborock Amazon Store
