Торо бөлүгү № 139-2433 Шкивдин колдонуу боюнча колдонмосу

Replacement Pulley for Lawn Mowers (Replaces 125-5574 and 110-6864)

1. Продукт бүтүп калдыview

This manual provides instructions for the installation and maintenance of the Toro Part # 139-2433 Pulley. This component is designed as a direct replacement for Toro part numbers 125-5574 and 110-6864, commonly used in lawn mower deck assemblies.

The pulley plays a crucial role in the power transmission system of your lawn mower, guiding and tensioning belts to ensure proper operation of blades or other moving parts. Regular inspection and timely replacement are essential for maintaining equipment performance and safety.

Toro Part 139-2433 Pulley, front view

1-сүрөт: Фронт view of the Toro Part # 139-2433 Pulley. This image shows the overall design and metallic finish of the replacement pulley.

2. Коопсуздук маалыматы

Always prioritize safety when working with power equipment. Failure to follow these safety guidelines may result in serious injury or damage to equipment.

3. Орнотуу боюнча нускамалар

This section outlines the general steps for replacing a pulley. Specific procedures may vary depending on your lawn mower model. Always refer to your equipment's service manual for precise instructions.

  1. Чапкычты даярдаңыз: Follow all safety precautions listed in Section 2. Position the mower on a flat, stable surface.
  2. Палубага кирүү: Depending on your mower, you may need to remove the mower deck from the tractor or tilt the mower to access the underside.
  3. Курдун чыңалуусун басуу: Locate the belt tensioning mechanism and relieve tension on the belt that runs over the pulley. This may involve loosening a spring or idler arm.
  4. Эски шкивди алып салуу: Carefully remove the belt from the old pulley. Then, unbolt or unfasten the old pulley from its mounting point. Note the orientation and any washers or spacers.
  5. Жаңы шкивди орнотуу: Position the new Toro Part # 139-2433 Pulley in the same orientation as the old one. Secure it with the original fasteners, ensuring it is tightened to the manufacturer's specifications (refer to your mower's manual).
  6. Reinstall Belt: Route the belt correctly around the new pulley and other components. Ensure the belt is seated properly in all grooves.
  7. Restore Belt Tension: Re-tension the belt according to your mower's specifications. Check for proper alignment and tension.
  8. Кайра чогултуу жана сыноо: Reassemble any removed covers or components. Reconnect the spark plug wire. Start the mower and carefully test the operation in a safe area, listening for unusual noises or vibrations.
Toro Part 139-2433 Pulley, angled view

2-сүрөт: Бурчтуу view of the Toro Part # 139-2433 Pulley. This perspective highlights the V-groove design where the drive belt sits.

4. Техникалык тейлөө

Regular inspection of your pulley system can extend the life of your equipment and prevent unexpected failures.

5. Кыйынчылыктарды

If you experience issues after pulley replacement or during normal operation, consider the following:

6. Техникалык шарттар

Бөлүмдүн номери:139-2433
Бөлүк номерлерин алмаштырат:125-5574, 110-6864
Өндүрүүчү:Торо
Approximate Diameter:5 1/2 дюйм (13.97 см)
Approximate Shaft Diameter:3/4 дюйм (1.91 см)
Буюмдун болжолдуу Салмагы:51 фунт (23.13 кг) (Note: This weight is as provided in product data and may include shipping packaging or be an error for a single pulley.)
Toro Part 139-2433 Pulley with dimensions

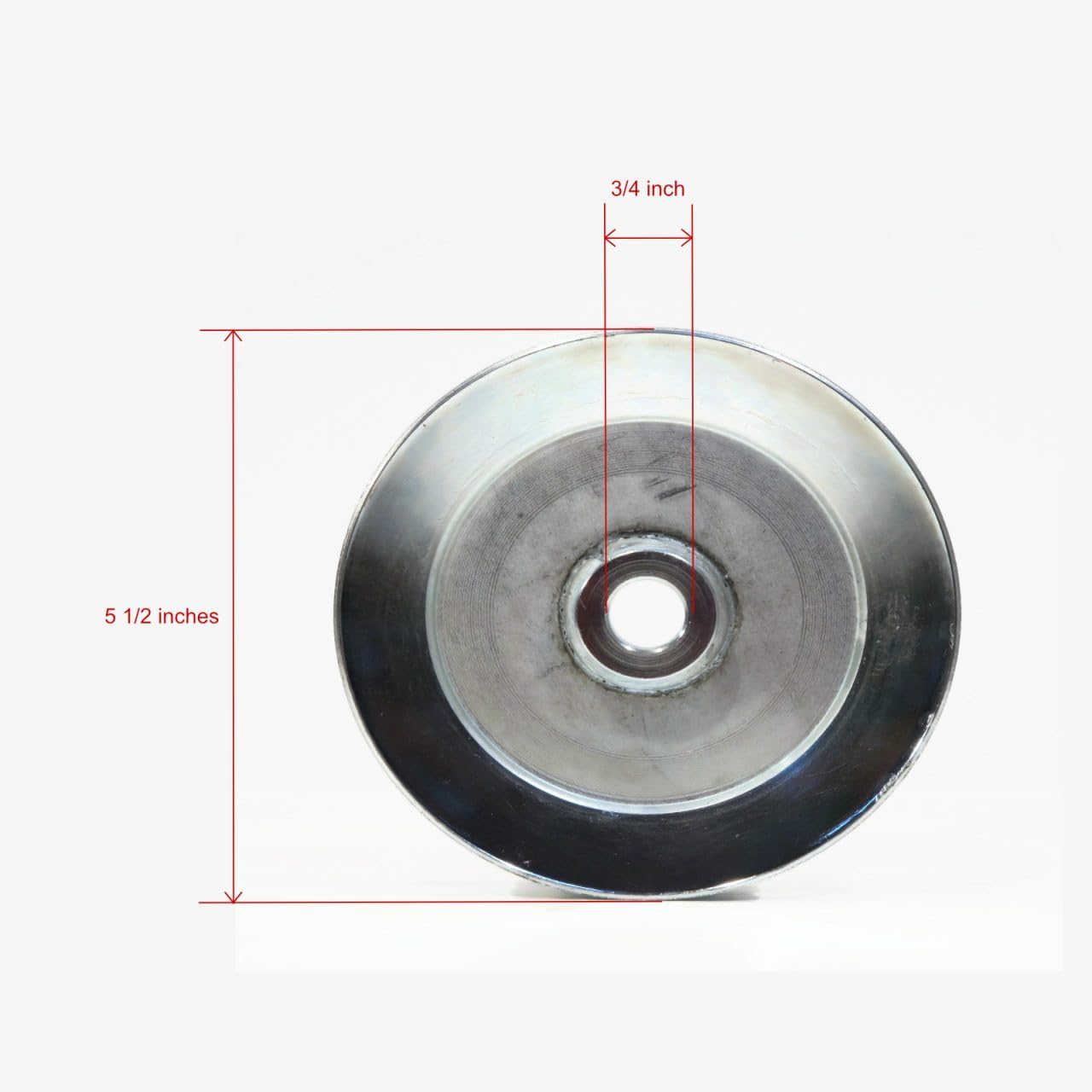

3-сүрөт: Toro Part # 139-2433 Pulley with key dimensions indicated. The image shows the 5 1/2 inch diameter and 3/4 inch shaft diameter.

7. Кепилдик жана колдоо

For specific warranty information regarding the Toro Part # 139-2433 Pulley, please refer to the original purchase documentation or contact the seller directly. Warranty terms typically cover manufacturing defects.

For technical support or further assistance, please contact Toro customer service or visit the official Toro website. When contacting support, have your product model number and the pulley part number (139-2433) available.

You can find more information about Toro products and support at the Amazon'догу Toro дүкөнү.
