1. Киришүү
The Dyson HEPA Big+Quiet Formaldehyde BP06 is an advanced air purifier designed to effectively clean the air in large spaces. This manual provides essential information for the setup, operation, and maintenance of your device, ensuring optimal performance and longevity. This product is intended for commercial use.
It is Dyson’s quietest, most powerful air purifier, engineered to evenly purify large spaces. Cone aerodynamics create powerful jets of air to project purified air around the room. The purifier is acoustically engineered to operate at lower noise levels, even at its highest power setting (just 55.6dBA).
Image: The Dyson HEPA Big+Quiet Formaldehyde BP06 air purifier.
Image: The air purifier in an office environment, demonstrating its reach in large spaces.
Негизги өзгөчөлүктөр төмөнкүлөрдү камтыйт:
- Large format purifier with HEPA H13 grade filtration.
- Powerful and quiet operation, purifying the whole room evenly.
- Destroys formaldehyde permanently.
- HEPA H13 grade filter is 3.8 times larger than previous generations and lasts up to 5 years.
- Two airflow speeds for adjustable purification.
- Senses and reports CO₂ levels in real-time.
- Single button operation for simplicity.
2. Кутуда эмне бар
Кутудан чыгаргандан кийин, бардык компоненттер бар экенин текшериңиз:
- Dyson HEPA Big+Quiet Formaldehyde BP06 Air Purifier
- Активдештирилген көмүр чыпкасы
- HEPA чыпкасы

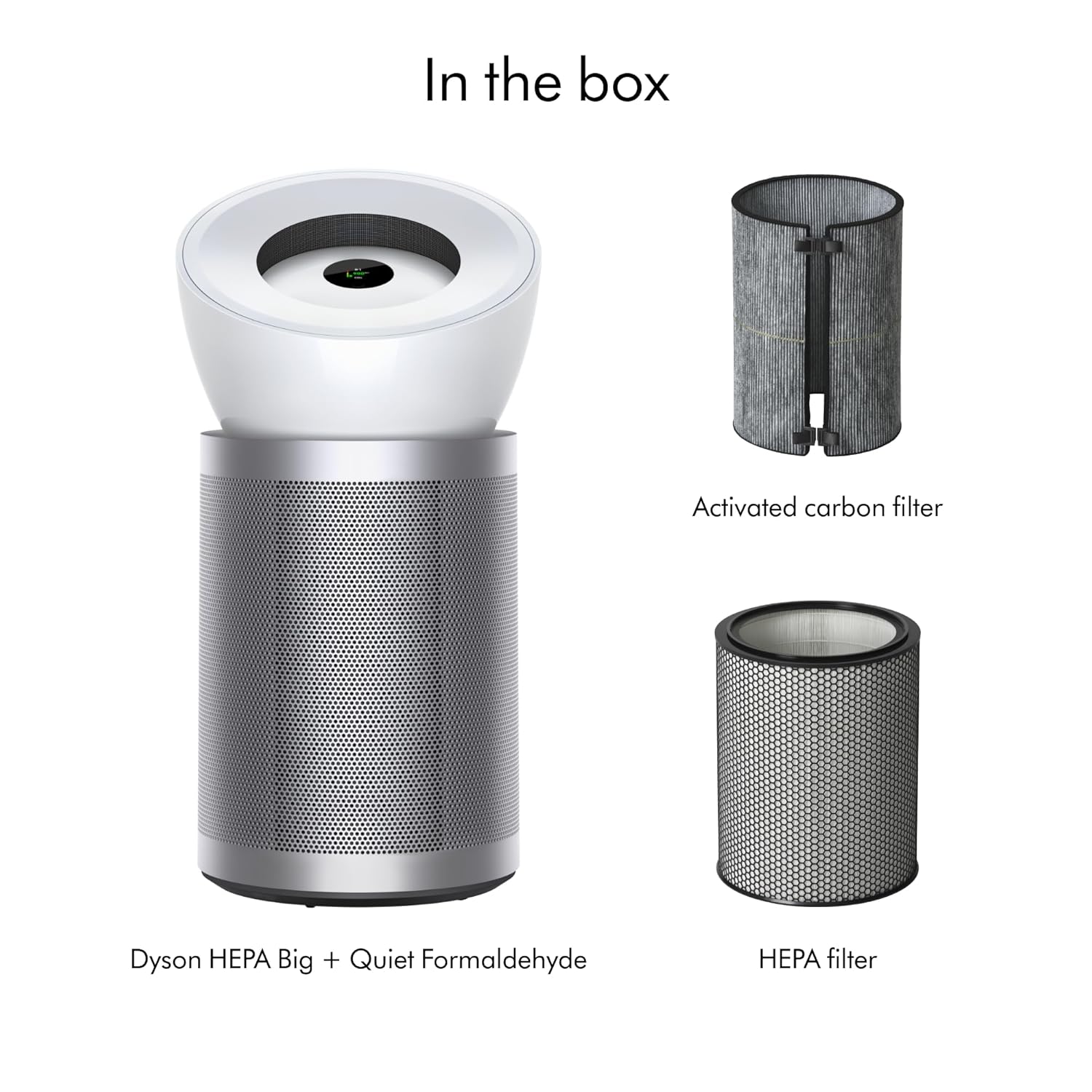

Image: The Dyson HEPA Big+Quiet Formaldehyde BP06 air purifier, along with its activated carbon filter and HEPA filter, as they appear when unboxed.
3. Орнотуу нускамалары
- Аппаратты таңгактан чыгаруу: Аба тазалагычты жана анын бардык компоненттерин таңгактан кылдаттык менен алып салыңыз.
- Чыпкаларды орнотуу:
- Remove the outer cover of the purifier.
- Insert the HEPA filter, followed by the activated carbon filter, ensuring they are seated correctly.
- Replace the outer cover, ensuring it clicks into place.

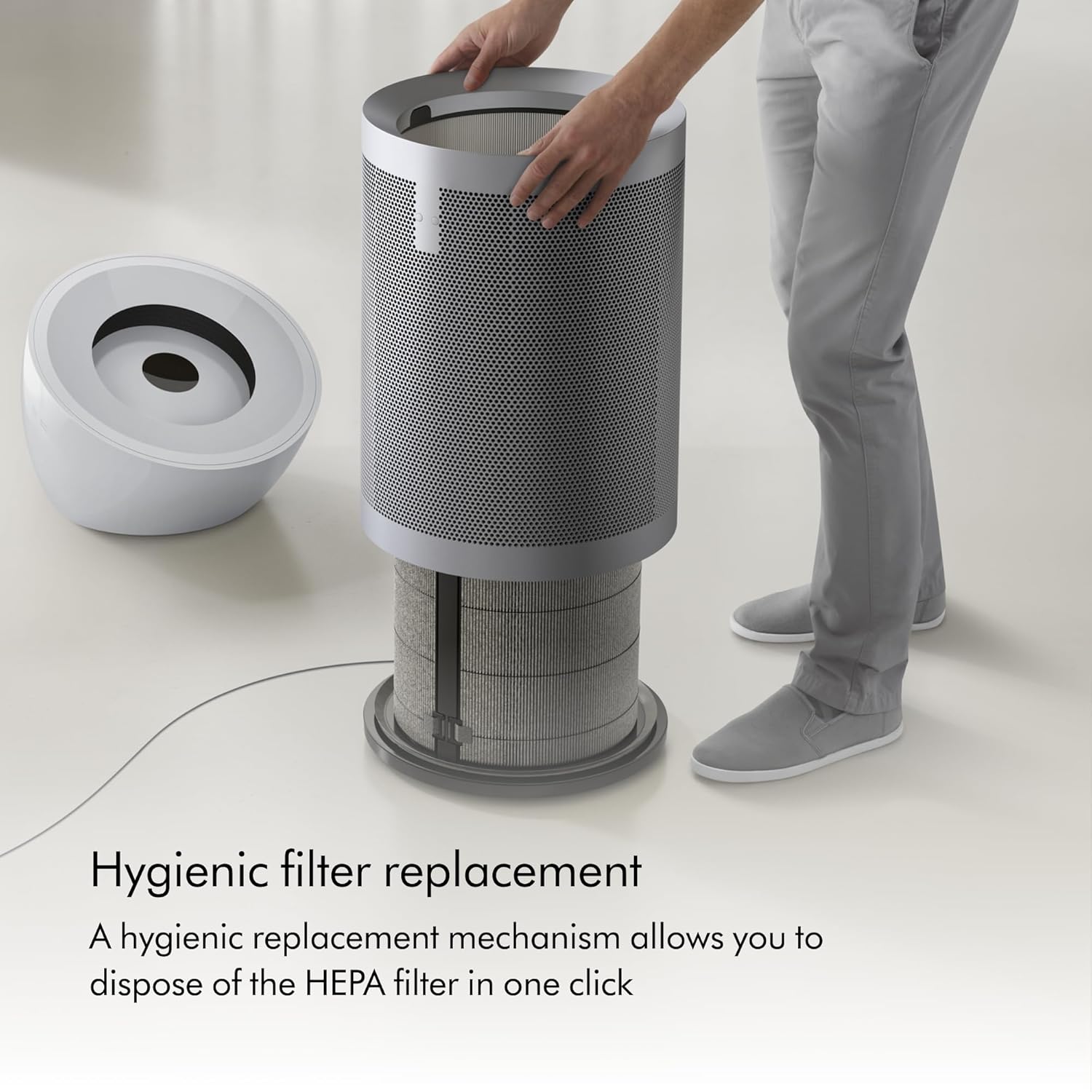

Image: Illustration of filter installation/replacement. The outer casing is removed, revealing the internal filter components.
- Тазалагычты жайгаштырыңыз: Place the purifier on a flat, stable surface, ensuring adequate clearance around the unit for optimal airflow.
- Кубатка туташуу: Электр шнурын ылайыктуу электр розеткасына сайыңыз.
4. Аппаратты иштетүү
The Dyson HEPA Big+Quiet Formaldehyde BP06 features a simple single-button operation.
- Күйгүзүү/өчүрүү: Press the single button located on the top of the unit to turn the purifier on or off.
- Аба агымынын ылдамдыгын жөндөө: Press the button repeatedly to cycle between the two available airflow speeds (low and high).
Image: Close-up of the single button operation interface, showing a hand interacting with the control panel.
Image: The air purifier in a room, emphasizing its quiet performance.
The device will automatically sense and report CO₂ levels in real-time on its display.
5. Advanced Filtration System
The BP06 utilizes an advanced 360° HEPA H13 grade filtration system designed to capture a wide range of airborne pollutants.
- Бөлүкчөлөрдү кармоо: The HEPA filter captures 99.97% of fine particles as small as 0.3 microns, including allergens, pollen, and pet dander.
- Gas and Odor Removal: The activated carbon filter removes gases and odors from the air, including acetic acid, acetaldehyde, ammonia, benzene, and NO2.
- Formaldehyde Destruction: The purifier is engineered to permanently destroy formaldehyde, converting it into water and carbon dioxide.
Image: Visual representation of the multi-stage filtration process, detailing how air is cleaned as it passes through the filters.
6. Техникалык тейлөө жана чыпканы алмаштыруу
Regular maintenance ensures the continued efficiency of your Dyson air purifier. The HEPA H13 grade filter is designed to last up to 5 years, depending on usage and air quality.
Фильтрди алмаштыруу процедурасы:
- Өчүрүү: Ensure the purifier is turned off and unplugged from the power outlet.
- Remove Outer Cover: Gently twist and lift the outer cover of the purifier to expose the filters.
- Эски чыпкаларды алып салуу: Carefully remove the used HEPA and activated carbon filters. Dispose of them according to local regulations.
- Жаңы чыпкаларды орнотуу: Insert the new HEPA filter first, followed by the new activated carbon filter, ensuring they are securely in place.
- Replace Outer Cover: Align the outer cover and twist it back into position until it locks.
For optimal performance, use genuine Dyson replacement filters.
7. Техникалык шарттар
| Бренд | Дайсон |
| Модель номери | BP06 |
| Продукциянын өлчөмдөрү | 17.1 x 16.3 x 32.7 дюйм (43.4 x 41.4 x 83.1 см) |
| Салмагы | 7.34 фунт (3.33 кг) |
| Түс | Ак/Күмүш |
| Полдун аянты | 1000.0 чарчы фут |
| Фильтрация түрү | HEPA H13 Grade, Activated Carbon |
| Formaldehyde Destruction | Ооба |
| CO₂ Sensing | Real-time reporting |
| Specification Met | AHAM тастыкталган |
8. Кыйынчылыктарды
If you encounter issues with your Dyson HEPA Big+Quiet Formaldehyde BP06, please refer to the following common solutions:
- Түзмөк күйбөй жатат:
- Электр шнурунун тазалагычка да, иштеп жаткан электр розеткасына да бекем сайылганын текшериңиз.
- Розетка иштеп жатканын башка түзмөктү сайып текшериңиз.
- Reduced Airflow or Unusual Noise:
- Check if the filters are correctly installed and not obstructed.
- Inspect the air intake and outlet for any blockages.
- Consider replacing filters if they are old or heavily soiled, as this can restrict airflow.
- Unpleasant Odor from Purifier:
- This may indicate that the activated carbon filter is saturated and needs replacement.
- Ensure the area around the purifier is clean and free of strong odors that the unit might be processing.
- CO₂ Readings Seem Inaccurate:
- Ensure the purifier is placed in an open area and not directly next to a CO₂ source (e.g., exhaled breath).
- Allow the device some time to stabilize its readings after initial power-on or relocation.
If the issue persists after attempting these solutions, please contact Dyson customer support for further assistance.
9. Кепилдик жана колдоо
Your Dyson HEPA Big+Quiet Formaldehyde BP06 air purifier comes with a manufacturer's warranty. Please refer to the warranty card included with your product for specific terms and conditions, including coverage duration and claim procedures.
For technical support, replacement parts, or warranty inquiries, please visit the official Dyson website or contact Dyson customer service directly. Keep your purchase receipt and product serial number handy when contacting support.
Дайсон расмий Webсайт: www.dyson.com
