Frigidaire FHWW124TE1 12,000 BTU акылдуу терезе кондиционери колдонуучунун колдонмосу

1. Introduction and Overview

This manual provides essential information for the safe and efficient operation of your Frigidaire FHWW124TE1 12,000 BTU Smart Window Air Conditioner. Designed to cool areas up to 550 sq. ft., this unit offers Wi-Fi connectivity for remote management via the Frigidaire app, adjustable fan speeds, multi-directional airflow, and a programmable 24-hour timer. It also features an easy-to-clean washable dust filter with a Clean Filter alert for simplified maintenance. Enjoy a cool and comfortable space with quiet performance.

2. Негизги өзгөчөлүктөрү

• Wi-Fi иштетилген: Control your air conditioner remotely using the Frigidaire app, or integrate with Amazon Alexa and Google Home for voice control.
• Ыңгайлаштырылган муздатуу: Achieve optimal comfort with custom temperature settings, 6-way directional airflow, and three fan speeds. Ideal for multi-use rooms up to 550 sq. ft.
• Оңой тейлөө: Features a washable dust filter and Clean Filter alerts to ensure efficient operation and prolong unit lifespan.
• Энергияны үнөмдүү аткаруу: Includes Eco Mode to maintain temperature and save energy, Sleep Mode for quiet operation and energy conservation, and Dry Mode to remove excess moisture.
• Оңой ыңгайлуулук: Set a 24-hour on/off timer to match your schedule and benefit from the Auto Restart feature, which restores previous settings after a power outage.

3. Орнотуу жана орнотуу

Your Frigidaire FHWW124TE1 air conditioner is designed for window installation and comes with a window kit, washable filter, and remote control. Please refer to the detailed installation instructions provided in the included manual for specific steps tailored to your window type.

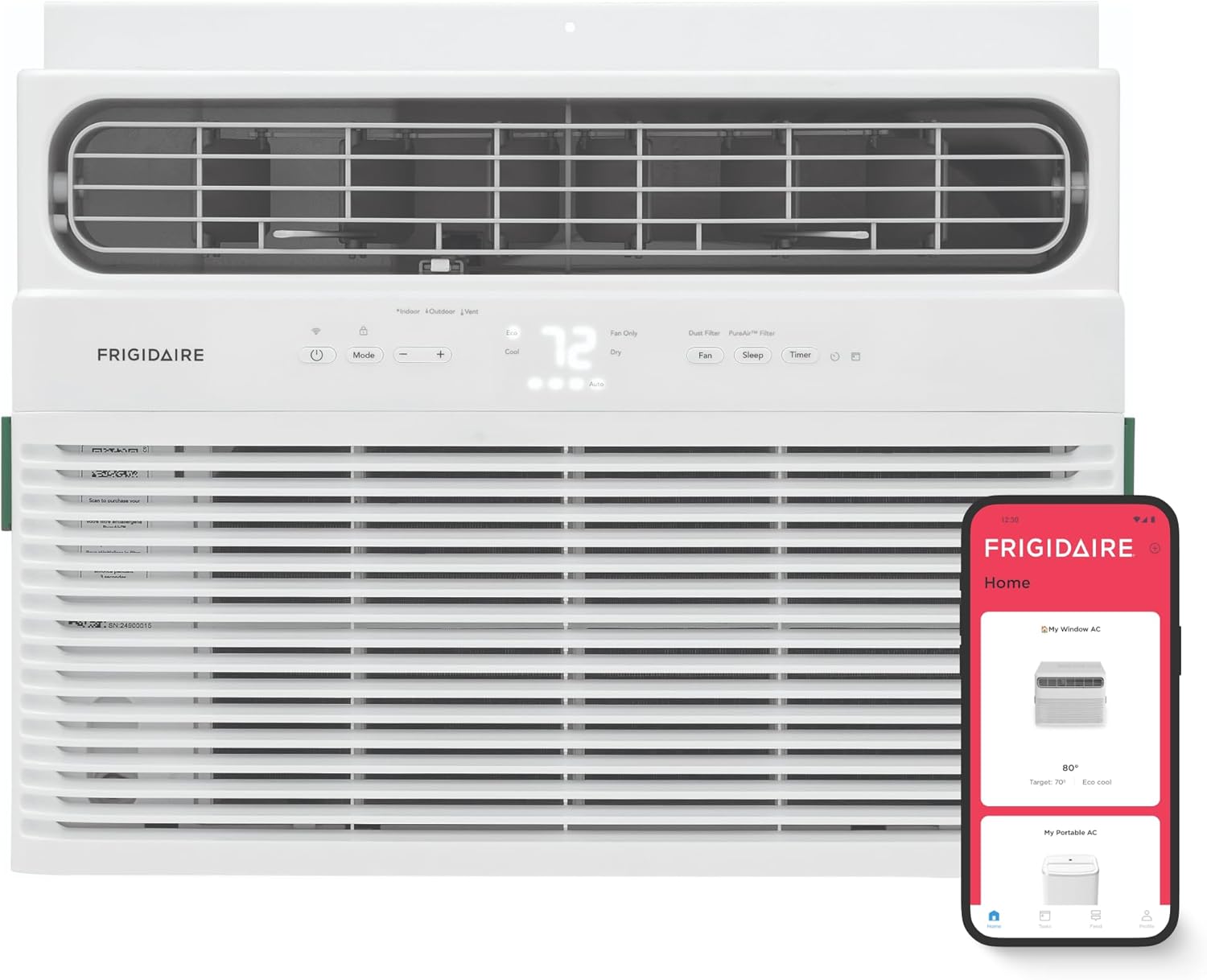

Сүрөт 1: Алдыңкы view of the Frigidaire FHWW124TE1 Smart Window Air Conditioner.

Figure 2: Product dimensions showing 21.9 inches depth, 19 inches width, and 14.5 inches height.

Орнотуу боюнча кеңештер:

• Ensure the window opening is compatible with the unit's dimensions (21.9 x 19 x 14.5 inches).
• Use the provided window kit to secure the unit and minimize air leakage.
• The unit weighs approximately 63.5 pounds; consider having assistance for safe lifting and placement.

4. Иштөө нускамалары

Your air conditioner offers various modes and settings for personalized comfort. All functions can be controlled via the unit's control panel, the included remote control, or the Frigidaire app on your smartphone.

Башкаруу панели жана пульт:

Figure 3: The unit's control panel and remote control, highlighting Wi-Fi, Eco, and Sleep modes.

• Кубат баскычы: Агрегатты күйгүзөт же өчүрөт.
• Режим тандоо: Cycle through Cool, Eco, Sleep, Dry, and Fan Only modes.
• Температураны жөндөө: Каалаган температураны коюу үчүн өйдө/төмөн жебелерди колдонуңуз.
• желдеткич ылдамдыгы: Select from Low, Medium, or High fan speeds.
• Таймер: Program the unit to turn on or off at specific times within a 24-hour period.
• Автоматтык түрдө өчүрүү: In case of a power interruption, the unit will automatically resume operation with its previous settings once power is restored.

Wi-Fi туташуусу:

Figure 4: Control your Frigidaire air conditioner from anywhere using the Frigidaire app, compatible with Google Home and Amazon Alexa.

• Download the Frigidaire app from your device's app store.
• Кондиционериңизди үйүңүздөгү Wi-Fi тармагына туташтыруу үчүн колдонмодогу көрсөтмөлөрдү аткарыңыз.
• Once connected, you can adjust settings, change modes, and set schedules from your smartphone.

5. Техникалык тейлөө

Regular maintenance ensures your air conditioner operates efficiently and provides clean air.

Жуучу чыпканы тазалоо:

Figure 5: The easy-to-clean washable filter being removed from the unit for maintenance.

• The unit features a Clean Filter alert that will illuminate when it's time to clean the filter.
• Фильтрди белгиленген уясынан акырын чыгарып алыңыз.
• Чыпканы жылуу, самындуу суу менен жууңуз. Кылдаттык менен жууп, кайра салаардан мурун аны толугу менен кургатуу керек.
• For enhanced air quality, consider purchasing the PureAir® Advanced Filter (өзүнчө сатылат).

6. Кыйынчылыктарды

If you experience issues with your air conditioner, please consult the full troubleshooting guide in your product manual. Common issues may include:

• Түзмөк күйбөй жатат: Электр туташуусун, автоматтык өчүргүчтү текшерип, шаймандын туура сайылганын текшериңиз.
• Жетишсиз муздатуу: Verify temperature settings, ensure filters are clean, and check for obstructions to airflow.
• адаттан тыш үндөр: Refer to the manual for common operating sounds and potential causes of abnormal noises.

7. Техникалык шарттар

8. Кепилдик жана колдоо

Your Frigidaire FHWW124TE1 Smart Window Air Conditioner comes with a 1 жылдык Өндүрүүчүнүн Кепилдиги. For warranty claims, technical assistance, or customer support, please contact Frigidaire customer service directly. Refer to your product packaging or the official Frigidaire webбайланыш маалыматы үчүн сайт.
