Kärcher Commercial Electric Pressure Washer HD 3.5/30-4S Ea Instruction Manual

1. Киришүү

This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Kärcher Commercial Electric Pressure Washer HD 3.5/30-4S Ea. Please read this manual thoroughly before using the appliance for the first time and observe all safety instructions.

The Kärcher HD 3.5/30-4S Ea is a robust, three-phase cold water pressure washer designed for demanding tasks in construction, agriculture, forestry, and industrial facilities. Its upright design enhances maneuverability and reduces storage space.

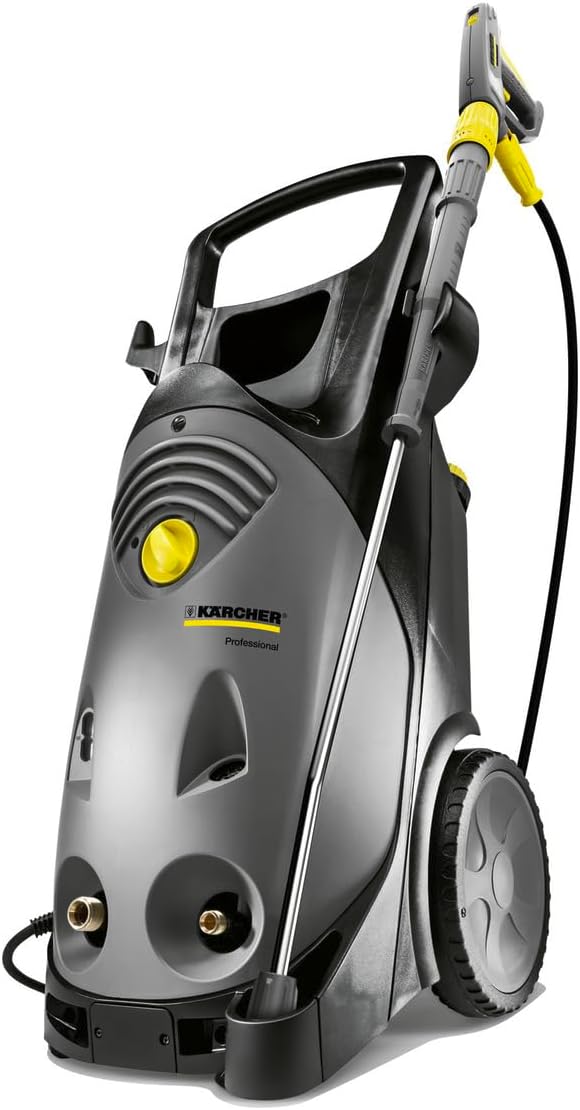

Figure 1: Kärcher Commercial Electric Pressure Washer HD 3.5/30-4S Ea. This image shows the complete pressure washer unit from a front-side angle, highlighting its compact, upright design and large wheels.

2. Коопсуздук маалыматы

Жалпы коопсуздук эскертүүлөрү:

• Always wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, and protective footwear.
• Never direct the water jet at people, animals, electrical equipment, or the appliance itself. High-pressure jets can be dangerous if misused.
• Шайман туура жерге туташтырылган электр розеткасына туташтырылганын текшериңиз.
• Эгерде электр шнуру же башка маанилүү бөлүктөр бузулган болсо, басымдуу жуугуч машинаны иштетпеңиз.
• Балдарды жана үй жаныбарларын операциядан алыс кармаңыз.
• Disconnect the power supply before performing any cleaning, maintenance, or when leaving the machine unattended.

Электр коопсуздугу:

• The appliance is equipped with a pressure switch control that turns off the pump when the trigger is released.
• An electronic monitoring system protects the motor and pump from overload.

3. Продукт бүтүп калдыview жана өзгөчөлүктөрү

The Kärcher HD 3.5/30-4S Ea is engineered for durability and ease of use in demanding environments. Key features include:

• Мыкты курулуш: Heavy-duty steel frame and large diameter, tubed pneumatic tires for maximum mobility.
• Күчтүү мотор: Low-speed, 4-pole, water-cooled motor for quiet operation and extended service life.
• Durable Pump: Three-piston axial pump with detergent-resistant brass cylinder head and ceramic pistons, protected by a pressure switch and overflow valve.
• EASY!Force Trigger Gun: Designed for comfort, requiring less effort to hold and operate, with a servopress controller for convenient pressure and water flow adjustment.
• Кир жуугуч каражаттар үчүн интегралдык бак: 1.5-gallon capacity for continuous detergent application.
• Аксессуар сактагычы: Separate nozzle compartment for organized storage.

Figure 2: At a Glance Features. This image highlights key specifications such as the 3000 PSI output, suitability for commercial settings, motor protection, and EASY!Force technology.

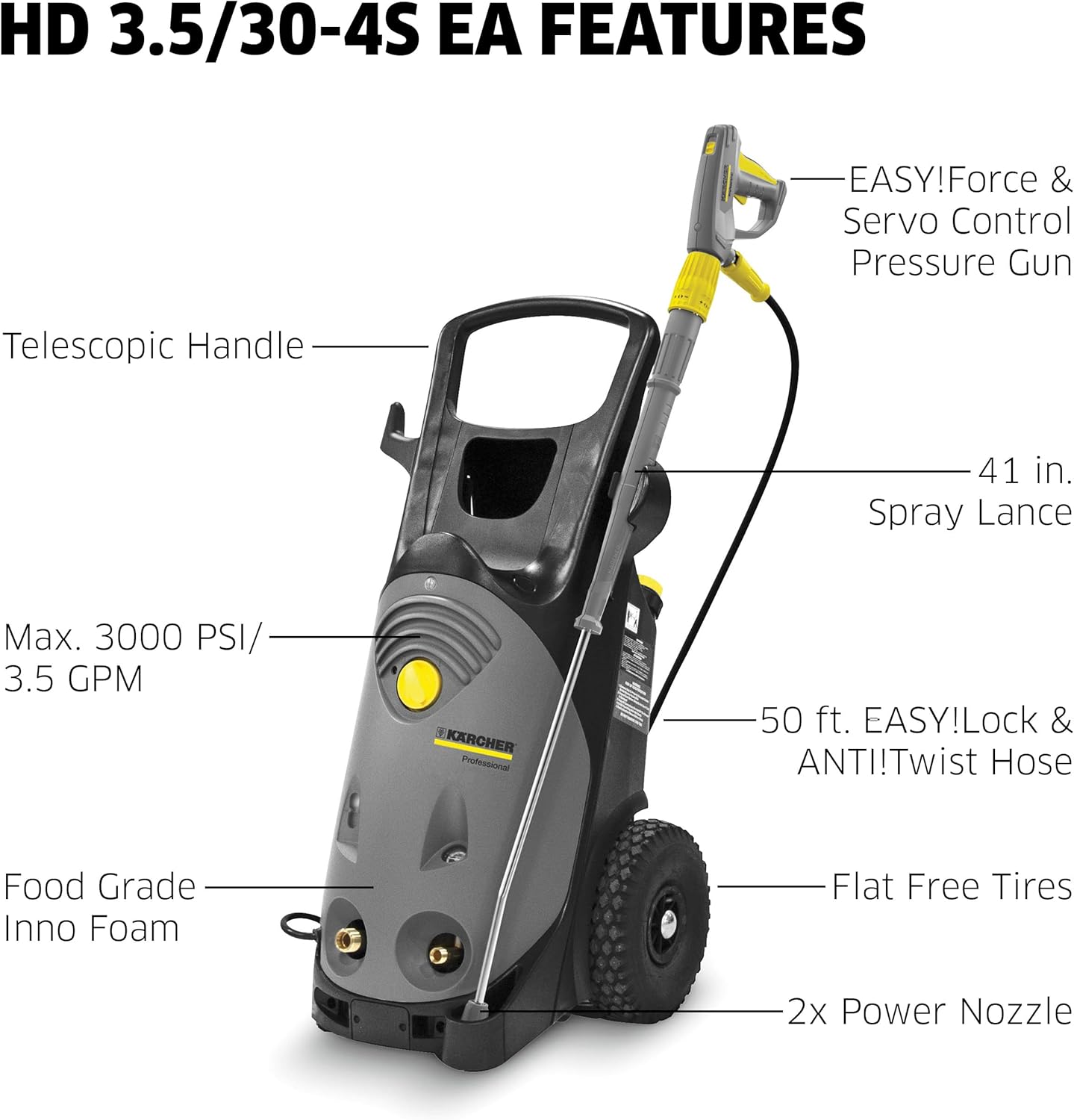

Figure 3: HD 3.5/30-4S Ea Features. A detailed diagram pointing out components like the EASY!Force & Servo Control Pressure Gun, telescopic handle, 41-inch spray lance, 50-foot EASY!Lock hose with ANTI!Twist connection, 2 power nozzles, and flat-free tires.

Figure 4: Motor and Pump Assembly. A close-up view of the internal components, including the low-speed, 4-pole, air-cooled motor and the robust three-piston axial pump with brass cylinder head and stainless valves.

4. Орнотуу жана чогултуу

Your Kärcher pressure washer requires minimal assembly. Follow these steps for initial setup:

1. Компоненттерди таңгактан чыгаруу: Carefully remove all parts from the packaging. Verify all components listed in the packing list are present.
2. Тиркетүү туткасы: Secure the push handle to the main unit using the provided fasteners. Ensure it is adjusted to a comfortable height.
3. Жогорку басымдагы шлангды туташтыруу: Attach the 50-foot EASY!Lock high-pressure hose to the pump outlet and the EASY!Force trigger gun. Ensure connections are secure to prevent leaks.
4. Суу менен камсыздоону туташтыруу: Connect a garden hose (not included) to the water inlet of the pressure washer. Ensure the water supply is clean and free of debris.
5. Install Spray Lance and Nozzle: Attach the 41-inch spray lance to the trigger gun. Select the appropriate power nozzle for your task and securely attach it to the spray lance.
6. Кир жуучу каражаттын багын толтуруңуз (милдеттүү эмес): If using detergent, fill the 1.5-gallon integrated tank with Kärcher-approved pressure washer detergent.
7. Туташуу кубаты: Plug the 35-foot power cord into a grounded electrical outlet. Ensure the outlet meets the power requirements of the unit.

Before starting, ensure all connections are tight and there are no kinks in the hoses.

5. Операция

Operating your Kärcher pressure washer involves a few simple steps to achieve effective cleaning:

1. Баштоо: Turn on the water supply completely. Squeeze the trigger gun to purge air from the system until a steady stream of water emerges. Then, turn on the pressure washer's power switch.
2. Сопло тандоо: Тазалоо ишиңизге ылайыктуу саптаманы тандаңыз.
   • High-Pressure Nozzles: For tough dirt and stubborn stains (e.g., 15° or 25°).
   • Low-Pressure/Detergent Nozzle: For applying cleaning solutions (e.g., Soap nozzle).
3. Тазалоо техникасы: Hold the spray lance at a safe distance from the surface to be cleaned. Start with a wider spray pattern and gradually move closer if more aggressive cleaning is needed. Use overlapping strokes to ensure even cleaning.
4. Жуучу каражатты колдонуу: If using detergent, ensure the detergent tank is filled. Select the low-pressure/detergent nozzle. The pressure washer will automatically mix detergent with water. Apply detergent to the dry surface, allow it to soak for a few minutes (do not let it dry), then switch to a high-pressure nozzle for rinsing.
5. Adjusting Pressure/Flow: Use the servopress controller on the EASY!Force trigger gun to adjust pressure and water flow rate as needed for different surfaces and cleaning requirements.
6. Өчүрүү: Turn off the pressure washer's power switch. Turn off the water supply. Squeeze the trigger gun to release any remaining pressure in the system. Disconnect the water supply and high-pressure hose.

Figure 5: Cleaning an Excavator. An operator uses the Kärcher pressure washer to effectively clean heavy machinery, demonstrating its power for industrial applications.

Figure 6: Industrial Floor Cleaning. This image shows the pressure washer being used to clean a large floor area in a commercial or agricultural setting, highlighting its efficiency for wide surfaces.

6. Техникалык тейлөө

Үзгүлтүксүз тейлөө сиздин басымдуу жуугучуңуздун узак иштөөсүн жана оптималдуу иштешин камсыз кылат:

• Ар бир колдонуудан кийин:
  • Кир жуучу каражаттын калдыктарын кетирүү үчүн системаны таза суу менен чайкаңыз.
  • Бүтөлүп калбашы үчүн, түтүктөрдү тазалаңыз.
  • Жарнама менен блоктун сыртын сүртүңүзamp кездеме.
• Monthly/Seasonal:
  • Check the high-pressure hose for any signs of wear, cuts, or leaks. Replace if damaged.
  • Inspect the water inlet filter and clean if necessary.
  • For prolonged storage, especially in freezing temperatures, drain all water from the pump and hoses or use a pump protector.
• Кир жуугуч идиш: Clean the detergent tank regularly to prevent buildup and ensure proper function.

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Кепилдик жана колдоо

For detailed warranty information and customer support, please refer to the official Kärcher webсайтка же түздөн-түз кардарларды тейлөөгө кайрылыңыз. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.

Kärcher Customer Support:

• зыярат кылыңыз Kärcher Store on Amazon продукт маалымат жана аксессуарлар үчүн.
• Refer to the product packaging for specific warranty terms applicable to your region.
