ANCEL MT700 мотоцикл диагностикалык куралын колдонуучунун колдонмосу

1. Киришүү

The ANCEL MT700 is an advanced motorcycle diagnostic tool designed to assist in the maintenance and troubleshooting of various motorcycle brands. Equipped with a 7-inch touch screen and running on Android 5.1.1, it offers a user-friendly interface for comprehensive system diagnostics, service functions, and live data monitoring. This manual provides essential information for setting up, operating, and maintaining your MT700 device.

Figure 1.1: ANCEL MT700 Diagnostic Tool Overview

2. Орнотуу жана алгачкы колдонуу

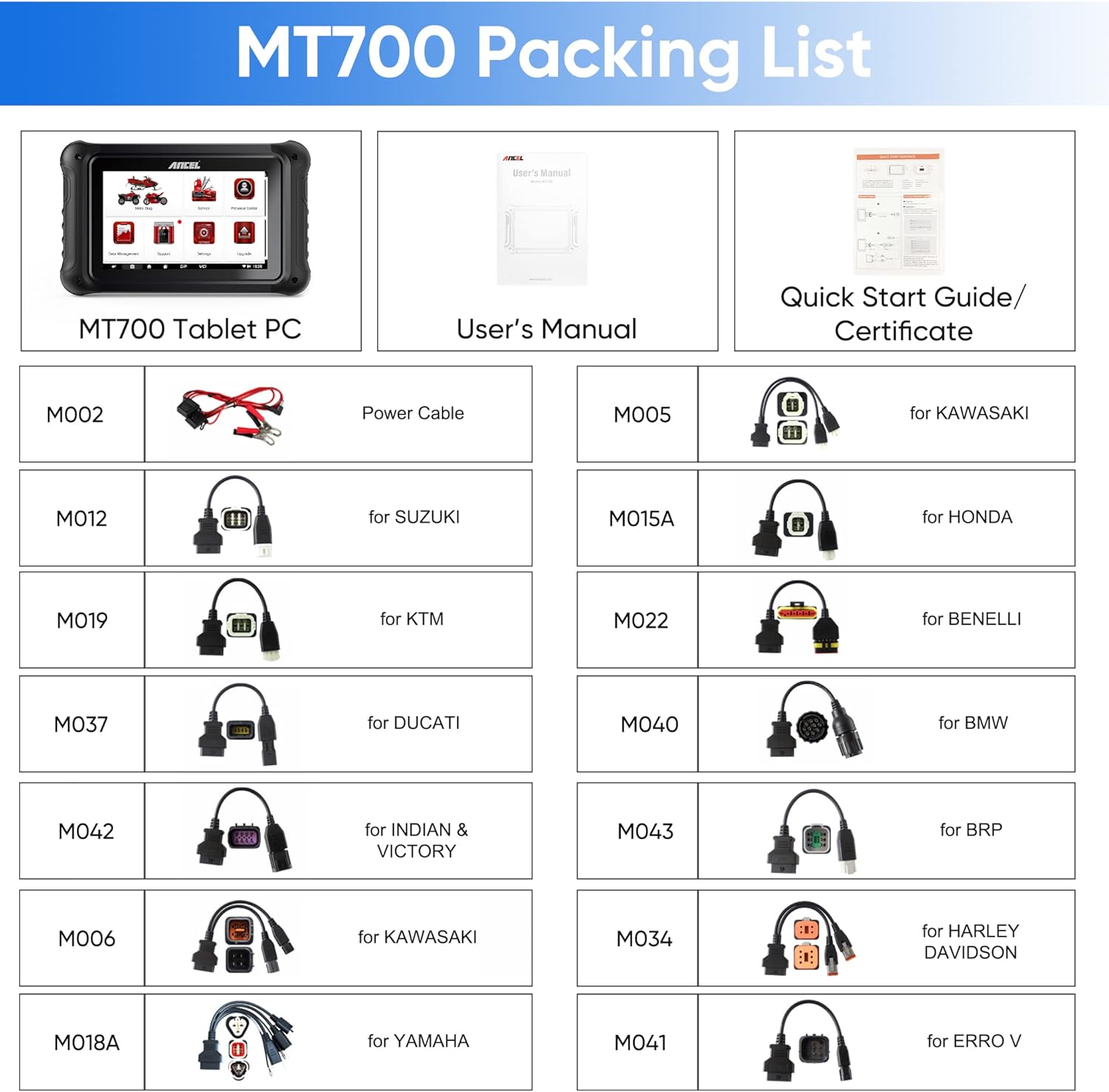

2.1 Таңгактоо тизмеси

Пакетти ачканда, бардык компоненттер бар экенин текшериңиз:

Figure 2.1: MT700 Packing List

• MT700 Планшет PC
• Колдонуучунун колдонмосу
• Ыкчам баштоо колдонмосу/сертификат
• Электр кабели
• Adapter Cables (M002, M005, M006, M012, M015A, M018A, M019, M022, M034, M037, M040, M041, M042, M043) for various motorcycle brands.

2.2 Күйгүзүү жана баштапкы конфигурация

Connect the device to a power source using the provided power cable. Press and hold the power button to turn on the tablet. Follow the on-screen prompts for initial setup.

2.3 Wi-Fi туташуусу

To enable online updates and remote assistance, connect the MT700 to a stable Wi-Fi network. Navigate to Орнотуулар > Wi-Fi жана тармагыңызды тандаңыз.

2.4 Тилди тандоо

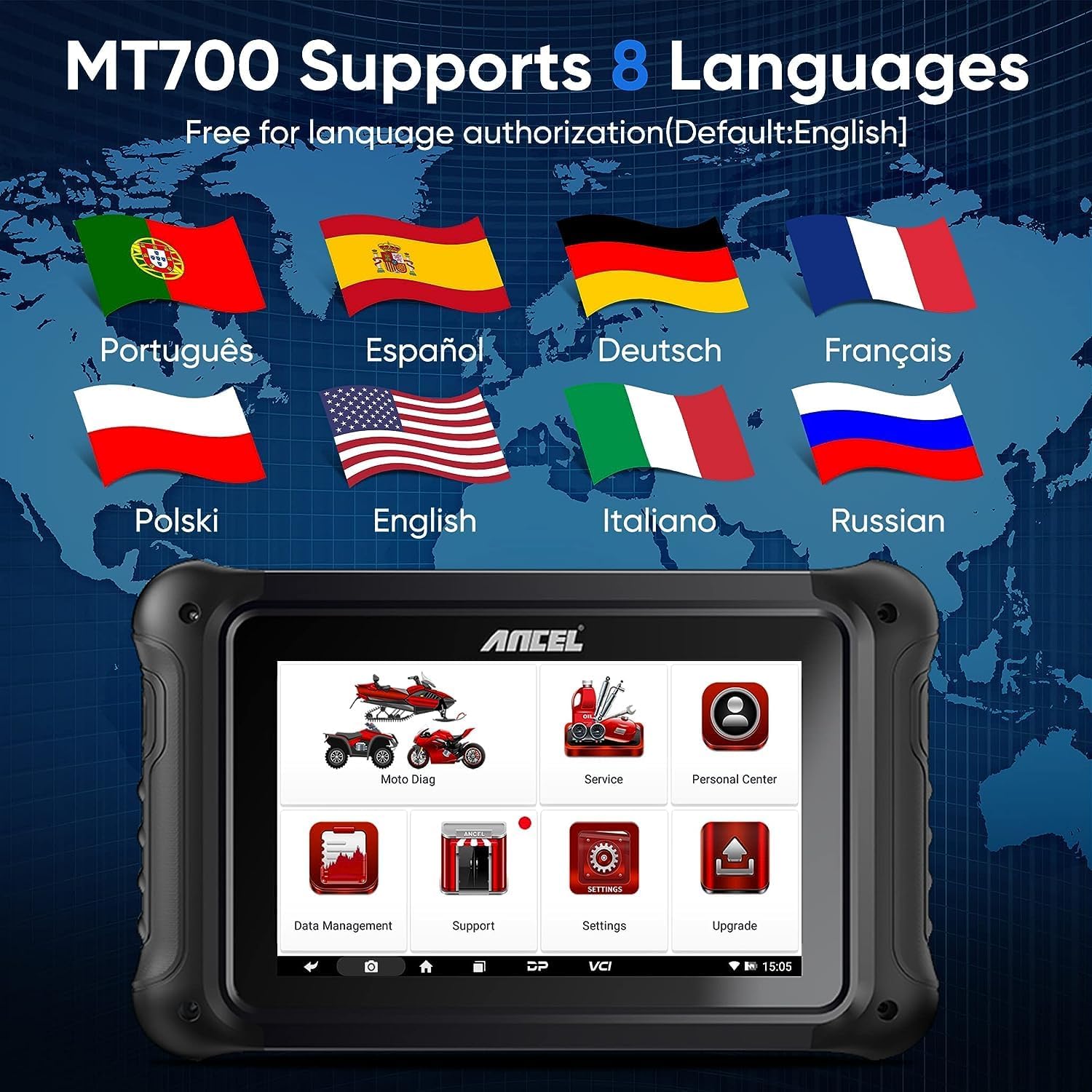

The MT700 supports 8 languages. To change the operating language, go to Орнотуулар and locate the language options. English is the default language.

2.2-сүрөт: Колдоого алынган тилдер

3. Operating the MT700

3.1 Connecting to a Motorcycle

Select the appropriate adapter cable for your motorcycle model from the provided set. Connect one end of the cable to the MT700 device and the other end to the motorcycle's diagnostic port. Ensure a secure connection before proceeding.

3.2 Толук системаны диагностикалоо

The MT700 allows for a comprehensive scan of all electric-controlled modules on your motorcycle. This includes systems such as Engine, TPMS, Suspensions, Ignition, EPS, Traction control, Radio, Service system, and Meter system.

Figure 3.1: All Systems Diagnoses

Негизги диагностикалык функциялар төмөнкүлөрдү камтыйт:

• DTCлерди окуңуз: Retrieve Diagnostic Trouble Codes to identify issues.
• DTCлерди тазалоо: Erase stored trouble codes after repairs.
• Жандуу маалыматтар: View real-time data streams from various sensors and modules.
• Фреймди тоңдуруу: Capture a snapshot of data at the moment a fault occurred.
• Унаа жөнүндө маалымат: Access vehicle-specific details.

3.3 Өркүндөтүлгөн функциялар

The MT700 offers over 31 advanced service functions to assist with maintenance and repair tasks:

Сүрөт 3.2: Өркүндөтүлгөн функциялар бүттүview

• ABS Bleed Function: This function allows you to perform ABS bleeding for compatible motorcycles (e.g., BMW, KTM, Triumph, Benelli, Polaris). It is crucial for removing air from the internal brake fluid chambers after brake servicing to ensure effective and safe braking.
• Нефть Лamp Кызматты баштапкы абалга келтирүү: After motorcycle maintenance, the oil service light often remains illuminated. The MT700 can reset this indicator, completing the maintenance process and saving a trip to the dealer.
• Автоматтык VIN жана сканерлөө: Automatically identifies vehicle information for quick diagnosis.
•  style="font-weight:bold;">CO Adjustment: Adjusts carbon monoxide levels.
• Бош ылдамдыкты жөндөө: Modifies the engine's idle speed.
• A/F Value Reset: Resets air/fuel ratio values.
• Аспаптарды коддоо: Programs or codes instrument cluster components.
• Дроссель туткасын баштапкы абалга келтирүү: Resets throttle position sensor values.
• EOL Mode: End-of-Line mode for specific vehicle tests.
• Clear Computer Memory: Clears stored data in the vehicle's computer.
• Шина басымын көзөмөлдөө системасы (TPMS): Functions related to TPMS.
• Control Module Programming: Reprograms or updates control modules.
• Transmission Memory Reset: Resets transmission adaptive values.

3.4 Түз эфирдеги маалыматтарды көрсөтүү

The MT700 can display real-time data streams from your motorcycle's control modules. This includes parameters such as Engine coolant temperature, vehicle speed, intake air temperature, engine speed, throttle position, injection duration, ignition timing, and throttle sensor voltage. This feature is crucial for monitoring system performance and diagnosing intermittent issues.

4. Техникалык тейлөө жана жаңыртуулар

4.1 Программалык камсыздоо жаңыртуулары

The ANCEL MT700 supports one-click online updates, ensuring you always have the latest software and vehicle coverage. Connect the device to Wi-Fi and navigate to the Жаңыртуу section on the main menu to check for and install updates. No serial number is required for updates.

Figure 4.1: One-Click Free Update Online

4.2 Тазалоо жана сактоо

Аппаратты жумшак менен сүртүңүз, гamp cloth. Avoid using abrasive cleaners or solvents. Store the MT700 in a cool, dry place away from direct sunlight and extreme temperatures when not in use.

5. Кыйынчылыктарды

5.1 Жалпы маселелер

• Түзмөк күйбөй жатат: Ensure the power cable is securely connected and the device is charged.
• No communication with motorcycle: Verify that the correct adapter cable is used and securely connected to both the MT700 and the motorcycle's diagnostic port. Check the motorcycle's ignition status.
• Wi-Fi туташуу көйгөйлөрү: Ensure the Wi-Fi network is active and the password is correct. Try restarting the device and the Wi-Fi router.

5.2 Алыстан техникалык колдоо

For complex issues, ANCEL provides one-key remote assistance. This allows technical engineers to remotely control your tablet via TeamViewer software to diagnose and resolve problems directly. Access this feature from the Колдоо section on the main menu.

Figure 5.1: Remote Technical Support

6. Техникалык шарттар

7. Кепилдик жана колдоо

The ANCEL MT700 comes with a 2 жылдык кепилдик from the date of purchase. Additionally, users receive 2 жылдык акысыз программалык камсыздоо жаңыртуулары, ensuring continued compatibility and access to new features. For technical assistance, utilize the one-key remote assistance feature or contact ANCEL customer support through their official channels.
