WOLFANG WT01 Trail Camera User Manual

1. Киришүү

Thank you for choosing the WOLFANG WT01 Trail Camera. This manual provides detailed instructions for setting up, operating, and maintaining your camera to ensure optimal performance. The WT01 is designed for versatile outdoor use, including wildlife monitoring, hunting, farm security, and home surveillance, featuring high-resolution imaging, advanced night vision, and robust weather resistance.

1.1-сүрөт: The WOLFANG WT01 Trail Camera is suitable for a variety of outdoor applications, including hunting, farm security, wildlife monitoring, and home surveillance.

2. Коопсуздук маалыматы

• Камераны экстремалдык температурага же түз күн нуруна узак убакытка калтырбаңыз.
• Ensure the battery compartment is securely closed to maintain the IP66 waterproof rating.
• Use only recommended AA batteries. Do not mix old and new batteries or different battery types.
• Камераны күчтүү магниттик талаалардан алыс кармаңыз.
• Камераны өз алдынча бөлүүгө же оңдоого аракет кылбаңыз. Жардам алуу үчүн кардарларды колдоо бөлүмүнө кайрылыңыз.
• Батареяларды жергиликтүү эрежелерге ылайык туура жок кылыңыз.

3. Продукт бүтүп калдыview

3.1 Камеранын компоненттери

Familiarize yourself with the main components of your WOLFANG WT01 Trail Camera.

3.1-сүрөт: Фронт view of the WOLFANG WT01 Trail Camera, showcasinанын камуфляж дизайны жана линзалар массиви.

3.2-сүрөт: Detail of the 38 pieces of 940nm No Glow Infrared LEDs, designed for discreet night vision without disturbing wildlife.

3.3-сүрөт: The WOLFANG WT01 Trail Camera demonstrating its IP66 durable and weathertight construction, suitable for outdoor use in various conditions.

3.2 Пакеттин мазмуну

Upon unboxing, ensure all items listed below are present:

• 1 x WOLFANG WT01 Trail Camera
• 1 x Монтаждык боо
• 1 x USB Type-C кабели
• 1 x User Manual

Эскертүү: SD карта жана AA батарейкалары комплектке кирбейт жана аларды өзүнчө сатып алуу керек.

3.4-сүрөт: Image showing the WOLFANG WT01 Trail Camera, user manual, mounting strap, and USB Type-C cable included in the package.

4. Орнотуу

4.1 Батареяны орнотуу

1. Open the camera's main latch and then the battery compartment cover located at the bottom.
2. Insert 8 AA batteries into the designated slots, ensuring correct polarity (+/-).
3. Close the battery compartment cover firmly until it clicks into place, ensuring a waterproof seal.

4.2 SD картаны орнотуу

1. Locate the SD card slot inside the camera, typically near the screen.
2. Insert a compatible SD card (up to 32GB, Class 10 or higher recommended) with the metal contacts facing down until it clicks.
3. To remove, push the SD card in slightly until it springs out.

4.3 Камераны орнотуу

The WT01 can be mounted using the included strap or a compatible mount (not included).

1. Боону колдонуу: Thread the strap through the camera's mounting brackets and secure it around a tree or pole. Adjust for desired angle.
2. Using a Mount: The camera features a standard tripod screw hole at the bottom for compatibility with various mounts.

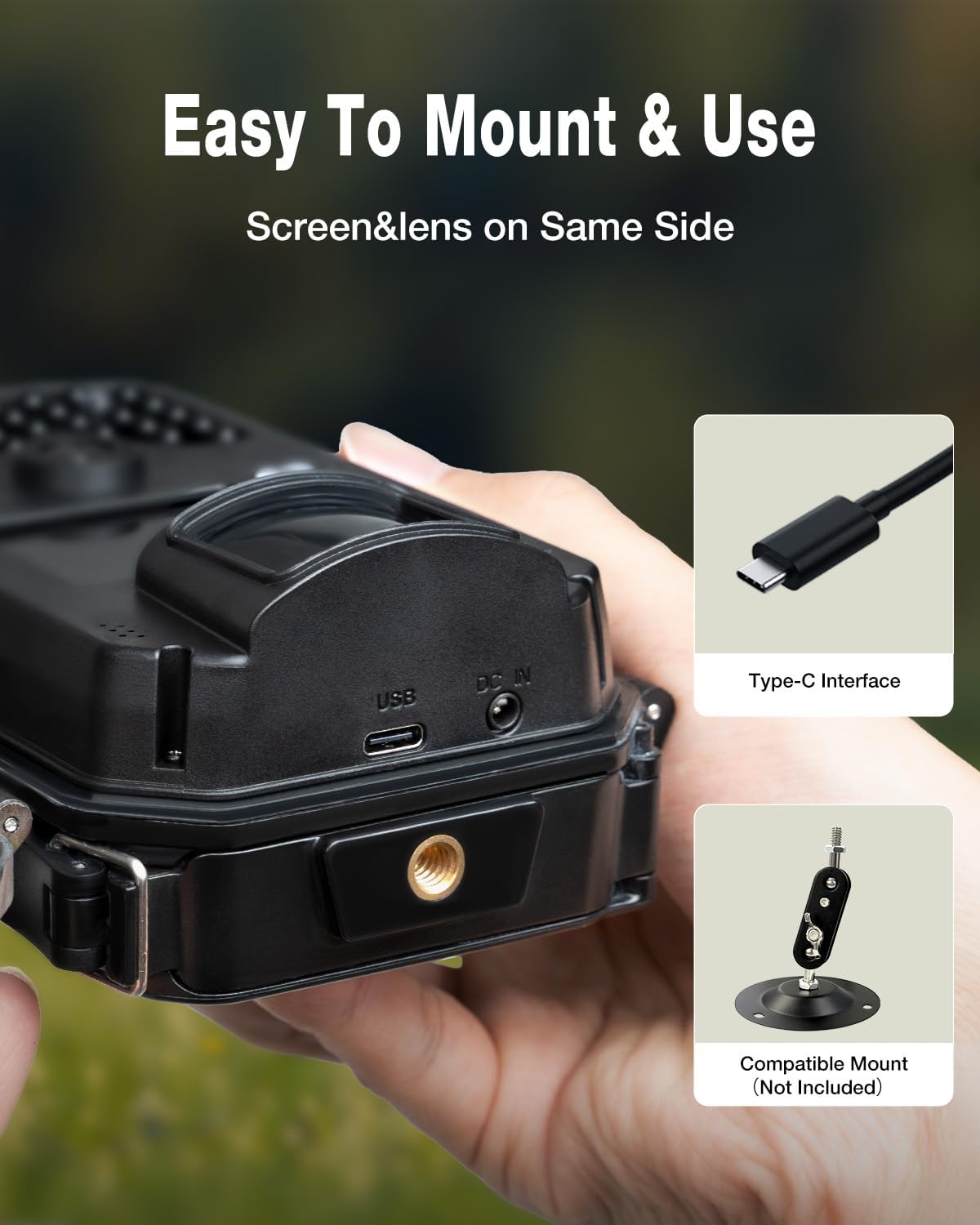

4.1-сүрөт: Side view of the WOLFANG WT01 Trail Camera, highlighting the Type-C interface for data transfer and the threaded insert for compatible mounting accessories.

5. Камераны иштетүү

5.1 Күйгүзүү/өчүрүү

• To power on, slide the mode switch from OFF to SETUP or ON.
• In SETUP mode, you can access the menu and adjust settings.
• In ON mode, the camera will enter monitoring state after a short countdown.
• To power off, slide the mode switch to OFF.

5.2 Меню орнотуулары

Navigate the menu using the arrow buttons and confirm selections with the OK button. Key settings include:

• Режим: Сүрөт, Видео же Сүрөт+Видео тандаңыз.
• Сүрөттүн чечими: Set image quality (e.g., 36MP).
• Видеонун чечилиши: Set video quality (e.g., 2K HD).
• PIR сезгичтиги: Кыймыл сенсорунун сезгичтигин тууралаңыз (Жогорку, Орточо, Төмөн).
• Триггер аралыгы: Аныктоолордун ортосундагы кечигүүнү коюңуз.
• Убакыттын өтүшү: Enable time-lapse recording for specific intervals.
• Дата жана убакыт: Учурдагы күн менен убакытты коюңуз.
• Сырсөздү коргоо: Уруксатсыз кирүүдөн коргоо үчүн сырсөз коюңуз.

5.3 Сүрөттөрдү жана видеолорду тартуу

Once in ON mode, the camera will automatically capture photos or videos when motion is detected by the PIR sensor. The 0.3-second trigger speed ensures quick capture of wildlife.

5.1-сүрөт: Illustration of the camera's rapid 0.3-second trigger speed, capturing fast-moving subjects like deer.

5.2-сүрөт: Comparison of day and night vision capabilities, showcasing the 36MP 2K resolution for clear images in both lighting conditions.

5.4 Маалыматтарды өткөрүү

үчүн view or transfer captured files:

• Connect the camera to a computer using the provided Type-C USB cable. The camera will appear as a removable disk.
• Alternatively, remove the SD card and insert it into a card reader connected to your computer.

6. Техникалык тейлөө

• Regularly check the battery level and replace batteries when low.
• Clean the camera lens and PIR sensor window with a soft, dry cloth to ensure clear images and proper detection.
• Periodically format the SD card to prevent data corruption and optimize performance. (Note: Formatting will erase all data on the card.)
• Ensure all seals and covers are clean and properly closed to maintain waterproof integrity.

7. Кыйынчылыктарды

8. Техникалык шарттар

9. Кепилдик жана колдоо

WOLFANG камсыз кылат 2 жылдык кепилдик кызматы for the WT01 Trail Camera. If you encounter any issues or have questions, please contact our customer service team.

Кардарларды тейлөө электрондук почтасы: support.vc@wolfang.co

Please include your product model and a detailed description of the issue when contacting support for faster assistance.
