ECG AF 8300 Dual Fry Advanced Air Fryer User Manual

Introduction

Thank you for choosing the ECG AF 8300 Dual Fry Advanced Air Fryer. This appliance is designed for healthy cooking, allowing you to fry, roast, and reheat food with little to no oil. Its dual independent cooking zones offer unparalleled versatility for preparing multiple dishes simultaneously. Please read this manual thoroughly before use to ensure safe and optimal operation.

Маанилүү коопсуздук нускамалары

ЭСКЕРТҮҮ:

• Шайманды дайыма туруктуу, ысыкка чыдамдуу бетке койуңуз.
• Негизги блокту сууга же башка суюктукка салбаңыз.
• VoltagШайманда көрсөтүлгөн e сиздин жергиликтүү электр тармагына дал келетtagэ туташтыруудан мурун.
• Иштеп жаткан учурда балдарды жана үй жаныбарларын шаймандан алыс кармаңыз.
• Эч кандай желдетүүчү тешиктерди жаап албаңыз.
• The appliance features a Cool-Touch housing and thermally insulated handle for safe operation. However, surfaces may still become hot during use.
• Тазалоодон мурун жана шайманды розеткадан сууруп алыңыз.
• This appliance is equipped with an overheat protection function.

Продукт бүттүview

The ECG AF 8300 Dual Fry features two independent cooking zones, allowing for versatile meal preparation.

1-сүрөт: Фронт view of the ECG AF 8300 Dual Fry Air Fryer, showcasing the digital control panel and two independent cooking baskets.

2-сүрөт: Side view of the air fryer, highlighting the transparent window on the larger 5.2L basket for easy food monitoring during cooking.

3-сүрөт: The air fryer with both cooking baskets removed, showing the internal compartments.

4-сүрөт: A single cooking basket with its removable non-stick crisper plate, designed for easy cleaning.

Компоненттери:

• Main Unit with Digital LED Control Panel
• Large Cooking Basket (5.2 L) with Transparent Window
• Small Cooking Basket (3.1 L)
• Removable Non-stick Crisper Plates for each basket
• Cool-Touch Housing and Handles

Жайгашуу

1. Unpack the air fryer and all its components. Remove any packaging materials and stickers.
2. Clean the cooking baskets and crisper plates with warm soapy water. Rinse thoroughly and dry completely. The main unit can be wiped with a damp кездеме.
3. Place the crisper plates inside their respective cooking baskets.
4. Insert the cleaned baskets back into the main unit.
5. Place the air fryer on a stable, level, and heat-resistant surface, ensuring adequate ventilation around the appliance.
6. Электр шнурын жерге туташтырылган электр розеткасына сайыңыз.

Иштөө нускамалары

Жалпы операция:

1. Add ingredients to the cooking basket(s). For best results, do not overfill.
2. Slide the basket(s) firmly into the air fryer.
3. Шайманды иштетүү үчүн Кубат баскычын басыңыз.
4. Select the desired cooking zone (1 or 2) if using only one, or both for dual cooking.
5. Adjust the temperature (80-200 °C) and cooking time (up to 60 minutes) using the touch controls.
6. Alternatively, select one of the 8 pre-set menus for common dishes.
7. Даярдоону баштоо үчүн Start/Pause баскычын басыңыз.
8. The air fryer will automatically shut off when the timer reaches zero.
9. Carefully pull out the basket(s) using the insulated handles.
10. Empty the cooked food into a serving dish.

Dual Cooking Functionality:

The independent control for each chamber allows you to cook different foods at different temperatures and times simultaneously. Use the dedicated controls for Zone 1 and Zone 2 on the LED panel.

5-сүрөт: The air fryer in operation, showing french fries cooking in the larger basket with the transparent window.

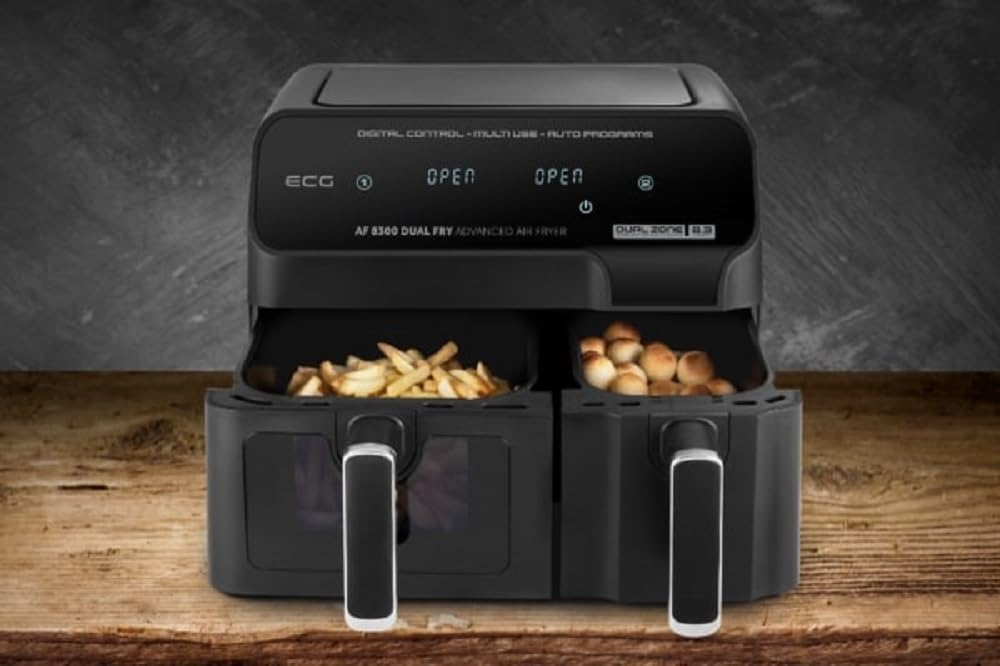

6-сүрөт: The dual cooking capability in action, with different food items (fries and meatballs) being prepared simultaneously in separate baskets.

Алдын ала коюлган менюлар:

The appliance comes with 8 pre-defined menus for convenience. Refer to the control panel for specific icons and their corresponding dishes. These programs automatically set optimal time and temperature.

Тейлөө жана тазалоо

Үзгүлтүксүз тазалоо аба фритериңиздин узак иштөөсүн жана оптималдуу иштешин камсыздайт.

1. Тазалоодон мурун шайманды дайыма розеткадан сууруп, аны толугу менен муздаганга чейин күтүңүз.
2. Remove the cooking baskets and crisper plates. These are non-stick and can be washed with warm soapy water and a non-abrasive sponge. They are also dishwasher safe.
3. Жарнак менен фриердин сыртын сүртүңүзamp кездеме. Катуу химиялык заттарды же абразивдүү тазалагычтарды колдонбоңуз.
4. Жарнама менен шаймандын ичин тазалаңызamp кездеме. Өтө катуу калдыктар үчүн бир аз жумшак жуучу каражат колдонсо болот.
5. Шайманды кайра чогултуудан же сактоонун алдында бардык бөлүктөрү толугу менен кургагандыгын текшериңиз.

Проблемаларды чечүү

Техникалык шарттар

• Модел: AF 8300 Dual Fry
• Бренд: ЭКГ
• Жалпы кубаттуулугу: 8.3 Liters (5.2 L + 3.1 L)
• Кубат киргизүү: 2700 Вт
• Тtage: 230 V
• Температура диапазону: 80-200 °C
• Таймер: Up to 60 minutes with auto shut-off
• Материал: Дат баспаган болот
• Өлчөмдөрү (L x W x Y): 30 x 39.8 x 33.2 см
• Салмагы: 7 кг
• Өзгөчөлүктөр: Healthy cooking, Independent temperature/program control for each chamber, Transparent window (5.2L chamber), LED control panel, 8 pre-set menus, Cool-Touch housing, Overheat protection, Non-slip feet.

Кепилдик жана колдоо

ECG products are designed for quality and reliability. For warranty information and customer support, please refer to the warranty card included with your purchase or visit the official ECG webсайт. Ар кандай кепилдик дооматтары үчүн сатып алганыңыздын далилин сактаңыз.

For further assistance, you may contact ECG customer service through their official channels. Information regarding spare parts availability is not provided in the product details.
