BWE Black Shower Tower Multifunction Shower Panel System Instruction Manual

1. Киришүү

This manual provides detailed instructions for the installation, operation, and maintenance of your BWE Black Shower Tower Multifunction Shower Panel System. Please read this manual thoroughly before installation and use to ensure proper function and longevity of the product.

Сүрөт 1: Бүттүview of the BWE Black Shower Tower Multifunction Shower Panel System.

2. Продукциянын өзгөчөлүктөрү

• Efficient Multifunctional Design: Integrates four functions: overhead rainfall shower, handheld shower, body high-pressure spray jets, and a bathtub spout.
• Туруктуу курулуш: Made from high-quality stainless steel for durability and a modern aesthetic.
• Ыңгайлаштырылган тажрыйба: Features four function adjustment knobs and one temperature adjustment knob for precise control over water flow and temperature.
• Convenient Hand Shower: The handheld shower offers versatility for rinsing shower walls or specific body areas.

Image 2: Diagram illustrating the four primary functions of the shower panel system.

3. Пакеттин мазмуну

Сураныч, орнотууну баштоодон мурун бардык компоненттер бар экендигин текшериңиз:

• Shower Panel Unit (with integrated rainfall head, body jets, and bathtub spout)
• Handheld Shower Wand
• Handheld Shower Bracket
• Душ шланг
• Монтаждоочу клиптер жана бурамалар
• Water Supply Hoses (Hot and Cold)
• Installation Hardware (nuts, washers, plastic tool)

Видео 1: кутудан чыгаруу жана андан ашыкview of included accessories for the shower panel system.

4. Орнотуу боюнча нускамалар

This section outlines the steps for installing the BWE Shower Panel System. Professional installation is recommended if you are unfamiliar with plumbing work.

4.1 Даярдоо

1. Ванна бөлмөңүзгө кирүүчү негизги суу түтүгүн өчүрүңүз.
2. Gather all necessary tools (screwdriver, drill, measuring tape, level, wrench).
3. Бардык компоненттерди таңгактан чыгарып, кандайдыр бир бузулууларды текшериңиз.

4.2 Панелдин Ассамблеясы

1. Мукабаны алып салуу: Twist the six screws on the back of the panel and carefully remove the cover.
2. Connect Rainfall Parts: Connect the rainfall parts and the control panel using screws.
3. Insert Water Inlet: Insert the water inlet of the rainfall parts into the pipe and secure it with screws.
4. Мукабаны кайра орнотуу: Reinstall the cover you just removed, securing it with the six screws.
5. Attach Handheld Shower Bracket: Attach the handheld shower bracket to the designated spot on the panel.

4.3 Дубалга орнотуу

1. Орнотуу жерлерин белгилөө: Hold the shower panel against the wall at the desired height. Use a pencil to mark the locations for the mounting clips. Ensure the marks are level.
2. Бургулоо тешиктери: Drill holes at the marked locations. Insert wall anchors if necessary.
3. Монтаждоочу клиптерди орнотуу: Secure the mounting clips to the wall using screws.

4.4 Суу байланыштары

1. Камсыздоо линияларын туташтыруу: Thread the nuts on the hot and cold water supply lines onto the outlets of the water supply valve. Use the provided yellow plastic tool to tighten, but do not overtighten. Red indicates hot water, blue indicates cold water.
2. Монтаждоо панели: Carefully push and slide the shower panel down onto the installed mounting clips to engage it securely.
3. Кол душун бекитүү: Connect the shower hose to the handheld shower wand and attach it to the bracket.

Video 2: Detailed installation guide for the BWE Shower Panel System.

5. Иштөө нускамалары

Your BWE Shower Panel System offers multiple functions controlled by dedicated knobs.

Image 3: Control knobs for function selection and temperature adjustment.

5.1 Функцияны тандоо

The shower panel features four function adjustment knobs. Each knob typically controls a specific water outlet:

• Жаан-чачын: Activates the overhead rainfall shower head.
• Массаж учактары: Activates the body high-pressure spray jets.
• Колго кармалуучу душ: Activates the flexible handheld shower wand.
• Bathtub Spout: Activates the lower spout for filling a bathtub.

Turn the desired knob to activate the corresponding function. You can often use multiple functions simultaneously, depending on water pressure.

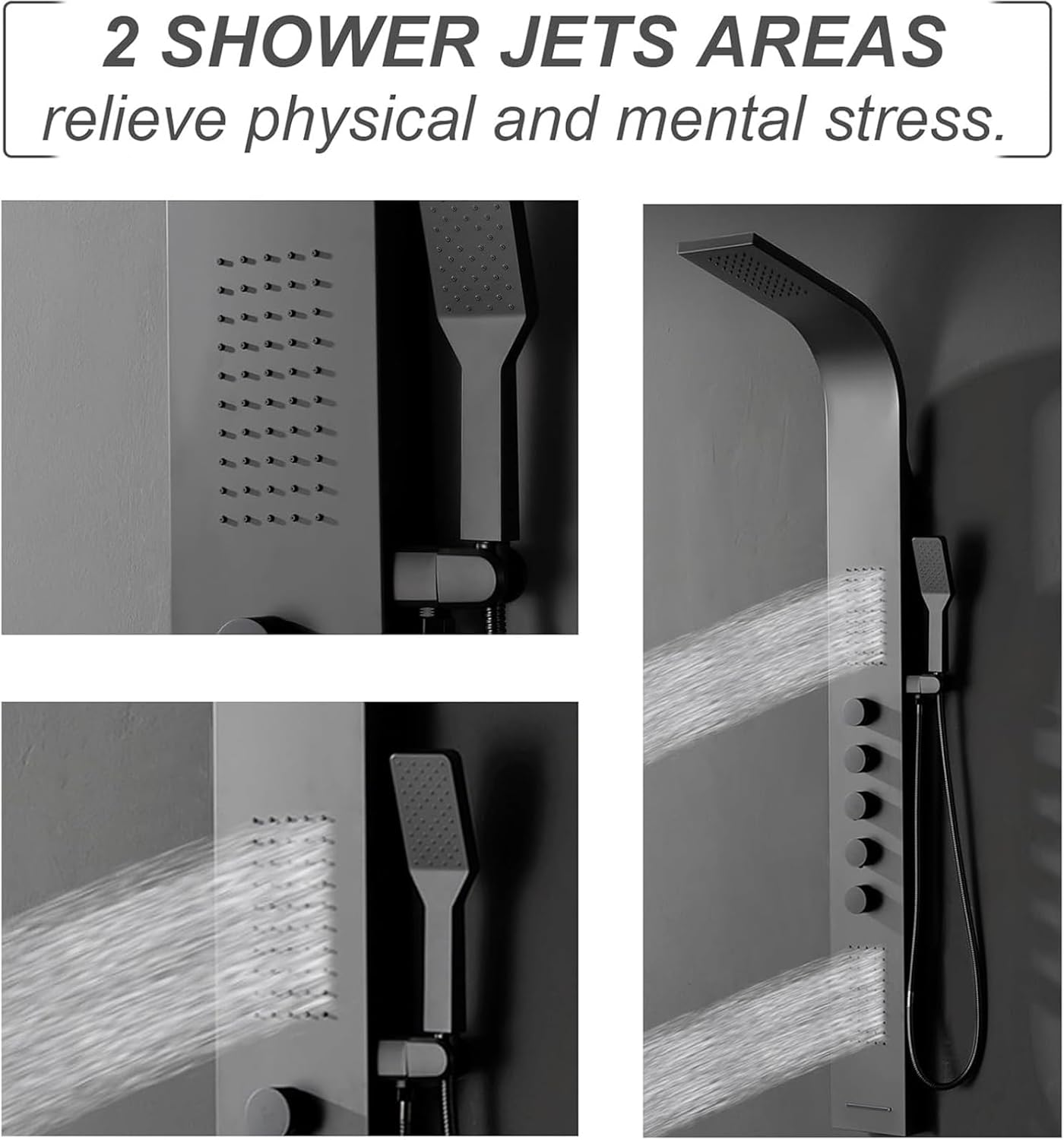

Image 4: The body massage jets in operation.

5.2 Temperature and Flow Control

A separate temperature adjustment knob allows you to control the water temperature. Rotate the knob to adjust between hot and cold water. The flow rate can also be adjusted by the main control knob or by partially opening the function knobs.

6. Техникалык тейлөө

Regular maintenance will help preserve the appearance and functionality of your shower panel system.

• Тазалоо: Clean the stainless steel surfaces regularly with a soft cloth and mild soap or a non-abrasive cleaner specifically designed for stainless steel. Avoid harsh chemicals, abrasive cleaners, or scouring pads, as these can damage the finish.
• Соплолорду тазалоо: Periodically check the silicone nozzles on the rainfall head and body jets for mineral buildup. Gently rub the nozzles with your fingers to dislodge any deposits. For stubborn buildup, a vinegar solution can be used.
• Шланг текшерүү: Inspect the shower hose for any signs of wear, cracks, or leaks. Replace if necessary.
• Filter Screens: If your water supply has high mineral content, consider checking and cleaning any inline filter screens in the water supply connections periodically.

7. Кыйынчылыктарды

Бул жерде кээ бир жалпы маселелер жана алардын мүмкүн болуучу чечимдери:

If you encounter problems not listed here or if the suggested solutions do not resolve the issue, please contact customer support.

8. Техникалык шарттар

Сүрөт 5: орнотуу пландаштыруу үчүн продукт өлчөмдөрү.

9. Кепилдик жана колдоо

For warranty information or technical support, please refer to the product packaging or contact BWE customer service directly. Keep your purchase receipt as proof of purchase.

Байланыш маалыматы: Please visit the official BWE webэң акыркы байланыш маалыматы үчүн сайт.
