1. Киришүү
The Imou ZR1 Smart Indoor Wireless Siren and Chime is designed to enhance your home security system. It functions as an alarm siren and chime, integrating seamlessly with Imou detectors and the Imou Alarm Hub (required, sold separately). When triggered by a connected sensor, the siren emits an 85 dB alarm and can provide visual alerts, effectively deterring intruders and notifying occupants. Its compact design and flexible installation options make it suitable for various indoor environments.
Image: The Imou ZR1 wireless sound and flash alarm siren, designed to better protect your home.
2. Коопсуздук маалыматы
- Колдонуудан мурун бардык нускамаларды кунт коюп окуп чыгыңыз.
- Аппаратты суудан жана нымдан алыс кармаңыз.
- Аппаратты өз алдынча бөлүүгө же оңдоого аракет кылбаңыз. Тейлөө үчүн квалификациялуу кызматкерлерге кайрылыңыз.
- Ensure the device is installed in a stable location to prevent accidental falls.
- Use only the specified power supply (12 Volts) for the device.
- The siren produces a loud sound (85 dB). Avoid prolonged exposure to the sound at close range.
- Бул аппарат үй ичинде колдонуу үчүн гана иштелип чыккан.
3. Пакеттин мазмуну
Сураныч, бардык буюмдар бар экенине ынануу үчүн ачканда пакеттин мазмунун текшериңиз:
- Imou ZR1 Smart Indoor Wireless Siren and Chime Unit
- Монтаждоочу аксессуарлар (бурамалар, дубал сайгычтар)
- Колдонуучунун Колдонмосу (бул документ)
- Power Adapter (if included, otherwise powered by hub)
4. Продукт бүтүп калдыview
Familiarize yourself with the components of your Imou ZR1 siren.
Image: Diagram showing the indicator light, volume adjustment & network access button, and power interface of the Imou ZR1 siren.
- Индикатор жарыгы: Provides status feedback (e.g., pairing mode, alarm active).
- Volume Adjustment & Network Access Button: Used for pairing with the Imou Alarm Hub and adjusting the siren volume.
- Power Interface: Connects to the power adapter for continuous operation.
- Анти-тamper Switch: Triggers an alarm if the device is moved or tampered with after installation.
- Күйгүзүү/өчүрүү баскычы: Аппаратты күйгүзөт же өчүрөт.
Image: Detailed diagram illustrating the LED Indicator, Buzzer, Volume Button, Anti-tamper Switch, On/Off Button, and Power Port.
5. Орнотуу
The Imou ZR1 siren requires an Imou Alarm Hub (sold separately) to function as part of a security system.
Image: The Imou ZR1 siren held in hand, demonstrating its compact size and ease of handling for installation.
5.1 Initial Pairing with Imou Alarm Hub
- Күйгүзүү: Connect the Imou ZR1 siren to a power source using the provided adapter.
- Activate Pairing Mode on Hub: Follow the instructions for your Imou Alarm Hub to put it into pairing mode. This usually involves pressing a button on the hub or initiating it through the Imou Life app.
- Pair Siren: Press and hold the Network Access Button on the Imou ZR1 siren until the indicator light flashes, indicating it's in pairing mode.
- Ырастоо: Once successfully paired, the indicator light on the siren will change (e.g., turn solid green), and the Imou Life app will confirm the addition of the device.
5.2 Сиренаны орнотуу
The ZR1 supports flexible installation, including wall or ceiling mounting.
- Жайгашкан жерди тандоо: Select a central location where the siren's sound can be heard throughout the desired area. Ensure it's within range of your Imou Alarm Hub.
- Бургулоо пункттарын белгилөө: Use the mounting bracket (if applicable) to mark the positions for drilling.
- Бургулоо тешиктери: Drill holes at the marked positions and insert wall plugs if mounting on drywall or masonry.
- Коопсуз кашаа: Attach the mounting bracket to the wall/ceiling using screws.
- Attach Siren: Securely attach the Imou ZR1 siren to the mounting bracket. Ensure the anti-tamper switch is properly engaged if you wish to utilize this feature.
6. Иштөө нускамалары
The Imou ZR1 siren operates primarily in conjunction with the Imou Alarm Hub and connected sensors.
6.1 Alarm Triggering
When any Imou detector (e.g., motion sensor, door/window contact sensor) connected to your Imou Alarm Hub detects an intrusion or specified event, the hub will send a signal to the ZR1 siren, causing it to activate.
Image: Flow diagram illustrating how a message from the Imou Alarm Hub triggers the 85dB alarm on the siren, providing a loud deterrent.
6.2 Үндү тууралоо
The siren's volume can be adjusted through the Imou Life application. Navigate to the device settings for the ZR1 siren within the app to modify the sound level, up to 85 dB.
6.3 Сигнализацияны өчүрүү
The alarm can be disarmed or muted in several ways:
- Via Imou Life App: Use the Imou Life app to disarm the alarm system or mute the siren directly.
- Via Alarm Hub: Some Imou Alarm Hubs may have a physical button to disarm the system.
- Local Mute: The siren may have a button to locally mute the sound, as indicated in the product overview.
Image: Screenshots of the Imou Life app showing Home Mode settings and options to set modes for sensors, which control alarm behavior.
6.4 Билдируулер
The Imou Life app provides real-time notifications when the alarm is triggered or when the device status changes (e.g., low battery). This ensures you are always aware of your home's security status.

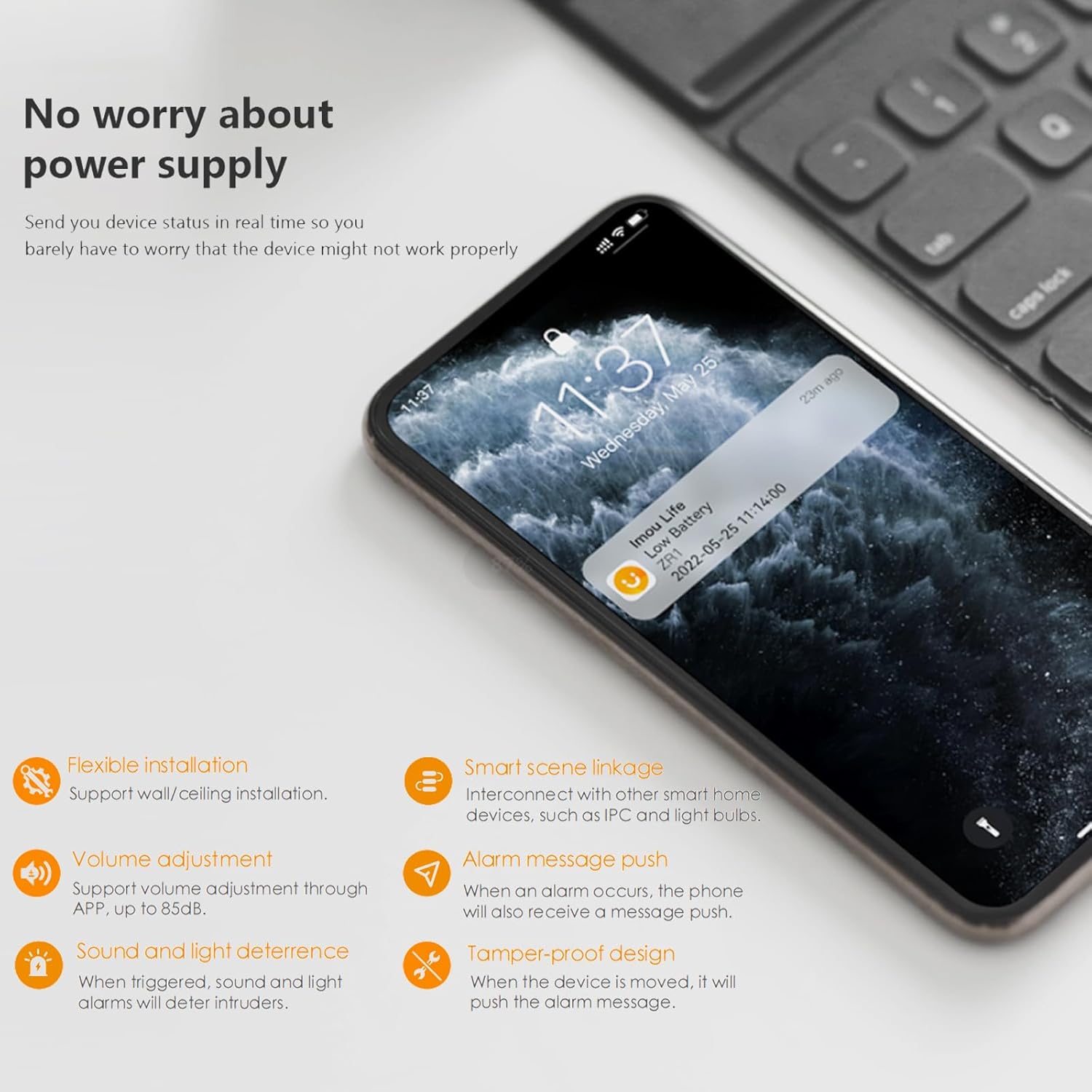

Image: A smartphone displaying an Imou Life app notification for a low battery status on the ZR1 device, ensuring timely awareness of device health.
7. Техникалык тейлөө
The Imou ZR1 siren requires minimal maintenance to ensure optimal performance.
- Тазалоо: Чаңды кетирүү үчүн түзмөктү жумшак, кургак чүпүрөк менен акырын сүртүңүз. Суюк тазалоочу каражаттарды же абразивдүү материалдарды колдонбоңуз.
- Программалык камсыздоонун жаңыртуулары: Periodically check the Imou Life app for available firmware updates for your siren and alarm hub. Keeping the firmware updated ensures the best performance and security.
- Электр камсыздоо: Ensure the siren is continuously powered. The Imou Life app will notify you of any power supply issues or low battery status if applicable.
- Tamper-Proof Check: Occasionally check that the siren is securely mounted and the anti-tamper switch is functioning correctly.
8. Кыйынчылыктарды
If you encounter issues with your Imou ZR1 siren, refer to the following common problems and solutions:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Siren does not sound when alarm is triggered. |
|
|
| Siren indicator light is off. |
|
|
| Cannot pair siren with hub. |
|
|
| Siren triggers unexpectedly. |
|
|
9. Техникалык шарттар
Technical specifications for the Imou ZR1 Smart Indoor Wireless Siren and Chime:
| Өзгөчөлүк | Деталь |
|---|---|
| Модел | ZR1 |
| Бренд | Imou |
| Үн деңгээли | 85 дБ |
| Тtage | 12 вольт |
| Байланыш | Wireless (requires Imou Alarm Hub) |
| Диапазон | Up to 150m (from entry point to alarm device) |
| Өзгөчөлүктөрү | Tamper-proof design, Sound and light deterrence, Real-time notifications, Flexible installation (wall/ceiling) |
| Материал | Flame retardant material on cover |
10. Кепилдик жана колдоо
10.1 Кепилдик маалыматы
Imou products typically come with a limited warranty. Please refer to the warranty card included with your product or visit the official Imou webСиздин аймакка тиешелүү деталдуу кепилдик шарттары жана шарттары үчүн сайт. Сатып алуу квитанциясын кепилдик дооматтары үчүн сатып алуунун далили катары сактаңыз.
10.2 Кардарларды колдоо
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact Imou customer support through one of the following channels:
- Imou Official Webсайт: Visit www.imoulife.com Көп берилүүчү суроолор, колдоо макалалары жана байланыш маалыматы үчүн.
- Imou Life App: The app often includes a support section where you can submit inquiries or find help.
- Электрондук почта колдоо: Refer to the Imou website for the appropriate support email address for your region.
When contacting support, please have your product model (ZR1) and serial number ready.
