PHALANX 3.7V Mini Cordless Rotary Tool Kit

1. Киришүү

This instruction manual provides detailed information on the safe operation, maintenance, and troubleshooting of your PHALANX 3.7V Mini Cordless Rotary Tool Kit (Model: PRT-R3). Please read this manual thoroughly before using the tool to ensure proper function and to prevent injury or damage. This tool is designed for light-duty applications such as sanding, carving, polishing, engraving, and pet grooming.

2. Коопсуздук боюнча маанилүү маалымат

Өрт, электр тогуна урунуу жана жеке жаракат алуу коркунучун азайтуу үчүн электр шаймандарын колдонууда ар дайым негизги коопсуздук чараларын сактаңыз.

• Бардык нускамаларды окуңуз: Куралдын иштеши жана коопсуздук эрежелери менен таанышыңыз.
• Көздү коргоону тагыныңыз: Ар дайым коргоочу көз айнек же каптал калканчтары бар коргоочу көз айнек тагыныңыз.
• Коопсуз жумуш бөлүгү: Ар дайым clamp же башка жол менен иштөө учурунда кыймылга жол бербөө үчүн даярдалган бөлүгүн бекитиңиз.
• Иш аянтын таза кармаңыз: Башаламан жерлер кырсыкка чакырат.
• Кооптуу чөйрөлөрдөн качыңыз: г-да электр куралдарын колдонбоңузamp же нымдуу жерлерде, же аларды жамгырга дуушар кылуу. Жумуш аймагын жакшы жарыктандырыңыз.
• Балдарды алыс кармаңыз: Бардык зыяратчылар жумуш аймагынан коопсуз аралыкта кармалышы керек.
• Туура кийинүү: Бош кийимди же зер буюмдарды кийбеңиз. Узун чачтан турат.
• Use proper accessories: Өндүрүүчүлөр сунуштаган аксессуарларды гана колдонуңуз.
• Disconnect tool: Кандайдыр бир тууралоолорду жасоодон, аксессуарларды алмаштыруудан же аспапты сактоодон мурда аспапты кубат булагынан ажыратыңыз.
• Кокусунан баштоодон сактаныңыз: Батареяны салуудан мурун, өчүргүчтүн "OFF" абалында экенин текшериңиз.
• аша чаап албаңыз: Ар дайым туура бутту жана тең салмактуулукту сактаңыз.
• Этияттык менен куралдарды сактоо: Жакшыраак жана коопсуз иштөө үчүн кесүүчү шаймандарды курч жана таза кармаңыз. Майлоо жана аксессуарларды алмаштыруу боюнча нускамаларды аткарыңыз.
• Бузулган бөлүктөрүн текшериңиз: Аспапты андан ары колдонуудан мурун, анын туура иштешин жана өз милдетин аткарарын аныктоо үчүн бузулган коргоочу же башка бөлүгү кылдаттык менен текшерилиши керек.
• Батарея коопсуздугу: Use only the specified charging cable. Do not expose batteries to extreme temperatures or fire.

3. Пакеттин мазмуну

Пакетти ачканда, төмөндө көрсөтүлгөн нерселердин бардыгы бар экенин жана бузулбаганын текшериңиз:

• PHALANX Mini Cordless Rotary Tool (x1)
• 70 PCS Accessories (various types for grinding, carving, polishing, cutting, sanding, drilling)
• Accessory Storage Bag (x1)
• Type-C Fast Charging Cable (x1)

Image: The PHALANX Mini Cordless Rotary Tool Kit, displaying the main tool, a Type-C charging cable, a wrench, and a wide assortment of 70 accessories including grinding stones, diamond bits, cutting wheels, sanding drums, polishing felts, and drill bits.

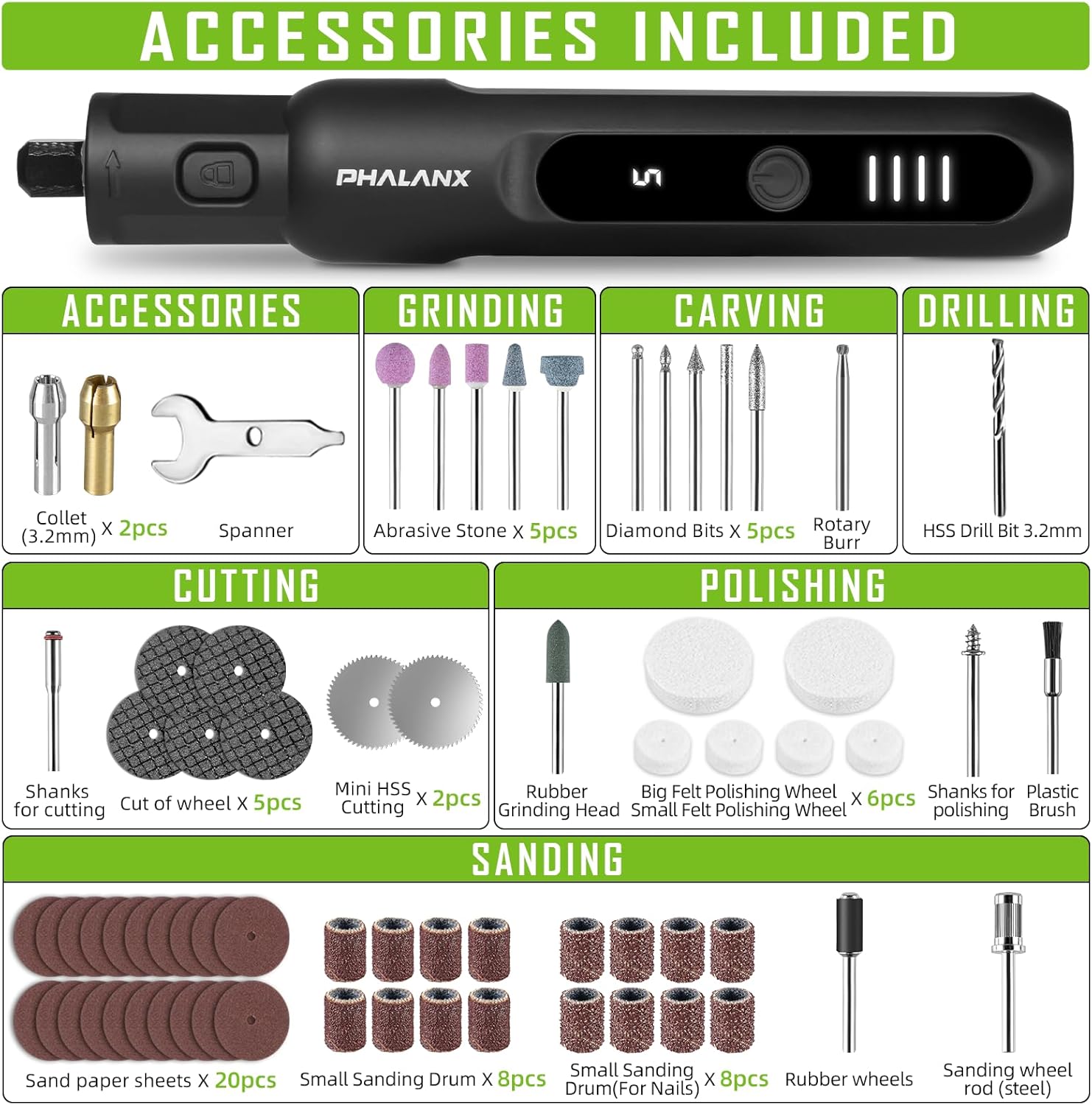

Image: A comprehensive visual guide to the 70 accessories included with the rotary tool. Categories shown are Collet (3.2mm) x2, Spanner x1, Abrasive Stone x5, Diamond Bits x5, Rotary Burr x1, HSS Drill Bit 3.2mm x1, Shanks for cutting x1, Cut of wheel x5, Mini HSS Cutting x2, Rubber Grinding Head x1, Small Felt Polishing Wheel x4, Big Felt Polishing Wheel x2, Shanks for polishing x1, Plastic Brush x1, Sand paper sheets x20, Small Sanding Drum x8, Small Sanding Drum (For Nails) x8, Rubber wheels x1, Sanding wheel rod (steel) x1, and USB Type-C Charging Cable.

4. Продукт бүтүп калдыview

The PHALANX Mini Cordless Rotary Tool is designed for precision work with its pen-like form factor and variable speed control. Key features include:

• Компакт жана жеңил дизайн: Ergonomically designed for comfortable one-handed operation.
• Санариптик дисплей: Shows current speed setting and battery level.
• 5 өзгөрүлмө ылдамдык: Adjustable from 5000 RPM to 20000 RPM for various tasks.
• Power-On Memory Function: Remembers the last used speed setting.
• 360° Full Coverage Working Light: Illuminates the workpiece for improved visibility.
• Non-slip Rubber Grip: Enhances comfort and control during use.
• Type-C заряддоо: Ыңгайлуу жана тез кубаттоо.

Сүрөт: деталдуу view of the rotary tool's control panel. It highlights the ON/OFF button (1), which requires a 1.5-second long press to activate or deactivate. The LED Digital Display (2) shows the current speed setting (e.g., '5') and includes a memory function. The Power Indicator (3) consists of four LED bars, providing a soft light for eye protection and indicating the remaining battery charge.

Image: This image illustrates the core functionalities of the PHALANX 3.7V Cordless Rotary Tool, including its 5-speed regulation, a speed range of 5000-20000 RPM, a power-on memory function that recalls the last speed setting, an LED digital display for speed and battery, and 360-degree full coverage lighting for enhanced visibility during operation.

5. Орнотуу

5.1 Алгачкы заряддоо

Before first use, fully charge the rotary tool. The battery is partially charged from the factory but a full charge is recommended for optimal performance.

1. Connect the provided Type-C charging cable to the charging port at the bottom of the rotary tool.
2. USB кабелинин экинчи учун туура келген USB кубат адаптерине (кошумча эмес) же компьютердин USB портуна туташтырыңыз.
3. The power indicator lights will illuminate and show charging progress. All four bars will be solid when fully charged.

5.2 Кошумча жабдууларды орнотуу/алмаштыруу

Always ensure the tool is turned OFF before installing or changing accessories.

1. Locate the spindle lock button near the chuck. Press and hold this button to lock the spindle.
2. Using the provided spanner wrench, loosen the collet nut by turning it counter-clockwise.
3. Insert the desired accessory shank into the collet. Ensure the shank is fully seated.
4. While still holding the spindle lock button, tighten the collet nut clockwise with the spanner wrench until the accessory is securely held. Do not overtighten.
5. Шпиндельди бекитүү баскычын бошотуңуз.

6. Операция

6.1 Күйгүзүү/өчүрүү

• To turn the tool ON, long press the ON/OFF button for approximately 1.5 seconds. The LED digital display will light up, showing the last used speed setting.
• To turn the tool OFF, long press the ON/OFF button for approximately 1.5 seconds again.

6.2 Ылдамдыкты жөндөө

The tool features 5 variable speed settings, ranging from 5000 RPM to 20000 RPM.

• Once the tool is ON, short press the ON/OFF button to cycle through the 5 speed settings. The digital display will show the current speed level (1-5).
• Select the appropriate speed for your application. Lower speeds are suitable for polishing and delicate work, while higher speeds are for cutting and grinding.

Image: This graphic illustrates the core functionalities of the PHALANX rotary tool, including its 5-speed regulation, a speed range of 5000-20000 RPM, a power-on memory function that recalls the last speed setting, an LED digital display for speed and battery, and 360-degree full coverage lighting for enhanced visibility during operation.

Image: This visual demonstrates the power-on memory function of the PHALANX rotary tool, which automatically remembers the last used speed setting. It also highlights the real-time speed and battery display, providing immediate feedback on the tool's operational status and remaining charge.

6.3 Тиркемелер

The PHALANX Mini Cordless Rotary Tool is versatile and can be used for a variety of tasks with the appropriate accessories:

• Тегиш: Use sanding drums or sandpaper sheets for smoothing surfaces.
• Оймо: Utilize diamond bits or rotary burrs for intricate designs on wood, plastic, or soft metals.
• Жылтыратуу: Apply felt polishing wheels with polishing compound for a high-gloss finish.
• Гравюра: Employ fine diamond bits for detailed engraving on various materials.
• Кесүү: Use mini HSS cutting wheels or cut-off wheels for light cutting tasks.
• Бургулоо: Use HSS drill bits for small holes.
• Pet Grooming: Specifically, for pet nail sanding using appropriate sanding drums.

Image: A collage demonstrating the wide range of applications for the PHALANX rotary tool, including drilling into wood, grinding metal, cutting thin materials, sanding pet nails, carving intricate details, and sanding wood surfaces.

7. Техникалык тейлөө

Үзгүлтүксүз тейлөө сиздин айлануучу куралыңыздын узак мөөнөттүү жана оптималдуу иштешин камсыз кылат.

• Тазалоо: After each use, wipe down the tool with a clean, dry cloth. Use a soft brush to remove dust and debris from vents and the chuck area. Do not use harsh chemicals or abrasive cleaners.
• Аксессуар сактагычы: Store all accessories in the provided storage bag or a suitable container to prevent loss and damage.
• Курал сактагычы: Store the rotary tool in a dry, cool place, away from direct sunlight and out of reach of children.
• Батареяга кам көрүү: For long-term storage, charge the battery to about 50% capacity. Recharge every 3-6 months if not in use to maintain battery health.

8. Кыйынчылыктарды

If you encounter issues with your PHALANX Mini Cordless Rotary Tool, refer to the table below for common problems and solutions.

If the problem persists after attempting these solutions, please contact PHALANX customer support.

9. Техникалык шарттар

10. Кепилдик жана Кардарларды колдоо

PHALANX is committed to providing quality products and customer satisfaction. While specific warranty details are not provided in this manual, most PHALANX products come with a standard manufacturer's warranty covering defects in materials and workmanship.

For warranty claims, technical assistance, or any questions regarding your PHALANX 3.7V Mini Cordless Rotary Tool Kit, please contact PHALANX customer service through the retailer where the product was purchased or visit the official PHALANX webколдоо байланыш маалыматы үчүн сайт.

You are welcome to reach out to PHALANX anytime, a quality after sales team will be at your service.

PHALANX Official Store: Visit PHALANX Store on Amazon
