Маанилүү коопсуздук маалыматы
Please read this manual carefully before assembly and use. Keep this manual for future reference. Failure to follow these instructions could result in serious injury.
- Үч дөңгөлөктүү велосипедди колдонуп жатканда балдарды ар дайым көзөмөлдөп туруңуз.
- Ар бир колдонуудан мурун бардык бөлүктөрдүн бекем бекитилишин текшериңиз.
- Do not use on public roads, near motor vehicles, or on steep inclines.
- Ар дайым тиешелүү коопсуздук шайманын, анын ичинде каска кийиңиз.
- The maximum weight capacity for this tricycle is 44 lbs (20 kg).
- Сунушталган жаш курагы: 12 ай жана андан жогору.
- Чогултуу учурунда кичинекей бөлүктөрүн балдардан алыс кармаңыз.
Продукт бүттүview
The besrey 5-in-1 Toddler Tricycle is a versatile product designed to adapt to your child's growth, transforming from a push tricycle to a balance bike and a traditional tricycle. It features a removable canopy, adjustable seat and handlebars, and a parent steering push handle for enhanced control and comfort.
Figure 1: The besrey 5-in-1 Toddler Tricycle in its primary configuration with canopy and parent push handle.
Five Versatile Modes:
This tricycle offers five distinct modes to support your child's development:
- Folding Mode: Compact for easy storage and transport.
- Balance Bike Mode: Helps develop balance and coordination without pedals.
- Sliding Mode: Allows children to propel themselves with their feet.
- Push Tricycle Mode: Parent-controlled steering with a push handle and footrest.
- Tricycle Mode: Traditional pedal-powered tricycle for independent riding.
Figure 2: Visual representation of the five different configurations: Folding Mode, Balance Bike Mode, Sliding Mode, Push Tricycle Mode, and Tricycle Mode.
Орнотуу жана чогултуу
Assembly of the besrey 5-in-1 Toddler Tricycle is designed to be straightforward. Follow these general steps for initial setup and configuration changes.
Алгачкы Ассамблея:
Most components snap into place. Refer to the video below for a visual guide on assembly and transformation between modes.
Video 1: This video demonstrates the assembly and transformation of the besrey 5-in-1 Kids Tricycle through its various modes, including folding, balance bike, sliding, push tricycle, and standard tricycle configurations.
Adjusting the Parent Steering Push Handle:
The parent push handle is adjustable in height and allows for steering control. It can be adjusted to 4 different heights up to 40.15 inches to accommodate most adults.

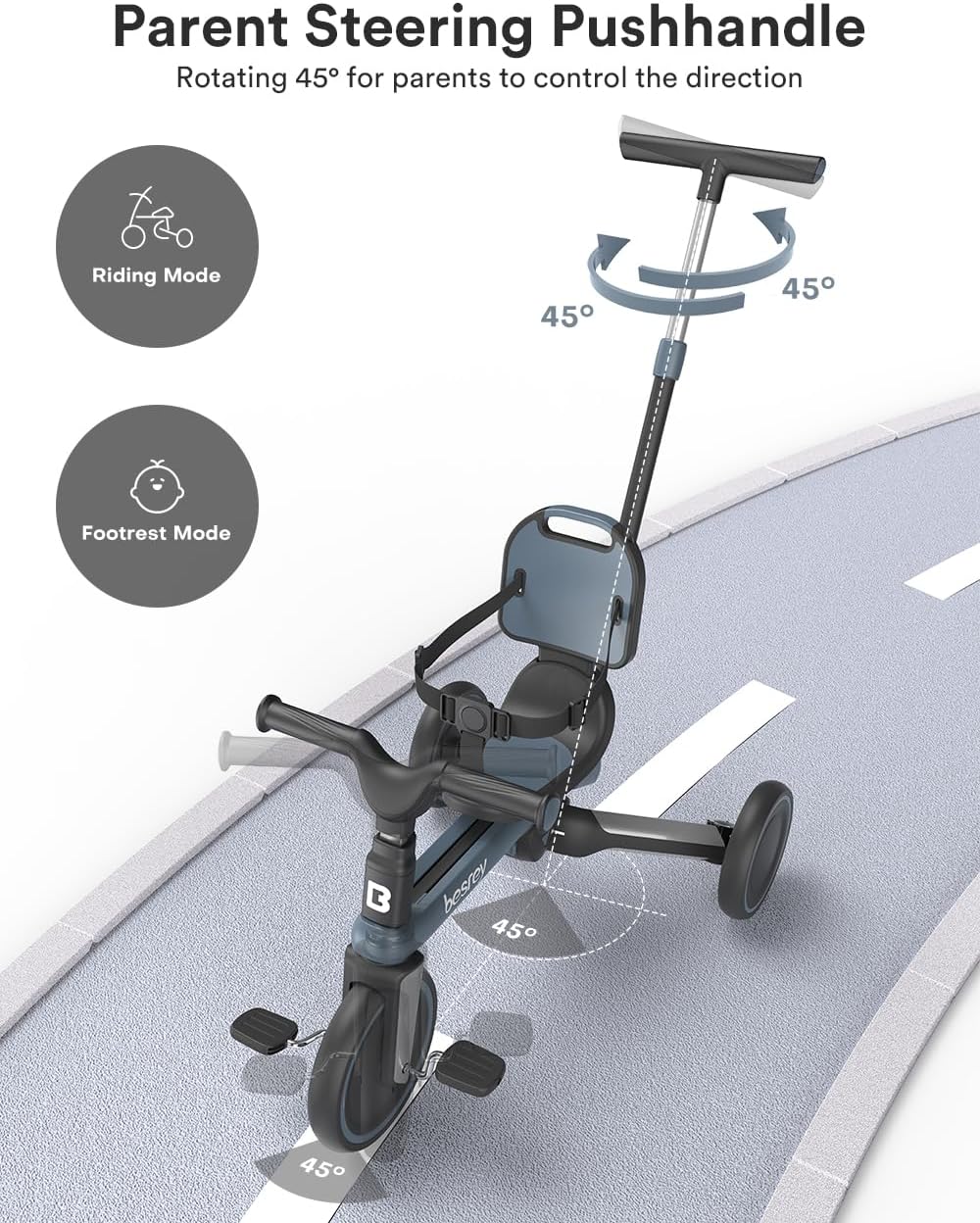

Figure 3: The parent steering push handle can rotate 45 degrees for directional control. It also shows the riding mode and footrest mode.
Figure 4: The push handle can be adjusted to four different heights (36.22 IN, 37.40 IN, 38.97 IN, 40.16 IN) to suit adults of varying heights.
Adjusting Seat and Handlebar:
The seat is 4-level adjustable, allowing it to move freely forward and backward to adapt to your child's growth. The handlebars are also adjustable for optimal height and reach.
Figure 5: The adjustable seat and handlebar can be set to different positions to accommodate children from 12 months to 36 months, ensuring optimal height and reach as they grow.
Иштөө режимдери
Understand how to switch and utilize each of the five modes for your child's development and enjoyment.
Folding Mode:
For convenient storage and transportation, the tricycle can be easily folded with one button. This compact design makes it ideal for travel or small spaces.
Balance Bike Mode (36 Months+):
In this mode, the rear wheels are brought close together, transforming the tricycle into a balance bike. This helps children develop balance and coordination before transitioning to a pedal bike.
Sliding Mode (18 Months+):
The sliding mode allows children to propel themselves using their feet, similar to a scooter. This is an intermediate step to build confidence and leg strength.
Push Tricycle Mode (12 Months+):
Ideal for younger toddlers, this mode utilizes the parent steering push handle. The detachable backrest and footrest provide comfort and safety while the parent guides the tricycle.
Figure 6: The backrest with a securing belt provides enhanced comfort and safety for little ones, especially in push tricycle mode.
Tricycle Mode (24 Months+):
Once your child is ready, the push handle and footrest can be removed, allowing them to pedal independently. This mode encourages self-reliance and further develops motor skills.
Техникалык тейлөө жана кам көрүү
Proper maintenance ensures the longevity and safe operation of your besrey tricycle.
- Тазалоо: Раманы жана пластик бөлүктөрүн жарнама менен сүртүңүзamp кездеме жана жумшак самын. Абразивдүү тазалагычтардан алыс болуңуз.
- Чатырга кам көрүү: The removable water-resistant canopy can be wiped clean. Ensure it is dry before storage to prevent mildew.
- Сактагыч: Store the tricycle in a dry, cool place away from direct sunlight and extreme temperatures. Utilize the folding feature for compact storage.
- Текшерүү: Regularly check all screws, bolts, and fasteners to ensure they are tight. Inspect wheels and moving parts for wear and tear.
- Дөңгөлөктөр: The PU+EVA wear-resistant wheels provide stable and smooth rides on various terrains. Keep them free of debris.
Figure 7: The removable water-resistant canopy effectively resists light rain and sunlight, providing ease of use and protection.
Проблемаларды чечүү
If you encounter any issues with your besrey tricycle, refer to the common problems and solutions below:
| Көйгөй | Мүмкүн себеп | Чечим |
|---|---|---|
| Үч дөңгөлөктүү дөңгөлөк туруксуз же чайпалып турат. | Бош бекиткичтер же туура эмес чогултуу. | Check all screws, bolts, and connections. Ensure components are fully clicked into place. Refer to the assembly video. |
| Parent push handle is difficult to steer. | Handle not fully extended or locked, or child's weight distribution. | Ensure the push handle is fully extended and locked into position. Adjust child's seating if necessary. |
| Педалдар эркин айланбайт же кыймылдабайт. | Pedals not properly attached or in footrest mode. | Ensure pedals are securely attached and the tricycle is in "Tricycle Mode" (not footrest mode). |
| Чатыр бир ордунда турбайт. | Canopy not fully inserted or locked. | Verify the canopy is correctly inserted into its designated slots and secured. |
If the problem persists, please contact besrey customer support for assistance.
Техникалык шарттар
Detailed specifications for the besrey 5-in-1 Toddler Tricycle.
| Өзгөчөлүк | Деталь |
|---|---|
| Продукт модели | B0CJM4BN7H |
| Пакеттин өлчөмдөрү | 23.2 x 11.6 x 7.7 дюйм |
| Элемент Салмагы | 13.67 фунт |
| Өндүрүүчүнүн сунуш кылган курагы | 12 ай жана андан жогору |
| Bearing Weight (Max) | 44 фунт |
| Frame Material | Алюминий эритмеси |
| Дөңгөлөк материалы | PU+EVA |
| Ата-эне туткасын тууралоо | 4 heights, up to 40.15 inches |
| Орундукту тууралоо | 4-level adjustable (forward/backward) |
Figure 8: Detailed dimensions of the besrey 5-in-1 Toddler Tricycle, including product weight and maximum bearing weight.
Кепилдик жана колдоо
besrey is committed to providing high-quality products and excellent customer service.
Кепилдик саясаты: Your besrey 5-in-1 Toddler Tricycle comes with a 24-month after-sales policy, covering manufacturing defects and issues arising from normal use.
Кардарларды колдоо: If you have any questions, concerns, or require assistance with your product, please do not hesitate to contact our dedicated support team. We are always available to assist you promptly.
For contact information, please refer to the product packaging or the official besrey webсайт.
