Lightdot 250W LED High Bay Light (Model LUFO-15) Instruction Manual

1. Киришүү

This manual provides detailed instructions for the safe and efficient installation, operation, and maintenance of your Lightdot 250W LED High Bay Light. Please read this manual thoroughly before installation and retain it for future reference. This product is designed for commercial and industrial applications requiring high-intensity illumination.

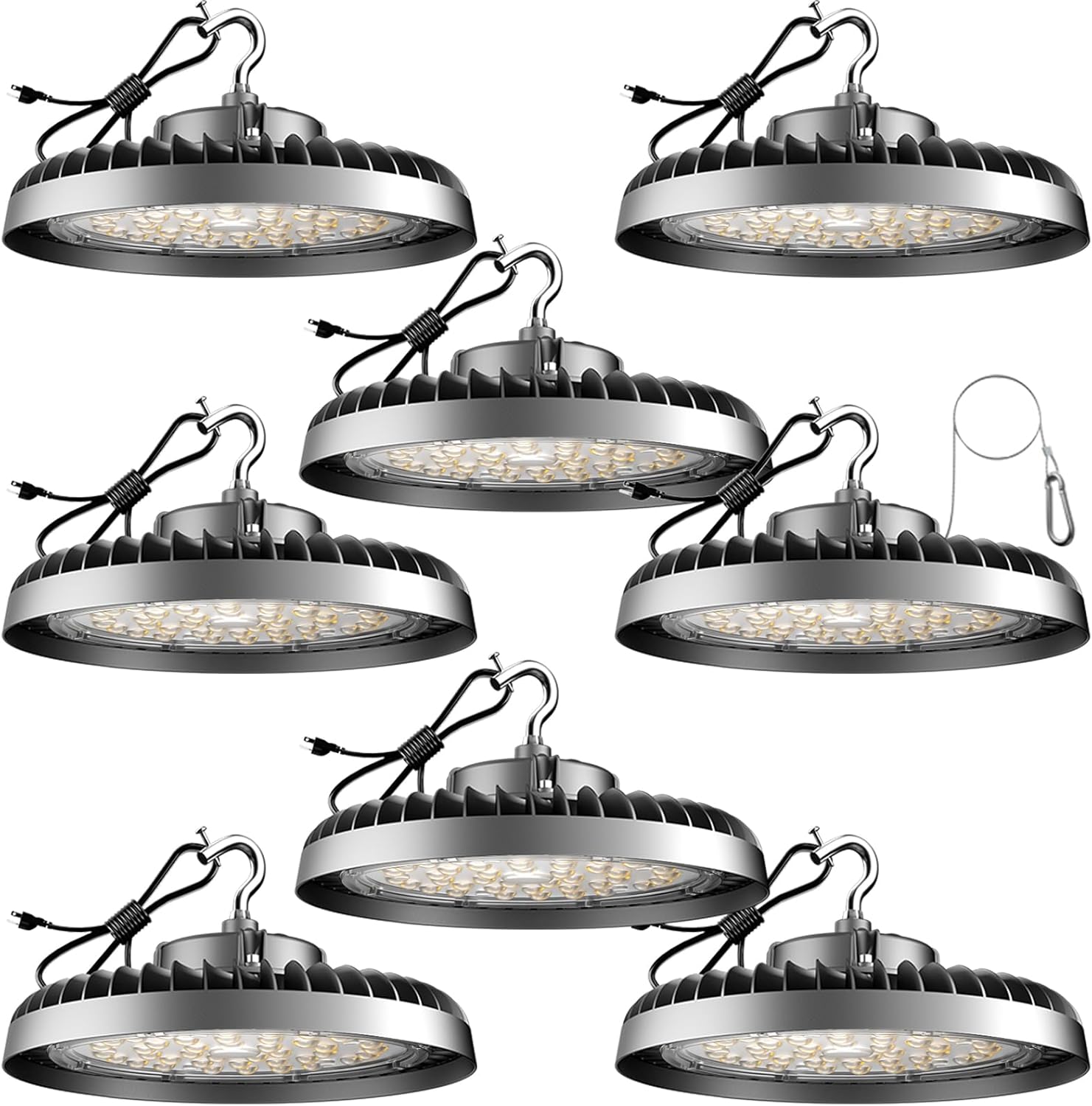

Image 1.1: Lightdot 250W LED High Bay Lights (8-pack).

2. Коопсуздук маалыматы

To prevent personal injury or product damage, always observe basic safety precautions when installing, operating, and maintaining this product. Failure to follow these instructions may result in electric shock, fire, or other hazards.

• Кубатты өчүрүү: Орнотуудан, тейлөөдөн же тазалоодон мурун ар дайым электр энергиясын өчүрүңүз.
• Квалификациялуу кадрларды: Орнотуу улуттук жана жергиликтүү электр эрежелерине ылайык квалификациялуу электрик тарабынан жүргүзүлүшү керек.
• Туура Жерге салуу: Потенциалдуу электрдик коркунучтарды болтурбоо үчүн арматура туура жерге туташтырылганын текшериңиз.
• Тtage Шайкештик: камсыз кылуу том экенин текшериңизtage арматуранын иштөө көлөмүнө шайкеш келетtage (AC100-277V).
• Коопсуз орнотуу: Mount the fixture securely to a structure capable of supporting its weight. Use the provided safety cable.
• Көзгө түз тийүүдөн сактаныңыз: Жарык күйүп турганда LED жарык булагын түз карабаңыз, анткени бул көздүн чыңалуусуна же зыянга алып келиши мүмкүн.
• Иштөө чөйрөсү: This product is designed for indoor use. Do not expose to water or excessive moisture.

3. Пакеттин мазмуну

Verify that all components are present and undamaged upon opening the package. If any items are missing or damaged, contact Lightdot customer support.

• 250W LED High Bay Light (8 units)
• US hooks for hanging mount
• Коопсуздук кабелдери
• Instruction Manual

4. Продукциянын өзгөчөлүктөрү

The Lightdot 250W LED High Bay Light is engineered for high performance and durability in demanding environments.

• Жогорку жарыктык жана энергиянын үнөмдүүлүгү: Delivers 37500 lumens with 250W power consumption, equivalent to a 1000W traditional fixture, offering up to 80% energy savings.
• Optimal Light Quality: Features SMD3030 LEDs with a 5000K daylight color temperature and CRI > 85 for clear, bright illumination.
• Туруктуу курулуш: 100% aluminum integrated housing with a fin design ensures efficient heat dissipation and extends lifespan.
• ETL тастыкталган: Ensures safety and quality standards are met.
• Оңой орнотуу: Comes with a US hook, cable, and 3-pin plug for direct connection to AC100-277V power. Includes a safety wire for added security.
• Узак өмүрү: Designed for over 50,000 hours of continuous use.

Image 4.1: ETL certification and key specifications of the Lightdot High Bay Light.

Сүрөт 4.2: Детальдуу view of the LED array and lens, highlighting energy efficiency.

Image 4.3: Advanced heat dissipation design for extended product life.

5. Техникалык шарттар

6. Орнотуу боюнча нускамалар

Follow these steps for proper installation of your Lightdot LED High Bay Light. Ensure power is disconnected before beginning.

1. Монтаждоо ордун даярдоо: Select a sturdy ceiling or beam capable of supporting the fixture's weight. The recommended installation height is 18-40 feet.
2. Attach G-Hook: Screw the provided G-hook securely onto the top of the lamp.
3. Лamp: Hang lamp onto the ceiling hook or mounting point using the G-hook.
4. Коопсуз коопсуздук арканы: Fix the safety rope correctly to both the fixture and a separate secure point on the ceiling structure. This provides secondary support.
5. Туташуу кубаты: Plug the 3-pin US plug into a compatible AC100-277V power outlet.

Сүрөт 6.1: Бүттүview of the easy plug-and-play installation.

Image 6.2: Step-by-step visual guide for installation.

Image 6.3: Various mounting options, with the G-hook being the recommended method.

Image 6.4: Recommended installation heights and light coverage.

7. Иштөө нускамалары

Operating the Lightdot LED High Bay Light is straightforward once installed.

1. Күйгүзүү: Ensure the fixture is securely installed and plugged into a compatible power source. Turn on the power switch connected to the fixture.
2. Өчүрүү: To turn off the light, simply switch off the power supply connected to the fixture.

The fixture does not feature integrated controls; operation is managed via the external power switch.

8. Техникалык тейлөө

Regular maintenance ensures optimal performance and longevity of your LED High Bay Light.

• Тазалоо: Periodically clean the exterior of the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents. Ensure power is off before cleaning.
• Текшерүү: Annually inspect the mounting hardware, wiring, and safety cable for any signs of wear, damage, or corrosion. Tighten any loose connections.
• Колдонуучу тейлей турган бөлүктөр жок: The LED light source and driver are not user-serviceable. Do not attempt to open or repair the fixture. Contact qualified personnel for any issues.

9. Кыйынчылыктарды

If you encounter issues with your Lightdot LED High Bay Light, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact Lightdot customer support.

10. Кепилдик жана колдоо

Lightdot provides a 5-year unconditional quality support promise for this product, ensuring stable and durable performance for over 50,000 hours. For any issues or inquiries, please contact our 24-hour full-time after-sales service.

Кошумча коргоо пландары сатып алуу үчүн жеткиликтүү болушу мүмкүн:

• 4 жылдык коргоо планы
• Толук коргоо: Бир план бардык жарамдуу өткөн жана келечектеги сатып алууларды камтыйт

For further assistance, visit the official Lightdot Store: Lightdot Store
